Parts for G5963 - 6" x 12" Surface Grinder with Stand

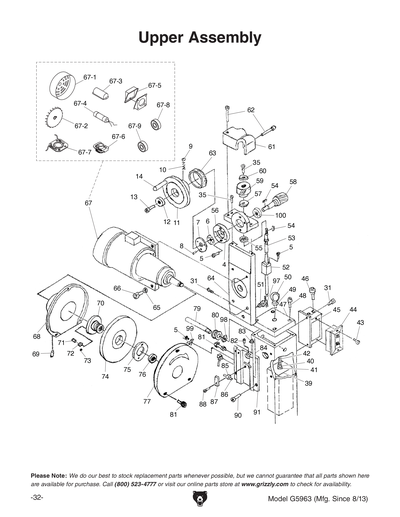

Part Diagram for G5963

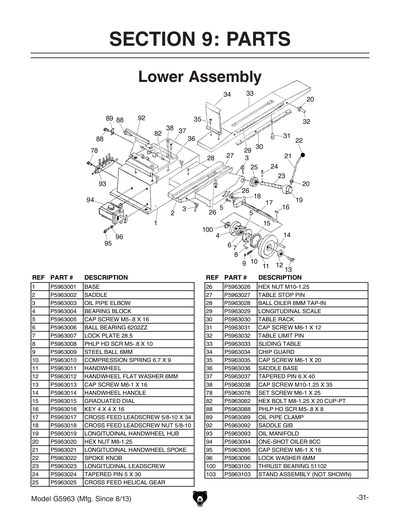

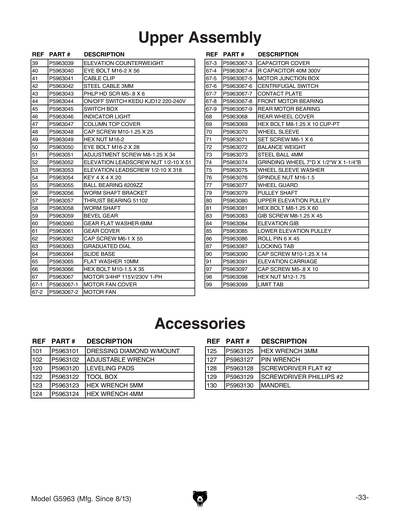

Part Diagram for G5963

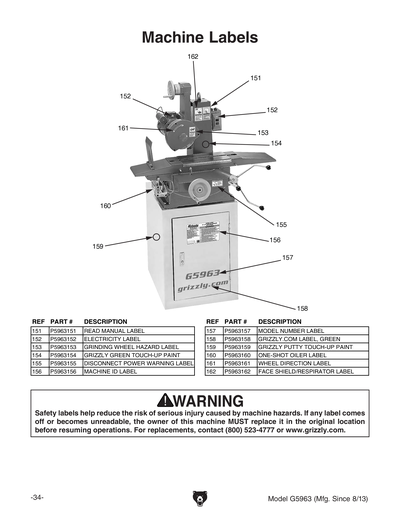

Part Diagram for G5963
Part Diagram for G5963
Part Diagram for G5963
Part Diagram for G5963
Part Diagram for G5963
Part Diagram for G5963

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BASE
Price
$840.95
2
SADDLE
Price
$646.90
3
OIL PIPE ELBOW
Price
$8.95
4
BEARING BLOCK
Price
$38.85
5
CAP SCREW M5-.8 X 16
Price
N/A
7
LOCK PLATE 28.5
Price
$6.50
8
PHLP HD SCR M5-.8 X 10
Price
N/A
9
STEEL BALL 6MM
Price
N/A
10
COMPRESSION SPRING 6.7 X 9
Price
$1.80
11
HANDWHEEL
Price
$37.10
12
DOCK WASHER 6MM
Price
$5.45
13
CAP SCREW M6-1 X 16
Price
N/A
14
HANDWHEEL HANDLE
Price
$14.35
15
GRADUATED DIAL
Price
$25.90
16
KEY 4 X 4 X 16
Price
N/A
17
CROSS FEED LEADSCREW 5/8-10 X 34
Price
$108.75
18
CROSS FEED LEADSCREW NUT 5/8-10
Price
$202.85
19
LONGITUDINAL HANDWHEEL HUB
Price
$15.15
20
HEX NUT M8-1.25
Price
N/A
21
LONGITUDINAL HANDWHEEL SPOKE
Price
$18.00
22
SPOKE KNOB
Price
$2.20
23
LONGITUDINAL LEADSCREW
Price
$32.45
24
TAPERED PIN 5 X 30
Price
$2.25
25
CROSS FEED HELICAL GEAR
Price
$56.10
26
HEX NUT M10-1.25
Price
N/A
27
TABLE STOP PIN
Price
$3.65
28
BALL OILER 8MM PRESS-IN
Price
N/A
29
LONGITUDINAL SCALE
Price
$4.35
30
TABLE RACK
Price
$51.75
31
CAP SCREW M6-1 X 12
Price
N/A
32
TABLE LIMIT PIN
Price
$3.60
33
SLIDING TABLE
Price
$668.45
34
CHIP GUARD
Price
$31.35
35
CAP SCREW M6-1 X 20
Price
N/A
36
SADDLE BASE
Price
$325.65
37
TAPERED PIN 6 X 40
Price
$1.90
38
CAP SCREW M10-1.25 X 35
Price
N/A
39
ELEVATION COUNTERWEIGHT
Price
$189.75
40
EYE BOLT M16-2 X 56
Price
$11.65
41
CABLE CLIP
Price
$1.90
42
STEEL CABLE 3MM
Price
$13.70
43
PHLP HD SCR M5-.8 X 6
Price
N/A
44
ON/OFF SWITCH 110V/220V
Price
$15.15
44V2
ON/OFF SWITCH V2.2008
Price
$15.15
45
SWITCH BOX
Price
$8.65
46
POWER INDICATOR LIGHT GREEN V2
Price
N/A
46V2
POWER INDICATOR LIGHT GREEN V2
Price
$30.20
47
COLUMN TOP COVER
Price
$28.10
48
CAP SCREW M10-1.25 X 25
Price
N/A
49
HEX NUT M16-2
Price
N/A
50
EYE BOLT M16-2 X 28
Price
$9.75
51
ADJUSTMENT SCREW M8-1.25 X 34
Price
$6.50
52
ELEVATION LEADSCREW NUT 1/2-10 X 51
Price
$138.00
53
ELEVATION LEADSCREW 1/2-10 X 318
Price
$103.50
54
KEY 4 X 4 X 20
Price
N/A
55
BALL BEARING 6209ZZ
Price
N/A
56
WORM SHAFT BRACKET
Price
$66.90
58
WORM SHAFT
Price
$104.40
59
BEVEL GEAR
Price
$118.65
60
FLAT WASHER 6MM
Price
N/A
61
GEAR COVER
Price
$30.20
62
CAP SCREW M6-1 X 55
Price
N/A
63
GRADUATED DIAL
Price
$24.45
64
SLIDE BASE
Price
$284.65
65
FLAT WASHER 10MM
Price
N/A
66
HEX BOLT M10-1.5 X 35
Price
N/A
67
MOTOR 3/4HP 110V/220V 1-PH
Price
$664.00
67-1
MOTOR FAN COVER
Price
$27.00
67-2
MOTOR FAN
Price
$10.85
67-3
CAPACITOR COVER
Price
$8.95
67-4
R CAPACITOR 40M 300V 2 X 4
Price
N/A
67-5
MOTOR JUNCTION BOX
Price
$20.90
67-6
CENTRIFUGAL SWITCH
Price
$21.60
67-7
CONTACT PLATE
Price
$10.85
67-8
FRONT MOTOR BEARING
Price
$13.70
67-9
REAR MOTOR BEARING
Price
$8.65
68
*DISCD*REAR WHEEL COVER
Price
$43.15
69
HEX BOLT M8-1.25 X 10 CUP-PT
Price
$1.80
70
WHEEL SLEEVE
Price
$104.35
71
SET SCREW M6-1 X 6
Price
N/A
72
BALANCE WEIGHT
Price
$18.00
73
STEEL BALL 4MM
Price
N/A
74
GRINDING WHEEL 7"D X 1/2"W X 1-1/4"B
Price
$53.95
75
WHEEL SLEEVE WASHER
Price
$47.15
76
SPINDLE NUT M16-1.5
Price
$22.35
77
WHEEL GUARD
Price
$58.25
78
SET SCREW M6-1 X 25
Price
N/A
79
PULLEY SHAFT
Price
$10.85
80
UPPER ELEVATION PULLEY
Price
$12.95
81
HEX BOLT M8-1.25 X 60
Price
N/A
82
*DISCD*HEX BOLT M8-1.25 X 20 CUP-PT
Item is no longer available
Price
N/A
83
GIB SCREW M8-1.25 X 45
Price
$9.75
84
ELEVATION GIB
Price
$25.90
85
LOWER ELEVATION PULLEY
Price
$8.65
86
ROLL PIN 6 X 45
Price
N/A
87
LOCKING TAB
Price
$2.20
88
PHLP HD SCR M5-.8 X 8
Price
N/A
89
OIL PIPE CLAMP
Price
$4.35
90
CAP SCREW M10-1.25 X 14
Price
N/A
91
ELEVATION CARRIAGE
Price
$249.85
92
SADDLE GIB
Price
$37.75
93
OIL MANIFOLD
Price
$43.15
93-1
BRASS FITTING FOR OIL MANIFOLD
Price
$26.75
94
ONE-SHOT OILER 8CC
Price
$301.90
95
CAP SCREW M6-1 X 16
Price
N/A
96
LOCK WASHER 6MM
Price
N/A
97
CAP SCREW M5-.8 X 10
Price
N/A
98
HEX NUT M12-1.75
Price
N/A
99
LIMIT TAB
Price
$2.20
101
DRESSING DIAMOND W/MOUNT
Price
$139.05
102
ADJUSTABLE WRENCH
Price
$8.65
103
COMPLETE STAND ASSY BOX 2
Price
$517.50
104
HEX BOLT M12-1.75 X 70
Price
N/A
105
FLAT WASHER 12MM
Price
N/A
106
HEX NUT M12-1.75
Price
N/A
107
*DISCD*CABINET
Item is no longer available
Price
N/A
108
*DISCD*CABINET DOOR
Item is no longer available
Price
N/A
109
*DISCD*CABINET LATCH
Item is no longer available
Price
N/A
110
LOCK WASHER 4MM
Price
N/A
111
LOCK WASHER 4MM
Price
N/A
112
PHLP HD SCR M4-.7 X 8
Price
N/A
114
PHLP HD SCR M4-.7 X 6
Price
N/A
115
FLAT WASHER 4MM
Price
N/A
116
*DISCD*CABINET SHELF
Price
$36.80
117
FLAT WASHER 14MM
Price
N/A
118
HEX NUT M12-1.75
Price
N/A
119
*DISCD*BOLT M12-1.75 X 70
Item is no longer available
Price
N/A
120
LEVELING PAD
Price
$11.90
121
*DISCD*DRESSING DIAMOND W/MOUNT
Item is no longer available
Price
N/A
121-1
*DISCD*MOUNT
Item is no longer available
Price
N/A
121-2
*DISCD*DRESSING DIAMOND
Item is no longer available
Price
N/A
122
TOOL BOX
Price
$47.45
123
HEX WRENCH 5MM
Price
N/A
124
HEX WRENCH 4MM
Price
N/A
125
HEX WRENCH 3MM
Price
N/A
126
*DISCD*SLOTTED WRENCH
Price
$14.40
127
PIN WRENCH
Price
$22.35
130
MANDREL
Price
$127.65
131
*DISCD*ADJUSTABLE WRENCH 6"
Item is no longer available
Price
N/A
132
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
151
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
152
ELECTRICITY 0.5W X 0.4H
Price
N/A
153
GRINDING WHEEL HAZARD LABEL
Price
$5.95
154
N/S GRIZZLY GREEN G1023S
Price
N/A
155
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
156
MACHINE ID LABEL
Price
$16.40
157
MODEL NUMBER LABEL
Price
$5.00
158
GRIZZLY.COM LABEL 8.625",GREEN
Price
N/A
159
GREY PUTTY REF G0504
Price
N/A
160
ONE-SHOT OILER LABEL
Price
$2.50
161
WHEEL DIRECTION LABEL
Price
$2.50
162
FACE SHIELD/RESPIRATOR 2W X 3.3H
Price
N/A
MANUAL
MANUAL G5963 V1.02.00
Price
$14.65
MANV2
MANUAL G5963 MFG-08.13 V2.09.13
Price
$14.65
