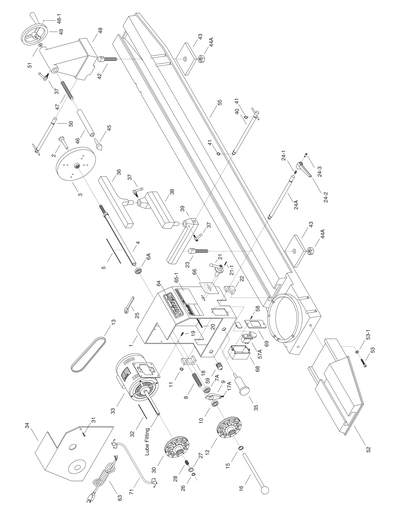

Parts for G5979 12" x 35-1/2" Swivel Head Wood Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
HEADSTOCK
1A
*DISCD*COMPLETE HEADSTOCK
Item is no longer available
Price
N/A
2
*DISCD*DRIVING CENTER
3
DISC
4
SPINDLE
Item is no longer available
Price
N/A
4A
*DISCD*INDEXING RING
Item is no longer available
Price
N/A
5
Now: PK18M
KEY 4 X 4 X 82
Price
N/A
6
BALL BEARING 6205ZZ
Price
N/A
6A
BALL BEARING 6205ZZ
Price
N/A
7
BALL BEARING 6205ZZ
Price
N/A
7A
BALL BEARING 6205ZZ
Price
N/A
8
SPRING
9
BRACKET SHIFTING LEVER V2.07.03
9A
BRACKET SHIFTING LEVER V1.06.98
10
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
11
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
12
SPINDLE PULLEY SET R & L
Price
N/A
12A
SPINDLE PULLEY SET R & L
13
Now: PVM24
V-BELT M24 3L240
Price
N/A
14
SPINDLE PULLEY SET R & L
Price
N/A
15
C-RING
16
PIN-INJECTION
Item is no longer available
Price
N/A
17
Now: PN03M
HEX NUT M8-1.25
Price
N/A
17A
LOCK NUT M12-1.75
Price
N/A
18
CLAMP LEFT
19
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
20
RACK
21
GEAR ASSEMBLY
21-1
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
22
CLAMP RIGHT
23
HEX SOC HD CAP SCR M8
24
KNOB
24-1
SPRING
24-2
LOCK HANDLE
24-3
LOCK HANDLE CAP SCREW
24-4
SHAFT
24A
SHAFT
Price
N/A
25
WRENCH
Item is no longer available
Price
N/A
25A
*DISCD*HEX WRENCH FOR SPINDLE
Item is no longer available
Price
N/A
26
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
27
SLEEVE
28
SPRING
29
MOTOR PULLEY SET L & R
Price
N/A
30
MOTOR PULLEY SET L & R
Price
N/A
30A
MOTOR PULLEY SET L & R
31
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
32
Now: PK18M
KEY 4 X 4 X 82
Price
N/A
33
MOTOR 1/2HP 110V 1-PH
Item is no longer available
Price
N/A
33-1
*DISCD*NAME PLATE FOR MOTOR
Item is no longer available
Price
N/A
33-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
33-3
END BELL W/FOOT
33-4
MOTOR FAN COVER V1.02.03
33-4A
MOTOR FAN V2.04.04
34
*DISCD*MOTOR COVER
Item is no longer available
Price
N/A
35
ANGULAR SETTING ASSEMBLY
36
TOOL REST
37
HANDLE ASSY M10-1.5 X 15
Price
N/A
37A
HANDLE ASSY FOR TAILSTOCK
Item is no longer available
Price
N/A
38
EXTENSION TOOL REST
39
TOOL REST BODY
39A
COMPLETE TOOL REST BODY
40
ECCENTRIC ROD
41
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
42
BOLT M18
43
CLAMP
44
HEX NUT M18
44A
Now: PN29M
HEX NUT M18-2.5
Price
N/A
45
CENTER
46
TAIL SPINDLE
47
TAILSTOCK SCREW
48
TAILSTOCK
48-1
SET SCREW M6-1 X 20
Price
N/A
48A
COMPLETE TAILSTOCK
49
*DISCD*HAND WHEEL
Price
N/A
49A
*DISCD*HANDLE
Price
N/A
50
LOCK HANDLE TAILSTOCK
51
HANDWHEEL WASHER
52
EXTENSION BED 8MM V1
52V2
EXTENSION BED 10MM V2.08.12
Item is no longer available
Price
N/A
53
CAP SCREW M10-1.5 X 25
Price
N/A
53-1
LOCK WASHER 10MM
Price
N/A
54
*DISCD*STAND ASSY
Item is no longer available
Price
N/A

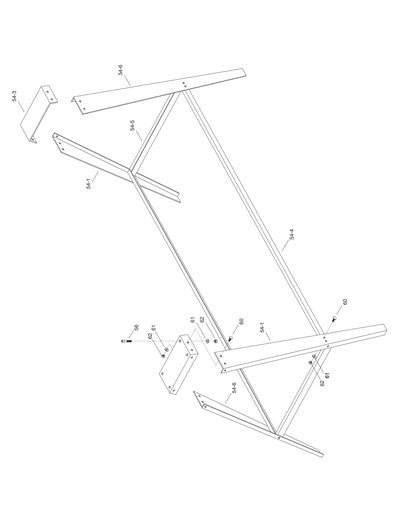

54-1
STAND LEG, LEFT
54-2
STAND LEG, RIGHT
54-3
STAND UPPER COVER
54-4
STAND LONG-CROSS SUPPORT
54-5
STAND SHORT-CROSS SUPPORT
54-6
STAND LEG, RIGHT
Price
N/A
55
BED
55A
INDEXING RING FOR HEADSTOCK
Item is no longer available
Price
N/A
56
CAP SCREW M8-1.25 X 16
Price
N/A
57
*DISCD*POWER SWITCH
Price
N/A
57A
Now: G8988
Safety Paddle Switch
Price
N/A
58
Now: PS21M
PHLP HD SCR M4-.7 X 15
Price
N/A
59
PLASTIC JAM NUT M20 X 1.5
60
CARRIAGE BOLT M8-1.25 X 10
Price
N/A
61
Now: PW01M
FLAT WASHER 8MM
Price
N/A
62
Now: PN03M
HEX NUT M8-1.25
Price
N/A
63
POWER CORD 16G X 3W 73"L
Price
N/A
64
LOGO LABEL
Item is no longer available
Price
N/A
65
WARNING LABEL
65-1
GRIZZLY ID/WARNING
Item is no longer available
Price
N/A
66
SPEED LABEL
67
BOLT BAG M8
Item is no longer available
Price
N/A
68
SWITCH BOX
69
SWITCH FIXING PLATE
71
POWER CORD 16G X 3W 24"L
Price
N/A
MANUAL
MANUAL FOR G5979 02/02
