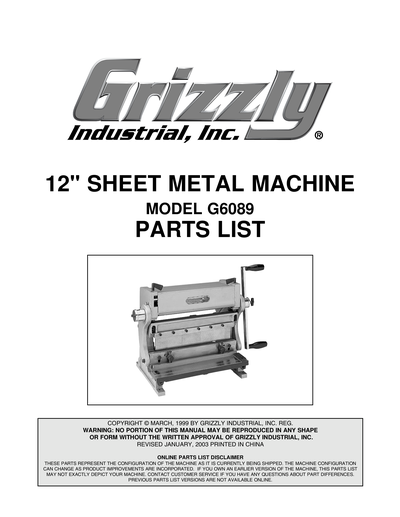

Parts for G6089 - Sheet Metal Machine - 12"

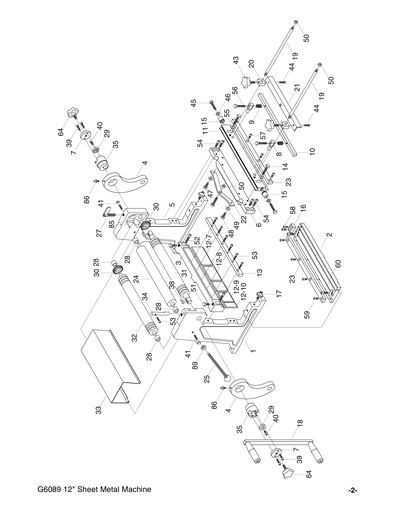

Part Diagram for G6089
Part Diagram for G6089
Part Diagram for G6089
Part Diagram for G6089
Part Diagram for G6089
Part Diagram for G6089

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

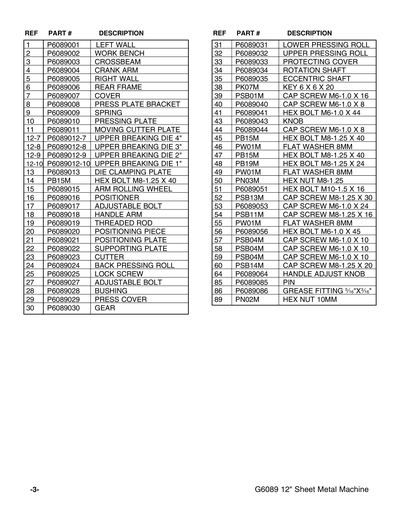

Ref #
Part #
Description
1
*DISCD*LEFT WALL V1.08.98
Item is no longer available
Price
N/A
1A
WALL LEFT V2.12.06
Item is no longer available
Price
N/A
2
CUTTING TABLE
Price
$37.70
3
*DISCD*CROSSBEAM
Price
$47.85
4
CRANK ARM
Price
$25.05
5
*DISCD*WALL RIGHT V2.03.99
Item is no longer available
Price
N/A
6
*DISCD*REAR FRAME
Price
$39.60
7
COVER
Price
$7.50
8
PRESS PLATE BRACKET
Price
$7.50
9
*DISCD*SPRING
Price
$1.90
10
PRESSING PLATE
Price
$12.65
11
*DISCD*MOVING CUTTER PLATE
Price
$39.60
12-1
*DISCD*UPPER BREAKING DIE
Item is no longer available
Price
N/A
12-10
*DISCD*UPPER BREAKING DIE 1"
Price
$9.40
12-2
*DISCD*UPPER BREAKING DIE
Item is no longer available
Price
N/A
12-3
*DISCD*UPPER BREAKING DIE
Item is no longer available
Price
N/A
12-4
*DISCD*BREAKING DIE 1/2"
Item is no longer available
Price
N/A
12-5
*DISCD*BREAKING DIE 1/4"
Item is no longer available
Price
N/A
12-6
*DISCD*BREAKING DIE 3/8"
Item is no longer available
Price
N/A
12-7
*DISCD*UPPER BREAKING DIE 4"
Price
$16.20
12-8
*DISCD*UPPER BREAKING DIE 3"
Price
$11.20
12-9
UPPER BREAKING DIE 2"
Price
$6.05
1210
*DISCD*UPPER BREAKING DIE 1"
Price
N/A
127
*DISCD*UPPER BREAKING DIE 4"
Price
N/A
128
*DISCD*UPPER BREAKING DIE 3"
Price
N/A
129
UPPER BREAKING DIE 2"
Price
N/A
13
DIE PRESSING PLATE
Price
$15.85
14
HEX BOLT M8-1.25 X 40
Price
N/A
15
ROLLING WHEEL
Price
$2.05
16
GUIDE
Price
$3.45
17
ADJUSTABLE BOLT
Price
$3.45
18
HANDLE BAR ASSEMBLY
Item is no longer available
Price
N/A
18-1
HANDLE BAR
Price
$30.80
19
THREADED ROD
Price
$7.50
20
*DISCD*POSITIONER
Price
$4.35
21
*DISCD*POSITIONING PLATE
Price
$4.35
22
SUPPORTING PLATE
Item is no longer available
Price
N/A
23
*DISCD*BLADE
Price
$16.20
24
BACK PRESSING ROLL
Item is no longer available
Price
N/A
25
SCREW
Price
$3.45
26
HANDLE KNOB
Item is no longer available
Price
N/A
27
ADJUSTABLE BOLT
Price
$1.49
28
ROLL BUSHINGS
Price
$1.49
29
PRESS COVER
Item is no longer available
Price
N/A
30
GEAR
Price
$9.50
31
PRESSING ROLL LOWER
Price
$22.45
32
UPPER PRESSING ROLL
Item is no longer available
Price
N/A
33
COVER
Price
$12.95
34
PRESSING ROLL LOCK
Price
$3.75
35
SHAFT
Price
$9.50
36
*DISCD*WASHER
Item is no longer available
Price
N/A
37
*DISCD*JACKET
Item is no longer available
Price
N/A
38
KEY 6 X 6 X 20
Price
N/A
39
CAP SCREW M6-1 X 16
Price
N/A
40
CAP SCREW M6-1 X 8
Price
N/A
41
HEX BOLT M6-1 X 8
Price
N/A
42
CAP SCREW M6-1 X 8
Price
N/A
43
KNOB
Price
$3.45
44
HEX BOLT M6-1 X 8
Price
N/A
45
HEX BOLT M8-1.25 X 40
Price
N/A
46
FLAT WASHER 8MM
Price
N/A
47
HEX BOLT M8-1.25 X 40
Price
N/A
48
HEX BOLT M8-1.25 X 24
Price
N/A
49
FLAT WASHER 8MM
Price
N/A
50
HEX NUT M8-1.25
Price
N/A
51
HEX BOLT M10-1.5 X 16
Price
N/A
52
CAP SCREW M8-1.25 X 30
Price
N/A
53
CAP SCREW M6-1 X 24
Price
N/A
54
CAP SCREW M8-1.25 X 16
Price
N/A
55
FLAT WASHER 8MM
Price
N/A
56
HEX BOLT M6-1 X 45
Price
N/A
57
CAP SCREW M6-1 X 10
Price
N/A
58
CAP SCREW M6-1 X 10
Price
N/A
59
CAP SCREW M6-1 X 10
Price
N/A
60
CAP SCREW M8-1.25 X 20
Price
N/A
61
FLAT WASHER 6MM
Price
N/A
62
HEX WRENCH 5MM
Price
N/A
63
HEX WRENCH 6MM
Price
N/A
64
HANDLE ADJUSTING KNOB
Price
$3.75
85
*DISCD*PIN
Item is no longer available
Price
N/A
86
GREASE FITTING 5/16 X 3/16"
Price
$1.49
89
HEX NUT M10-1.5
Price
N/A
MANUAL
MANUAL FOR G6089 01/03
Price
$14.65
