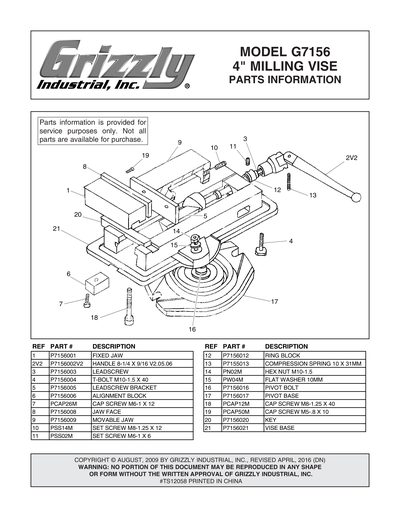

Parts for G7156 Premium Milling Vise - 4"

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
FIXED JAW
2
HANDLE 7 X 1/2 V1
2A
*DISCD*HANDLE 8-1/4 X 9/16 V2
Price
N/A
2V2
*DISCD*HANDLE 8-1/4 X 9/16 V2
3
LEADSCREW
4
T-BOLT M10-1.5 X 40
5
LEADSCREW BRACKET
6
ALIGNMENT BLOCK
7
CAP SCREW M6-1 X 12
Price
N/A
8
JAW FACE
9
MOVABLE JAW
10
SET SCREW M8-1.25 X 12
Price
N/A
11
SET SCREW M6-1 X 6
Price
N/A
12
RING BLOCK
13
SOLID PIN 35 X 8MM
Price
N/A
14
Now: PN02M
HEX NUT M10-1.5
Price
N/A
15
Now: PW04M
FLAT WASHER 10MM
Price
N/A
16
PIVOT BOLT
17
PIVOT BASE
18
CAP SCREW M8-1.25 X 40
Price
N/A
19
CAP SCREW M5-.8 X 10
Price
N/A
20
KEY 8 X 10 X 34
Price
N/A
21
VISE BASE
