Parts for G7214Z - 7-1/2 HP 3-Phase Spindle Shaper

Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z
Part Diagram for G7214Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

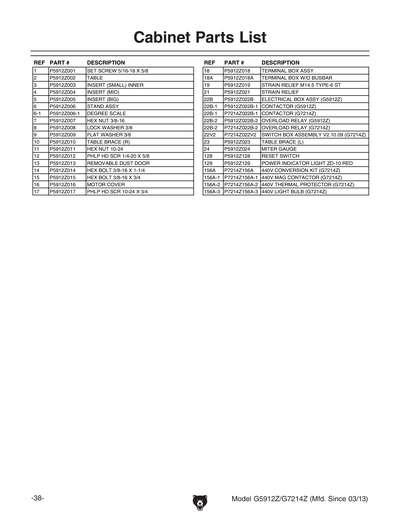

Ref #
Part #
Description
1
SET SCREW 5/16-24 X 5/8
Price
N/A

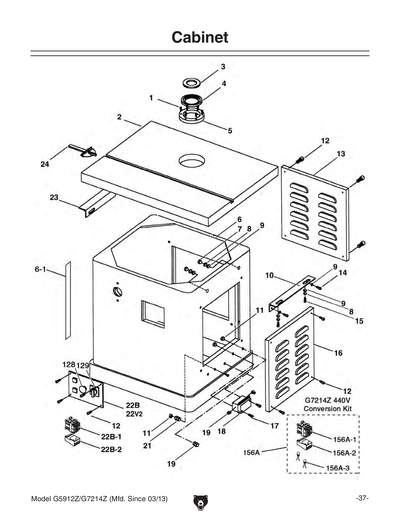

2
TABLE
Price
N/A
3
SMALL INNER
Price
N/A
4
MID-SIZED INSERT
Price
N/A
5
LARGE INSERT
Price
N/A
6
STAND ASSY
Price
N/A
6-1
DEGREE SCALE
Price
N/A
7
HEX NUT 3/8-16
Price
N/A
8
LOCK WASHER 3/8
Price
N/A
9
FLAT WASHER 3/8
Price
N/A
10
RIGHT TABLE BRACE
Price
N/A
11
HEX NUT 10-24
Price
N/A
12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
13
REMOVABLE DUST DOOR
Price
N/A
14
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
15
HEX BOLT 3/8-16 X 3/4
Price
N/A
16
MOTOR COVER
Price
N/A
17
PHLP HD SCR 10-24 X 3/4
Price
N/A
18
TERMINAL BOX ASSY
Price
N/A
18A
TERMINAL BOX W/O BUSBAR
Price
N/A
19
STRAIN RELIEF M14.5 TYPE-6 ST
Price
N/A
20
CORD ELECTRIC
Price
N/A
21
STRAIN RELIEF 5/8" TYPE-9 ELBOW
Price
N/A
22
*DISCD*SWITCH BOX ASSEMBLY V1.03.99
Item is no longer available
Price
N/A
22-1
*DISCD*SQUARE GREEN ON SWITCH V1.08.03
Item is no longer available
Price
N/A
22-1A
ON SWITCH ROUND V2.03.06
Price
$25.50
22-2
*DISCD*SQUARE RED OFF SWITCH V1.08.03
Item is no longer available
Price
N/A
22-2A
OFF SWITCH ROUND V2.03.06
Price
$19.70
22-3
E-STOP BUTTON 230V 6A V2.03.06
Price
$52.20
22-4
CONTACTOR
Price
N/A
22-5
*DISCD*F/O/R SWITCH KEDU ZH-HC-33-BY V1
Item is no longer available
Price
N/A
22-5V2
F/O/R SWITCH KEDU ZH-HC-433-BY V2.03.06
Price
$92.15
22-6
THERMAL OVERLOAD TH-20 18-26A
Price
$91.55
22A-7
RED AND GREEN 220V LIGHT BULB 2PC
Price
$7.60
22B
CONTACTOR
Price
N/A
22B-1
CONTACTOR
Price
$105.80
22B-2
OL RELAY
Price
$100.00
22C
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
22D
CONTACTOR
Price
N/A
22E
*DISCD*F/O/R SWITCH KEDU ZH-HC-33-BY V1
Price
N/A
22F
ELECTRICAL BOX ASSY V2.03.06
Price
$565.15
22V2
SWITCH BOX ASSEMBLY V2.10.09
Price
$758.45
23
LEFT TABLE BRACE
Price
N/A
24
Cast-Iron Miter Gauge
Price
N/A

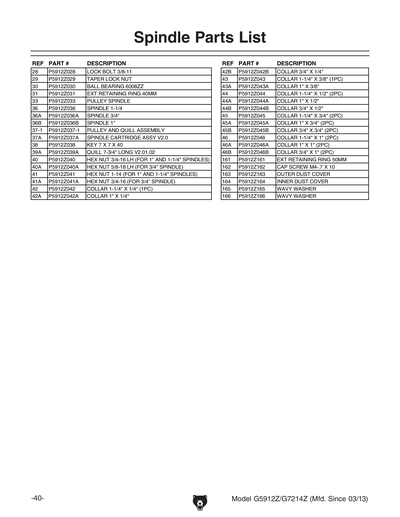

28
LOCK BOLT 5/8-11
Price
N/A
29
TAPER LOCK NUT
Price
N/A

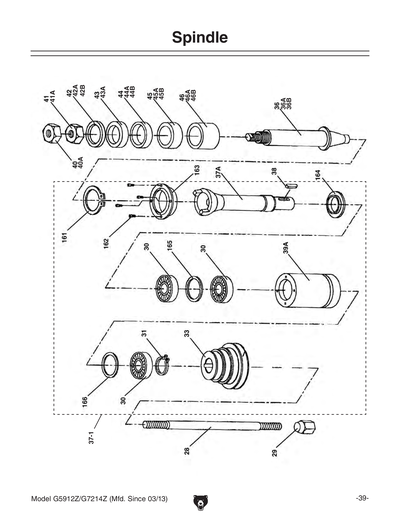

30
BALL BEARING 6008ZZ
Price
N/A
31
EXT RETAINING RING 40MM
Price
N/A
32
INT RETAINING RING 80MM
Price
N/A
33
PULLEY AND QUILL ASSEMBLY
Price
N/A
34
*DISCD*STAR WASHER 30MM
Price
N/A
35
*DISCD*SPANNER NUT
Price
N/A
36
SPINDLE ASSEMBLY 1-1/4"
Price
N/A
36-2
MULTI-WRENCH
Price
N/A
36A
***USE P5912Z036A-1***
Price
N/A
36B
SPINDLE 1" ASSY
Price
N/A
36B-2
MULTI-WRENCH
Price
N/A
37
PULLEY AND QUILL ASSEMBLY
Price
N/A
37A
PULLEY AND QUILL ASSEMBLY
Price
N/A
38
KEY 7 X 7 X 40
Price
N/A
39
*DISCD*QUILL 7-3/4" LONG V1.08.98
Price
N/A
39A
QUILL 7-3/4" LONG V2.01.02
Price
N/A
40
HEX NUT 3/4-16 LH
Price
N/A
41
HEX NUT 1-14
Price
N/A
42
SPINDLE ASSEMBLY 1-1/4"
Price
N/A
42A
COLLAR 1" X 1/4"
Price
N/A
42B
COLLAR 3/4" X 1/4"
Price
N/A
43
COLLAR 1-1/4" X 3/8" 1PC
Price
N/A
43A
COLLAR 1" X 3/8"
Price
N/A
44
COLLAR 1-1/4" X 1/2" (2PC)
Price
N/A
44A
COLLAR 1" X 1/2"
Price
N/A
44B
COLLAR 3/4" X 1/2"
Price
N/A
45
COLLAR 1-1/4" X 3/4" (2PC)
Price
N/A
45A
COLLAR 1" X 3/4" 2PC
Price
N/A
45B
SPINDLE 3/4" ASSY
Price
N/A
46
COLLAR 1-1/4" X 1" 2PC
Price
N/A
46A
COLLAR 1" X 1" 2PC
Price
N/A
46B
COLLAR 3/4" X 1" 2PC
Price
N/A
50
HEX BOLT 1/4-20 X 5/8
Price
N/A
51
LOCK WASHER 1/4
Price
N/A
52
FLAT WASHER 1/4
Price
N/A
53
LOCK KNOB
Price
N/A
54
BAR LOCK
Price
N/A
55
HEX NUT 5/16-18
Price
N/A
56
HEX BOLT 5/16-18 X 1
Price
N/A
57
SCREW LOCK
Price
N/A
58
WASHER GEAR
Price
N/A
59
GEAR
Price
N/A
60
COLLAR
Price
N/A
61
KEY 4 X 4 X 16
Price
N/A
62
BASE GEAR SHAFT
Price
N/A
63
SHAFT GEAR
Price
N/A
64
BASE SPINDLE
Price
N/A
65
FLAT WASHER 1/2
Price
N/A
66
HEX NUT 1/2-12
Price
N/A
67
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
68
SCREW 3/8-16 X 1-1/4
Price
N/A
69
COLLAR
Price
N/A
70
V-BELT A30
Price
N/A
71
V-BELT A28
Price
N/A
72
KEY 7 X 7 X 50
Price
N/A
73
MOTOR PULLEY
Price
N/A
74
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
75
FLAT WASHER 5/16
Price
N/A
76
LOCK WASHER 5/16
Price
N/A
77
CAP SCREW 5/16-18 X 1
Price
N/A
78
COMPRESSION SPRING 3.4 X 20.3
Price
N/A
79
*DISCD*KEY 3/8 X 3/4 X 1
Price
N/A

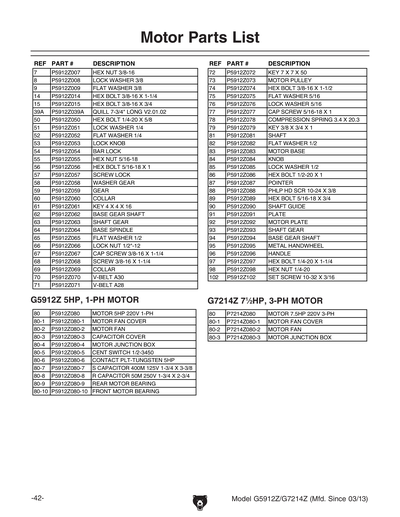

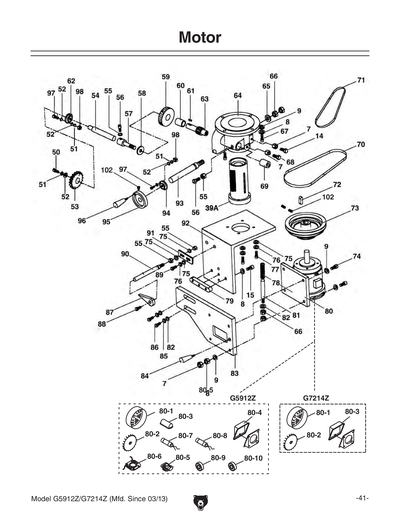

80
MOTOR 7.5HP 220V/440V 3-PH
Price
$922.60
80-1
MOTOR FAN COVER
Price
$63.60
80-2
MOTOR FAN
Price
$48.85
80-3
MOTOR JUNCTION BOX
Price
$42.70
81
SHAFT
Price
N/A
82
FLAT WASHER 1/2
Price
N/A
83
MOTOR BASE
Price
N/A
84
KNOB
Price
N/A
85
LOCK WASHER 1/2
Price
N/A
86
HEX BOLT 1/2-20 X 1
Price
N/A
87
POINTER
Price
N/A
88
PHLP HD SCR 10-24 X 3/8
Price
N/A
89
HEX BOLT 5/16-18 X 3/4
Price
N/A
90
SHAFT GUIDE
Price
N/A
91
PLATE
Price
N/A
92
MOTOR PLATE
Price
N/A
93
SHAFT GEAR
Price
N/A
94
BASE GEAR SHAFT
Price
N/A
95
METAL HANDWHEEL
Price
N/A
96
HANDLE
Price
N/A
97
HEX BOLT 1/4-20 X 1
Price
N/A
98
HEX NUT 1/4-20
Price
N/A
102
SET SCREW 10-32 X 3/16
Price
N/A
103
SET SCREW 3/8-16 X 1
Price
N/A
104
SET SCREW 3/8-16 X 1/2
Price
N/A

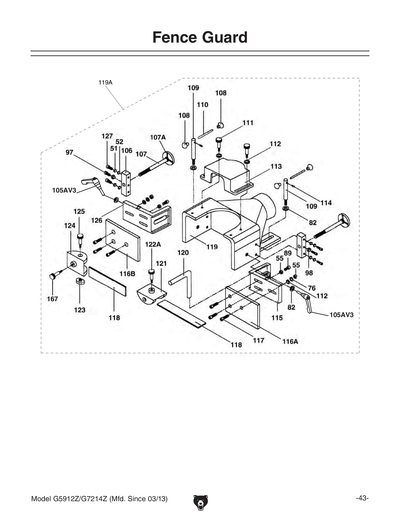

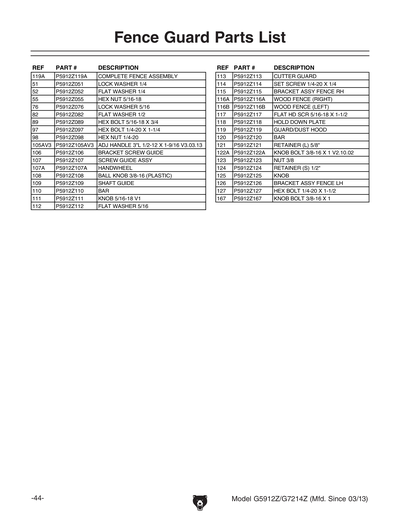

105
ADJ HANDLE 1/2" - 12
Price
N/A
105A
ADJ HANDLE 1/2" - 12
Price
N/A
105V2
ADJ HANDLE 1/2" - 12
Price
N/A
106
BRACKET SCREW GUIDE
Price
N/A
107
SCREW GUIDE ASSY
Price
N/A
107-1
SCREW GUIDE ROD
Price
N/A
107A
HANDWHEEL
Price
N/A
108
BALL KNOB 3/8-16 (PLASTIC)
Price
N/A
109
SHAFT GUIDE
Price
N/A
110
BAR
Price
N/A
111
KNOB 5/16-18 V1
Price
N/A
112
FLAT WASHER 5/16
Price
N/A
113
CUTTER GUARD COVER V2.01.17
Price
N/A
113V2
CUTTER GUARD COVER V2.01.17
Price
N/A
114
SET SCREW 1/4-20 X 1/4
Price
N/A
115
BRACKET ASSY FENCE RH
Price
N/A
116
FENCE WOODEN ASSEMBLY 2PC
Price
N/A
116A
FENCE WOODEN ASSEMBLY 2PC
Price
N/A
116B
FENCE WOODEN ASSEMBLY 2PC
Price
N/A
117
FLAT HD SCR 5/16-18 X 1-1/2
Price
N/A
118
HOLD DOWN PLATE
Price
N/A
119
GUARD/DUST HOOD
Price
N/A
119A
COMPLETE FENCE ASSY V1
Price
N/A
119AV2
COMPLETE FENCE ASSY V2.01.17
Price
N/A
120
BAR
Price
N/A
121
RETAINER L 5/8"
Price
N/A
122
HANDLE LOCK V1.08.98
Price
N/A
122A
KNOB BOLT 3/8-16 X 1 V2.10.02
Price
N/A
123
NUT 3/8
Price
N/A
124
RETAINER S 1/2"
Price
N/A
125
KNOB
Price
N/A
126
BRACKET ASSY FENCE LH
Price
N/A
127
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
128
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
129
F/O/R SWITCH KEDU ZH-HC-433-BY V2.03.06
Price
N/A
156
CONVERSION KIT 440V NHD V1
Price
$400.65
156-1
MAGNETIC CONTACTOR 440V SRC3631-5-1 FUSU
Price
$71.90
156-2
THERMAL PROTECTOR 440V TH-20 7/11A
Price
$91.55
156-3
LIGHT BULB 440V
Price
$18.75
156A
CONVERSION KIT 440V NHD V2.01.06
Price
$392.80
156A-1
MAGNETIC CONTACTOR 440V NHD V2.01.06
Price
$71.90
156A-2
THERMAL PROTECTOR 440V HND V2.01.06
Price
$73.10
156A-3
LIGHT BULB 440V V2.01.06
Price
$8.20
161
EXT RETAINING RING 50MM
Price
N/A
162
CAP SCREW M4-.7 X 10
Price
N/A
163
OUTER DUST COVER
Price
N/A
164
INNER DUST COVER
Price
N/A
165
WAVY WASHER
Price
N/A
166
WAVY WASHER
Price
N/A
167
KNOB BOLT 3/8-16 X 1
Price
N/A
168
KNOB BOLT 1/4-20 X 1/2
Price
N/A

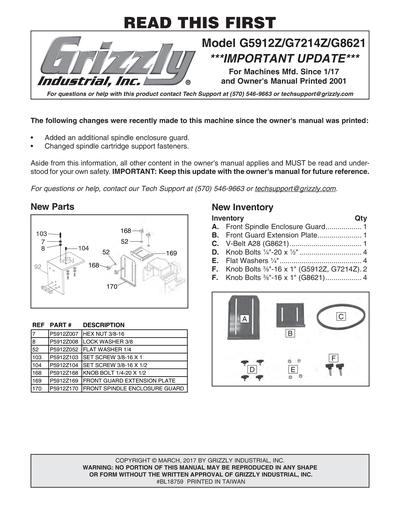

169
FRONT GUARD EXTENSION PLATE
Price
N/A

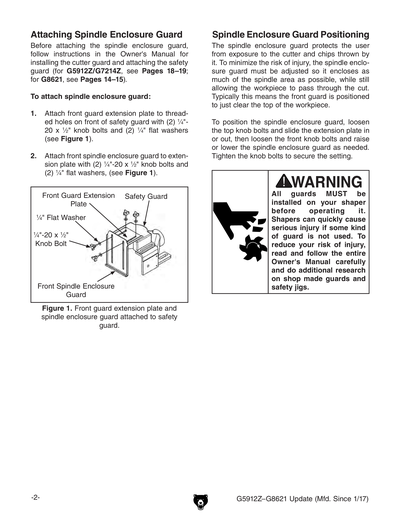

170
FRONT SPINDLE ENCLOSURE GUARD
Price
N/A
200
MACHINE ID LABEL
Price
N/A
201
*DISCD*GRIZZLY NAMEPLATE 8W X 3.5H
Price
N/A
202
*DISCD*PULLEY LABEL
Price
N/A
203
BELT GUARD LABEL
Price
N/A
204
*DISCD*F/O/R SWITCH KEDU ZH-HC-33-BY V1
Price
N/A
205
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
319
HOOD
Price
N/A

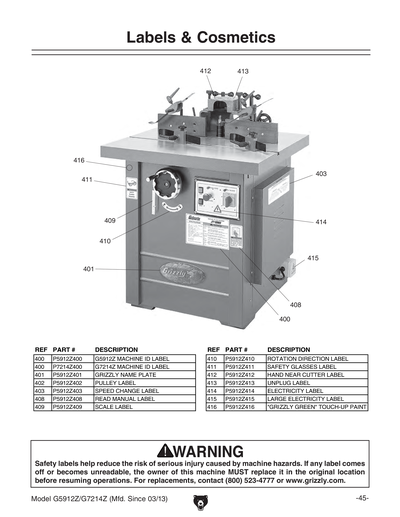

400
MACHINE ID LABEL
Price
$16.40
401
Nameplate - Large
Price
N/A
402
*DISCD*PULLEY LABEL
Price
N/A
403
SPEED CHANGE LABEL
Price
N/A
408
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
409
SCALE LABEL
Price
N/A
410
ROTATION DIRECTION LABEL
Price
N/A
411
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
412
HAND NEAR CUTTER LABEL
Price
N/A
413
DISCONNECT HARDWIRED POWER 1.5W X 2.5H
Price
N/A
414
ELECTRICITY 1.4W X 1.2H
Price
N/A
415
LARGE ELECTRICITY LABEL
Price
N/A
416
N/S GRIZZLY GREEN G1023S
Price
N/A
417
MULTI-WRENCH
Price
N/A
418
MODEL NUMBER LABEL
Price
$18.40
419
HEX WRENCH 3MM
Price
N/A
420
HEX WRENCH 4MM
Price
N/A
MANUAL
*DISCD*MAN G5912Z/G7214Z 01.01-11.06 V1
Price
N/A
MANV2
MANUAL G5912Z/G7214Z MFD-12.06-02.13 V2
Price
N/A
MANV3
MANUAL G5912Z/G7214Z MFD-03.13-12.16 V3
Price
N/A
MANV4
MANUAL G5912Z/G7214Z MFD-01.17+ V4
Price
N/A
