Parts for G7945 - 34" Benchtop Radial Drill Press

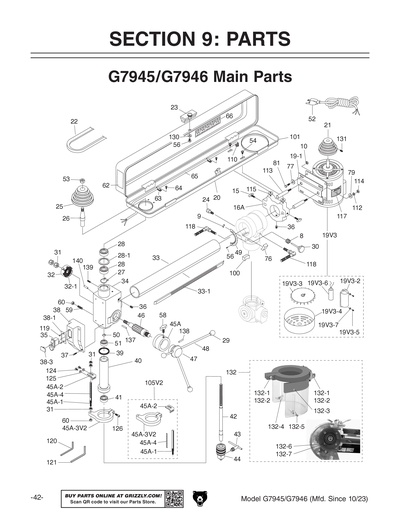

Part Diagram for G7945

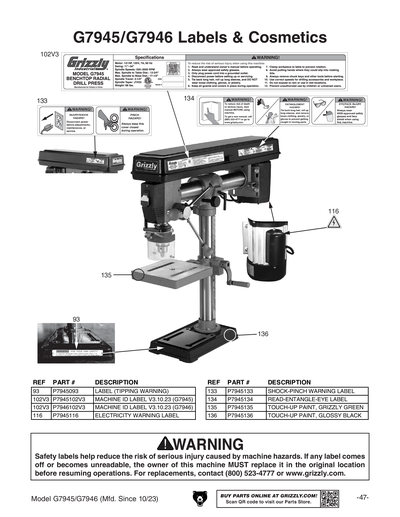

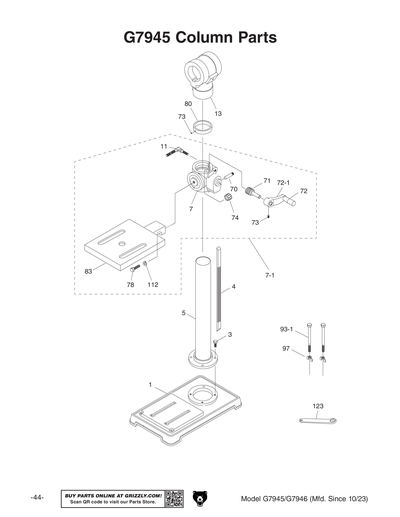

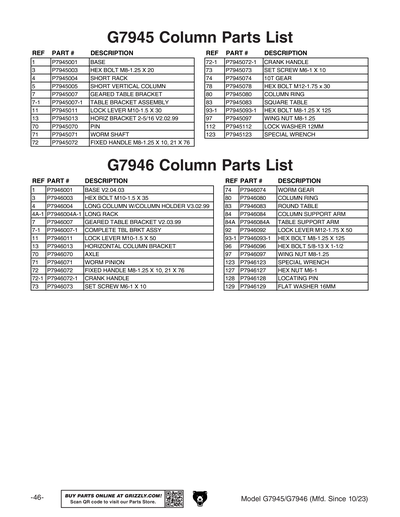

Part Diagram for G7945

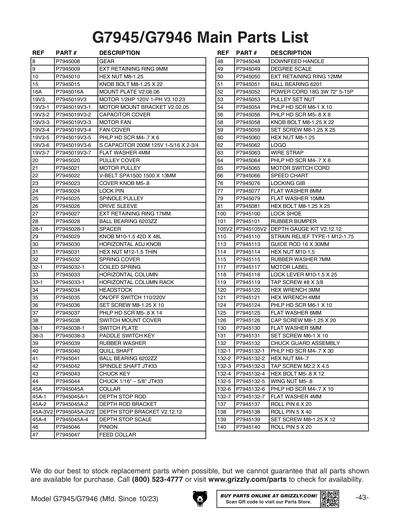

Part Diagram for G7945
Part Diagram for G7945
Part Diagram for G7945
Part Diagram for G7945
Part Diagram for G7945
Part Diagram for G7945
Part Diagram for G7945
Part Diagram for G7945
Part Diagram for G7945
Part Diagram for G7945

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BASE
Price
$92.75
2
*DISCD*FLANGE
Item is no longer available
Price
N/A
2A
COLUMN LONG W/HOLDER V3.02.99
Price
N/A
3
HEX BOLT M8-1.25 X 20
Price
N/A
4
SHORT RACK
Price
$1.90
4A
RACK LONG
Price
N/A
5
SHORT VERTICAL COLUMN
Price
$52.15
5A
COLUMN W/HOLDER V2.02.99
Price
N/A
6
*DISCD*TABLE BRACKET
Item is no longer available
Price
N/A
7
GEARED TABLE BRACKET
Price
$51.75
7-1
TABLE BRACKET ASSEMBLY
Price
$170.70
8
GEAR
Price
$5.75
9
EXT RETAINING RING 9MM
Price
N/A
10
HEX NUT M8-1.25
Price
N/A
11
CLAMP BOLT M10-1.5 X 30
Price
$4.70
12
*DISCD*LOCK HANDLE ASSEMBLY
Item is no longer available
Price
N/A
13
HORIZ COLUMN BRACKET 2-5/16 V2.02.99
Price
$54.35
14
SET SCREW 5/16-18 X 3/8
Price
N/A
15
*DISCD*KNOB BOLT M8-1.25 X 22
Price
$5.50
16
MOUNT PLATE V1.02.99
Price
$34.20
16A
MOUNT PLATE V2.06.06
Price
$18.10
17
*DISCD*SPRING
Price
$2.60
18
ADJUSTMENT BOLT
Price
$1.90
19
*DISCD*MOTOR 1/2HP 110V SQUARE COVER V1.
Item is no longer available
Price
N/A
19-1
MOTOR MOUNT BRACKET V2.02.05
Price
$26.60
19-2
CAPACITOR COVER
Price
$2.90
19-3
MOTOR FAN
Price
$10.85
19-4
FAN COVER
Price
$14.40
19-5
PHLP HD SCR M5-.8 X 45
Price
N/A
19-6
S CAPACITOR 150M 125V
Price
$37.25
19-7
FLAT WASHER 4MM
Price
N/A
19A
MOTOR MOUNT BRACKET V1.08.03
Price
$24.45
19B
MOTOR 1/2HP 110V 1-PH V2.03.07
Price
$349.35
19B-1
CAPACITOR COVER V2.03.07
Price
$2.60
19V3
MOTOR 1/2HP 120V 1-PH V3.10.23
Price
$466.95
19V3-1
MOTOR MOUNT BRACKET
Price
$26.60
19V3-2
CAPACITOR COVER
Price
$3.15
19V3-3
MOTOR FAN
Price
$10.60
19V3-4
FAN COVER
Price
$15.45
19V3-5
PHLP HD SCR M4-.7 X 6
Price
N/A
19V3-6
S CAPACITOR 200M 125V 1-5/16 X 2-3/4
Price
$37.25
19V3-7
FLAT WASHER 4MM
Price
N/A
20
PULLEY COVER
Price
$86.65
21
MOTOR PULLEY
Price
$11.50
22
V-BELT M58 3L580
Price
N/A
23
COVER KNOB M5-.8
Price
$1.90
23-1
PHLP HD SCR M5-.8 X 10
Price
N/A
24
LOCK PIN
Price
$7.45
25
SPINDLE PULLEY
Price
$27.00
26
DRIVE SLEEVE
Price
$16.60
27
EXT RETAINING RING 17MM
Price
N/A
28
BALL BEARING 6203ZZ
Price
N/A
28-1
SPACER
Price
$5.45
28A
SPACER
Price
N/A
29
KNOB M10-1.5
Price
$4.70
30
HORIZ ADJ KNOB
Price
$17.65
31
HEX NUT M12-1.5 THIN
Price
N/A
32
COVER WITH SPRING
Price
$12.95
32-1
COILED SPRING
Price
$6.90
32-2
COVER
Price
$5.00
33
HORIZ COLUMN
Price
$33.85
33-1
HORIZ COLUMN RACK
Price
$51.75
34
HEADSTOCK
Price
$54.65
34A
COMPLETE HEADSTOCK ASSY
Price
$582.00
35
Safety Paddle Switch
Price
N/A
35-1
SWITCH HOUSING
Price
$1.49
35-2
SWITCH PLATE
Price
N/A
35A
*DISCD*DEPTH STOP GAUGE ASSY V2.08.99
Item is no longer available
Price
N/A
35A-1
*DISCD*HEEL BLOCK
Item is no longer available
Price
N/A
35A-2
SCALE V2.11.02
Price
N/A
35B
*DISCD*SCALE RING
Item is no longer available
Price
N/A
36
SET SCREW M8-1.25 X 10
Price
N/A
37
PHLP HD SCR M5-.8 X 14
Price
N/A
38
SWITCH MOUNT COVER
Price
$15.40
38-1
SWITCH PLATE
Price
$5.75
38-3
PADDLE SWITCH KEY
Price
N/A
39
THRUST WASHER 38MM RUBBER
Price
$1.90
40
QUILL SHAFT
Price
$22.35
41
BALL BEARING 6202ZZ
Price
N/A
42
SPINDLE SHAFT JT #33
Price
$23.40
43
DRL CHK KEY 8.12MM TH-SE 11T SD-15.95MM
Price
N/A
44
CHUCK 1/2" 1/16" - 5/8" JT#33
Price
$29.05
45
DEPTH STOP COLLAR V1.10.98
Price
N/A
45A
DEPTH STOP COLLAR V1.10.98
Price
$9.40
45A-1
DEPTH STOP ROD
Price
$2.90
45A-2
DEPTH STOP BRACKET
Price
$3.40
45A-3
DEPTH STOP BRACKET V1
Price
$11.95
45A-3V2
DEPTH STOP BRACKET V2.12.12
Price
$15.35
45A-4
DEPTH STOP SCALE
Price
$1.90
46
PINION
Price
$35.95
46A
DRL CHK KEY 8.12MM TH-SE 11T SD-15.95MM
Price
N/A
46B
*DISCD*
Item is no longer available
Price
N/A
47
FEED COLLAR
Price
$12.15
48
HANDLE
Price
$5.45
49
DEGREE SCALE
Price
$2.90
50
EXT RETAINING RING 12MM
Price
N/A
51
BALL BEARING 6201ZZ
Price
N/A
52
POWER CORD 18G 3W 5-15P
Price
N/A
53
PULLEY SET NUT
Price
$1.90
54
PHLP HD SCR M6-1 X 10
Price
N/A
55
SPINDLE SCALE
Price
$4.70
56
PHLP HD SCR M5-.8 X 8
Price
N/A
57
POINTER
Price
$1.90
58
*DISCD*KNOB BOLT M8-1.25 X 22
Price
N/A
59
SET SCREW M8-1.25 X 25
Price
N/A
59A
YELLOW SWITCH KEY
Price
N/A
59B
SWITCH HOUSING
Price
N/A
59C
SWITCH PLATE
Price
N/A
59D
*DISCD*SWITCH FOR LIGHT
Price
N/A
60
P7945060
Now: PN02
HEX NUT 5/16-18
Price
N/A
61
HANDLE
Price
N/A
62
LOGO
Price
$8.65
63
WIRE STRAP
Price
$1.90
64
P7945064
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
65
MOTOR SWITCH CORD
Price
$1.90
66
SPEED CHART
Price
$4.70
67
*DISCD*SPECIAL BOLT
Item is no longer available
Price
N/A
68
P7945068
Now: PW07
FLAT WASHER 5/16
Price
N/A
69
*DISCD*TABLE SCALE
Item is no longer available
Price
N/A
69-1
CONN. BOX COVER
Price
$6.90
69-2
FAN COVER
Price
N/A
69A
*DISCD*MOTOR 1/2HP 110V SQUARE COVER V1.
Price
N/A
69B
MOTOR 1/2HP 110V 1-PH V2.03.07
Price
N/A
70
PIN
Price
$1.90
71
WORM SHAFT
Price
$9.40
72
HANDLE
Price
N/A
72-1
CRANK HANDLE
Price
$9.20
73
SET SCREW M6-1 X 10
Price
N/A
73A
V-BELT M59 3L590
Price
N/A
74
GEAR 10T
Price
$14.10
75
SAFETY LABEL
Price
$1.25
76
LOCKING GIB
Price
$1.90
77
FLAT WASHER 8MM
Price
N/A
78
HEX BOLT M12-1.75 X 30
Price
N/A
79
KEY 6 X 6 X 45
Price
N/A
80
COLUMN RING
Price
$4.70
81
HEX BOLT M8-1.25 X 25
Price
N/A
82
FLAT WASHER 8MM
Price
N/A
83
SQUARE TABLE
Price
$138.75
84
*DISCD*COLUMN SUPPORT 2-3/4 V2.02.99
Item is no longer available
Price
N/A
84-1
TABLE SUPPORT EXTENSION
Price
$27.35
85
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
86
DOOR CLOSED LABEL HORIZ
Price
$1.10
86V2
SHOCK PINCH WARNING LABEL
Price
N/A
87
*DISCD*VERTICAL LOCK 1/8" DOG POINT V2.0
Item is no longer available
Price
N/A
88
LOCK GAUGE
Price
$1.90
89
*DISCD*HORIZONTAL FEED KNOB
Item is no longer available
Price
N/A
90
*DISCD*HORIZONTAL FEED GEAR
Item is no longer available
Price
N/A
91
SET SCREW M4-.7 X 5
Price
N/A
92
EXT RETAINING RING 9MM
Price
N/A
93
TIPPING WARNING LABEL
Price
$2.50
93-1
HEX BOLT M8-1.25 X 125
Price
N/A
94
TABLE SQUARE
Price
$21.60
96
CARRIAGE BOLT
Price
$1.90
97
WING NUT 8MM
Price
$1.90
98
POINTER
Price
$1.90
99
COLUMN RING
Price
N/A
100
LOCK SHOE
Price
$2.65
101
RUBBER BUMPER
Price
$1.90
102
MACHINE ID LABEL V2.04.18
Price
N/A
102V2
MACHINE ID LABEL V2.04.18
Price
$16.40
102V3
MACHINE ID LABEL V3.10.23
Price
$16.95
103
CENTRIFICAL SWITCH V2.04.00
Price
$52.90
104
CONTACT PLATE V2.04.00
Price
$4.70
105
DEPTH GAUGE KIT V1
Price
$37.40
105V2
DEPTH GAUGE KIT V2.12.12
Price
$45.85
106
*DISCD*RIGHT ANGLE BUSHING
Item is no longer available
Price
N/A
107
WIRE NUT
Price
$1.90
108
*DISCD*SQUARE DRIVE KEY
Item is no longer available
Price
N/A
109
HORIZ COLUMN RACK
Price
N/A
110
STRAIN RELIEF TYPE-1 M12-1.75
Price
$4.70
111
WARNING LABEL
Price
$5.35
112
LOCK WASHER 10MM
Price
N/A
113
GUIDE ROD 16 X 30MM
Price
$10.85
114
HEX NUT M10-1.5
Price
N/A
115
THRUST WASHER 8MM RUBBER
Price
N/A
116
ELECTRICITY 1.4W X 1.2H
Price
N/A
117
MOTOR LABEL
Price
$1.25
118
CLAMP BOLT M10-1.5 X 25
Price
$9.25
119
TAP SCREW #8 X 3/8
Price
N/A
120
HEX WRENCH 3MM
Price
N/A
121
HEX WRENCH 4MM
Price
N/A
123
COLUMN WRENCH
Price
$9.20
124
PHLP HD SCR M6-1 X 10
Price
N/A
125
FLAT WASHER 6MM
Price
N/A
126
CAP SCREW M8-1.25 X 20
Price
N/A
130
FLAT WASHER 5MM
Price
N/A
131
SET SCREW M6-1 X 10
Price
N/A
132
CHUCK GUARD ASSEMBLY
Price
$17.20
132-1
PHLP HD SCR M4-.7 X 30
Price
N/A
132-2
HEX NUT M4-.7
Price
N/A
132-3
TAP SCREW M2.2 X 4.5
Price
N/A
132-4
HEX BOLT M5-.8 X 12
Price
N/A
132-5
FLAT WASHER 4MM
Price
N/A
132-6
PHLP HD SCR M4-.7 X 10
Price
N/A
132-7
FLAT WASHER 4MM
Price
N/A
133
SHOCK PINCH WARNING LABEL
Price
$1.90
134
READ-ENTANGLE-EYE LABEL
Price
$2.50
135
N/S GRIZZLY GREEN G1023S
Price
N/A
136
GLOSSY BLACK
Price
N/A
137
ROLL PIN 6 X 20
Price
N/A
138
ROLL PIN 5 X 40
Price
N/A
139
SET SCREW M8-1.25 X 12
Price
N/A
140
ROLL PIN 5 X 20
Price
N/A
MANUAL
MANUAL G7945 MFD_01.01-02.07 V1.02.08
Price
$14.65
MANV2
MANUAL G7945-46 MFD-03.07-08.17 V2.02.08
Price
$17.50
MANV3
MANUAL G7945-46 MFD-09.17-09.23 V2.05.18
Price
$18.50
MANV4
MANUAL G7945-46 MFD-10.23+ V4.09.23
Price
$22.65
