Parts for G8621 - 5 HP Sliding Table Shaper

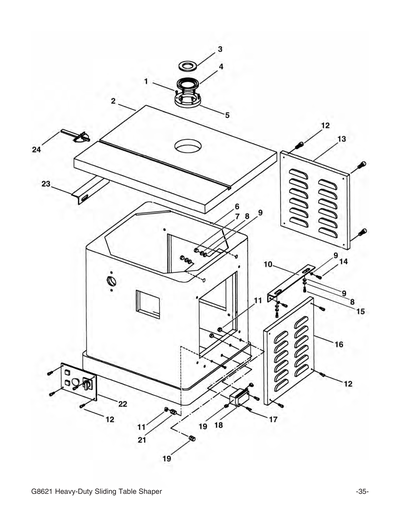

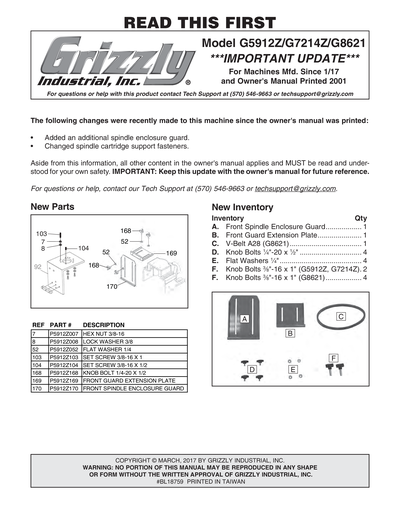

Part Diagram for G8621

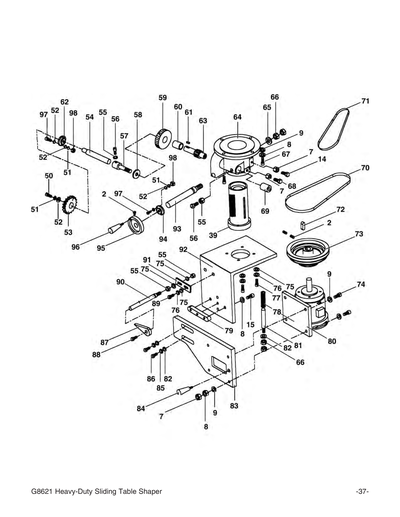

Part Diagram for G8621

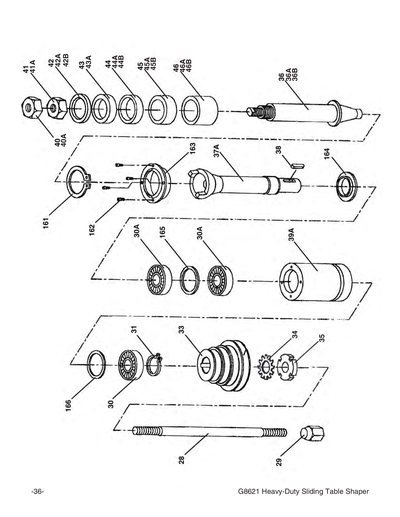

Part Diagram for G8621

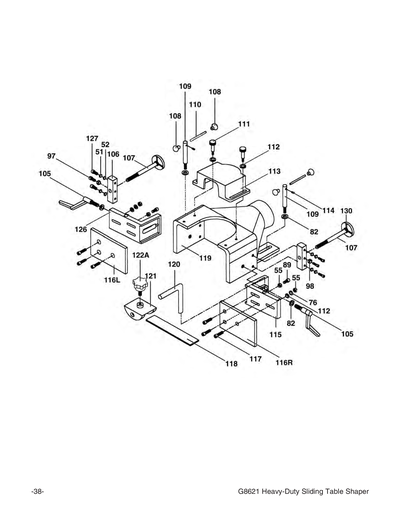

Part Diagram for G8621

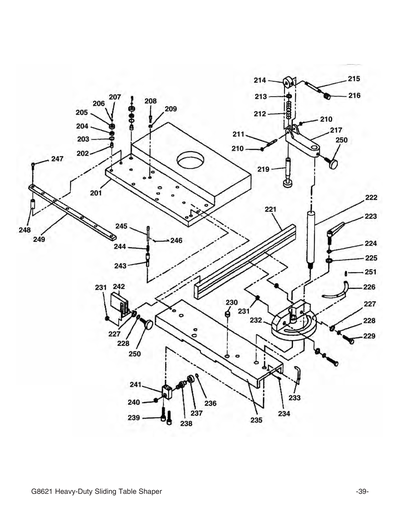

Part Diagram for G8621
Part Diagram for G8621
Part Diagram for G8621
Part Diagram for G8621
Part Diagram for G8621
Part Diagram for G8621
Part Diagram for G8621
Part Diagram for G8621
Part Diagram for G8621
Part Diagram for G8621
Part Diagram for G8621
Part Diagram for G8621

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

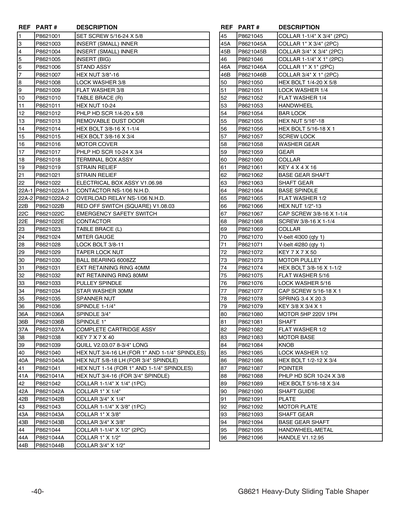

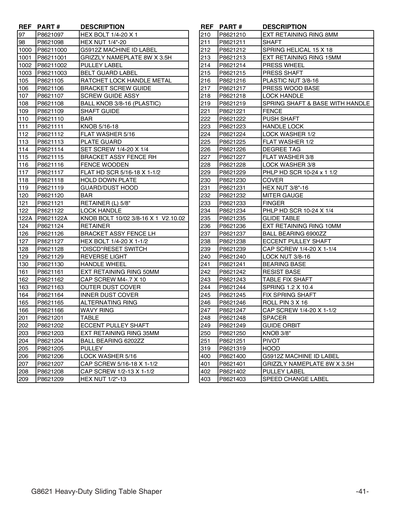

Ref #
Part #
Description
1
SET SCREW 5/16-24 X 5/8
Price
N/A
3
SMALL INNER
Price
N/A
4
SMALL INNER
Price
N/A
5
LARGE INSERT
Price
N/A
6
STAND ASSY
Price
N/A
7
P8621007
Now: PN08
HEX NUT 3/8-16
Price
N/A
8
LOCK WASHER 3/8
Price
N/A
9
P8621009
Now: PW02
FLAT WASHER 3/8
Price
N/A
10
RIGHT TABLE BRACE
Price
N/A
11
P8621011
Now: PN07
HEX NUT 10-24
Price
N/A
12
P8621012
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
13
REMOVABLE DUST DOOR
Price
N/A
14
P8621014
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
15
P8621015
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
16
MOTOR COVER
Price
N/A
17
P8621017
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
18
TERMINAL BOX ASSY
Price
N/A
19
STRAIN RELIEF M14.5 TYPE-6 ST
Price
N/A
21
STRAIN RELIEF 5/8" TYPE-9 ELBOW
Price
N/A
22
CONTROL PANEL ASSY V2.03.06
Price
N/A
22A
*DISCD*ELECTRICAL BOX ASSY NS-1/06
Item is no longer available
Price
N/A
22A-1
CONTACTOR NS-03/06 N.H.D.
Price
$95.75
22A-2
OVERLOAD RELAY NS-03/06 N.H.D.
Price
$81.55
22B
*DISCD*SQUARE RED OFF SWITCH V1.08.03
Price
N/A
22C
*DISCD*EMERGENCY SAFETY SWITCH
Item is no longer available
Price
N/A
22E
CONTACTOR NS-03/06 N.H.D.
Price
N/A
22V2
CONTROL PANEL ASSY V2.03.06
Price
N/A
22V2-1
OFF SWITCH ROUND V2.03.06
Price
N/A
22V2-2
ON SWITCH ROUND V2.03.06
Price
N/A
22V2-3
F/O/R SWITCH KEDU ZH-HC-31-BY V2.03.06
Price
N/A
22V2-4
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
22V2-5
RED AND GREEN 220V LIGHT BULB 2PC
Price
N/A
23
LEFT TABLE BRACE
Price
N/A
24
Cast-Iron Miter Gauge
Price
N/A
28
LOCK BOLT 5/8-11
Price
N/A
29
TAPER LOCK NUT
Price
N/A
30
BALL BEARING 6008ZZ
Price
N/A
31
EXT RETAINING RING 40MM
Price
N/A
32
INT RETAINING RING 80MM
Price
N/A
33
QUILL ASSY V2.03.07
Price
N/A
34
*DISCD*STAR WASHER 30MM
Price
N/A
35
*DISCD*SPANNER NUT
Price
N/A
36
SPINDLE ASSEMBLY 1-1/4"
Price
N/A
36A
***USE P5912Z036A-1***
Price
N/A
36B
SPINDLE 1" ASSY
Price
N/A
37A
COMPLETE CARTRIDGE ASSY
Price
$544.55
38
KEY 7 X 7 X 40
Price
N/A
39
QUILL 8-3/4" LONG V2.03.07
Price
N/A
40
P8621040
Now: PN42
HEX NUT 3/4-10 (LH)
Price
N/A
40A
HEX NUT 5/8-18 LH
Price
N/A
41
P8621041
Now: PN32
HEX NUT 1-14
Price
N/A
41A
HEX NUT 3/4-16
Price
N/A
42
SPINDLE ASSEMBLY 1-1/4"
Price
N/A
42A
COLLAR 1" X 1/4"
Price
N/A
42B
COLLAR 3/4" X 1/4"
Price
N/A
43
COLLAR 1-1/4" X 3/8" 1PC
Price
N/A
43A
COLLAR 1" X 3/8"
Price
N/A
44
COLLAR 1-1/4" X 1/2" (2PC)
Price
N/A
44A
COLLAR 1" X 1/2"
Price
N/A
44B
COLLAR 3/4" X 1/2"
Price
N/A
45
COLLAR 1-1/4" X 3/4" (2PC)
Price
N/A
45A
COLLAR 1" X 3/4" 2PC
Price
N/A
45B
SPINDLE 3/4" ASSY
Price
N/A
46
COLLAR 1-1/4" X 1" 2PC
Price
N/A
46A
COLLAR 1" X 1" 2PC
Price
N/A
46B
COLLAR 3/4" X 1" 2PC
Price
N/A
50
P8621050
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
51
LOCK WASHER 1/4
Price
N/A
52
P8621052
Now: PW02
FLAT WASHER 3/8
Price
N/A
53
LOCK KNOB
Price
N/A
54
BAR LOCK
Price
N/A
55
P8621055
Now: PN02
HEX NUT 5/16-18
Price
N/A
56
P8621056
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
57
SCREW LOCK
Price
N/A
58
WASHER GEAR
Price
N/A
59
GEAR
Price
N/A
60
COLLAR
Price
N/A
61
KEY 4 X 4 X 16
Price
N/A
62
BASE GEAR SHAFT
Price
N/A
63
SHAFT GEAR
Price
N/A
64
BASE SPINDLE
Price
N/A
65
P8621065
Now: PW01
FLAT WASHER 1/2
Price
N/A
66
P8621066
Now: PN06
HEX NUT 1/2-12
Price
N/A
67
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
68
SCREW 3/8-16 X 1-1/4
Price
N/A
69
COLLAR
Price
N/A
70
V-BELT A30
Price
N/A
71
V-BELT A28
Price
N/A
72
KEY 7 X 7 X 50
Price
N/A
73
MOTOR PULLEY
Price
N/A
74
P8621074
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
75
P8621075
Now: PW07
FLAT WASHER 5/16
Price
N/A
76
LOCK WASHER 5/16
Price
N/A
77
CAP SCREW 5/16-18 X 1
Price
N/A
78
COMPRESSION SPRING 3.4 X 20.3
Price
N/A
79
*DISCD*KEY 3/8 X 3/4 X 1
Price
N/A
80
MOTOR 5HP 220V 1-PH
Price
N/A
81
SHAFT
Price
N/A
82
P8621082
Now: PW01
FLAT WASHER 1/2
Price
N/A
83
MOTOR BASE
Price
N/A
84
KNOB
Price
N/A
85
LOCK WASHER 1/2
Price
N/A
86
P8621086
Now: PB39
HEX BOLT 1/2-12 X 3/4
Price
N/A
87
POINTER
Price
N/A
88
P8621088
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
89
P8621089
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
90
SHAFT GUIDE
Price
N/A
91
PLATE
Price
N/A
92
MOTOR PLATE
Price
N/A
93
SHAFT GEAR
Price
N/A
94
BASE GEAR SHAFT
Price
N/A
95
METAL HANDWHEEL
Price
N/A
96
HANDLE V1.12.95
Price
N/A
97
P8621097
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
98
P8621098
Now: PN05
HEX NUT 1/4-20
Price
N/A
1000
MACHINE ID LABEL
Price
N/A
1001
*DISCD*GRIZZLY NAMEPLATE 8W X 3.5H
Price
N/A
1002
*DISCD*PULLEY LABEL
Price
$3.00
103
SET SCREW 3/8-16 X 1
Price
N/A
104
SET SCREW 3/8-16 X 1/2
Price
N/A
105
ADJ HANDLE 1/2" - 12
Price
N/A
106
BRACKET SCREW GUIDE
Price
N/A
107
SCREW GUIDE ASSY
Price
N/A
108
BALL KNOB 3/8-16 (PLASTIC)
Price
N/A
109
SHAFT GUIDE
Price
N/A
110
BAR
Price
N/A
111
KNOB 5/16-18 V1
Price
N/A
112
P8621112
Now: PW07
FLAT WASHER 5/16
Price
N/A
113
CUTTER GUARD COVER V2.01.17
Price
N/A
114
SET SCREW 1/4-20 X 1/4
Price
N/A
115
BRACKET ASSY FENCE RH
Price
N/A
116
FENCE WOODEN ASSEMBLY 2PC
Price
N/A
117
FLAT HD SCR 5/16-18 X 1-1/2
Price
N/A
118
HOLD DOWN PLATE
Price
N/A
119
GUARD/DUST HOOD
Price
N/A
120
BAR
Price
N/A
121
RETAINER L 5/8"
Price
N/A
122A
KNOB BOLT 3/8-16 X 1 V2.10.02
Price
N/A
126
BRACKET ASSY FENCE LH
Price
N/A
127
P8621127
Now: PB26
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
128
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
129
RED AND GREEN 220V LIGHT BULB 2PC
Price
N/A
130
HANDLE WHEEL
Price
$6.05
161
EXT RETAINING RING 50MM
Price
N/A
162
CAP SCREW M4-.7 X 10
Price
N/A
163
OUTER DUST COVER
Price
N/A
164
INNER DUST COVER
Price
N/A
165
WAVY WASHER
Price
N/A
166
WAVY WASHER
Price
N/A
168
KNOB BOLT 1/4-20 X 1/2
Price
N/A
169
FRONT GUARD EXTENSION PLATE
Price
N/A
170
FRONT SPINDLE ENCLOSURE GUARD
Price
N/A
201
*DISCD*TABLE
Item is no longer available
Price
N/A
202
ECCENTRIC PULLEY SHAFT
Price
$19.95
203
EXT RETAINING RING 35MM
Price
N/A
204
BALL BEARING 6202Z
Price
N/A
205
PULLEY
Price
$43.80
206
LOCK WASHER 5/16
Price
N/A
207
CAP SCREW 5/16-18 X 1-1/2
Price
N/A
208
CAP SCREW 1/2-13 X 1-1/2
Price
N/A
209
P8621209
Now: PN06
HEX NUT 1/2-12
Price
N/A
210
EXT RETAINING RING 8MM
Price
N/A
211
CAPTIVE PIN
Price
$13.60
212
COMPRESSION SPRING 15 X 18
Price
$5.80
213
EXT RETAINING RING 15MM
Price
N/A
214
CLAMP WHEEL
Price
$23.20
215
CLAMP LEVER
Price
$11.45
216
PLASTIC NUT 3/8-16
Price
$5.95
217
CLAMP BASE
Price
$235.50
218
*DISCD*LOCK HANDLE
Item is no longer available
Price
N/A
219
PRESS WOOD SPRING SHAFT
Price
$55.05
221
*DISCD*MITER FENCE
Price
N/A
222
PUSH SHAFT
Price
$79.05
223
ADJ HANDLE 1/2" - 12
Price
N/A
223V2
ADJ HANDLE 1/2" - 12
Price
N/A
224
LOCK WASHER 1/2
Price
N/A
225
P8621225
Now: PW01
FLAT WASHER 1/2
Price
N/A
226
MITER GAUGE BODY
Price
N/A
227
P8621227
Now: PW02
FLAT WASHER 3/8
Price
N/A
228
LOCK WASHER 1/4
Price
N/A
229
P8621229
Now: PS10
PHLP HD SCR 10-24 X 1-1/2
Price
N/A
230
COVER
Price
$4.40
231
P8621231
Now: PN08
HEX NUT 3/8-16
Price
N/A
232
MITER GAUGE BODY
Price
$120.50
233
POINTER
Price
$7.05
234
P8621234
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
235
GLIDE TABLE
Price
$2,021.40
236
EXT RETAINING RING 10MM
Price
N/A
237
BALL BEARING 6900ZZ
Price
N/A
238
ECCENT PULLEY SHAFT
Price
$6.05
239
CAP SCREW 1/4-20 X 1-1/4
Price
N/A
240
LOCK NUT 3/8-16
Price
N/A
241
BEARING BASE
Price
$33.75
242
*DISCD*LOCK PLATE
Price
N/A
243
TABLE SHAFT W/SPRINGS
Price
$65.25
244
SPRING 1.2 X 10.4
Price
$0.00
245
TABLE SHAFT W/SPRINGS
Price
N/A
246
ROLL PIN 3 X 16
Price
N/A
247
CAP SCREW 1/4-20 X 1-1/2
Price
N/A
248
SPACER
Price
$8.10
249
GUIDE ORBIT
Price
$121.05
250
KNOB BOLT 3/8"
Price
$3.75
251
PIVOT
Price
$4.60
319
HOOD
Price
N/A
400
MACHINE ID LABEL
Price
N/A
401
*DISCD*GRIZZLY NAMEPLATE 8W X 3.5H
Price
N/A
402
*DISCD*PULLEY LABEL
Price
N/A
403
SPEED CHANGE LABEL
Price
N/A
MANUAL
MANUAL FOR G8621 10/02
Price
$14.65
PART
MISC PART FOR G8621
Price
$0.00
