Parts for G8622 5 HP Sliding Table Shaper with Tilting Spindle

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

2
Now: PSS38
SET SCREW 5/16-18 X 5/8
Price
N/A
3
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
4

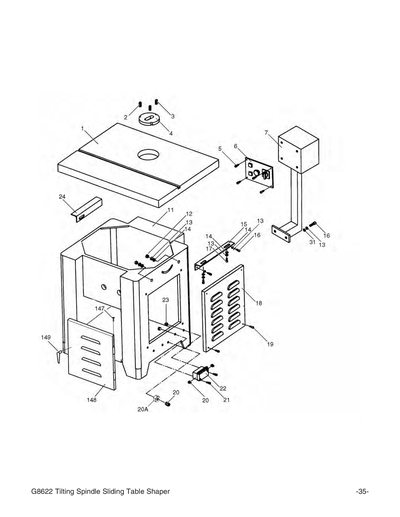

TABLE INSERT
Price
N/A
5
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
6
*DISCD*CONTROL PANEL ASSY V2.01.06
6-1
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
6-2
*DISCD*ON BUTTON, GRN
Item is no longer available
Price
N/A
6-3
*DISCD*OFF BUTTON,RED
Item is no longer available
Price
N/A
6-4
F/O/R SWITCH KEDU ZH-HC-31-BY V2.03.06
Price
N/A
6-5
*DISCD*POWER LIGHT, GRN
Price
N/A
6-6
*DISCD*REVERSE LIGHT, RED
Price
N/A
6A
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
6B
SWITCH 7.5HP 3PH
Price
N/A
6C
CONTROL PANEL ASSY V2.03.06
Price
N/A
6C-1
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
6C-2
ON SWITCH ROUND V2.03.06
Price
N/A
6C-3
OFF SWITCH ROUND V2.03.06
Price
N/A
6C-4
F/O/R SWITCH KEDU ZH-HC-31-BY V2.03.06
Price
N/A
6C-5
*DISCD*POWER LIGHT, GRN
Item is no longer available
Price
N/A
6C-6
*DISCD*REVERSE LIGHT, RED
Item is no longer available
Price
N/A
6C-7
CONTACTOR
Price
N/A
6C-8
OL RELAY
Price
N/A
7
SWITCH PEDESTAL ARM
Price
N/A
7-1
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
7-2
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
7-3
*DISCD*ON BUTTON, GRN
Price
N/A
7-4
*DISCD*OFF BUTTON,RED
Price
N/A
7-5
F/O/R SWITCH KEDU ZH-HC-31-BY V2.03.06
Price
N/A
11
STAND ASSEMBLY
Price
N/A
11-1
MACHINE ID LABEL
12
Now: PN08
HEX NUT 3/8-16
Price
N/A
13
Now: PLW04
LOCK WASHER 3/8
Price
N/A
14
Now: PW02
FLAT WASHER 3/8
Price
N/A
15
RIGHT TABLE BRACE
Price
N/A
16
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
17
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
18
MOTOR COVER
Price
N/A
19
Now: PS02
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
20
STRAIN RELIEF 5/8" TYPE-9 ELBOW
Price
N/A
20A
STRAIN RELIEF 5/8" TYPE-10 ST
Price
N/A
21
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
22
ELECTRICAL BOX
Price
N/A
22A
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
22B
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
22C
*DISCD*ON BUTTON, GRN
Price
N/A
22D
*DISCD*OFF BUTTON,RED
Price
N/A
22E
F/O/R SWITCH KEDU ZH-HC-31-BY V2.03.06
Price
N/A
23
Now: PN07
HEX NUT 10-24
Price
N/A
24
LEFT TABLE BRACE
Price
N/A
25
*DISCD*LOCK HANDLE V1.11.98
Price
N/A
27
LEFT TRUNNION SUPPORT
Price
N/A
28
Now: PLW04
LOCK WASHER 3/8
Price
N/A
29
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
30
*DISCD*TRUNNION SUPPORT BRACKET V1.11.07
Price
N/A
31
Now: PW02
FLAT WASHER 3/8
Price
N/A
32
*DISCD*TRUNION SUPORT BRACKET W/ #30, 33
32A
TRUNNION BRACKET V2.03.07
Price
N/A
33
*DISCD*TRUNNION SUPPORT BRACKET V1.11.07
Price
N/A
34
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
35
RIGHT TRUNNION SUPPORT
Price
N/A
36
SQUARE CAPTIVE BOLT 5/8-11
Price
N/A
37
COLLAR
Price
N/A
38
Now: PN02
HEX NUT 5/16-18
Price
N/A
39
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
40
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
41
Now: PW06
FLAT WASHER 1/4
Price
N/A
42
Now: PW07
FLAT WASHER 5/16
Price
N/A
43
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
44
FIXED SOCKET
Price
N/A
45
FIXED T-SOCKET
Price
N/A
46
METAL HANDWHEEL
Price
N/A
47
HANDLE V1.12.95
Price
N/A
48
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
49
POINTER
Price
N/A
50
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
51
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
52
WORM SHAFT ASSEMBLY
Price
N/A
53
WORM SHAFT ASSEMBLY
Price
N/A
54
WORM SHAFT ASSEMBLY
Price
N/A
55
THRUST BALL BEARING 15 X 32 X 12
Price
N/A
56
WORM SHAFT ASSEMBLY
Price
N/A
58
HANDWHEEL SHAFT
Price
N/A
59
METAL HANDWHEEL
Price
N/A
60
HANDLE
Price
N/A
61
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
62
Now: PN05
HEX NUT 1/4-20
Price
N/A
63
Now: PLW02
LOCK WASHER 1/4
Price
N/A
64
Now: PW06
FLAT WASHER 1/4
Price
N/A
65
Now: PB13
HEX BOLT 1/4-20 X 1-1/4
Price
N/A
66
Now: PN06
HEX NUT 1/2-12
Price
N/A
67
Now: PW01
FLAT WASHER 1/2
Price
N/A
68
SPRING SHAFT 3/8 X 340
Price
N/A
69
HELICAL SPRING 3.4 X 20.3
Price
N/A
70
CAP SCREW 5/16-18 X 1
Price
N/A
71
Now: PW07
FLAT WASHER 5/16
Price
N/A
72
MOTOR PLATE
Price
N/A
73
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
74
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
75A
MOTOR 5HP 220V 1-PH
Price
N/A
75B
MOTOR 7.5HP 220V/440V 3-PH
Price
N/A
76
MOTOR PULLEY
Price
N/A
77
Now: PK41M
KEY 8 X 8 X 40
Price
N/A
78
MOTOR BASE
Price
N/A
79
KNOB
Price
N/A
80
KEY 10 X 20 X 120
Price
N/A
81
QUILL 8-3/4" LONG V2.03.07
Price
N/A
82
SHAFT GEAR
Price
N/A
83
COLLAR
Price
N/A
84
GEAR
Price
N/A
85
GEAR FLAT WASHER
Price
N/A
86
WORM SHAFT ASSEMBLY
Price
N/A
87
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
88
SPINDLE BASE
Price
N/A
89
Now: PW01
FLAT WASHER 1/2
Price
N/A
90
Now: PK37M
KEY 4 X 4 X 16
Price
N/A
91
LOCK BAR
Price
N/A
92
BASE GEAR
Price
N/A
93
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
94
LOCK SCREW
Price
N/A
95
*DISCD*HANDWHEEL
Item is no longer available
Price
N/A
96
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
97
THIN T-TYPE NUT 3/8"-16 V1
Price
N/A
98
Now: PVA30
V-BELT A30
Price
N/A
99
Now: PVA28
V-BELT A28
Price
N/A
1000
*DISCD*WARNING LABEL
Item is no longer available
Price
N/A
1001
*DISCD*GRIZZLY NAMEPLATE 8W X 3.5H
Price
N/A
1002
*DISCD*PULLEY LABEL
Price
N/A
1003
BELT GUARD LABEL
Price
N/A
101

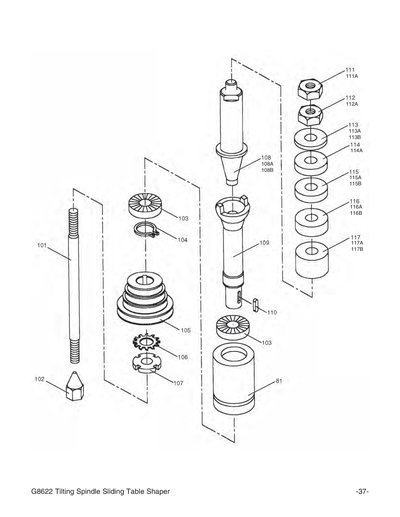

DRAWBAR 5/8"
Price
N/A
102
LOCK NUT 5/8"-11
Price
N/A
103
BALL BEARING 6008ZZ
Price
N/A
104
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
105
SPINDLE PULLEY/CARTRIDGE ASSEMBLY
Price
N/A
106
EXT TOOTH WASHER 30MM
Price
N/A
107
*DISCD*SPANNER NUT
Price
N/A
108
SPINDLE ASSEMBLY 1-1/4"
Price
N/A
108A
***USE P5912Z036A-1***
Price
N/A
108B
SPINDLE 1" ASSY
Price
N/A
109
SPINDLE PULLEY/CARTRIDGE ASSEMBLY
Price
N/A
110
Now: PK55M
KEY 7 X 7 X 40
Price
N/A
111
Now: PN42
HEX NUT 3/4-10 (LH)
Price
N/A
111A
HEX NUT 5/8-18 LH
Price
N/A
112
Now: PN32
HEX NUT 1-14
Price
N/A
112A
Now: PN03
HEX NUT 3/4-16
Price
N/A
113
SPINDLE ASSEMBLY 1-1/4"
Price
N/A
113A
COLLAR 1" X 1/4"
Price
N/A
113B
COLLAR 3/4" X 1/4"
Price
N/A
114
COLLAR 1-1/4" X 3/8" 1PC
Price
N/A
114A
COLLAR 1" X 3/8"
Price
N/A
115
COLLAR 1-1/4" X 1/2 2PC
Price
N/A
115A
COLLAR 1" X 1/2"
Price
N/A
115B
COLLAR 3/4" X 1/2"
Price
N/A
116
COLLAR 1-1/4" X 3/4" (2PC)
Price
N/A
116A
FENCE WOODEN ASSEMBLY 2PC
Price
N/A
116B
FENCE WOODEN ASSEMBLY 2PC
Price
N/A
117
COLLAR 1-1/4" X 1" 2PC
Price
N/A
117A
COLLAR 1" X 1" 2PC
Price
N/A
117B
COLLAR 3/4" X 1" 2PC
Price
N/A
118
HOLD DOWN PLATE
Price
N/A
120
ADJ HANDLE 1/2" - 12
Price
N/A
121
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
122
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
123
Now: PLW02
LOCK WASHER 1/4
Price
N/A
124
Now: PW06
FLAT WASHER 1/4
Price
N/A
125
GUIDE SCREW BRACKET
Price
N/A
126
GUIDE SCREW
Price
N/A
126A
HANDWHEEL
Price
N/A
127
KNOB
Price
N/A
128
SHAFT GUIDE
Price
N/A
129
BAR
Price
N/A
130
KNOB
Price
N/A
131
Now: PW07
FLAT WASHER 5/16
Price
N/A
132
CUTTER GUARD COVER V2.01.17
Price
N/A
133
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
134
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
135
BRACKET ASSY FENCE LH
Price
N/A
136A
FENCE WOODEN ASSEMBLY 2PC
Price
N/A
136B
FENCE WOODEN ASSEMBLY 2PC
Price
N/A
137
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
138
HOLD DOWN PLATE
Price
N/A
139
GUARD/DUST HOOD
Price
N/A
140
BAR
Price
N/A
141
RETAINER L 5/8"
Price
N/A
142
HANDLE LOCK V1.08.98
Price
N/A
143
NUT 3/8
Price
N/A
144
BRACKET ASSY FENCE LH
Price
N/A
145
KNOB
Price
N/A
146
RETAINER S 1/2"
Price
N/A
147
HINGE PIN
Price
N/A
148
FRONT STAND COVER
Price
N/A
149
COVER HANDLE
Price
N/A
150
GEAR SHAFT
Price
N/A
151
Now: PB41
HEX BOLT 1/2-12 X 1-1/2
Price
N/A
152
Now: PLW07
LOCK WASHER 1/2
Price
N/A
153
Now: PN13
HEX NUT 1/2-13
Price
N/A
155
*DISCD*KNOB
156
*DISCD*KNOB
Price
N/A
167
GUIDE SCREW BRACKET
Price
N/A
168
Now: PSS53
SET SCREW 3/8-16 X 1
Price
N/A
169
Now: PSS09
SET SCREW 3/8-16 X 1/2
Price
N/A
170
KNOB BOLT 1/4-20 X 1/2
Price
N/A
171
FRONT GUARD EXTENSION PLATE
Price
N/A
172
FRONT SPINDLE ENCLOSURE GUARD
Price
N/A
201
*DISCD*TABLE
202
ECCENTRIC PULLEY SHAFT
Price
N/A
203
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
204
BALL BEARING 6202ZZ
Price
N/A
205
PULLEY
Price
N/A
206
Now: PLW01
LOCK WASHER 5/16
Price
N/A
207
CAP SCREW 5/16-18 X 1-1/2
Price
N/A
208
CAP SCREW 1/2-13 X 1-1/2
Price
N/A
209
Now: PN06
HEX NUT 1/2-12
Price
N/A
210
*DISCD*C-RING C8
211
*DISCD*SHAFT
212
*DISCD*SPRING 15 X 18
213
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
214
*DISCD*PRESS WHEEL
215
*DISCD*PRESS SHAFT
216
*DISCD*PLASTIC NUT 3/8-16
217
*DISCD*PRESS WOOD BASE
218
KNOB BOLT 3/8"
Price
N/A
219
*DISCD*PRESS WOOD SPRING SHAFT
220
*DISCD*PRESS WOOD BASE
221
*DISCD*MITER FENCE
222
*DISCD*CLAMP MOUNTING SHAFT
223
*DISCD*BLACK RATCHET LOCK HANLE METAL V1
223V2
ADJ HANDLE 1/2" - 12
Price
N/A
224
Now: PLW07
LOCK WASHER 1/2
Price
N/A
225
Now: PW01
FLAT WASHER 1/2
Price
N/A
226
MITER SCALE
227
Now: PW02
FLAT WASHER 3/8
Price
N/A
228
Now: PLW04
LOCK WASHER 3/8
Price
N/A
229
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
230
*DISCD*COVER
231
Now: PN08
HEX NUT 3/8-16
Price
N/A
232
MITER GAUGE BODY
Price
N/A
233
*DISCD*FINGER
234
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
235
*DISCD*GUIDE TABLE
Item is no longer available
Price
N/A
236
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
237
BALL BEARING 6900ZZ
Price
N/A
238
*DISCD*ECCENTRIC PULLEY SHAFT
Item is no longer available
Price
N/A
239
CAP SCREW 1/4-20 X 1-1/4
Price
N/A
240
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
241
*DISCD*BEARING BASE
Item is no longer available
Price
N/A
242
*DISCD*LOCK PLATE
Item is no longer available
Price
N/A
243
TABLE SHAFT W/SPRINGS
Price
N/A
244
SPRING 1.2 X 10.4
Price
N/A
245
***USE P8621243***
Price
N/A
246
ROLL PIN 3 X 16
Price
N/A
247
CAP SCREW 1/4-20 X 1-1/2
Price
N/A
248
*DISCD*SPACER
Item is no longer available
Price
N/A
249
*DISCD*ORBIT GUIDE
Item is no longer available
Price
N/A
250
KNOB BOLT 3/8"
Price
N/A
251
PIVOT
Price
N/A
252
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
253
Now: PW02
FLAT WASHER 3/8
Price
N/A
254
Now: PW07
FLAT WASHER 5/16
Price
N/A
MANUAL
MANUAL FOR G8622 10/02
P7215Z120V2
ADJ HANDLE 1/2" - 12
Price
N/A
