Parts for G8622 - 5 HP Sliding Table Shaper with Tilting Spindle

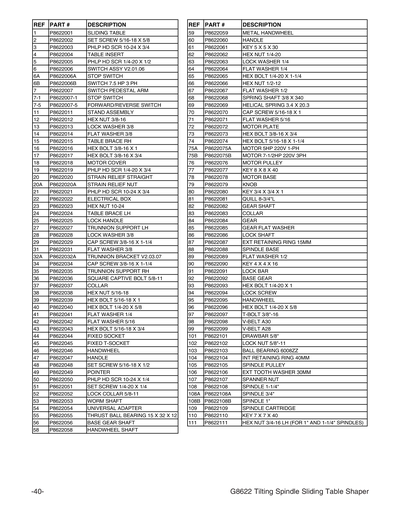

Part Diagram for G8622

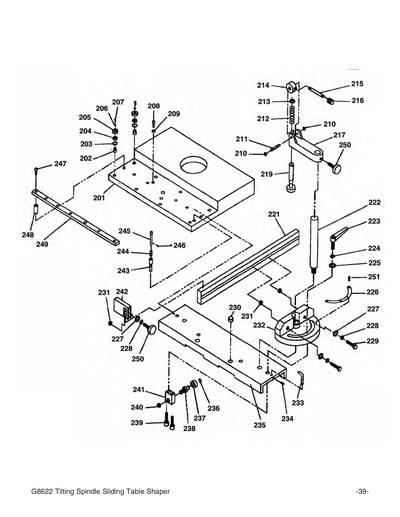

Part Diagram for G8622

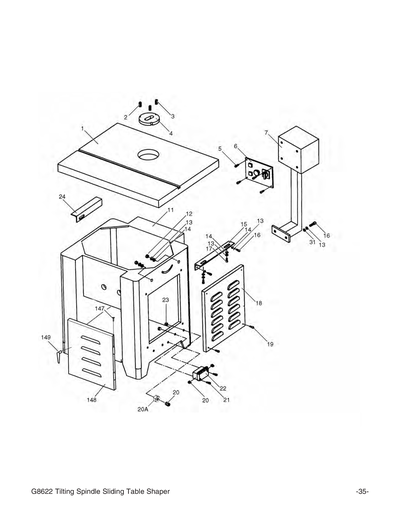

Part Diagram for G8622

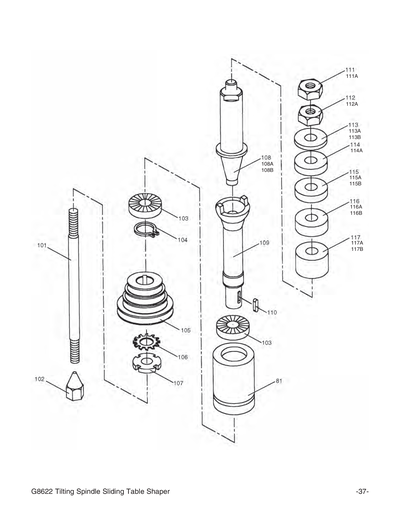

Part Diagram for G8622

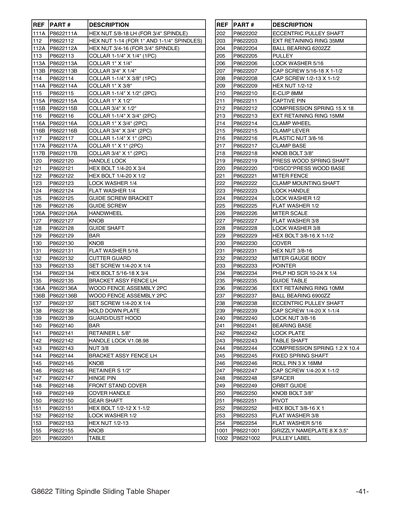

Part Diagram for G8622

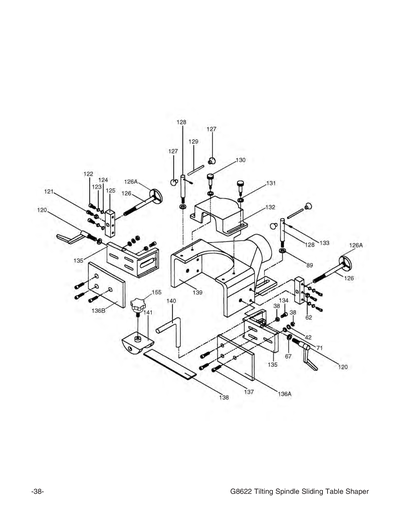

Part Diagram for G8622

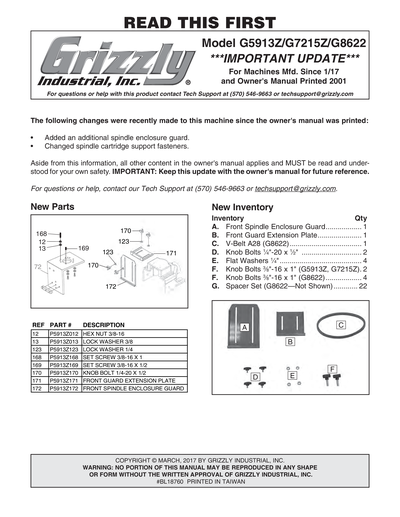

Part Diagram for G8622

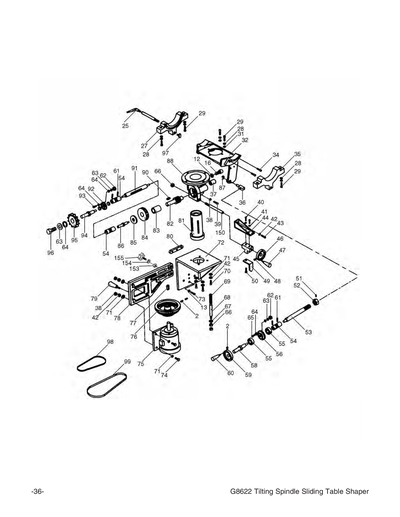

Part Diagram for G8622
Part Diagram for G8622
Part Diagram for G8622
Part Diagram for G8622
Part Diagram for G8622
Part Diagram for G8622
Part Diagram for G8622
Part Diagram for G8622
Part Diagram for G8622

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
2
SET SCREW 5/16-18 X 5/8
Price
N/A
3
P8622003
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
4
TABLE INSERT
Price
N/A
5
P8622005
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
6
*DISCD*CONTROL PANEL ASSY V2.01.06
Price
$624.30
6-1
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
6-2
*DISCD*ON BUTTON, GRN
Item is no longer available
Price
N/A
6-3
*DISCD*OFF BUTTON,RED
Item is no longer available
Price
N/A
6-4
F/O/R SWITCH KEDU ZH-HC-31-BY V2.03.06
Price
N/A
6-5
*DISCD*POWER LIGHT, GRN
Price
N/A
6-6
*DISCD*REVERSE LIGHT, RED
Price
N/A
6A
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
6B
SWITCH 7.5HP 3PH
Price
N/A
6C
CONTROL PANEL ASSY V2.03.06
Price
N/A
6C-1
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
6C-2
ON SWITCH ROUND V2.03.06
Price
N/A
6C-3
OFF SWITCH ROUND V2.03.06
Price
N/A
6C-4
F/O/R SWITCH KEDU ZH-HC-31-BY V2.03.06
Price
N/A
6C-5
*DISCD*POWER LIGHT, GRN
Item is no longer available
Price
N/A
6C-6
*DISCD*REVERSE LIGHT, RED
Item is no longer available
Price
N/A
6C-7
CONTACTOR
Price
N/A
6C-8
OL RELAY
Price
N/A
7
SWITCH PEDESTAL ARM
Price
N/A
7-1
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
7-2
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
7-3
*DISCD*ON BUTTON, GRN
Price
N/A
7-4
*DISCD*OFF BUTTON,RED
Price
N/A
7-5
F/O/R SWITCH KEDU ZH-HC-31-BY V2.03.06
Price
N/A
11
STAND ASSEMBLY
Price
N/A
11-1
MACHINE ID LABEL
Price
$18.25
12
P8622012
Now: PN08
HEX NUT 3/8-16
Price
N/A
13
LOCK WASHER 3/8
Price
N/A
14
P8622014
Now: PW02
FLAT WASHER 3/8
Price
N/A
15
RIGHT TABLE BRACE
Price
N/A
16
P8622016
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
17
P8622017
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
18
MOTOR COVER
Price
N/A
19
P8622019
Now: PS02
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
20
STRAIN RELIEF 5/8" TYPE-9 ELBOW
Price
N/A
20A
STRAIN RELIEF 5/8" TYPE-10 ST
Price
N/A
21
P8622021
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
22
ELECTRICAL BOX
Price
N/A
22A
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
22B
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
22C
*DISCD*ON BUTTON, GRN
Price
N/A
22D
*DISCD*OFF BUTTON,RED
Price
N/A
22E
F/O/R SWITCH KEDU ZH-HC-31-BY V2.03.06
Price
N/A
23
P8622023
Now: PN07
HEX NUT 10-24
Price
N/A
24
LEFT TABLE BRACE
Price
N/A
25
*DISCD*LOCK HANDLE V1.11.98
Price
N/A
27
LEFT TRUNNION SUPPORT
Price
N/A
28
LOCK WASHER 3/8
Price
N/A
29
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
30
*DISCD*TRUNNION SUPPORT BRACKET V1.11.07
Price
N/A
31
P8622031
Now: PW02
FLAT WASHER 3/8
Price
N/A
32
*DISCD*TRUNION SUPORT BRACKET W/ #30, 33
Price
$414.90
32A
TRUNNION BRACKET V2.03.07
Price
N/A
33
*DISCD*TRUNNION SUPPORT BRACKET V1.11.07
Price
N/A
34
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
35
RIGHT TRUNNION SUPPORT
Price
N/A
36
SQUARE CAPTIVE BOLT 5/8-11
Price
N/A
37
COLLAR
Price
N/A
38
P8622038
Now: PN02
HEX NUT 5/16-18
Price
N/A
39
P8622039
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
40
P8622040
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
41
P8622041
Now: PW06
FLAT WASHER 1/4
Price
N/A
42
P8622042
Now: PW07
FLAT WASHER 5/16
Price
N/A
43
P8622043
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
44
FIXED SOCKET
Price
N/A
45
FIXED T-SOCKET
Price
N/A
46
METAL HANDWHEEL
Price
N/A
47
HANDLE V1.12.95
Price
N/A
48
SET SCREW 5/16-18 X 1/2
Price
N/A
49
POINTER
Price
N/A
50
P8622050
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
51
SET SCREW 1/4-20 X 1/4
Price
N/A
52
WORM SHAFT ASSEMBLY
Price
N/A
53
WORM SHAFT ASSEMBLY
Price
N/A
54
WORM SHAFT ASSEMBLY
Price
N/A
55
THRUST BALL BEARING 15 X 32 X 12
Price
N/A
56
WORM SHAFT ASSEMBLY
Price
N/A
58
HANDWHEEL SHAFT
Price
N/A
59
METAL HANDWHEEL
Price
N/A
60
HANDLE
Price
N/A
61
KEY 5 X 5 X 30
Price
N/A
62
P8622062
Now: PN05
HEX NUT 1/4-20
Price
N/A
63
LOCK WASHER 1/4
Price
N/A
64
P8622064
Now: PW06
FLAT WASHER 1/4
Price
N/A
65
P8622065
Now: PB13
HEX BOLT 1/4-20 X 1-1/4
Price
N/A
66
P8622066
Now: PN06
HEX NUT 1/2-12
Price
N/A
67
P8622067
Now: PW01
FLAT WASHER 1/2
Price
N/A
68
SPRING SHAFT 3/8 X 340
Price
N/A
69
HELICAL SPRING 3.4 X 20.3
Price
N/A
70
CAP SCREW 5/16-18 X 1
Price
N/A
71
P8622071
Now: PW07
FLAT WASHER 5/16
Price
N/A
72
MOTOR PLATE
Price
N/A
73
P8622073
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
74
P8622074
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
75A
MOTOR 5HP 220V 1-PH
Price
N/A
75B
MOTOR 7.5HP 220V/440V 3-PH
Price
N/A
76
MOTOR PULLEY
Price
N/A
77
KEY 8 X 8 X 40
Price
N/A
78
MOTOR BASE
Price
N/A
79
KNOB
Price
N/A
80
KEY 10 X 20 X 120
Price
N/A
81
QUILL 8-3/4" LONG V2.03.07
Price
N/A
82
SHAFT GEAR
Price
N/A
83
COLLAR
Price
N/A
84
GEAR
Price
N/A
85
GEAR FLAT WASHER
Price
N/A
86
WORM SHAFT ASSEMBLY
Price
N/A
87
EXT RETAINING RING 15MM
Price
N/A
88
SPINDLE BASE
Price
N/A
89
P8622089
Now: PW01
FLAT WASHER 1/2
Price
N/A
90
KEY 4 X 4 X 16
Price
N/A
91
LOCK BAR
Price
N/A
92
BASE GEAR
Price
N/A
93
P8622093
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
94
LOCK SCREW
Price
N/A
95
*DISCD*HANDWHEEL
Item is no longer available
Price
N/A
96
P8622096
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
97
THIN T-TYPE NUT 3/8"-16 V1
Price
N/A
98
V-BELT A30
Price
N/A
99
V-BELT A28
Price
N/A
1000
*DISCD*WARNING LABEL
Item is no longer available
Price
N/A
1001
*DISCD*GRIZZLY NAMEPLATE 8W X 3.5H
Price
N/A
1002
*DISCD*PULLEY LABEL
Price
N/A
1003
BELT GUARD LABEL
Price
N/A
101
DRAWBAR 5/8"
Price
N/A
102
LOCK NUT 5/8"-11
Price
N/A
103
BALL BEARING 6008ZZ
Price
N/A
104
INT RETAINING RING 40MM
Price
N/A
105
SPINDLE PULLEY/CARTRIDGE ASSEMBLY
Price
N/A
106
EXT TOOTH WASHER 30MM
Price
N/A
107
*DISCD*SPANNER NUT
Price
N/A
108
SPINDLE ASSEMBLY 1-1/4"
Price
N/A
108A
***USE P5912Z036A-1***
Price
N/A
108B
SPINDLE 1" ASSY
Price
N/A
109
SPINDLE PULLEY/CARTRIDGE ASSEMBLY
Price
N/A
110
KEY 7 X 7 X 40
Price
N/A
111
P8622111
Now: PN42
HEX NUT 3/4-10 (LH)
Price
N/A
111A
HEX NUT 5/8-18 LH
Price
N/A
112
P8622112
Now: PN32
HEX NUT 1-14
Price
N/A
112A
HEX NUT 3/4-16
Price
N/A
113
SPINDLE ASSEMBLY 1-1/4"
Price
N/A
113A
COLLAR 1" X 1/4"
Price
N/A
113B
COLLAR 3/4" X 1/4"
Price
N/A
114
COLLAR 1-1/4" X 3/8" 1PC
Price
N/A
114A
COLLAR 1" X 3/8"
Price
N/A
115
COLLAR 1-1/4" X 1/2 2PC
Price
N/A
115A
COLLAR 1" X 1/2"
Price
N/A
115B
COLLAR 3/4" X 1/2"
Price
N/A
116
COLLAR 1-1/4" X 3/4" (2PC)
Price
N/A
116A
FENCE WOODEN ASSEMBLY 2PC
Price
N/A
116B
FENCE WOODEN ASSEMBLY 2PC
Price
N/A
117
COLLAR 1-1/4" X 1" 2PC
Price
N/A
117A
COLLAR 1" X 1" 2PC
Price
N/A
117B
COLLAR 3/4" X 1" 2PC
Price
N/A
118
HOLD DOWN PLATE
Price
N/A
120
ADJ HANDLE 1/2" - 12
Price
N/A
121
P8622121
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
122
P8622122
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
123
LOCK WASHER 1/4
Price
N/A
124
P8622124
Now: PW06
FLAT WASHER 1/4
Price
N/A
125
GUIDE SCREW BRACKET
Price
N/A
126
GUIDE SCREW
Price
N/A
126A
HANDWHEEL
Price
N/A
127
KNOB
Price
N/A
128
SHAFT GUIDE
Price
N/A
129
BAR
Price
N/A
130
KNOB
Price
N/A
131
P8622131
Now: PW07
FLAT WASHER 5/16
Price
N/A
132
CUTTER GUARD COVER V2.01.17
Price
N/A
133
SET SCREW 1/4-20 X 1/4
Price
N/A
134
P8622134
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
135
BRACKET ASSY FENCE LH
Price
N/A
136A
FENCE WOODEN ASSEMBLY 2PC
Price
N/A
136B
FENCE WOODEN ASSEMBLY 2PC
Price
N/A
137
SET SCREW 1/4-20 X 1/4
Price
N/A
138
HOLD DOWN PLATE
Price
N/A
139
GUARD/DUST HOOD
Price
N/A
140
BAR
Price
N/A
141
RETAINER L 5/8"
Price
N/A
142
HANDLE LOCK V1.08.98
Price
N/A
143
NUT 3/8
Price
N/A
144
BRACKET ASSY FENCE LH
Price
N/A
145
KNOB
Price
N/A
146
RETAINER S 1/2"
Price
N/A
147
HINGE PIN
Price
N/A
148
FRONT STAND COVER
Price
N/A
149
COVER HANDLE
Price
N/A
150
GEAR SHAFT
Price
N/A
151
P8622151
Now: PB41
HEX BOLT 1/2-12 X 1-1/2
Price
N/A
152
LOCK WASHER 1/2
Price
N/A
153
P8622153
Now: PN13
HEX NUT 1/2-13
Price
N/A
155
*DISCD*KNOB
Price
$9.60
156
*DISCD*KNOB
Price
N/A
167
GUIDE SCREW BRACKET
Price
N/A
168
SET SCREW 3/8-16 X 1
Price
N/A
169
SET SCREW 3/8-16 X 1/2
Price
N/A
170
KNOB BOLT 1/4-20 X 1/2
Price
N/A
171
FRONT GUARD EXTENSION PLATE
Price
N/A
172
FRONT SPINDLE ENCLOSURE GUARD
Price
N/A
201
*DISCD*TABLE
Price
$3,711.75
202
ECCENTRIC PULLEY SHAFT
Price
N/A
203
EXT RETAINING RING 35MM
Price
N/A
204
BALL BEARING 6202ZZ
Price
N/A
205
PULLEY
Price
N/A
206
LOCK WASHER 5/16
Price
N/A
207
CAP SCREW 5/16-18 X 1-1/2
Price
N/A
208
CAP SCREW 1/2-13 X 1-1/2
Price
N/A
209
P8622209
Now: PN06
HEX NUT 1/2-12
Price
N/A
210
*DISCD*C-RING C8
Price
$5.20
211
*DISCD*SHAFT
Price
$12.95
212
*DISCD*SPRING 15 X 18
Price
$5.50
213
EXT RETAINING RING 15MM
Price
N/A
214
*DISCD*PRESS WHEEL
Price
$22.85
215
*DISCD*PRESS SHAFT
Price
$11.45
216
*DISCD*PLASTIC NUT 3/8-16
Price
$5.65
217
*DISCD*PRESS WOOD BASE
Price
$231.35
218
KNOB BOLT 3/8"
Price
N/A
219
*DISCD*PRESS WOOD SPRING SHAFT
Price
$52.40
220
*DISCD*PRESS WOOD BASE
Price
$48.30
221
*DISCD*MITER FENCE
Price
$62.70
222
*DISCD*CLAMP MOUNTING SHAFT
Price
$67.75
223
*DISCD*BLACK RATCHET LOCK HANLE METAL V1
Price
$32.65
223V2
ADJ HANDLE 1/2" - 12
Price
N/A
224
LOCK WASHER 1/2
Price
N/A
225
P8622225
Now: PW01
FLAT WASHER 1/2
Price
N/A
226
MITER SCALE
Price
$6.90
227
P8622227
Now: PW02
FLAT WASHER 3/8
Price
N/A
228
LOCK WASHER 3/8
Price
N/A
229
P8622229
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
230
*DISCD*COVER
Price
$4.15
231
P8622231
Now: PN08
HEX NUT 3/8-16
Price
N/A
232
MITER GAUGE BODY
Price
N/A
233
*DISCD*FINGER
Price
$6.70
234
P8622234
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
235
*DISCD*GUIDE TABLE
Item is no longer available
Price
N/A
236
EXT RETAINING RING 10MM
Price
N/A
237
BALL BEARING 6900ZZ
Price
N/A
238
*DISCD*ECCENTRIC PULLEY SHAFT
Item is no longer available
Price
N/A
239
CAP SCREW 1/4-20 X 1-1/4
Price
N/A
240
LOCK NUT 3/8-16
Price
N/A
241
*DISCD*BEARING BASE
Item is no longer available
Price
N/A
242
*DISCD*LOCK PLATE
Item is no longer available
Price
N/A
243
TABLE SHAFT W/SPRINGS
Price
N/A
244
SPRING 1.2 X 10.4
Price
N/A
245
***USE P8621243***
Price
N/A
246
ROLL PIN 3 X 16
Price
N/A
247
CAP SCREW 1/4-20 X 1-1/2
Price
N/A
248
*DISCD*SPACER
Item is no longer available
Price
N/A
249
*DISCD*ORBIT GUIDE
Item is no longer available
Price
N/A
250
KNOB BOLT 3/8"
Price
N/A
251
PIVOT
Price
N/A
252
P8622252
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
253
P8622253
Now: PW02
FLAT WASHER 3/8
Price
N/A
254
P8622254
Now: PW07
FLAT WASHER 5/16
Price
N/A
MANUAL
MANUAL FOR G8622 10/02
Price
$14.65
P7215Z120V2
ADJ HANDLE 1/2" - 12
Price
N/A
