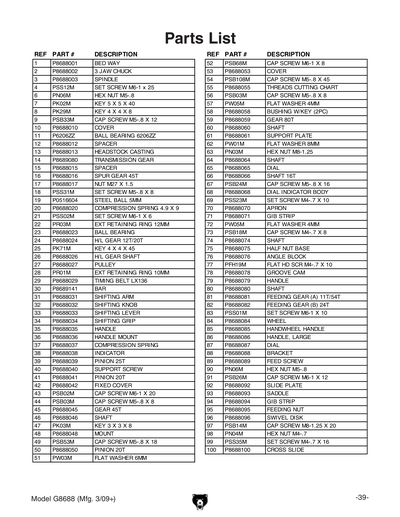

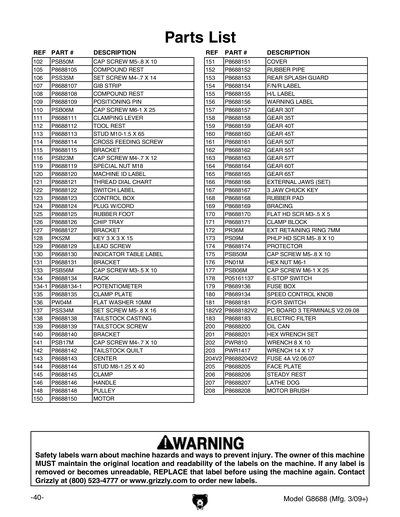

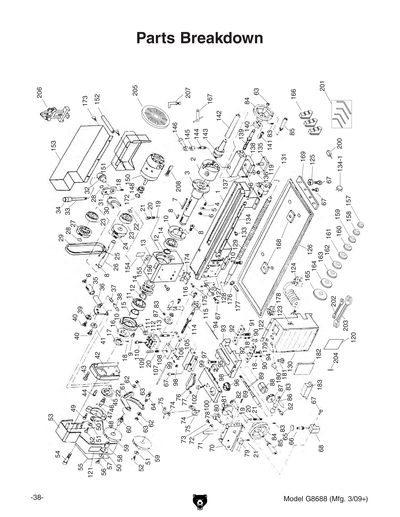

Parts for G8688 - 7" x 12" Mini Metal Lathe

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
001 P8688001 BED WAY $84.06
002 P8688002
***USE G9828***
Item is no longer available
P8688002 Replaced By G9828
N/A View Replacement
002-1 P8688002-1 INTERNAL JAW SET - 3 PC $62.50
003 P8688003 SPINDLE $34.06
004 P8688004 SET SCREW M6 X 25 $1.00
006 P8688006
***USE PN06M***
Item is no longer available
P8688006 Replaced By PN01M
N/A View Replacement
007 P8688007
***USE PK02M***
Item is no longer available
P8688007 Replaced By PK02M
N/A View Replacement
008 P8688008
***USE PK65M***
Item is no longer available
P8688008 Replaced By PK65M
N/A View Replacement
009 P8688009
HEX HD SCR M5 X 12
N/A
010 P8688010 COVER $1.25
011 P8688011
***use P6206zz***
Item is no longer available
P8688011 Replaced By P6206ZZ
N/A View Replacement
012 P8688012 SPACER $1.10
013 P8688013 HEADSTOCK CASTING $26.25
014 P8688014
***USE P8689080***
Item is no longer available
P8688014 Replaced By P8689080
N/A View Replacement
015 P8688015 SPACER $1.75
016 P8688016 SPUR GEAR 45T $8.25
017 P8688017 NUT M27-1.5 $1.50
018 P8688018
***USE PSS31M***
Item is no longer available
P8688018 Replaced By PSS31M
N/A View Replacement
019 P8688019
***USE PSTB004M***
Item is no longer available
P8688019 Replaced By PSTB004M
N/A View Replacement
020 P8688020 COMPRESSION SPRING 4.9 X 9 $1.00
021 P8688021
***USE PSS02M***
Item is no longer available
P8688021 Replaced By PSS02M
N/A View Replacement
022 P8688022
***USE PR48M***
Item is no longer available
P8688022 Replaced By PR48M
N/A View Replacement
023 P8688023 BALL BEARING 28 X 12 X 8 $3.75
024 P8688024 GEAR 12T/20T H/L $3.75
025 P8688025
***USE PK71M***
Item is no longer available
P8688025 Replaced By PK71M
N/A View Replacement
026 P8688026 GEAR SHAFT H/L $4.69
027 P8688027 GEARED PULLEY 31T $2.00
028 P8688028
***USE PR01M***
Item is no longer available
P8688028 Replaced By PR01M
N/A View Replacement
029 P8688029 TIMING BELT LX136 $5.25
030 P8688030
***USE P8689141***
Item is no longer available
P8688030 Replaced By P8689141
N/A View Replacement
031 P8688031 SHIFTING ARM $3.00
032 P8688032 SHIFTING KNOB $3.75
033 P8688033
SHIFTING LEVER
N/A
034 P8688034 SHIFTING GRIP $1.00
035 P8688035 HANDLE $2.00
036 P8688036 HANDLE MOUNT $4.00
037 P8688037
ROUND SPRING 1.4 X 8.2 X 33
N/A
038 P8688038
INDICATOR
N/A
039 P8688039 PINION 25T $4.40
040 P8688040
SUPPORT SCREW 16.5 X 16.5
N/A
041 P8688041 PINION 20T $7.00
042 P8688042 FIXED COVER $11.25
043 P8688043
HEX HD SCR M6 X 20
N/A
044 P8688044
MACHINE SCREW M5 X 8
N/A
045 P8688045 GEAR 45T $2.00
046 P8688046 SHAFT $3.75
047 P8688047
***USE PK03M***
Item is no longer available
P8688047 Replaced By PK03M
N/A View Replacement
048 P8688048 MOUNT $5.31
049 P8688049
HEX HD SCR M5 X 18
N/A
050 P8688050 PINION 20T $7.00
051 P8688051
***USE PW03M***
Item is no longer available
P8688051 Replaced By PW03M
N/A View Replacement
052 P8688052
***USE PCAP68M***
Item is no longer available
P8688052 Replaced By PCAP68M
N/A View Replacement
053 P8688053 COVER $5.75
054 P8688054
***USE PCAP108M***
Item is no longer available
P8688054 Replaced By PCAP108M
N/A View Replacement
055 P8688055 FEED RATE GEAR CHART $1.00
056 P8688056
***USE PCAP03M***
Item is no longer available
P8688056 Replaced By PCAP03M
N/A View Replacement
057 P8688057
***USE PW05M***
Item is no longer available
P8688057 Replaced By PW05M
N/A View Replacement
058 P8688058 BUSH W/KEY 2PC $1.50
059 P8688059 GEAR 80T $3.50
060 P8688060 SHAFT $2.25
061 P8688061 SUPPORT PLATE $4.75
062 P8688062
***USE PW01M***
Item is no longer available
P8688062 Replaced By PW01M
N/A View Replacement
063 P8688063
***USE PN03M***
Item is no longer available
P8688063 Replaced By PN03M
N/A View Replacement
064 P8688064 SHAFT $1.50
065 P8688065 DIAL $2.50
066 P8688066 SHAFT 16T $3.25
067 P8688067 HEX HD SCR M5 X 16 $1.10
068 P8688068 DIAL INDICATOR BODY $8.12
069 P8688069
***USE PSS23M***
Item is no longer available
P8688069 Replaced By PSS23M
N/A View Replacement
070 P8688070 APRON $16.56
071 P8688071 GIB STRIP $1.00
072 P8688072
FLAT WASHER 5MM
Item is no longer available
P8688072 Replaced By PW02M
N/A View Replacement
073 P8688073
SCREW M4 X 8
N/A
074 P8688074 SHAFT $1.00
075 P8688075 HALF NUT BASE 60 X 35 X 27 $11.00
076 P8688076 ANGLE BLOCK $4.00
077 P8688077 SCREW M4 X 10 $1.00
078 P8688078
GROOVE CAM
N/A
079 P8688079 HANDLE $1.75
080 P8688080 SHAFT $2.81
081 P8688081 FEEDING GEAR A 11T/54T $12.92
082 P8688082 FEEDING GEAR B 24T $7.25
083 P8688083
***USE PSS03M***
Item is no longer available
P8688083 Replaced By PSS03M
N/A View Replacement
084 P8688084 WHEEL $5.25
085 P8688085 KNOB 19 X 40 W/SCREW M8 X 55 & NUT M8 $3.75
086 P8688086 HANDLE LARGE $7.19
086A P8688086A HANDLE SMALL $5.62
087 P8688087 DIAL $6.56
087-1 P8688087-1
***USE P4000812***
Item is no longer available
P8688087-1 Replaced By P4000812
N/A View Replacement
087A P8688087A
BUSHING C
N/A
088 P8688088 BRACKET $7.50
089 P8688089 FEEDING SCREW 15 X 195 $9.38
090 P8688090
***USE PN06M***
Item is no longer available
P8688090 Replaced By PN06M
N/A View Replacement
091 P8688091
***USE PCAP68M***
Item is no longer available
P8688091 Replaced By PCAP68M
N/A View Replacement
092 P8688092 SLIDE PLATE $4.69
093 P8688093 SADDLE $26.25
094 P8688094 GIB STRIP $2.00
095 P8688095 FEEDING NUT $5.94
096 P8688096 SWIVEL DISK $3.75
097 P8688097
HEX HD SCR M8-1.25 X 20
N/A
098 P8688098
***USE PN04M***
Item is no longer available
P8688098 Replaced By PN04M
N/A View Replacement
099 P8688099 SET SCREW M4 X 16 $1.00
100 P8688100 CROSS SLIDE $21.00
101 P8688101
***USE PCAP50M***
Item is no longer available
P8688101 Replaced By PCAP50M
N/A View Replacement
102 P8688102 HEX HD SCR M4 X 8 $1.00
105 P8688105 COMPOUND REST B $9.00
106 P8688106 SET SCREW M4 X 14 $1.00
107 P8688107 GIB STRIP $2.50
108 P8688108 COMPOUND REST A $9.75
109 P8688109 POSITIONING PIN $1.50
110 P8688110
***USE PCAP06M***
Item is no longer available
P8688110 Replaced By PCAP06M
N/A View Replacement
111 P8688111 CLAMPING LEVER $1.75
112 P8688112 TOOL REST $8.00
113 P8688113 STUD-FT M10-1.5 X 65 $1.00
114 P8688114 CROSS FEEDING SCREW 14 X 121 $8.75
115 P8688115 BRACKET $4.50
116 P8688116 HEX HD SCR M4 X 12 $1.00
119 P8688119
***USE PN02M***
Item is no longer available
P8688119 Replaced By PN02M
N/A View Replacement
120 P8688120 MACHINE ID LABEL $9.50
121 P8688121 THREAD DIAL CHART $1.10
122 P8688122 SWITCH LABEL $3.75
123 P8688123 CONTROL BOX $7.25
123-1 P8688123-1 COMPLETE CONTROL PANEL ASSY $210.62
124 P8688124
PLUG W/CORD
N/A
125 P8688125 RUBBER FOOT $1.65
126 P8688126 CHIP TRAY $11.25
127 P8688127 BRACKET $3.75
128 P8688128
***USE PK52M***
Item is no longer available
P8688128 Replaced By PK52M
N/A View Replacement
129 P8688129 LEADSCREW 16 X 537/637 $17.75
130 P8688130
THREAD DIAL CHART
Item is no longer available
P8688130 Replaced By P8688121
N/A View Replacement
131 P8688131 BRACKET $3.75
133 P8688133 HEX HD SCR M3 X 10 $1.00
134 P8688134 RACK $5.62
134-1 P8688134-1 POTENTIOMETER $10.50
135 P8688135 CLAMP PLATE $2.00
136 P8688136
***USE PW04M***
Item is no longer available
P8688136 Replaced By PW04M
N/A View Replacement
137 P8688137
SET SCREW M5 X 16
N/A
138 P8688138 TAILSTOCK CASTING $21.25
139 P8688139 TAILSTOCK SCREW 15 X 118 $9.06
140 P8688140 BRACKET $2.75
141 P8688141
***USE PCAP17M***
Item is no longer available
P8688141 Replaced By PCAP17M
N/A View Replacement
142 P8688142 TAILSTOCK QUILL $11.00
143 P8688143 CENTER $5.75
144 P8688144
***USE PSS44M***
Item is no longer available
P8688144 Replaced By PSS44M
N/A View Replacement
145 P8688145 CLAMP $1.75
146 P8688146 HANDLE $1.75
148 P8688148 PULLEY $1.75
150 P8688150 MOTOR 250W 2.8A 1PH $120.00
150-1 P8688150-1 MOTOR BRUSH CAP 11/10/06 $1.00
151 P8688151
COVER
N/A
152 P8688152
RUBBER PIPE
N/A
153 P8688153 REAR SPLASH GUARD $8.75
154 P8688154 F/N/R LABEL $1.00
155 P8688155 LABEL H/L $1.00
156 P8688156 WARNING LABEL $1.00
157 P8688157 GEAR 30T $1.50
158 P8688158 GEAR 35T $1.93
159 P8688159 GEAR 40T $1.75
160 P8688160 GEAR 45T $1.75
161 P8688161 GEAR 50T $2.00
162 P8688162 GEAR 55T $2.25
163 P8688163 GEAR 57T $3.03
164 P8688164 GEAR 60T $3.00
165 P8688165 GEAR 65T $3.25
166 P8688166 EXTERNAL JAWS SET $68.75
167 P8688167 CHUCK 3-JAW KEY $29.70
168 P8688168 RUBBER PAD $1.10
169 P8688169 BRACING $1.88
170 P8688170
SCREW M3 X 5
N/A
171 P8688171
CLAMP BLOCK
N/A
172 P8688172
***USE PR36M***
Item is no longer available
P8688172 Replaced By PR36M
N/A View Replacement
173 P8688173
***USE PS09M***
Item is no longer available
P8688173 Replaced By PS09M
N/A View Replacement
174 P8688174 PROTECTOR $1.00
175 P8688175
SCREW M5 X 10
N/A
176 P8688176
***USE PN01M***
Item is no longer available
P8688176 Replaced By PN01M
N/A View Replacement
177 P8688177
SET SCREW M6 X 25
N/A
178 P8688178
***USE P05161137***
Item is no longer available
P8688178 Replaced By P05161137
N/A View Replacement
179 P8688179
***USE P8689136***
Item is no longer available
P8688179 Replaced By P8689136
N/A View Replacement
180 P8688180
***USE P8689134***
Item is no longer available
P8688180 Replaced By P8689134
N/A View Replacement
180A P8688180A
***USE P8689201***
Item is no longer available
P8688180A Replaced By P8689201
N/A View Replacement
181 P8688181 F/O/R SWITCH $10.00
182 P8688182
*DISCD*PC BOARD 4 TERMINALS V1.08.99
Item is no longer available
N/A
182V2 P8688182V2 PC BOARD 3 TERMINALS V2.09.08 $123.75
183 P8688183
*DISCD*ELECTRIC FILTER
Item is no longer available
N/A
200 P8688200 OIL CAN $1.88
201 P8688201 INSIDE HORN WRENCH 4PC $1.50
202 P8688202
***USE PWR810***
Item is no longer available
P8688202 Replaced By PWR810
N/A View Replacement
203 P8688203
***USE PWR1417***
Item is no longer available
P8688203 Replaced By PWR1417
N/A View Replacement
204 P8688204 FUSE 3A $1.00
204V2 P8688204V2 FUSE 4A V2.06.07 $1.25
205 P8688205 FACEPLATE $22.75
206 P8688206 STEADY REST $53.44
206-1 P8688206-1
STEADY REST ADJ BOLT M6-0.8 X 300
N/A
207 P8688207 LATHE DOG $7.25
208 P8688208 BRUSH SET OF 2 $5.50
209 P8688209 COMPLETE TAILSTOCK ASSY $97.81
MANUAL P8688MANUAL MANUAL FOR G8688 MFD 01/00-02/09 V1 $12.75
MANV2 P8688MANV2 MANUAL FOR G8688 MFD 03/09+ V2.06.12 $11.50
PART P8688PART
MISCELLANEOUS G8688 PARTS
N/A
