Parts for G8688 - 7" x 12" Mini Metal Lathe

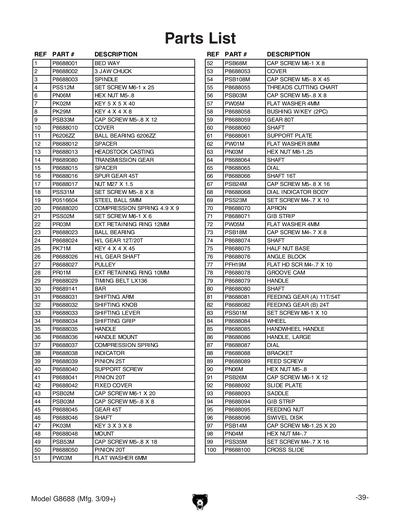

Part Diagram for G8688

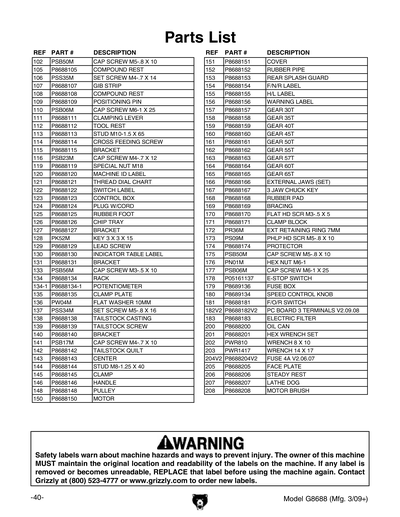

Part Diagram for G8688

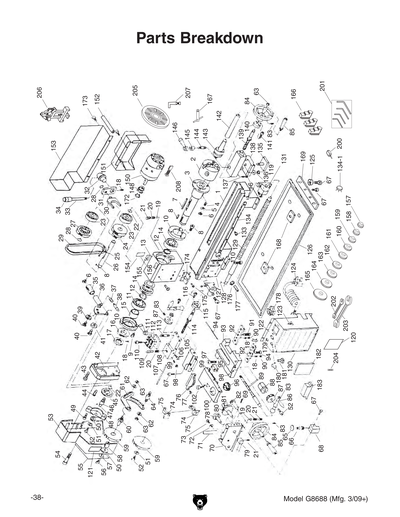

Part Diagram for G8688
Part Diagram for G8688
Part Diagram for G8688
Part Diagram for G8688

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BED WAY
Price
$99.95
2
3" 3-Jaw Plain Back Scroll Chuck
Price
N/A
2-1
INTERNAL JAW SET - 3 PC
Price
$93.15
3
SPINDLE
Price
$40.65
4
SET SCREW M6 X 25
Price
$1.90
6
HEX NUT M5-.8
Price
N/A
7
KEY 5 X 5 X 40
Price
N/A
8
KEY 4 X 4 X 8
Price
N/A
9
HEX HD SCR M5 X 12
Price
$1.90
10
COVER
Price
$1.90
11
BALL BEARING 6206ZZ
Price
N/A
12
SPACER
Price
$1.90
13
HEADSTOCK CASTING
Price
$31.35
14
TRANSMISSION GEAR WIDE
Price
N/A
15
SPACER
Price
$2.60
16
SPUR GEAR 45T
Price
$11.20
17
NUT M27-1.5
Price
$2.20
18
SET SCREW M5-.8 X 8
Price
N/A
19
STEEL BALL 5MM
Price
N/A
20
COMPRESSION SPRING 4.9 X 9
Price
$1.90
21
SET SCREW M6-1 X 6
Price
N/A
22
EXT RETAINING RING 11MM
Price
N/A
23
BALL BEARING 28 X 12 X 8
Price
$5.45
24
GEAR 12T/20T H/L
Price
$5.75
25
KEY 4 X 4 X 45
Price
N/A
26
GEAR SHAFT H/L
Price
$5.75
27
GEARED PULLEY 31T
Price
$2.90
28
EXT RETAINING RING 10MM
Price
N/A
29
TIMING BELT LX136
Price
$7.85
30
BAR
Price
N/A
31
SHIFTING ARM
Price
$4.35
32
SHIFTING KNOB
Price
$5.75
33
SHIFTING LEVER
Price
$1.90
34
SHIFTING GRIP
Price
$1.90
35
HANDLE
Price
$2.90
36
HANDLE MOUNT
Price
$5.85
37
ROUND SPRING 1.4 X 8.2 X 33
Price
$1.90
38
INDICATOR
Price
$1.90
39
PINION 25T
Price
$6.15
40
SUPPORT SCREW 16.5 X 16.5
Price
$2.25
41
PINION 20T
Price
$10.45
42
FIXED COVER
Price
$19.20
43
HEX HD SCR M6 X 20
Price
$1.90
44
MACHINE SCREW M5 X 8
Price
$1.90
45
GEAR 45T
Price
$2.90
46
SHAFT
Price
$4.35
47
KEY 3 X 3 X 8
Price
N/A
48
MOUNT
Price
$6.15
49
HEX HD SCR M5 X 18
Price
$1.90
50
PINION 20T
Price
$10.25
51
FLAT WASHER 6MM
Price
N/A
52
CAP SCREW M6-1 X 8
Price
N/A
53
COVER
Price
$8.35
54
CAP SCREW M5-.8 X 45
Price
N/A
55
FEED RATE GEAR CHART
Price
$1.90
56
CAP SCREW M5-.8 X 8
Price
N/A
57
FLAT WASHER 4MM
Price
N/A
58
BUSH W/KEY 2PC
Price
$2.20
59
GEAR 80T
Price
$5.10
60
SHAFT
Price
$3.25
61
SUPPORT PLATE
Price
$6.95
62
FLAT WASHER 8MM
Price
N/A
63
HEX NUT M8-1.25
Price
N/A
64
SHAFT
Price
$2.20
65
DIAL
Price
$2.90
66
SHAFT 16T
Price
$5.10
67
HEX HD SCR M5 X 16
Price
$1.90
68
DIAL INDICATOR BODY
Price
$9.75
69
SET SCREW M4-.7 X 10
Price
N/A
70
APRON
Price
$19.45
71
GIB STRIP
Price
$1.90
72
FLAT WASHER 5MM
Price
N/A
73
SCREW M4 X 8
Price
$1.90
74
SHAFT
Price
$1.90
75
HALF NUT BASE (2PC)
Price
$16.20
76
ANGLE BLOCK
Price
$5.75
77
SCREW M4 X 10
Price
$1.90
78
GROOVE CAM
Price
$16.95
79
HANDLE
Price
$2.60
80
SHAFT
Price
$3.25
81
FEEDING GEAR A 11T/54T
Price
$17.65
82
FEEDING GEAR B 24T
Price
$10.85
83
SET SCREW M6-1 X 8
Price
N/A
84
WHEEL
Price
$7.85
85
KNOB 19 X 40 W/SCREW M8 X 55 & NUT M8
Price
$5.45
86
HANDLE LARGE
Price
$8.65
86A
HANDLE SMALL
Price
$6.90
87
DIAL
Price
$7.95
87-1
SPRING PLATE
Price
N/A
87A
BUSHING C
Price
$1.90
88
BRACKET
Price
$9.00
89
FEEDING SCREW 15 X 195
Price
$11.10
90
HEX NUT M5-.8
Price
N/A
91
CAP SCREW M6-1 X 8
Price
N/A
92
SLIDE PLATE
Price
$5.60
93
SADDLE
Price
$31.35
94
GIB STRIP
Price
$2.85
95
FEEDING NUT
Price
$7.20
96
SWIVEL DISK
Price
$5.75
97
HEX HD SCR M8-1.25 X 20
Price
$1.90
98
HEX NUT M4-.7
Price
N/A
99
SET SCREW M4 X 16
Price
$1.90
100
CROSS SLIDE
Price
$31.35
101
CAP SCREW M5-.8 X 10
Price
N/A
102
HEX HD SCR M4 X 8
Price
$1.90
105
COMPOUND REST B
Price
$13.35
106
SET SCREW M4 X 14
Price
$1.90
107
GIB STRIP
Price
$2.90
108
COMPOUND REST A
Price
$14.75
109
POSITIONING PIN
Price
$2.20
110
CAP SCREW M6-1 X 25
Price
N/A
111
CLAMPING LEVER
Price
$2.60
112
TOOL REST
Price
$11.90
113
STUD-FT M10-1.5 X 65
Price
$1.90
114
CROSS FEEDING SCREW 14 X 121
Price
$12.95
115
BRACKET
Price
$6.90
116
HEX HD SCR M4 X 12
Price
$1.90
119
HEX NUT M10-1.5
Price
N/A
120
MACHINE ID LABEL
Price
$16.40
121
THREAD DIAL CHART
Price
$1.90
122
SWITCH LABEL
Price
$5.00
123
CONTROL BOX
Price
$10.85
123-1
COMPLETE CONTROL PANEL ASSY
Price
$250.35
123-2
CONTROL BOX SEAL
Price
$1.90
124
PLUG W/CORD
Price
$5.45
125
RUBBER FOOT
Price
$2.20
126
CHIP TRAY
Price
$16.20
127
BRACKET
Price
$5.75
128
KEY 3 X 3 X 15
Price
N/A
129
LEADSCREW 16 X 537/637
Price
$26.65
130
THREAD DIAL CHART
Price
N/A
131
BRACKET
Price
$5.75
133
HEX HD SCR M3 X 10
Price
$1.90
134
RACK
Price
$6.90
134-1
POTENTIOMETER
Price
$15.50
135
CLAMP PLATE
Price
$2.90
136
FLAT WASHER 10MM
Price
N/A
137
SET SCREW M5 X 16
Price
$1.90
138
TAILSTOCK CASTING
Price
$47.25
139
TAILSTOCK SCREW 15 X 118
Price
$10.85
140
BRACKET
Price
$4.35
141
CAP SCREW M4-.7 X 10
Price
N/A
142
TAILSTOCK QUILL
Price
$16.10
143
CENTER
Price
$8.65
144
SET SCREW M8-1.25 X 40
Price
N/A
145
CLAMP
Price
$2.60
146
HANDLE
Price
$2.60
148
PULLEY
Price
$2.60
150
MOTOR 250W 2.8A 1PH
Price
$126.90
150-1
MOTOR BRUSH CAP 11/10/06
Price
$1.90
151
COVER
Price
$7.20
152
RUBBER PIPE
Price
$1.90
153
REAR SPLASH GUARD
Price
$12.95
154
F/N/R LABEL
Price
$1.25
155
LABEL H/L
Price
$1.25
156
WARNING LABEL
Price
$1.25
157
GEAR 30T
Price
$2.20
158
GEAR 35T
Price
$2.60
159
GEAR 40T
Price
$2.60
160
GEAR 45T
Price
$2.90
161
GEAR 50T
Price
$2.90
162
GEAR 55T
Price
$3.25
163
GEAR 57T
Price
$3.95
164
GEAR 60T
Price
$4.35
165
GEAR 65T
Price
$5.10
166
EXTERNAL JAWS SET
Price
$81.95
167
CHUCK 3-JAW KEY
Price
$39.95
168
RUBBER PAD
Price
$1.90
169
BRACING
Price
$2.60
170
SCREW M3 X 5
Price
$1.90
171
CLAMP BLOCK
Price
$1.90
172
EXT RETAINING RING 7MM
Price
N/A
173
PHLP HD SCR M5-.8 X 10
Price
N/A
174
PROTECTOR
Price
$1.90
175
SCREW M5 X 10
Price
$1.90
176
HEX NUT M6-1
Price
N/A
177
SET SCREW M6 X 25
Price
$1.90
178
E-STOP BUTTON KEDU 02A1131
Price
N/A
179
FUSE BOX
Price
N/A
180
SPEED CONTROL KNOB
Price
N/A
180A
GREAT WRENCH 36
Price
N/A
181
F/O/R SWITCH
Price
$14.60
182
*DISCD*PC BOARD 4 TERMINALS V1.08.99
Item is no longer available
Price
N/A
182V2
PC BOARD 3 TERMINALS V2.09.08
Price
$213.20
200
OIL BOTTLE
Price
N/A
201
INSIDE HORN WRENCH 4PC
Price
$2.60
202
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
203
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
204
FUSE 3A
Price
$1.90
204V2
FUSE 4A V2.06.07
Price
$1.90
205
FACEPLATE
Price
$33.85
206
STEADY REST
Price
$63.65
206-1
STEADY REST ADJ BOLT M6-0.8 X 300
Price
$4.70
207
LATHE DOG
Price
$10.85
208
BRUSH SET OF 2
Price
$8.00
209
COMPLETE TAILSTOCK ASSY
Price
$116.45
MANUAL
MANUAL FOR G8688 MFD 01/00-02/09 V1
Price
$14.65
MANV2
MANUAL FOR G8688 MFD 03/09+ V2.06.12
Price
$11.50
