Parts for G8689 - 4" x 16" Mini Milling Machine

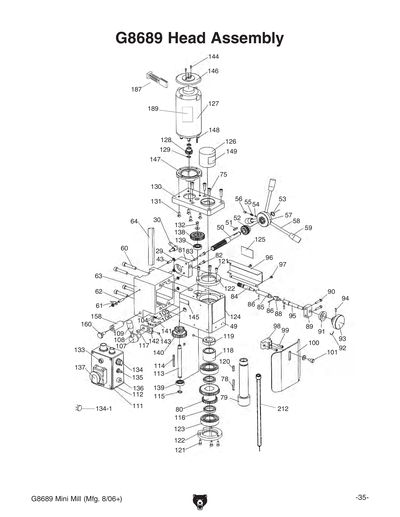

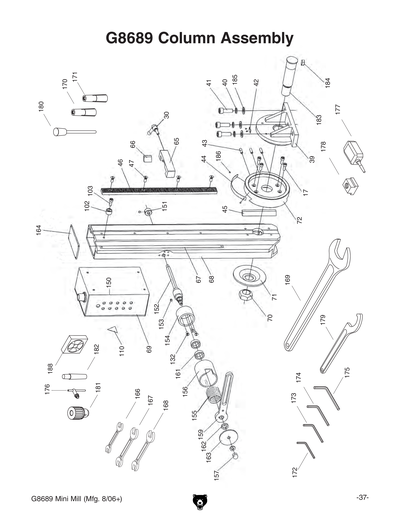

Part Diagram for G8689
Part Diagram for G8689
Part Diagram for G8689
Part Diagram for G8689
Part Diagram for G8689
Part Diagram for G8689
Part Diagram for G8689
Part Diagram for G8689
Part Diagram for G8689
Part Diagram for G8689

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

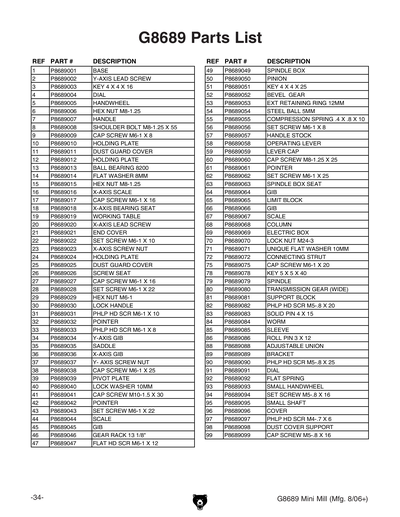

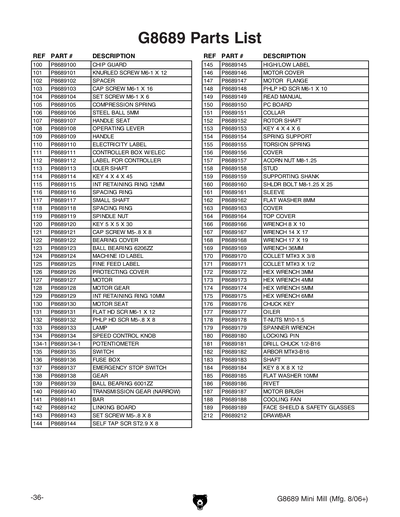

Ref #
Part #
Description
1
BASE
Price
$62.60
2
Y-AXIS LEAD SCREW
Price
$12.25
2-1
KEY 4 X 4 X 16
Price
N/A
3
KEY 4 X 4 X 16
Price
N/A
4
DIAL
Price
$9.65
5
HANDWHEEL
Price
$14.40
6
HEX NUT M8-1.25
Price
N/A
7
KNOB
Price
$3.25
8
PHLP HD SCR M8-1.25 X 55 SLOTTED
Price
N/A
9
CAP SCREW M6-1 X 8
Price
N/A
10
HOLDING PLATE
Price
$1.90
11
DUST GUARD COVER
Price
$6.50
12
HOLDING PLATE
Price
$1.90
13
BALL BEARING 8200
Price
$9.65
14
FLAT WASHER 8MM
Price
N/A
15
HEX NUT M8-1.25
Price
N/A
16
X-AXIS SCALE
Price
$2.60
17
CAP SCREW M6-1 X 16
Price
N/A
17-1
*DISCD*SCREW M6 X 10
Item is no longer available
Price
N/A
18
X-AXIS BEARING SEAT
Price
$7.20
19
WORKING TABLE
Price
$81.45
20
X-AXIS LEAD SCREW
Price
$9.75
20A
X-AXIX LEADSCREW W/NUT
Item is no longer available
Price
N/A
21
END COVER
Price
$2.60
22
CAP SCREW M6-1 X 10
Price
N/A
23
X-AXIS SCREW NUT
Price
$18.70
24
HOLDING PLATE
Price
$1.90
25
DUST GUARD COVER
Price
N/A
26
SCREW SEAT
Price
$16.95
27
CAP SCREW M6-1 X 16
Price
N/A
28
SET SCREW M6-1 X 22
Price
N/A
29
HEX NUT M6-1
Price
N/A
30
HANDLE
Price
N/A
31
PHLP HD SCR M6-1 X 10
Price
N/A
32
POINTER
Price
$1.90
33
PHLP HD SCR M6-1 X 8
Price
N/A
34
Y-AXIS GIB
Price
$2.45
35
SADDLE
Price
$39.20
36
X-AXIS GIB
Price
$1.90
37
Y-AXIS SCREW NUT
Price
$16.95
38
CAP SCREW M6-1 X 25
Price
N/A
39
PIVOT PLATE
Price
$17.25
39-1
SHAFT
Price
$1.90
39-2
KEY 8 X 8 X 12
Price
N/A
40
FLAT WASHER 10MM
Price
N/A
40-1
FLAT WASHER 10MM
Price
N/A
41
CAP SCREW M10-1.5 X 30
Price
N/A
42
POINTER
Price
$1.90
43
DOG PT SET SCR M6-1 X 22
Price
$1.90
44
SCALE
Price
$1.90
45
GIB
Price
$1.90
46
GEAR RACK 13-1/8"
Price
$12.25
47
CAP SCREW M6-1 X 16
Price
N/A
48
NAME PLATE
Item is no longer available
Price
N/A
49
SPINDLE BOX
Price
$84.50
49A
COMPLETE HEAD ASSY
Price
$178.25
50
PINION
Price
$8.00
51
KEY 4 X 4 X 25
Price
N/A
52
BEVEL GEAR
Price
$9.75
53
EXT RETAINING RING 12MM
Price
N/A
54
STEEL BALL 5MM
Price
N/A
55
SPRING .4 X .8 X 10
Price
$1.90
56
SET SCREW M6-1 X 8
Price
N/A
57
HANDLE STOCK
Price
$15.60
58
OPERATING LEVER
Price
N/A
59
LEVER CAP
Price
N/A
60
CAP SCREW M8-1.25 X 25
Price
N/A
61
POINTER
Item is no longer available
Price
N/A
62
CAP SCREW M8-1.25 X 25
Price
N/A
63
SPINDLE BOX SEAT
Price
$35.95
64
GIB
Price
$1.90
65
LIMIT BLOCK
Price
$9.75
66
GIB
Price
$1.90
67
SCALE
Price
$2.60
68
COLUMN
Price
$142.35
69
ELECTRIC BOX
Price
$12.25
69-1
ELECTRICAL BOX ASSY
Price
$246.15
70
LOCK NUT M24-3
Price
$1.90
71
FLAT WASHER M10
Price
$3.25
72
CONNECTING STRUT
Price
$15.50
73
*DISCD*CONNECTING BOARD
Item is no longer available
Price
N/A
74
PITMAN SHAFT
Price
$2.05
75
CAP SCREW M6-1 X 20
Price
N/A
76
CONNECTING BLOCK
Price
$2.05
77
CUSHIONING CYLINDER
Price
$88.10
78
KEY 5 X 5 X 40
Price
N/A
79
SPINDLE
Price
$31.95
80
TRANSMISSION GEAR WIDE
Price
$8.35
81
SUPPORT BLOCK
Price
$15.50
82
PHLP HD SCR M5-.8 X 20
Price
N/A
83
ROLL PIN 4 X 14
Price
N/A
84
WORM
Price
$5.45
85
SLEEVE
Price
$5.75
86
STEEL PIN 3 X 11
Price
$1.90
87
STEEL PIN 3 X 14
Price
$1.90
88
ADJUSTABLE UNION
Price
$4.00
89
BRACKET
Price
$2.60
90
CAP SCREW M5-.8 X 25
Price
N/A
91
DIAL
Price
$5.75
92
FLAT SPRING
Price
$1.90
93
SMALL HANDWHEEL
Price
$10.10
94
CONE SET SCREW M5-.8 X 16
Price
$1.90
95
SMALL SHAFT
Price
$6.50
96
COVER
Price
$1.90
97
PHLP HD SCR M4-.7 X 6
Price
N/A
98
DUST COVER SUPPORT
Price
$1.90
99
CAP SCREW M5-.8 X 16
Price
N/A
100
CHIP GUARD
Price
$8.60
101
KNURLED SCREW M6-1 X 12
Price
$2.60
102
SPACER
Price
$1.90
103
CAP SCREW M6-1 X 16
Price
N/A
104
SET SCREW M6-1 X 6
Price
N/A
105
COMPRESSION SPRING
Price
$1.90
106
STEEL BALL 5MM
Price
N/A
107
HANDLE SEAT
Price
$5.10
108
OPERATING LEVER
Price
$1.90
109
HANDLE
Price
$1.90
110
ELECTRICITY 1.4W X 1.2H
Price
N/A
111
CONTROLLER BOX W/ELECTRICAL
Price
$59.70
111-1
CONTROL BOX GROMET
Price
$1.90
111-2
CONTROLLER BOX COVER
Price
$5.45
111-3
EMPTY CONTROLLER BOX
Price
$13.35
112
CONTROLLER BOX LABEL
Price
$1.90
113
IDLER SHAFT
Price
$5.75
114
KEY 3 X 3 X 45
Price
N/A
115
EXT RETAINING RING 12MM
Price
N/A
116
SPACING RING
Price
$1.90
117
BAR
Price
N/A
118
SPACING RING
Price
$5.75
119
SPINDLE NUT
Price
$3.25
120
KEY 5 X 5 X 20
Price
N/A
121
CAP SCREW M5-.8 X 8
Price
N/A
122
BEARING COVER
Price
$1.90
123
BALL BEARING 6206ZZ
Price
N/A
124
MACHINE ID LABEL
Item is no longer available
Price
N/A
125
FINE FEED LABEL
Price
$1.25
126
PROTECTING COVER
Price
$2.20
127
MOTOR 3/4HP 110V 1-PH
Price
$197.10
127-1
COOLING FAN
Price
$30.60
127-2
MOTOR BRUSH CAP
Price
$2.60
127-3
MOTOR BRUSHES
Price
$7.20
127A
*DISCD*MOTOR BRUSH
Item is no longer available
Price
N/A
128
MOTOR GEAR
Price
$10.40
129
EXT RETAINING RING 9MM
Price
N/A
130
MOTOR SEAT
Price
$12.25
131
FLAT HD SCR M6-1 X 12
Price
N/A
132
PHLP HD SCR M5-.8 X 10
Price
N/A
133
LAMP
Price
$2.60
134
SPEED CONTROL KNOB
Price
$1.90
134-1
POTENTIOMETER
Price
$6.50
135
SWITCH
Price
$15.50
136
FUSE BOX
Price
$2.45
137
E-STOP BUTTON KEDU 02A1131
Price
N/A
138
GEAR 30T
Price
N/A
138A
KEY 4 X 4 X 8
Price
N/A
139
BALL BEARING 6001ZZ
Price
N/A
140
TRANSMISSION GEAR NARROW
Price
$6.50
141
BAR
Price
$2.90
142
LINKING BOARD
Price
$5.10
143
SET SCREW M5-.8 X 8
Price
N/A
144
SELF TAP SCR ST2.9 X 8
Price
$1.90
145
HIGH/LOW LABEL
Price
$1.25
146
MOTOR COVER
Price
$1.90
146-1
*DISCD*SCREW
Item is no longer available
Price
N/A
147
MOTOR FLANGE
Price
$7.20
148
PHLP HD SCR M6-1 X 10
Price
N/A
149
SAFETY GLASSES LABEL
Price
$1.25
150
PC BOARD
Price
$177.95
150-1
YELLOW LAMP
Price
$2.20
151
COLLAR
Price
$7.20
152
ROTOR SHAFT
Price
$12.25
153
KEY 4 X 4 X 6
Price
N/A
154
SPRING SUPPORT
Price
$9.00
155
TORSION SPRING
Price
$4.35
156
COVER
Price
$4.85
157
ACORN NUT M8-1.25
Price
N/A
158
STANDOFF-HEX MF
Price
$5.10
159
SUPPORTING SHANK
Price
$7.60
160
SHLDR BOLT M8-1.25 X 25
Price
$4.35
161
SLEEVE
Price
$5.45
162
INT RETAINING RING 12MM
Price
N/A
163
COVER
Price
$1.90
164
TOP COVER
Price
$1.90
165
PHLP HD SCR M3-.5 X 6
Price
N/A
166
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
167
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
168
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
169
WRENCH 36MM
Price
$14.40
170
COLLET MT#3 X 3/8
Price
$30.95
171
COLLET MT#3 X 1/2
Price
$30.95
172
HEX WRENCH 3MM
Price
N/A
173
HEX WRENCH 4MM
Price
N/A
174
HEX WRENCH 5MM
Price
N/A
175
HEX WRENCH 6MM
Price
N/A
176
DRL CHK KEY 7.92MM TH 11T SD-16.2MM
Price
$3.25
177
OILER
Price
$2.20
178
T-NUTS M10-1.5
Price
$4.70
179
SPANNER WRENCH
Price
$9.75
180
LOCK PIN
Price
$2.90
181
DRILL CHUCK 1/2-B16
Price
$64.00
182
DRILL CHUCK ARBOR MT3 X JT33, 110MM L
Price
$9.40
183
SHAFT
Price
$23.40
184
KEY 8 X 8 X 12
Price
N/A
185
FLAT WASHER 10MM
Price
N/A
186
RIVET 2 X 4MM NAMEPLATE, ALUMINUM
Price
N/A
187
MOTOR BRUSH 2 PIECE SET
Price
$6.50
188
COOLING FAN
Price
$11.90
189
FACE SHIELD & SAFETY GLASSES 1.5W X 2.5H
Price
N/A
200
PC BOARD
Price
N/A
201
GREAT WRENCH 36
Price
$14.40
202
DRILL CHUCK W/SHANK
Price
$64.00
202A
DRILL CHUCK W/O SHANK
Price
$51.20
203
OIL CAN
Item is no longer available
Price
N/A
204
FIXING PIN
Price
$2.30
205
HEX WRENCH
Price
$2.90
206
SOCKET HEAD WRENCH
Price
$2.90
207
DOUBLE END WRENCH
Price
$9.75
208
DRILL CHUCK KEY
Price
$11.90
209
HANDLE
Price
$1.90
210
T-NUT 3/8-16
Price
$3.35
210A
T-NUT M8-1.25
Price
$1.90
211
FUSE
Price
$1.90
212
DRAWBAR
Price
$23.40
213
COLLET MT#3 X 3/8
Price
N/A
214
COLLET MT#3 X 1/2
Price
N/A
215
*DISCD*COOLING FAN
Item is no longer available
Price
N/A
216
POWER INDICATOR LIGHT NHC 220V ORG
Item is no longer available
Price
N/A
217
PLUG W/LINE
Item is no longer available
Price
N/A
218
GREY WIRE CONDUIT
Price
$3.25
219
CONTROL BOX GROMMET
Price
$1.90
220
TRANSFORMER BOARD
Price
$11.20
221
KNURLED SCREW M6-1 X 12
Price
N/A
MANUAL
MANUAL FOR G8689 05/05
Price
$14.65
