Parts for G8689Z - 4" x 16" Mini Milling Machine

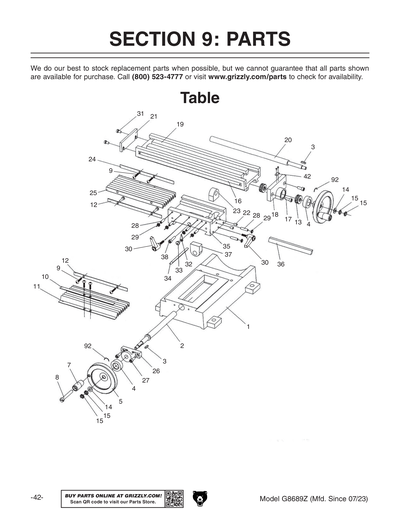

Part Diagram for G8689Z

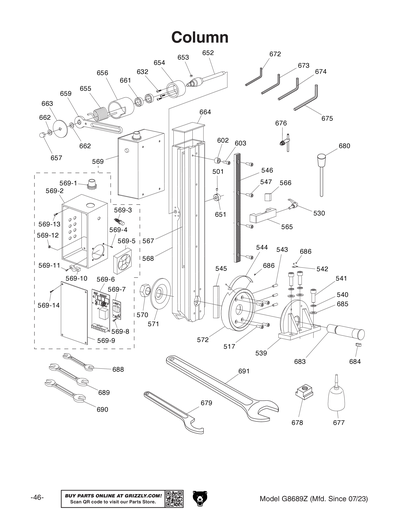

Part Diagram for G8689Z

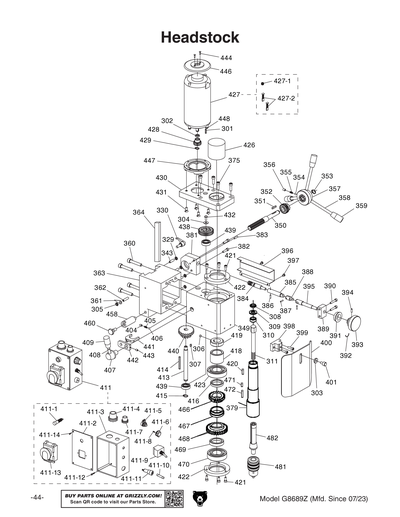

Part Diagram for G8689Z
Part Diagram for G8689Z
Part Diagram for G8689Z
Part Diagram for G8689Z
Part Diagram for G8689Z
Part Diagram for G8689Z
Part Diagram for G8689Z
Part Diagram for G8689Z
Part Diagram for G8689Z
Part Diagram for G8689Z
Part Diagram for G8689Z
Part Diagram for G8689Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

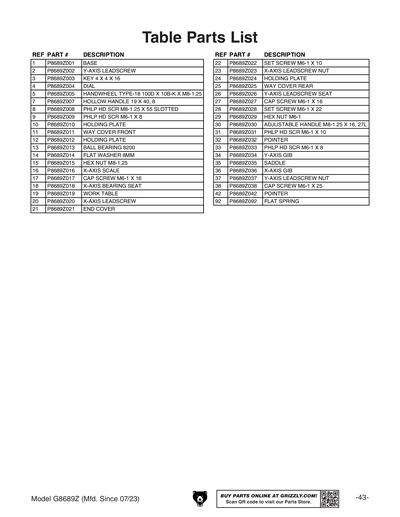

Ref #
Part #
Description
1
BASE
Price
N/A
2
Y-AXIS LEAD SCREW
Price
N/A
3
KEY 4 X 4 X 16
Price
N/A
4
DIAL
Price
N/A
5
HANDWHEEL
Price
N/A
7
KNOB
Price
N/A
8
PHLP HD SCR M8-1.25 X 55 SLOTTED
Price
$1.90
9
PHLP HD SCR M6-1 X 8
Price
N/A
10
HOLDING PLATE
Price
N/A
11
DUST GUARD COVER
Price
N/A
12
HOLDING PLATE
Price
N/A
13
BALL BEARING 8200
Price
N/A
14
FLAT WASHER 8MM
Price
N/A
15
HEX NUT M8-1.25
Price
N/A
16
X-AXIS SCALE
Price
N/A
17
CAP SCREW M6-1 X 16
Price
N/A
18
X-AXIS BEARING SEAT
Price
N/A
19
WORKING TABLE
Price
N/A
20
X-AXIS LEAD SCREW
Price
N/A
21
END COVER
Price
N/A
22
SET SCREW M6-1 X 10
Price
N/A
23
X-AXIS SCREW NUT
Price
N/A
24
HOLDING PLATE
Price
N/A
25
DUST GUARD COVER
Price
N/A
26
SCREW SEAT
Price
N/A
27
CAP SCREW M6-1 X 16
Price
N/A
28
SET SCREW M6-1 X 22
Price
N/A
29
HEX NUT M6-1
Price
N/A
30
HANDLE
Price
N/A
31
PHLP HD SCR M6-1 X 10
Price
N/A
32
POINTER
Price
N/A
33
PHLP HD SCR M6-1 X 8
Price
N/A
34
Y-AXIS GIB
Price
N/A
35
SADDLE
Price
N/A
36
X-AXIS GIB
Price
N/A
37
Y-AXIS SCREW NUT
Price
N/A
38
CAP SCREW M6-1 X 25
Price
N/A
42
POINTER
Price
N/A
92
FLAT SPRING
Price
N/A

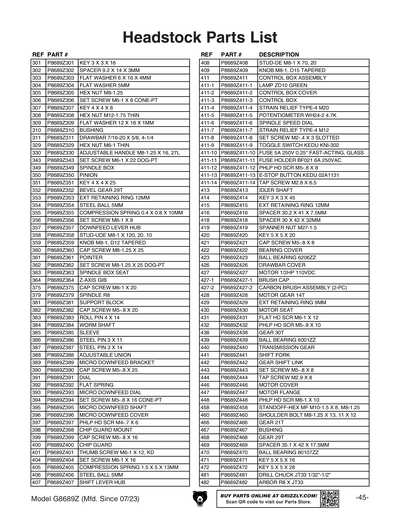

301
KEY 3 X 3 X 16 RE
Price
N/A
302
SPACER 9.2 X 14 X 3MM
Price
$1.90
303
FLAT WASHER 6 X 16 X 4MM
Price
$1.90
304
FLAT WASHER 5MM
Price
N/A
305
HEX NUT M8-1.25
Price
N/A
306
SET SCREW M6-1 X 8 CONE-PT
Price
N/A
307
KEY 4 X 4 X 8
Price
$1.90
308
HEX NUT M12-1.75 THIN
Price
$1.90
309
FLAT WASHER 12 X 18 X 1MM
Price
$1.90
310
BUSHING
Price
$1.90
311
DRAWBAR 7/16-20 X 5/8, 4-1/4
Price
$4.35
329
HEX NUT M6-1 THIN
Price
N/A
330
HANDLE
Price
N/A
343
DOG PT SET SCR M6-1 X 22
Price
N/A
349
SPINDLE BOX
Price
N/A
350
PINION
Price
N/A
351
KEY 4 X 4 X 25
Price
N/A
352
BEVEL GEAR
Price
N/A
353
EXT RETAINING RING 12MM
Price
N/A
354
STEEL BALL 5MM
Price
N/A
355
SPRING .4 X .8 X 10
Price
N/A
356
SET SCREW M6-1 X 8
Price
N/A
357
HANDLE STOCK
Price
N/A
358
OPERATING LEVER
Price
N/A
359
LEVER CAP
Price
N/A
360
CAP SCREW M8-1.25 X 25
Price
N/A
361
POINTER
Price
$1.90
362
SET SCREW M8-1.25 X 25 DOG-PT
Price
N/A
363
SPINDLE BOX SEAT
Price
N/A
364
GIB
Price
N/A
375
CAP SCREW M6-1 X 20
Price
N/A
379
SPINDLE R8
Price
$34.15
379-1
SPINDLE PIN W/SHOULDER
Price
$1.90
381
SUPPORT BLOCK
Price
N/A
382
CAP SCREW M5-.8 X 20
Price
N/A
383
ROLL PIN 4 X 14
Price
N/A
384
WORM
Price
N/A
385
SLEEVE
Price
N/A
386
STEEL PIN 3 X 11
Price
N/A
387
STEEL PIN 3 X 14
Price
N/A
388
ADJUSTABLE UNION
Price
N/A
389
BRACKET
Price
N/A
390
CAP SCREW M5-.8 X 25
Price
N/A
391
DIAL
Price
N/A
392
FLAT SPRING
Price
N/A
393
SMALL HANDWHEEL
Price
N/A
394
SET SCREW M5-.8 X 16 CONE-PT
Price
N/A
395
SMALL SHAFT
Price
N/A
396
COVER
Price
N/A
397
PHLP HD SCR M4-.7 X 6
Price
N/A
398
DUST COVER SUPPORT
Price
N/A
399
CAP SCREW M5-.8 X 16
Price
N/A
400
CHIP GUARD
Price
N/A
401
KNURLED SCREW M6-1 X 12
Price
N/A
404
SET SCREW M6-1 X 6
Price
N/A
405
COMPRESSION SPRING
Price
N/A
406
STEEL BALL 5MM
Price
N/A
407
HANDLE SEAT
Price
N/A
408
OPERATING LEVER
Price
N/A
409
HANDLE
Price
N/A
411
CONTROLLER BOX W/ELECTRICAL
Price
N/A
411-1
LAMP
Price
N/A
411-10
FUSE 5A 250V 0.25" FAST-ACTING, GLASS
Price
$1.90
411-11
FUSE BOX
Price
N/A
411-12
PHLP HD SCR M5-.8 X 8
Price
N/A
411-13
E-STOP BUTTON KEDU 02A1131
Price
N/A
411-14
TAP SCREW M2.8 X 6.5
Price
$1.90
411-2
CONTROLLER BOX COVER
Price
N/A
411-3
EMPTY CONTROLLER BOX
Price
N/A
411-4
CONTROL BOX GROMET
Price
N/A
411-5
POTENTIOMETER
Price
N/A
411-6
SPEED CONTROL KNOB
Price
N/A
411-7
CONTROL BOX GROMET
Price
N/A
411-8
SET SCREW M2-.4 X 3 SLOTTED
Price
$1.90
411-9
SWITCH
Price
N/A
413
IDLER SHAFT
Price
N/A
414
KEY 4 X 4 X 45
Price
N/A
415
INT RETAINING RING 12MM
Price
N/A
416
SPACING RING
Price
N/A
418
SPACING RING
Price
N/A
419
SPINDLE NUT
Price
N/A
420
KEY 5 X 5 X 30
Price
N/A
421
CAP SCREW M5-.8 X 8
Price
N/A
422
BEARING COVER
Price
N/A
423
BALL BEARING 6206ZZ
Price
N/A
426
PROTECTING COVER
Price
N/A
427
MOTOR 1/2HP 110VDC
Price
$460.50
427-1
BRUSH CAP
Price
$1.90
427-2
CARBON BRUSH ASSEMBLY (2-PC)
Price
$5.75
428
MOTOR GEAR
Price
N/A
429
INT RETAINING RING 10MM
Price
N/A
430
MOTOR SEAT
Price
N/A
431
FLAT HD SCR M6-1 X 12
Price
N/A
432
PHLP HD SCR M5-.8 X 8
Price
N/A
438
GEAR 30T
Price
N/A
439
BALL BEARING 6001ZZ
Price
N/A
440
TRANSMISSION GEAR NARROW
Price
N/A
441
BAR
Price
N/A
442
LINKING BOARD
Price
N/A
443
SET SCREW M5-.8 X 8
Price
N/A
444
SELF TAP SCR ST2.9 X 8
Price
N/A
446
MOTOR COVER
Price
N/A
447
MOTOR FLANGE
Price
N/A
448
PHLP HD SCR M6-1 X 10
Price
N/A
458
STANDOFF-HEX MF
Price
N/A
460
SHLDR BOLT M8-1.25 X 25
Price
N/A
466
GEAR 21T
Price
$10.85
467
BUSHING
Price
$2.70
468
GEAR 29T
Price
$18.20
469
SPACER 35.1 X 42 X 17.5MM
Price
$1.90
470
BALL BEARING 6007ZZ
Price
N/A
471
KEY 5 X 5 X 16
Price
$1.90
472
KEY 5 X 5 X 28
Price
$1.90
481
DRILL CHUCK JT33 1/32"-1/2"
Price
$26.75
482
ARBOR R8 X JT33
Price
$11.75

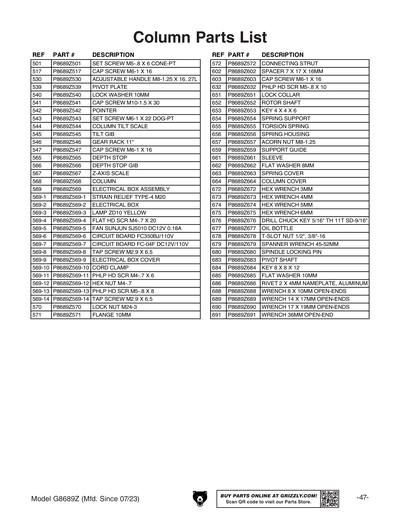

501
SET SCREW M5-.8 X 6 CONE-PT
Price
N/A
517
CAP SCREW M6-1 X 16
Price
N/A
530
HANDLE
Price
N/A
539
PIVOT PLATE
Price
N/A
540
LOCK WASHER 10MM
Price
N/A
541
CAP SCREW M10-1.5 X 30
Price
N/A
542
POINTER
Price
N/A
543
DOG PT SET SCR M6-1 X 22
Price
N/A
544
SCALE
Price
N/A
545
GIB
Price
N/A
546
GEAR RACK 11"
Price
$20.85
547
CAP SCREW M6-1 X 16
Price
N/A
565
LIMIT BLOCK
Price
N/A
566
GIB
Price
N/A
567
Z-AXIS SCALE
Price
$5.10
568
COLUMN
Price
$185.75
569
ELECTRICAL BOX ASSY
Price
N/A
569-1
CONTROL BOX GROMET
Price
N/A
569-10
CORD CLAMP
Price
$1.90
569-11
PHLP HD SCR M4-.7 X 6
Price
N/A
569-12
HEX NUT M4-.7
Price
N/A
569-13
PHLP HD SCR M5-.8 X 8
Price
N/A
569-14
TAP SCREW M2.9 X 6.5
Price
$1.90
569-2
ELECTRIC BOX
Price
N/A
569-3
YELLOW LAMP
Price
N/A
569-4
FLAT HD SCR M4-.7 X 20
Price
N/A
569-5
FAN SUNJUN SJ5010 DC12V 0.18A
Price
$10.25
569-6
PC BOARD
Price
N/A
569-7
TRANSFORMER BOARD
Price
N/A
569-8
TAP SCREW M2.9 X 6.5
Price
$1.90
569-9
ELECTRICAL BOX COVER
Price
$2.25
570
LOCK NUT M24-3
Price
N/A
571
FLAT WASHER M10
Price
N/A
572
CONNECTING STRUT
Price
N/A
602
SPACER
Price
N/A
603
CAP SCREW M6-1 X 16
Price
N/A
632
PHLP HD SCR M5-.8 X 8
Price
N/A
651
COLLAR
Price
N/A
652
ROTOR SHAFT
Price
N/A
653
KEY 4 X 4 X 6
Price
N/A
654
SPRING SUPPORT
Price
N/A
655
TORSION SPRING
Price
N/A
656
COVER
Price
N/A
657
ACORN NUT M8-1.25
Price
N/A
659
SUPPORTING SHANK
Price
N/A
661
SLEEVE
Price
N/A
662
FLAT WASHER 8MM
Price
N/A
663
COVER
Price
N/A
664
TOP COVER
Price
N/A
672
HEX WRENCH 3MM
Price
N/A
673
HEX WRENCH 4MM
Price
N/A
674
HEX WRENCH 5MM
Price
N/A
675
HEX WRENCH 6MM
Price
N/A
676
DRILL CHUCK KEY 5/16" TH 11T SD-9/16"
Price
$8.95
677
OILER
Price
N/A
678
T-SLOT NUT 1/2", 3/8"-16
Price
$2.85
679
SPANNER WRENCH
Price
N/A
680
LOCK PIN
Price
N/A
683
SHAFT
Price
N/A
684
KEY 8 X 8 X 12
Price
N/A
685
FLAT WASHER 10MM
Price
N/A
686
RIVET 2 X 4MM NAMEPLATE, ALUMINUM
Price
N/A
688
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
689
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
690
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
691
WRENCH 36MM
Price
N/A

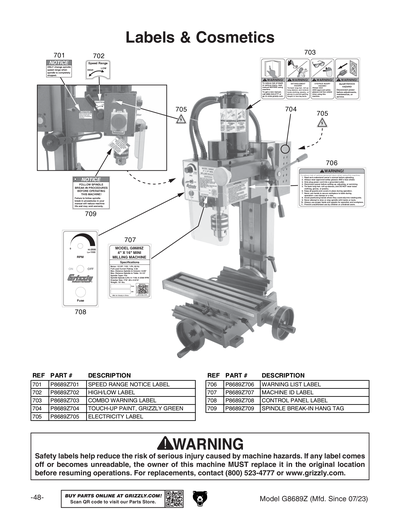

701
SPEED RANGE NOTICE LABEL
Price
$1.90
702
HIGH/LOW LABEL
Price
$1.90
703
COMBO WARNING LABEL
Price
$1.90
704
N/S GRIZZLY GREEN G1023S
Price
N/A
705
ELECTRICITY 0.5W X 0.4H
Price
N/A
706
WARNING LIST LABEL
Price
$1.90
707
MACHINE ID LABEL
Price
$2.15
708
CONTROL PANEL LABEL
Price
$6.70
709
SPINDLE BREAK-IN HANG TAG
Price
N/A
MAN
MANUAL G8689Z MFD-07.23+ V1.08.23
Price
$7.15
