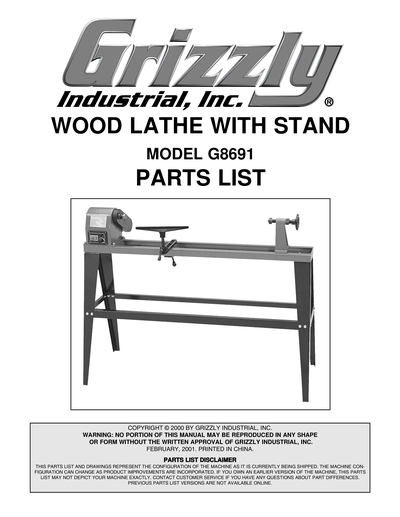

Parts for G8691 14" x 40" Wood Lathe w/ Stand

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*MOTOR
Item is no longer available
Price
N/A
2
Now: PK52M
KEY 3 X 3 X 15
Price
N/A
3
*DISCD*MOTOR PULLEY
4
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
5
*DISCD*BELT COVER
6
*DISCD*MOTOR FIXING PLATE
7
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
8
Now: PW01M
FLAT WASHER 8MM
Price
N/A
9
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
10
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
11
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
12
*DISCD*ADJUSTING PLATE
13
*DISCD*CIRCUIT BASE
14
TAP SCREW M3 X 8
Price
N/A
15
*DISCD*NAME PLATE
16
*DISCD*SPINDLE
17
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
18
*DISCD*SHAFT NUT 20 X 15
19
*DISCD*SPUR CENTER
Item is no longer available
Price
N/A
20
*DISCD*FACE PLATE
Item is no longer available
Price
N/A
21
BALL BEARING 6203ZZ
Price
N/A
22
BALL BEARING 6205ZZ
Price
N/A
23
Now: PR26M
INT RETAINING RING 52MM
Price
N/A
24
*DISCD*SHAFT PULLEY
25
Now: PVM21
V-BELT M21 3L210
Price
N/A
26
*DISCD*TOOL REST
Item is no longer available
Price
N/A
27
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
28
Now: PSS14
*DISCD*SET SCREW 5/16-18 X 1-3/8
Price
N/A
29
*DISCD*TOOL REST SHAFT
Item is no longer available
Price
N/A
30
*DISCD*TOOL REST BASE
Item is no longer available
Price
N/A
31
*DISCD*SPECIAL HANDLE
32
*DISCD*HANDLE COVER M8
33
*DISCD*FIXING PLATE
Item is no longer available
Price
N/A
34
*DISCD*HANDLE
Item is no longer available
Price
N/A
35
*DISCD*HANDLE COVER M10
36
*DISCD*CUP CENTER
Item is no longer available
Price
N/A
36A
*DISCD*M.T. #2 LIVE CENTER
Item is no longer available
Price
N/A
37
BALL BEARING 6201ZZ
Price
N/A
38
*DISCD*IDLER SHAFT
39
*DISCD*TAILSTOCK
39A
*DISCD*COMPLETE TAILSTOCK ASSY
Item is no longer available
Price
N/A
40
*DISCD*GUIDE SCREW 18 X 150
Item is no longer available
Price
N/A
41
*DISCD*HEX NUT FOR GUIDE SCREW 30 X 16
Item is no longer available
Price
N/A
42
*DISCD*TAILSTOCK WHEEL
Item is no longer available
Price
N/A
43
SET SCREW M6-1 X 10
Price
N/A
44
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
45
Now: PW06M
FLAT WASHER 12MM
Price
N/A
46
*DISCD*FIXING PLATE
Item is no longer available
Price
N/A
47
*DISCD*TURNING KNOB
48
*DISCD*NUT 8 X 4
49
*DISCD*SPEED SWITCH
Item is no longer available
Price
N/A
50
*DISCD*POWER SWITCH
51
*DISCD*FUSE
Item is no longer available
Price
N/A
51A
*DISCD*FUSE HOLDER
52
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
53
*DISCD*CONTROL LABEL
54
*DISCD*TOP PLATE
Item is no longer available
Price
N/A
55
*DISCD*SUPPORT
Item is no longer available
Price
N/A
56
*DISCD*PRESS PLATE
Item is no longer available
Price
N/A
57
*DISCD*RUBBER SHEATH
Item is no longer available
Price
N/A
58
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
59
Now: PN03M
HEX NUT M8-1.25
Price
N/A
60
POWER CORD 16G X 3W 73"L
Price
N/A
61
*DISCD*MACHINE BASE
62
*DISCD*ELECTRONIC CIRCUIT
Item is no longer available
Price
N/A
63
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
64
Now: PW01M
FLAT WASHER 8MM
Price
N/A
65
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
66
*DISCD*ELECTRICAL MARK
67
*DISCD*DIRECTION LABEL
68
*DISCD*COVER
Item is no longer available
Price
N/A
69
*DISCD*SPECIAL WRENCH
Item is no longer available
Price
N/A
70
Now: PN03M
HEX NUT M8-1.25
Price
N/A
100
*DISCD*SUPPORT OF LATHE
100-1
*DISCD*RUBBER FOOT
101
*DISCD*COMPLETE STAND ASSY
Item is no longer available
Price
N/A
102
*DISCD*SHORT LEG BRACE
Item is no longer available
Price
N/A
103
*DISCD*COMPLETE HEAD ASSY
104
*DISCD*MOTOR BRUSH
Item is no longer available
Price
N/A
MANUAL
*DISCD*MANUAL FOR THE G8691
Item is no longer available
Price
N/A
