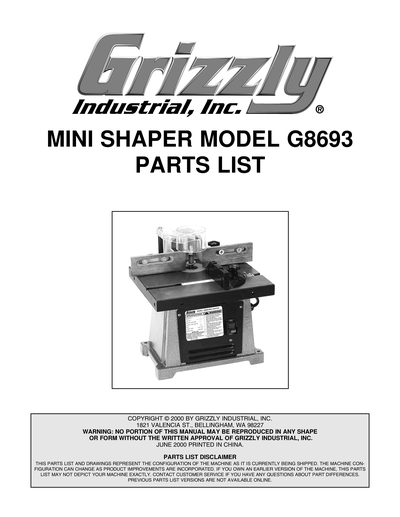

Parts for G8693 - Mini Shaper

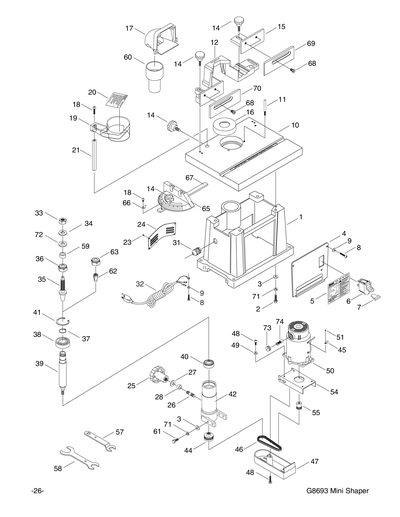

Part Diagram for G8693
Part Diagram for G8693
Part Diagram for G8693
Part Diagram for G8693
Part Diagram for G8693
Part Diagram for G8693

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

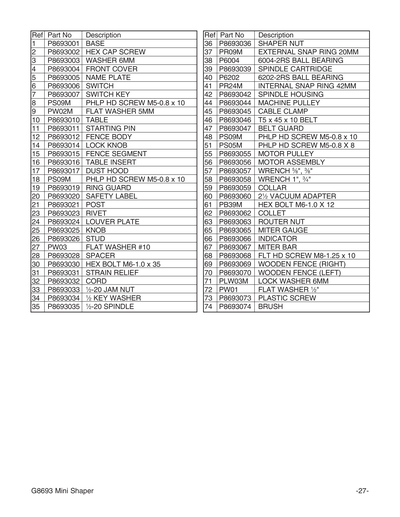

Ref #
Part #
Description
1
*DISCD*BASE
Price
$64.70
2
HEX BOLT M6-1 X 45
Price
N/A
2A
*DISCD*WOODEN FENCE LEFT
Item is no longer available
Price
N/A
2B
*DISCD*WOODEN FENCE RIGHT
Item is no longer available
Price
N/A
3
FLAT WASHER 6MM
Price
N/A
4
*DISCD*FRONT COVER
Price
$4.35
5
*DISCD*NAME PLATE
Item is no longer available
Price
N/A
6
Toggle Safety Switch
Price
N/A
7
*DISCD*SWITCH KEY 200 X 20 X 10
Price
$5.75
8
PHLP HD SCR M5-.8 X 10
Price
N/A
9
FLAT WASHER 5MM
Price
N/A
10
*DISCD*TABLE
Item is no longer available
Price
N/A
11
*DISCD*STARTING PIN
Price
$1.49
12
*DISCD*FENCE BODY
Price
$22.15
13
FLAT WASHER 6MM
Price
N/A
14
*DISCD*LOCK KNOB
Item is no longer available
Price
N/A
15
*DISCD*FENCE SEGMENT
Item is no longer available
Price
N/A
16
*DISCD*TABLE INSERT
Item is no longer available
Price
N/A
17
*DISCD*DUST HOOD
Item is no longer available
Price
N/A
18
PHLP HD SCR M5-.8 X 10
Price
N/A
19
*DISCD*RING GUARD
Item is no longer available
Price
N/A
20
*DISCD*SAFETY LABEL
Price
$1.00
21
*DISCD*POST
Item is no longer available
Price
N/A
22
*DISCD*COTTER PIN
Item is no longer available
Price
N/A
23
RIVET 2.5 X 5MM NAMEPLATE, STEEL
Price
N/A
24
*DISCD*REAR COVER
Price
$1.75
25
*DISCD*KNOB
Item is no longer available
Price
N/A
26
*DISCD*STUD-UDE M10-1.5 X 37 12RH / 18RH
Price
$1.49
27
P8693027
Now: PW03
FLAT WASHER #10
Price
N/A
28
*DISCD*LIFT BEARING 16 X 8 X 8
Price
$1.49
29
SET SCREW M8-1.25 X 16
Price
N/A
30
CAP SCREW M6-1 X 25
Price
N/A
31
*DISCD*STRAIN RELIEF M16 TYPE-6 ST
Price
$1.49
32
*DISCD*CORD
Price
$6.90
33
P8693033
Now: PN01
HEX NUT 1/2-20
Price
N/A
34
*DISCD*KEY WASHER 1/2"
Price
$1.49
35
*DISCD*SPINDLE 1/2-20
Item is no longer available
Price
N/A
36
*DISCD*SHAPER NUT 26 X 26
Item is no longer available
Price
N/A
37
EXT RETAINING RING 20MM
Price
N/A
38
BALL BEARING 6004-2RS
Price
N/A
39
*DISCD*SPINDLE CARTRIDGE
Price
$8.05
40
BALL BEARING 6002-2RS
Price
N/A
41
INT RETAINING RING 40MM
Price
N/A
42
*DISCD*SPINDLE HOUSING
Price
$16.10
43
PHLP HD SCR M5-.8 X 12
Price
N/A
44
*DISCD*MACHINE PULLEY
Item is no longer available
Price
N/A
45
*DISCD*CABLE CLAMP
Item is no longer available
Price
N/A
46
*DISCD*POLY V-BELT 235MM L X 9.25MM W 4 V'S
Item is no longer available
Price
N/A
47
*DISCD*BELT GUARD
Item is no longer available
Price
N/A
48
PHLP HD SCR M5-.8 X 10
Price
N/A
49
*DISCD*WASHER
Item is no longer available
Price
N/A
50
*DISCD*MOTOR HOUSING
Price
$5.75
51
PHLP HD SCR M5-.8 X 8
Price
N/A
52
*DISCD*WIRE JACKET
Item is no longer available
Price
N/A
53
*DISCD*MOTOR
Item is no longer available
Price
N/A
53-1
*DISCD*FRONT MOTOR COVER
Item is no longer available
Price
N/A
54
*DISCD*MOTOR BRACKET
Price
$1.75
55
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
56
*DISCD*MOTOR ASSY
Item is no longer available
Price
N/A
57
*DISCD*WRENCH 5/8", 3/8"
Item is no longer available
Price
N/A
58
*DISCD*WRENCH 1", 3/4"
Item is no longer available
Price
N/A
59
*DISCD*COLLAR
Item is no longer available
Price
N/A
60
*DISCD*VACUUM ADAPATOR 2-1/2"
Price
$1.49
61
HEX BOLT M6-1 X 50
Price
N/A
62
*DISCD*COLLET
Item is no longer available
Price
N/A
63
*DISCD*ROUTER NUT 26 X 26
Item is no longer available
Price
N/A
64
*DISCD*FENCE ASSY
Item is no longer available
Price
N/A
65
*DISCD*MITER GAUGE
Item is no longer available
Price
N/A
66
*DISCD*INDICATOR
Price
$1.49
67
*DISCD*MITER BAR
Price
$4.60
68
FLAT HD SCR M8-1.25 X 10
Price
N/A
69
*DISCD*WOODEN FENCE-RIGHT
Item is no longer available
Price
N/A
70
*DISCD*WOODEN FENCE-LEFT
Item is no longer available
Price
N/A
71
LOCK WASHER 6MM
Price
N/A
72
P8693072
Now: PW01
FLAT WASHER 1/2
Price
N/A
73
*DISCD*PLASTIC SCREW M12 X 8
Price
$1.49
74
*DISCD*BRUSH 2PC
Item is no longer available
Price
N/A
MANUAL
*DISCD*MANUAL FOR G8693 06/00
Price
$13.25
