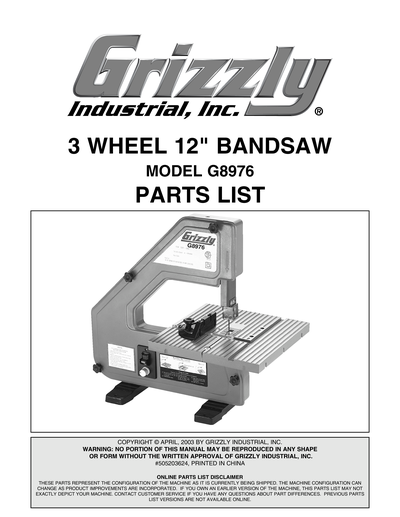

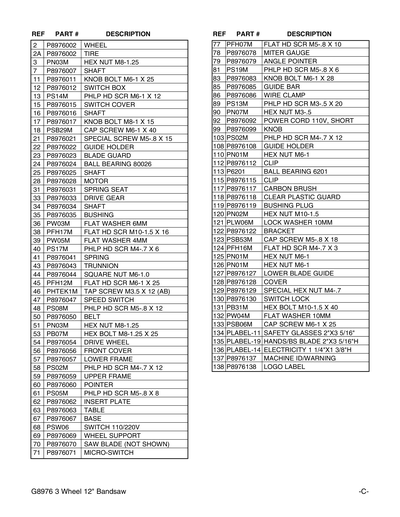

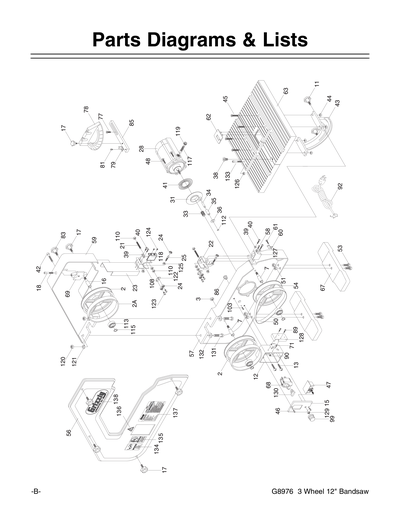

Parts for G8976 3 Wheel 12" Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

2
*DISCD*WHEEL
Item is no longer available
Price
N/A
2A
*DISCD*TIRE
Item is no longer available
Price
N/A
3
Now: PN03M
HEX NUT M8-1.25
Price
N/A
7
*DISCD*SHAFT 2 3/8"
11
*DISCD*KNOB BOLT M6-1 X 25
12
*DISCD*SWITCH BOX
Item is no longer available
Price
N/A
12-1
*DISCD*COMPL. SWITCH BOX
Item is no longer available
Price
N/A
13
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
15
*DISCD*SWITCH COVER
16
*DISCD*SHAFT 1 1/2"
17
*DISCD*KNOB BOLT M8-1 X 15
Item is no longer available
Price
N/A
18
CAP SCREW M6-1 X 40
Price
N/A
21
*DISCD*SPECIAL SCREW M5-.8 X 15
22
*DISCD*GUIDE HOLDER
Item is no longer available
Price
N/A
23
*DISCD*BLADE GUARD
24
BALL BEARING 695RZ
Price
N/A
25
*DISCD*SHAFT
26
Now: PN01M
HEX NUT M6-1
Price
N/A
28
*DISCD*MOTOR
Item is no longer available
Price
N/A
29
*DISCD*MOTOR COVER
Item is no longer available
Price
N/A
30
*DISCD*SELF TAPPING SCREW
Item is no longer available
Price
N/A
31
*DISCD*SPRING SEAT
33
*DISCD*DRIVE GEAR
Item is no longer available
Price
N/A
34
*DISCD*SHAFT
Item is no longer available
Price
N/A
35
*DISCD*BUSHING
Item is no longer available
Price
N/A
35A
*DISCD*BUSHING
Price
N/A
36
Now: PW03M
FLAT WASHER 6MM
Price
N/A
37
*DISCD*C.S. WASHER
Item is no longer available
Price
N/A
38
FLAT HD SCR M4-.7 X 3
Price
N/A
39
Now: PW05M
FLAT WASHER 4MM
Price
N/A
40
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
41
*DISCD*SPIRAL SPRING
Item is no longer available
Price
N/A
42
CAP SCREW M6-1 X 25
Price
N/A
43
*DISCD*TRUNNION
Item is no longer available
Price
N/A
44
*DISCD*SQUARE NUT M6-1.0
45
FLAT HD SCR M6-1 X 20
Price
N/A
46
TAP SCREW M3.5 X 12
Price
N/A
47
*DISCD*SPEED SWITCH
Item is no longer available
Price
N/A
48
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
50
*DISCD*TIMING BELT
Item is no longer available
Price
N/A
51
Now: PN03M
HEX NUT M8-1.25
Price
N/A
53
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
54
*DISCD*DRIVE WHEEL
Item is no longer available
Price
N/A
55
CAP SCREW M5-.8 X 10
Price
N/A
56
*DISCD*FRONT COVER
57
*DISCD*WHEEL BODY W/UPPER FRAME SHAFT
58
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
59
*DISCD*WHEEL BODY W/UPPER FRAME SHAFT
Price
N/A
60
*DISCD*ANGLE POINTER
Item is no longer available
Price
N/A
61
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
62
*DISCD*INSERT PLATE
Item is no longer available
Price
N/A
63
*DISCD*TABLE
67
*DISCD*BASE
68
Now: D4163
Toggle Safety Switch
Price
N/A
69
*DISCD*WHEEL SUPPORT
Item is no longer available
Price
N/A
71
*DISCD*MICRO-SWITCH
77
FLAT HD SCR M5-.8 X 10
Price
N/A
78
*DISCD*MITER GAUGE
Item is no longer available
Price
N/A
79
*DISCD*ANGLE POINTER
Item is no longer available
Price
N/A
80
*DISCD*PIN
Item is no longer available
Price
N/A
81
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
83
*DISCD*KNOB BOLT M6-1 X 28
Item is no longer available
Price
N/A
85
*DISCD*GUIDE BAR
Item is no longer available
Price
N/A
86
*DISCD*WIRE CLAMP
Item is no longer available
Price
N/A
89
Now: PS13M
PHLP HD SCR M3-.5 X 20
Price
N/A
90
Now: PN07M
HEX NUT M3-.5
Price
N/A
92
*DISCD*POWER CORD-110V, SHORT
Item is no longer available
Price
N/A
96
*DISCD*UPPER WHEEL SLIDE BRACKET
99
*DISCD*KNOB
101
*DISCD*MOTOR NAMEPLATE
103
Now: PN02M
HEX NUT M10-1.5
Price
N/A
104
*DISCD*EARTHPLATE
Item is no longer available
Price
N/A
105
*DISCD*WASHER
Item is no longer available
Price
N/A
106
*DISCD*SPRING WASHER
Item is no longer available
Price
N/A
107
*DISCD*HEX NUT
Item is no longer available
Price
N/A
108
*DISCD*GUIDE HOLDER
Item is no longer available
Price
N/A
109
*DISCD*WASHER
Item is no longer available
Price
N/A
110
Now: PN01M
HEX NUT M6-1
Price
N/A
111
*DISCD*WASHER
Item is no longer available
Price
N/A
112
Now: PR04M
EXT RETAINING RING 6MM
Price
N/A
113
BALL BEARING 6201-2RS
Price
N/A
114
Now: PR29M
INT RETAINING RING 32MM
Price
N/A
115
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
116
*DISCD*COMPL. SWITCH BOX
Price
N/A
117
*DISCD*CARBON BRUSH
Item is no longer available
Price
N/A
118
*DISCD*CLEAR PLASTIC GUARD ON BLADE GUID
Item is no longer available
Price
N/A
120
Now: PN02M
HEX NUT M10-1.5
Price
N/A
121
LOCK WASHER 10MM
Price
N/A
122
*DISCD*BRACKET
123
CAP SCREW M5-.8 X 18
Price
N/A
124
FLAT HD SCR M6-1 X 25
Price
N/A
125
Now: PN01M
HEX NUT M6-1
Price
N/A
126
Now: PN01M
HEX NUT M6-1
Price
N/A
127
*DISCD*LOWER BLADE GUIDE
Item is no longer available
Price
N/A
129
*DISCD*SPECIAL HEX NUT M4-.7
Item is no longer available
Price
N/A
130
*DISCD*SWITCH LOCK
Item is no longer available
Price
N/A
131
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
132
Now: PW04M
FLAT WASHER 10MM
Price
N/A
133
CAP SCREW M6-1 X 25
Price
N/A
134
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
135
***USE PLABEL-19A***
Price
N/A
136
ELECTRICITY 1.4W X 1.2H
Price
N/A
MANUAL
*DISCD*MANUAL FOR THE G8976
Item is no longer available
Price
N/A
