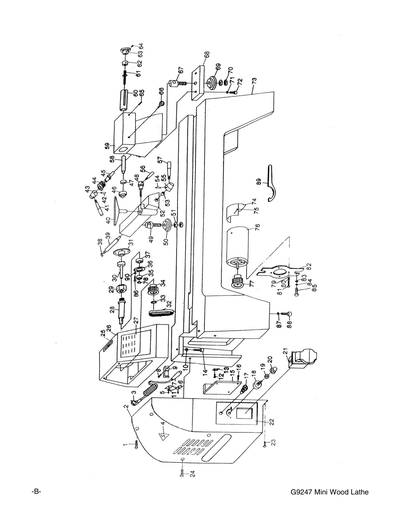

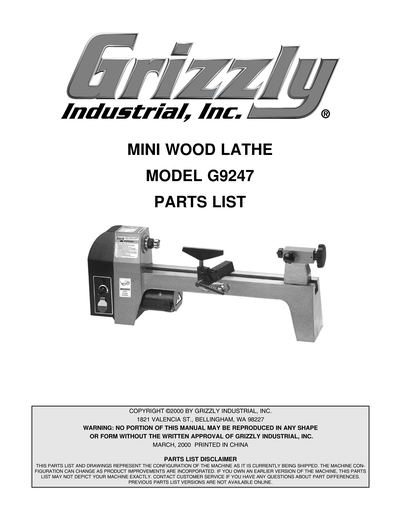

Parts for G9247 VS Mini Wood Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

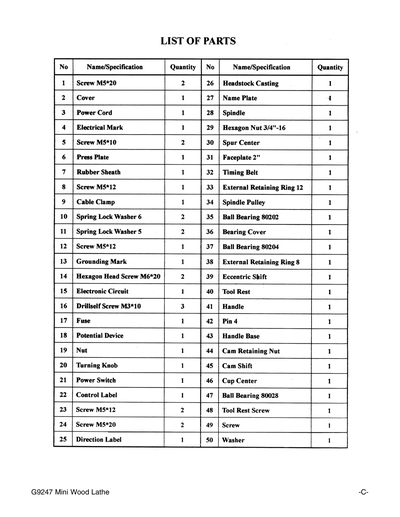

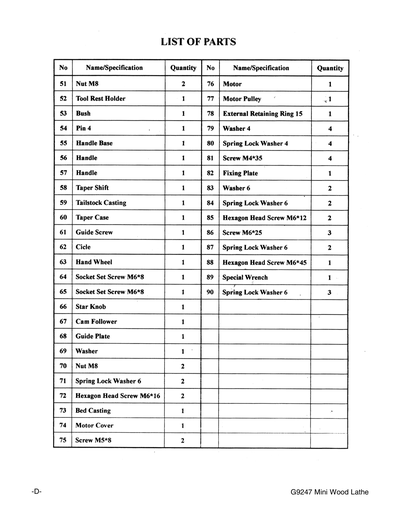

-076-2
*DISCD*BRUSH HOLDER
Item is no longer available
Price
N/A
1
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
2
*DISCD*COVER
3
*DISCD*POWER CORD
4
*DISCD*ELECTRICAL MARK
Price
N/A
5
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
6
*DISCD*PRESS PLATE
Item is no longer available
Price
N/A
7
*DISCD*RUBBER SHEATH
8
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
9
*DISCD*CABLE CLAMP
10
Now: PW03M
FLAT WASHER 6MM
Price
N/A
11
Now: PW02M
FLAT WASHER 5MM
Price
N/A
12
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
13
*DISCD*GROUNDING MARK
14
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
15
*DISCD*ELECTRONIC CIRCUIT
Item is no longer available
Price
N/A
16
*DISCD*SELF TAPPING SCREW M3 X 10
Item is no longer available
Price
N/A
17
FUSE 3A
Price
N/A
18
*DISCD*POTENTIAL DEVICE
Price
N/A
19
*DISCD*NUT M8-4
20
*DISCD*TURNING KNOB
Price
N/A
21
Now: G8988
Safety Paddle Switch
Price
N/A
22
*DISCD*CONTROL LABEL
23
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
24
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
25
*DISCD*DIRECTION LABEL
Item is no longer available
Price
N/A
26
*DISCD*HEADSTOCK CASTING
Item is no longer available
Price
N/A
27
*DISCD*NAME PLATE
Item is no longer available
Price
N/A
28
*DISCD*SPINDLE
Item is no longer available
Price
N/A
29
Now: PN03
HEX NUT 3/4-16
Price
N/A
30
*DISCD*SPUR CENTER
Item is no longer available
Price
N/A
31
*DISCD*FACEPLATE 2"
Item is no longer available
Price
N/A
32
*DISCD*TIMING BELT
Item is no longer available
Price
N/A
33
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
34
*DISCD*SPINDLE PULLEY
Item is no longer available
Price
N/A
35
BALL BEARING 6202ZZ
Price
N/A
36
*DISCD*BEARING COVER
37
BALL BEARING 6204ZZ
Price
N/A
38
Now: PR39M
EXT RETAINING RING 8MM
Price
N/A
39
*DISCD*ECCENTRIC SHAFT
40
*DISCD*TOOL REST
Item is no longer available
Price
N/A
41
*DISCD*HANDLE
42
ROLL PIN 4 X 18
Price
N/A
43
*DISCD*HANDLE BASE
Item is no longer available
Price
N/A
44
*DISCD*CAM RETAINING NUT M20 X 1.5
Item is no longer available
Price
N/A
45
*DISCD*CAM SHAFT
Item is no longer available
Price
N/A
46
*DISCD*CUP CENTER
47
BALL BEARING 628ZZ
Price
N/A
48
*DISCD*TOOL REST SCREW 10 X 20
Item is no longer available
Price
N/A
49
*DISCD*SCREW 10 X 30
Item is no longer available
Price
N/A
50
*DISCD*WASHER 30 X 20
Item is no longer available
Price
N/A
51
Now: PN03M
HEX NUT M8-1.25
Price
N/A
52
*DISCD*TOOL REST HOLDER
Item is no longer available
Price
N/A
53
*DISCD*BUSH
Item is no longer available
Price
N/A
54
ROLL PIN 4 X 18
Price
N/A
55
*DISCD*HANDLE BASE
Item is no longer available
Price
N/A
56
*DISCD*HANDLE
Item is no longer available
Price
N/A
57
*DISCD*HANDLE
Price
N/A
58
*DISCD*TAPER SHIFT
Item is no longer available
Price
N/A
59
*DISCD*TAILSTOCK CASTING
60
*DISCD*TAPER CASE
Item is no longer available
Price
N/A
61
*DISCD*GUIDE SCREW 12 X 80
Item is no longer available
Price
N/A
62
*DISCD*COLLAR
Item is no longer available
Price
N/A
63
*DISCD*HANDWHEEL
Item is no longer available
Price
N/A
64
SET SCREW M6-1 X 8
Price
N/A
65
SET SCREW M6-1 X 8
Price
N/A
66
*DISCD*STAR KNOB
67
*DISCD*CAM FOLLOWER
68
*DISCD*GUIDE PLATE
69
*DISCD*WASHER 30 X 20
Price
N/A
70
Now: PN20
HEX NUT 5/16-24
Price
N/A
71
LOCK WASHER 6MM
Price
N/A
72
CAP SCREW M6-1 X 15
Price
N/A
73
*DISCD*BED CASTING
Item is no longer available
Price
N/A
74
*DISCD*MOTOR COVER
75
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
76
*DISCD*MOTOR
Item is no longer available
Price
N/A
76-1
*DISCD*CARBON BRUSH
76-2
*DISCD*BRUSH HOLDER
Item is no longer available
Price
N/A
77
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
78
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
79
Now: PW05M
FLAT WASHER 4MM
Price
N/A
80
LOCK WASHER 4MM
Price
N/A
81
Now: PS25M
PHLP HD SCR M4-.7 X 35
Price
N/A
82
*DISCD*FIXING PLATE
83
Now: PW03M
FLAT WASHER 6MM
Price
N/A
84
LOCK WASHER 6MM
Price
N/A
85
CAP SCREW M5-.8 X 16
Price
N/A
86
SET SCREW M6-1 X 16
Price
N/A
87
Now: PW03M
FLAT WASHER 6MM
Price
N/A
88
Now: PB47M
HEX BOLT M6-1 X 40
Price
N/A
89
*DISCD*SPECIAL WRENCH
Item is no longer available
Price
N/A
90
Now: PW03M
FLAT WASHER 6MM
Price
N/A
91
*DISCD*4 AMP FUSE
Item is no longer available
Price
N/A
MANUAL
*DISCD*MANUAL FOR G9247 03/00
