Parts for G9730 - 13" x 40" High Precision Tool Room Lathe, 3 HP 220V Single-Phase

Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730
Part Diagram for G9730

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
HEADSTOCK CASE
Item is no longer available
Price
N/A
2
HEADSTOCK COVER
Item is no longer available
Price
N/A
3
PLUG
Item is no longer available
Price
N/A
4
BEARING SEAT
Item is no longer available
Price
N/A
5
GASKET
Item is no longer available
Price
N/A
6-1
PULLEY 2000RPM 60CS
Price
N/A
6A
PULLEY 2000RPM 60CS
Item is no longer available
Price
N/A
7
LOCK NUT 3/4-16
Price
N/A
8
SIDE COVER
Item is no longer available
Price
N/A
9
COVER GASKET
Item is no longer available
Price
N/A
10
O-RING 40.7 X 3.5 P41
Price
N/A
11
CASING PLUG
Item is no longer available
Price
N/A
12
FRONT BEARING COVER
Item is no longer available
Price
N/A
13
FRONT BEARING COVER GASKET
Item is no longer available
Price
N/A
14
REAR BEARING COVER
Item is no longer available
Price
N/A
15
REAR BEARING COVER GASKET
Item is no longer available
Price
N/A
16
BEARING SEAT
Item is no longer available
Price
N/A
17
BEARING SEAT
Item is no longer available
Price
N/A
18
BEARING SEAT COVER
Item is no longer available
Price
N/A
19
BEARING SEAT COVER GASKET
Item is no longer available
Price
N/A
20
PLATE
Item is no longer available
Price
N/A
21
ELBOW 1/2 PT
Item is no longer available
Price
N/A
22
PLUG 1/2 PT
Item is no longer available
Price
N/A
23
PLUG 3/8 PT
Item is no longer available
Price
N/A
24
OIL SIGHT GLASS
Price
$7.00
25
OIL SEAL TC28 42 10
Item is no longer available
Price
N/A
26
INT RETAINING RING 42MM
Price
N/A
27
O-RING 45.7 X 3.5 P46
Price
N/A
28
INT RETAINING RING 47MM
Price
N/A
29
O-RING 54.4 X 3.1 G55
Price
N/A
30
O-RING 15.8 X 2.4 P16
Price
N/A
31
LOCK WASHER 3/4
Price
N/A
32
CAP SCREW M8-1.25 X 16
Price
N/A
33
CAP SCREW M6-1 X 30
Price
N/A
34
CAP SCREW M6-1 X 16
Price
N/A
35
CAP SCREW M6-1 X 20
Price
N/A
36
CAP SCREW M6-1 X 25
Price
N/A
37
RUBBER MAT
Item is no longer available
Price
N/A
38
SET SCREW M8-1.25 X 8
Price
N/A
39

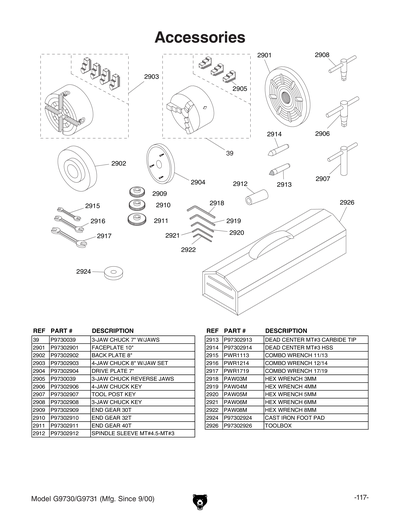

CHUCK 3-JAW 7" W/STANDARD JAWS
Item is no longer available
Price
N/A
101

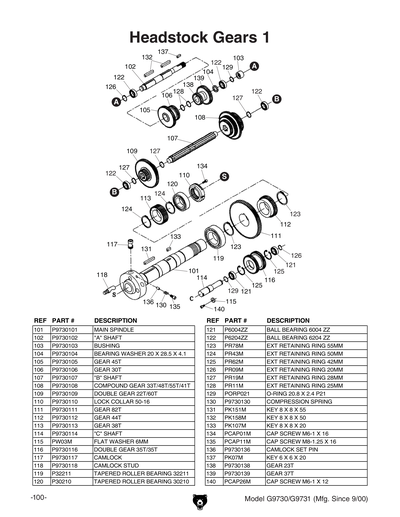

MAIN SPINDLE
Item is no longer available
Price
N/A
1010
PLUG 1/4 PT
Item is no longer available
Price
N/A
102
SHAFT A
Item is no longer available
Price
N/A
103
BUSHING
Item is no longer available
Price
N/A
104
FLAT WASHER 20MM
Price
N/A
105
GEAR 45T
Item is no longer available
Price
N/A
106
GEAR 30T
Item is no longer available
Price
N/A
107
SHAFT B
Item is no longer available
Price
N/A
108
COMBO GEAR 33T/48T/55T/41T
Item is no longer available
Price
N/A
109
COMBO GEAR 22T/60T
Item is no longer available
Price
N/A
110
LOCK COLLAR 50-16
Item is no longer available
Price
N/A
111
GEAR 82T
Item is no longer available
Price
N/A
112
GEAR 44T
Item is no longer available
Price
N/A
113
GEAR 38T
Item is no longer available
Price
N/A
114
SHAFT C
Item is no longer available
Price
N/A
115
FLAT WASHER 6MM
Price
N/A
116
COMBO GEAR 35T/35T
Item is no longer available
Price
N/A
117
CAMLOCK
Price
$30.20
118
CAMLOCK STUD
Price
$16.35
119
TAPER ROLLER BEARING 32211
Price
N/A
120
TAPERED ROLLER BEARING 30210
Price
N/A
1206
STEEL BALL 1/4
Price
N/A
121
BALL BEARING 6004ZZ
Price
N/A
122
BALL BEARING 6204ZZ
Price
N/A
123
EXT RETAINING RING 55MM
Price
N/A
124
EXT RETAINING RING 50MM
Price
N/A
125
INT RETAINING RING 42MM
Price
N/A
126
EXT RETAINING RING 20MM
Price
N/A
127
EXT RETAINING RING 28MM
Price
N/A
128
EXT RETAINING RING 25MM
Price
N/A
129
O-RING 20.8 X 2.4 P21
Price
N/A
130
COMPRESSION SPRING
Price
$5.50
131
KEY 8 X 8 X 55
Price
N/A
132
KEY 8 X 8 X 50
Price
N/A
133
KEY 8 X 8 X 20
Price
N/A
134
CAP SCREW M6-1 X 16
Price
N/A
135
CAP SCREW M8-1.25 X 16
Price
N/A
136
CAMLOCK SET PIN
Price
$10.10
137
KEY 6 X 6 X 20
Price
N/A
138
GEAR 23T
Item is no longer available
Price
N/A
139
GEAR 37T
Item is no longer available
Price
N/A
140
CAP SCREW M6-1 X 12
Price
N/A
17001

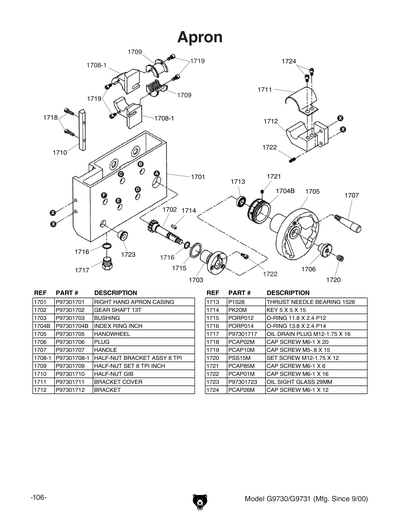

APRON CASING RH
Price
N/A
1701
APRON CASING RH
Item is no longer available
Price
N/A
1702
GEAR SHAFT 13T
Item is no longer available
Price
N/A
1703
BUSHING
Item is no longer available
Price
N/A
1704-1
INDEX RING
Price
N/A
1704B
INDEX RING
Price
$193.80
1705
HANDWHEEL
Price
$82.80
1706
HANDWHEEL RETAINER
Item is no longer available
Price
N/A
1707
HANDLE
Price
$26.45
1708
HALF NUT BRACKET 2 PC SET 8 TPI
Price
N/A
1708-1
HALF NUT BRACKET 2 PC SET 8 TPI
Price
$339.65
1709
HALF NUT 2PC SET 8 TPI
Price
$339.65
1710
HALF NUT GIB
Item is no longer available
Price
N/A
1711
BRACKET COVER
Item is no longer available
Price
N/A
1712
BRACKET
Item is no longer available
Price
N/A
1713
THRUST NEEDLE BEARING AXK-1528 W/2 AS152
Price
N/A
1714
KEY 5 X 5 X 15
Price
N/A
1715
O-RING 11.8 X 2.4 P12
Price
N/A
1716
O-RING 13.8 X 2.4 P14
Price
N/A
1717
OIL DRAIN PLUG M12-1.75 X 16
Item is no longer available
Price
N/A
1718
CAP SCREW M6-1 X 20
Price
N/A
1719
CAP SCREW M5-.8 X 15
Price
N/A
1720
SET SCREW M12-1.75 X 12
Price
N/A
1721
CAP SCREW M6-1 X 6
Price
N/A
1722
CAP SCREW M6-1 X 16
Price
N/A
1723
OIL SIGHT GLASS 29MM
Item is no longer available
Price
N/A
1724
CAP SCREW M6-1 X 12
Price
N/A
1725
THREAD DIAL HOUSING
Price
N/A
1725-1
*DISCD*METRIC GUARD
Item is no longer available
Price
N/A
1725-2
*DISCD*UNIVERSAL GUARD
Item is no longer available
Price
N/A
1726
CAP SCREW M6-1 X 45
Price
N/A

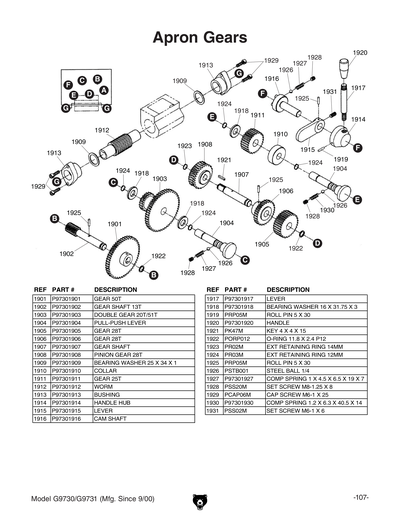

1901
GEAR 50T
Item is no longer available
Price
N/A
1902
GEAR SHAFT 13T
Item is no longer available
Price
N/A
1903
COMBO GEAR 20T/51T
Item is no longer available
Price
N/A
1904
PULL-PUSH SHAFT
Item is no longer available
Price
N/A
1905
GEAR 28T
Item is no longer available
Price
N/A
1906
GEAR 28T
Item is no longer available
Price
N/A
1907
GEAR SHAFT
Price
$22.40
1908
PINION GEAR 28T
Price
$199.25
1909
FLAT WASHER 24MM BRONZE
Price
N/A
1910
COLLAR
Item is no longer available
Price
N/A
1911
GEAR 25T
Item is no longer available
Price
N/A
1912
WORM
Item is no longer available
Price
N/A
1913
BEARING SEAT
Item is no longer available
Price
N/A
1914
LEVER HUB
Item is no longer available
Price
N/A
1915
LEVER
Item is no longer available
Price
N/A
1916
CAM SHAFT
Item is no longer available
Price
N/A
1917
LEVER
Item is no longer available
Price
N/A
1918
FLAT WASHER 16MM
Price
N/A
1919
ROLL PIN 5 X 30
Price
N/A
1920
LEVER HANDLE
Price
$5.20
1921
KEY 4 X 4 X 15
Price
N/A
1922
O-RING 11.8 X 2.4 P12
Price
N/A
1923
EXT RETAINING RING 14MM
Price
N/A
1924
EXT RETAINING RING 12MM
Price
N/A
1925
ROLL PIN 5 X 30
Price
N/A
1926
STEEL BALL 1/4
Price
N/A
1927
COMP SPRING 1 X 4.5 X 6.5 X 19 X 7
Item is no longer available
Price
N/A
1928
SET SCREW M8-1.25 X 8
Price
N/A
1929
CAP SCREW M6-1 X 25
Price
N/A
1930
COMP SPRING 1.2 X 6.3 X 40.5 X 14
Item is no longer available
Price
N/A
1931
SET SCREW M6-1 X 6
Price
N/A
2000
MOTOR 3HP 220V 1-PH
Price
N/A
2000-1
*DISCD*CONTACT POINTS
Item is no longer available
Price
N/A

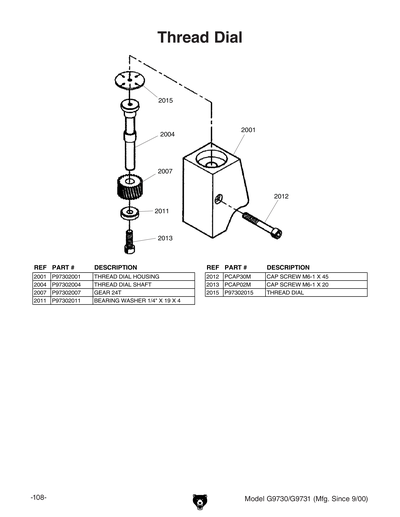

2001
THREAD DIAL HOUSING
Item is no longer available
Price
N/A
2004
THREAD DIAL SHAFT
Item is no longer available
Price
N/A
2007
GEAR 24T
Price
$24.15
201
SHAFT D
Item is no longer available
Price
N/A
2010
*DISCD*UNIVERSAL METRIC GEAR 13T
Item is no longer available
Price
N/A
2010-1
*DISCD*UNIVERSAL METRIC GEAR 14T
Item is no longer available
Price
N/A
2010-2
*DISCD*UNIVERSAL METRIC GEAR 18T
Item is no longer available
Price
N/A
2010-3
*DISCD*UNIVERSAL METRIC GEAR 20T
Item is no longer available
Price
N/A
2011
BEARING WASHER 1/4" X 19 X 4
Item is no longer available
Price
N/A
2012
CAP SCREW M6-1 X 45
Price
N/A
2013
CAP SCREW M6-1 X 20
Price
N/A
2015
THREAD DIAL
Item is no longer available
Price
N/A
202
COMBO GEAR 20T/40T/30T
Item is no longer available
Price
N/A
203
COMBO GEAR 20T/38T
Item is no longer available
Price
N/A
204
BUSHING
Item is no longer available
Price
N/A
205
SHAFT E
Item is no longer available
Price
N/A
206
FLAT WASHER 20MM
Price
N/A
207
GEAR 40T
Item is no longer available
Price
N/A
208
GEAR 20T
Item is no longer available
Price
N/A
209
GEAR 40T
Item is no longer available
Price
N/A
210
BALL BEARING 6203ZZ
Price
N/A

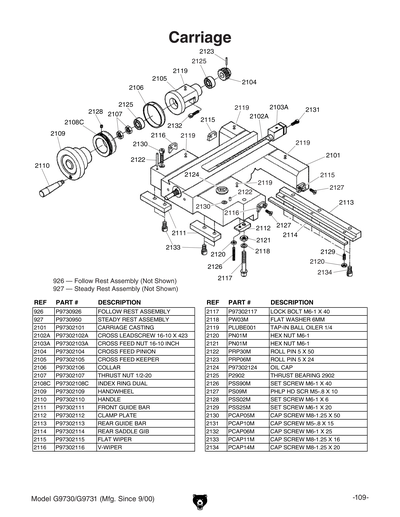

2101
SADDLE CASTING
Item is no longer available
Price
N/A
2102-1
CROSS LEADSCREW 16-10 X 423 W/NUT
Price
N/A
2102A
CROSS LEADSCREW 16-10 X 423 W/NUT
Price
$244.55
2103-1
CROSS FEED NUT 16-10
Price
N/A
2103A
CROSS FEED NUT 16-10
Price
$68.75
2104
CROSS FEED PINION
Item is no longer available
Price
N/A
2105
CROSS FEED KEEPER
Price
$66.70
2106
COLLAR
Item is no longer available
Price
N/A
2107
HEX NUT 1/2-20
Price
N/A
2108-1
DUAL INDEX RING
Price
N/A
2108-3
DUAL INDEX RING
Price
N/A
2108C
DUAL INDEX RING
Item is no longer available
Price
N/A
2109
HANDWHEEL
Item is no longer available
Price
N/A
211
BALL BEARING 6004ZZ
Price
N/A
2110
HANDLE
Price
$11.20
2111
FRONT GUIDE BAR
Item is no longer available
Price
N/A
2112
CLAMP PLATE
Item is no longer available
Price
N/A
2113
REAR GUIDE BAR
Item is no longer available
Price
N/A
2114
REAR SADDLE GIB
Item is no longer available
Price
N/A
2115
FLAT WIPER
Price
$10.10
2116
V-WIPER
Price
$10.10
2117
LOCK BOLT M6-1 X 40
Item is no longer available
Price
N/A
2118
FLAT WASHER 6MM
Price
N/A
2119
BALL OILER 1/4 PRESS-IN
Price
N/A
212
EXT RETAINING RING 20MM
Price
N/A
2120
HEX NUT M6-1
Price
N/A
2121
HEX NUT M6-1
Price
N/A
2122
ROLL PIN 5 X 50
Price
N/A
2123
ROLL PIN 5 X 24
Price
N/A
2124
OIL CAP
Price
$4.60
2125
THRUST BEARING 2902
Price
N/A
2126
SET SCREW M6-1 X 40
Price
N/A
2127
PHLP HD SCR M5-.8 X 10
Price
N/A
2128
SET SCREW M6-1 X 6
Price
N/A
2129
SET SCREW M6-1 X 20
Price
N/A
213
EXT RETAINING RING 24MM
Price
N/A
2130
CAP SCREW M8-1.25 X 50
Price
N/A
2131
CAP SCREW M5-.8 X 15
Price
N/A
2132
CAP SCREW M6-1 X 25
Price
N/A
2133
CAP SCREW M8-1.25 X 16
Price
N/A
2134
CAP SCREW M8-1.25 X 20
Price
N/A
214
EXT RETAINING RING 17MM
Price
N/A
215
EXT RETAINING RING 19MM
Price
N/A
216
O-RING 19.8 X 2.4 P20
Price
N/A
217
KEY 5 X 5 X 15
Price
N/A
218
KEY 8 X 8 X 70
Price
N/A
219
KEY 7 X 7 X 25
Price
N/A
220
GEAR 30T
Item is no longer available
Price
N/A
2201
CROSS SLIDE
Item is no longer available
Price
N/A
2202
SWIVEL BASE
Item is no longer available
Price
N/A
2204
COMPOUND SLIDE
Item is no longer available
Price
N/A
2205-1
*DISCD*LEADSCREW NUT 1/2-10 ACME
Price
$47.75
2205A
LEADSCREW W/NUT 1/2-10 ACME
Price
$196.25
2206-1
LEADSCREW W/NUT 1/2-10 ACME
Price
N/A
2206A
LEADSCREW W/NUT 1/2-10 ACME
Price
N/A
2207
BEARING LOCK COLLAR
Price
$16.40
2208-1
*DISCD*INDEX RING INCH
Item is no longer available
Price
N/A
2208-3
DUAL INDEX RING
Price
N/A
2208C
DUAL INDEX RING
Price
$121.65
2209
HANDWHEEL
Price
$44.60
221
EXT RETAINING RING 25MM
Price
N/A
2210
HANDLE SHORT
Price
$7.00
2211
HANDLE LONG
Item is no longer available
Price
N/A
2213
TOOL POST BOLT
Price
$33.10
2214
CLAMP NUT 1/2-13
Price
$13.55
2215
CROSS SLIDE GIB
Item is no longer available
Price
N/A
2216
COMPOUND SLIDE GIB
Item is no longer available
Price
N/A
2217
TOOL POST 4-WAY
Price
$211.60
2218
TOOL POST BOLT M10-1.5 X 43
Item is no longer available
Price
N/A
2219
DOCK WASHER 16MM
Item is no longer available
Price
N/A
2220
LEVER HUB
Item is no longer available
Price
N/A
2221
LEVER
Item is no longer available
Price
N/A
2222
LEVER HANDLE
Item is no longer available
Price
N/A
2223
T-NUT M8-1.25
Price
$6.35
2224
LOCK COLLAR 7/16-20
Item is no longer available
Price
N/A
2225
BUSHING
Item is no longer available
Price
N/A
2226
WIPER
Price
$22.40
2227
TOOL POST PLUNGER
Item is no longer available
Price
N/A
2228
COMPRESSION SPRING 5 X 1 X .8
Item is no longer available
Price
N/A
2229
THRUST BEARING 51103
Price
N/A
2230
BALL OILER 1/4 PRESS-IN
Price
N/A
2231
GIB SCREW M6-1 X 23
Item is no longer available
Price
N/A
2232
GIB SCREW 1/4-20 X 22
Price
$7.00
2233
SET SCREW M8-1.25 X 20
Price
N/A
2234
SET SCREW M6-1 X 6
Price
N/A
2235
SET SCREW M6-1 X 20
Price
N/A
2236
CAP SCREW M6-1 X 20
Price
N/A
2237
CAP SCREW M8-1.25 X 18
Price
N/A
2238
HEX NUT M6-1
Price
N/A
2239
SET SCREW M8-1.25 X 8
Price
N/A

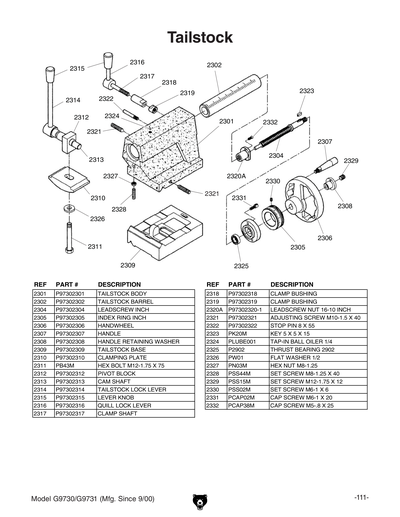

2301
TAILSTOCK BODY
Item is no longer available
Price
N/A
2302
QUILL
Item is no longer available
Price
N/A
2303
*DISCD*LEADSCREW INCH
Item is no longer available
Price
N/A
2304
TAILSTOCK LEADSCREW W/NUT
Price
$91.55
2305
INDEX RING
Item is no longer available
Price
N/A
2306
HANDWHEEL
Price
$98.65
2307
HANDLE
Item is no longer available
Price
N/A
2308
HANDWHEEL RETAINER
Item is no longer available
Price
N/A
2309
TAILSTOCK BASE
Price
$288.95
2310
CLAMPING PLATE
Price
$25.10
2311
HEX BOLT M12-1.75 X 75
Price
N/A
2312
PIVOT BLOCK
Item is no longer available
Price
N/A
2313
CAM SHAFT
Item is no longer available
Price
N/A
2314
TAILSTOCK LOCK LEVER
Item is no longer available
Price
N/A
2315
LEVER HANDLE
Item is no longer available
Price
N/A
2316
QUILL LOCK LEVER
Item is no longer available
Price
N/A
2317
CLAMP SHAFT
Item is no longer available
Price
N/A
2318
OUTER CLAMP BUSHING
Item is no longer available
Price
N/A
2319
INNER CLAMP BUSHING
Item is no longer available
Price
N/A
2320
*DISCD*NUT METRIC
Item is no longer available
Price
N/A
2320-1
TAILSTOCK LEADSCREW W/NUT
Price
N/A
2320A
TAILSTOCK LEADSCREW W/NUT
Price
N/A
2321
CONE SET SCREW M10-1.5 X 40
Item is no longer available
Price
N/A
2322
STOP PIN 8 X 55
Item is no longer available
Price
N/A
2323
KEY 5 X 5 X 15
Price
N/A
2324
BALL OILER 1/4 PRESS-IN
Price
N/A
2325
THRUST BEARING 2902
Price
N/A
2326
FLAT WASHER 1/2
Price
N/A
2327
HEX NUT M8-1.25
Price
N/A
2328
SET SCREW M8-1.25 X 40
Price
N/A
2329
SET SCREW M12-1.75 X 12
Price
N/A
2330
SET SCREW M6-1 X 6
Price
N/A
2331
CAP SCREW M6-1 X 20
Price
N/A
2332
CAP SCREW M5-.8 X 25
Price
N/A

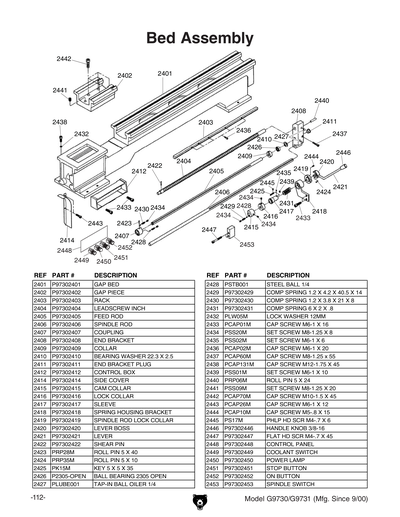

2401
GAP BED
Item is no longer available
Price
N/A
2402
GAP PIECE
Item is no longer available
Price
N/A
2403
RACK
Item is no longer available
Price
N/A
2404
LONGITUDINAL LEADSCREW
Item is no longer available
Price
N/A
2405
FEED ROD
Item is no longer available
Price
N/A
2406
SPINDLE ROD
Item is no longer available
Price
N/A
2407
COUPLING
Item is no longer available
Price
N/A
2408
END BRACKET
Item is no longer available
Price
N/A
2409
COLLAR
Item is no longer available
Price
N/A
2410
FLAT WASHER 22MM
Price
N/A
2411
END BRACKET PLUG
Item is no longer available
Price
N/A
2412
CONTROL BOX
Item is no longer available
Price
N/A
2414
SIDE COVER
Item is no longer available
Price
N/A
2415
CAM COLLAR
Item is no longer available
Price
N/A
2416
LOCK COLLAR
Item is no longer available
Price
N/A
2417
SLEEVE
Item is no longer available
Price
N/A
2418
SPRING HOUSING BRACKET
Price
$27.80
2419
SPINDLE ROD LOCK COLLAR
Item is no longer available
Price
N/A
2420
LEVER BOSS
Item is no longer available
Price
N/A
2421
LEVER
Item is no longer available
Price
N/A
2422
SHEAR PIN
Price
$4.60
2423
ROLL PIN 5 X 40
Price
N/A
2424
ROLL PIN 5 X 10
Price
N/A
2425
KEY 5 X 5 X 35
Price
N/A
2426
BALL BEARING 2305-OPEN
Price
N/A
2427
BALL OILER 1/4 PRESS-IN
Price
N/A
2428
STEEL BALL 1/4
Price
N/A
2429
COMP SPRING 1.2 X 4.2 X 40.5 X 14
Item is no longer available
Price
N/A
2430
COMP SPRING 1.2 X 3.8 X 21 X 8
Item is no longer available
Price
N/A
2431
COMP SPRING 6 X 2 X .8
Item is no longer available
Price
N/A
2432
LOCK WASHER 12MM
Price
N/A
2433
CAP SCREW M6-1 X 16
Price
N/A
2434
SET SCREW M8-1.25 X 8
Price
N/A
2435
SET SCREW M6-1 X 6
Price
N/A
2436
CAP SCREW M6-1 X 20
Price
N/A
2437
CAP SCREW M8-1.25 X 55
Price
N/A
2438
CAP SCREW M12-1.75 X 45
Price
N/A
2439
SET SCREW M6-1 X 10
Price
N/A
2440
ROLL PIN 5 X 24
Price
N/A
2441
SET SCREW M8-1.25 X 20
Price
N/A
2442
CAP SCREW M10-1.5 X 45
Price
N/A
2443
CAP SCREW M6-1 X 12
Price
N/A
2444
CAP SCREW M5-.8 X 15
Price
N/A
2445
PHLP HD SCR M4-.7 X 6
Price
N/A
2446
LEVER HANDLE 3/8-16
Item is no longer available
Price
N/A
2447
FLAT HD SCR M4-.7 X 45
Item is no longer available
Price
N/A
2448
CONTROL PANEL
Item is no longer available
Price
N/A
2449
COOLANT SWITCH
Item is no longer available
Price
N/A
2450
POWER INDICATOR LIGHT XB7 EV6P 22MM WHT
Item is no longer available
Price
N/A
2451
STOP BUTTON
Price
$49.75
2452
ON BUTTON
Item is no longer available
Price
N/A
2453
SPINDLE SWITCH
Price
$39.30

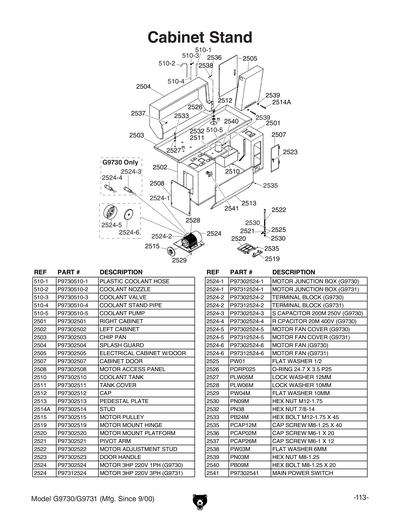

2501
RIGHT CABINET
Item is no longer available
Price
N/A
2502
LEFT CABINET
Item is no longer available
Price
N/A
2503
CHIP PAN
Price
$572.15
2504
SPLASH GUARD
Price
$487.60
2505
ELECTRICAL CABINET W/DOOR
Item is no longer available
Price
N/A
2506
ELECTRICAL CABINET W/DOOR
Price
N/A
2507
CABINET DOOR
Item is no longer available
Price
N/A
2508
MOTOR ACCESS PANEL
Item is no longer available
Price
N/A
2510
COOLANT TANK
Item is no longer available
Price
N/A
2511
TANK COVER
Item is no longer available
Price
N/A
2512
COOLANT SCREEN
Item is no longer available
Price
N/A
2513
CENTER PANEL
Item is no longer available
Price
N/A
2514
CABINET BOLT
Price
N/A
2514A
CABINET BOLT
Item is no longer available
Price
N/A
2515
MOTOR PULLEY
Item is no longer available
Price
N/A
2519
MOTOR MOUNT HINGE
Item is no longer available
Price
N/A
2520
MOTOR MOUNT PLATFORM
Item is no longer available
Price
N/A
2521
PIVOT ARM
Item is no longer available
Price
N/A
2522
STUD-SE 12-1.75 X 297 120 IRON
Item is no longer available
Price
N/A
2523
DOOR HANDLE
Item is no longer available
Price
N/A
2524
MOTOR 3HP 220V 1-PH
Price
$977.50
2524-1
MOTOR WIRING JUNCTION BOX 2PC
Item is no longer available
Price
N/A
2524-2
TERMINAL BLOCK
Item is no longer available
Price
N/A
2524-3
S CAPACITOR 200M 250V 3-1/2 X 1-3/4
Item is no longer available
Price
N/A
2524-4
R CAPACITOR 20M 400V 3-7/8 X 1-3/4
Item is no longer available
Price
N/A
2524-5
MOTOR FAN COVER
Item is no longer available
Price
N/A
2524-6
MOTOR FAN
Item is no longer available
Price
N/A
2525
FLAT WASHER 1/2
Price
N/A
2526
O-RING 24.7 X 3.5 P25
Price
N/A
2527
LOCK WASHER 12MM
Price
N/A
2528
LOCK WASHER 10MM
Price
N/A
2529
FLAT WASHER 10MM
Price
N/A
2530
HEX NUT M12-1.75
Price
N/A
2532
HEX NUT 7/8-14
Item is no longer available
Price
N/A
2533
HEX BOLT M12-1.75 X 45
Price
N/A
2535
CAP SCREW M8-1.25 X 40
Price
N/A
2536
CAP SCREW M6-1 X 20
Price
N/A
2537
CAP SCREW M6-1 X 12
Price
N/A
2538
FLAT WASHER 6MM
Price
N/A
2539
HEX NUT M8-1.25
Price
N/A
2540
HEX BOLT M8-1.25 X 20
Price
N/A
2541
MAIN POWER SWITCH
Price
$109.00
2601

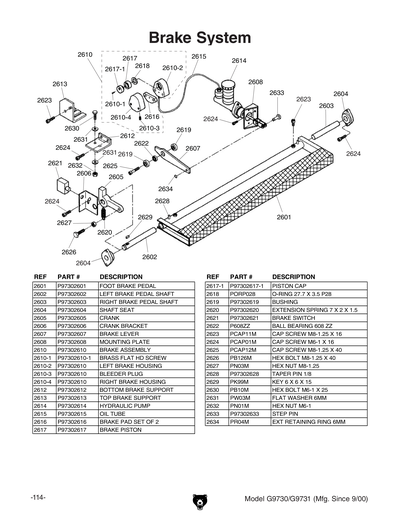

FOOT BRAKE PEDAL
Item is no longer available
Price
N/A
2602
LEFT BRAKE PEDAL SHAFT
Item is no longer available
Price
N/A
2603
RIGHT BRAKE PEDAL SHAFT
Item is no longer available
Price
N/A
2604
SHAFT SEAT
Item is no longer available
Price
N/A
2605
CRANK
Item is no longer available
Price
N/A
2606
CRANK BRACKET
Item is no longer available
Price
N/A
2607
BRAKE LEVER
Item is no longer available
Price
N/A
2608
MOUNTING PLATE
Price
$17.00
2609
BRAKE ASSEMBLY
Price
N/A
2610
BRAKE ASSEMBLY
Price
$143.50
2610-1
BRAKE ASSEMBLY
Price
N/A
2610-2
BRAKE ASSEMBLY
Price
N/A
2610-3
BRAKE ASSEMBLY
Price
N/A
2610-4
BRAKE ASSEMBLY
Price
N/A
2611
BRAKE ASSEMBLY
Price
N/A
2612
BOTTOM BRAKE SUPPORT
Item is no longer available
Price
N/A
2613
TOP BRAKE SUPPORT
Item is no longer available
Price
N/A
2614
HYDRAULIC PUMP
Price
$155.55
2615
OIL TUBE
Price
$95.65
2616
*DISCD*BRAKE PAD
Item is no longer available
Price
N/A
2617
BRAKE ASSEMBLY
Price
N/A
2617-1
BRAKE ASSEMBLY
Price
N/A
2618
O-RING 27.7 X 3.5 P28
Price
N/A
2619
BUSHING
Item is no longer available
Price
N/A
2620
EXTENSION SPRING 7 X 2 X 1.5
Price
$10.65
2621
BRAKE SWITCH
Item is no longer available
Price
N/A
2622
Bearing - 22mm x 8mm
Price
N/A
2623
CAP SCREW M8-1.25 X 16
Price
N/A
2624
CAP SCREW M6-1 X 16
Price
N/A
2625
CAP SCREW M8-1.25 X 40
Price
N/A
2626
HEX BOLT M8-1.25 X 40
Price
N/A
2627
HEX NUT M8-1.25
Price
N/A
2628
TAPER PIN 1/8
Item is no longer available
Price
N/A
2629
KEY 6 X 6 X 15
Price
N/A
2630
HEX BOLT M6-1 X 25
Price
N/A
2631
FLAT WASHER 6MM
Price
N/A
2632
HEX NUT M6-1
Price
N/A
2633
STEP PIN
Item is no longer available
Price
N/A
2634
EXT RETAINING RING 6MM
Price
N/A
2701

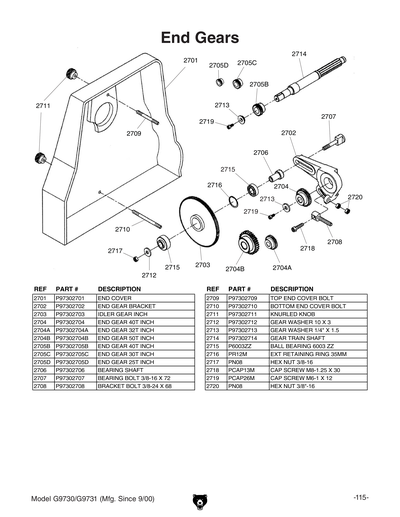

END COVER
Item is no longer available
Price
N/A
2702
END GEAR BRACKET
Item is no longer available
Price
N/A
2703
IDLER GEAR
Price
$451.35
2704
END GEAR 40T
Price
$42.25
2704A
END GEAR 32T
Price
$55.20
2704B
END GEAR 50T
Item is no longer available
Price
N/A
2705
END GEAR 40T
Price
N/A
2705B
END GEAR 40T
Price
$40.20
2705C
END GEAR 30T
Price
$42.25
2705D
END GEAR 25T
Price
$72.45
2706
BEARING SHAFT
Item is no longer available
Price
N/A
2707
BEARING BOLT 3/8-16 X 72
Item is no longer available
Price
N/A
2708
BRACKET BOLT 3/8-24 X 68
Item is no longer available
Price
N/A
2709
TOP END COVER BOLT
Price
$17.00
2710
BOTTOM END COVER BOLT
Item is no longer available
Price
N/A
2711
KNURLED KNOB
Item is no longer available
Price
N/A
2712
FLAT WASHER 10MM
Price
N/A
2713
FENDER WASHER 1/4" STEEL
Item is no longer available
Price
N/A
2714
GEAR TRAIN SHAFT
Price
$817.80
2715
Bearing - 35mm x 17mm
Price
N/A
2716
EXT RETAINING RING 35MM
Price
N/A
2717
HEX NUT 3/8-16
Price
N/A
2718
CAP SCREW M8-1.25 X 30
Price
N/A
2719
CAP SCREW M6-1 X 12
Price
N/A
2720
HEX NUT 3/8-16
Price
N/A
2801
TERMINAL BAR 24P
Item is no longer available
Price
N/A
2802
CONTACTOR SCHN LC1D18 110V
Item is no longer available
Price
N/A
2803
CONTACTOR SCHN LC1D09 110V
Item is no longer available
Price
N/A
2804
OL RELAY SCHN LR3D03 0.25-0.4A
Price
$194.35
2805
OL RELAY SCHN LR3D21 12-18A
Item is no longer available
Price
N/A
2806
TRANSFORMER 130VA 220V-24/110V
Item is no longer available
Price
N/A
2807
FUSE HOLDER 40A
Item is no longer available
Price
N/A
2808
FUSE 40A 600V
Item is no longer available
Price
N/A
2809
FUSE HOLDER 5A
Item is no longer available
Price
N/A
2810
FUSE 5A
Item is no longer available
Price
N/A
2901
FACEPLATE 10"
Item is no longer available
Price
N/A
2902
BACK PLATE 8"
Price
$264.50
2903
4-JAW CHUCK 8" W/JAW SET
Item is no longer available
Price
N/A
2904
DRIVE PLATE 7"
Item is no longer available
Price
N/A
2905
CHUCK 3-JAW 7" W/STANDARD JAWS
Price
N/A
2906
4-JAW CHUCK KEY
Item is no longer available
Price
N/A
2907
TOOL POST KEY
Item is no longer available
Price
N/A
2908
3-JAW CHUCK KEY
Price
$75.90
2909
END GEAR 30T
Item is no longer available
Price
N/A
2910
END GEAR 32T
Item is no longer available
Price
N/A
2911
END GEAR 40T
Item is no longer available
Price
N/A
2912
SPINDLE SLEEVE MT#4.5-MT#3
Price
$60.30
2913
DEAD CENTER MT#3 CARBIDE TIP
Item is no longer available
Price
N/A
2914
DEAD CENTER MT#3 HSS
Price
$41.70
2915
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
2916
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
2917
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
2918
HEX WRENCH 3MM
Price
N/A
2919
HEX WRENCH 4MM
Price
N/A
2920
HEX WRENCH 5MM
Price
N/A
2921
HEX WRENCH 6MM
Price
N/A
2922
HEX WRENCH 8MM
Price
N/A
2924
CAST IRON FOOT PAD
Price
$15.45
2926
TOOLBOX
Item is no longer available
Price
N/A
3001

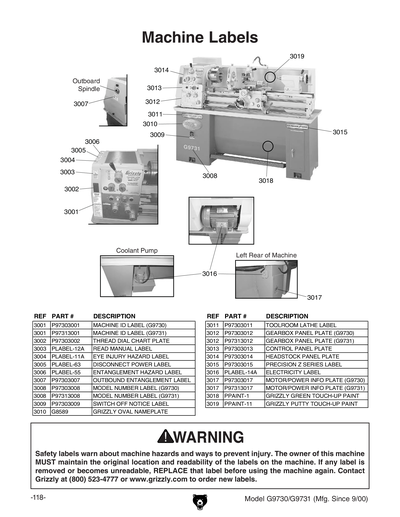

MACHINE ID LABEL
Item is no longer available
Price
N/A
3002
THREAD DIAL CHART PLATE
Item is no longer available
Price
N/A
3003
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
3004
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
3005
DISCONNECT 220V 2W X 3.3H
Price
N/A
3006
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
3007
OUTBOUND ENTANGLEMENT LABEL
Item is no longer available
Price
N/A
3008
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
3009
SWITCH OFF NOTICE LABEL
Item is no longer available
Price
N/A
301
SHIFT FORK ROD
Item is no longer available
Price
N/A
3010
Nameplate - Large
Price
N/A
3011
TOOLROOM LATHE LABEL
Item is no longer available
Price
N/A
3012
GEARBOX PANEL PLATE
Item is no longer available
Price
N/A
3013
CONTROL PANEL PLATE
Item is no longer available
Price
N/A
3014
HEADSTOCK PANEL PLATE
Item is no longer available
Price
N/A
3015
PRECISION Z SERIES LABEL
Item is no longer available
Price
N/A
3016
ELECTRICITY 0.7W X 0.6H
Price
N/A
3017
MOTOR/POWER INFO PLATE
Item is no longer available
Price
N/A
3018
N/S GRIZZLY GREEN G1023S
Price
N/A
3019
N/S GRIZZLY GREEN G1023S
Price
N/A
302
GEAR 41T
Item is no longer available
Price
N/A
303
LEVER
Item is no longer available
Price
N/A
304
LEVER
Item is no longer available
Price
N/A
305
SHIFT FORK SLEEVE
Item is no longer available
Price
N/A
306
SHIFT FORK SLEEVE
Item is no longer available
Price
N/A
307
SHIFT FORK
Item is no longer available
Price
N/A
308
SHIFT FORK
Item is no longer available
Price
N/A
309
O-RING 14.8 X 2.4 P15
Price
N/A
310
SET SCREW M12-1.75 X 12
Price
N/A
311
COMP SPRING 1.2 X 9.5 X 52 X 14
Item is no longer available
Price
N/A
312
STEEL BALL 3/8
Price
N/A
313
EXT RETAINING RING 15MM
Price
N/A
314
O-RING 10.77 X 2.62MM AN62279
Item is no longer available
Price
N/A
315
ROLL PIN 5 X 30
Price
N/A
401
GEAR SHIFT ROD
Item is no longer available
Price
N/A
402
PINION 20T
Item is no longer available
Price
N/A
403
GEAR 20T
Item is no longer available
Price
N/A
404
LOCK COLLAR
Item is no longer available
Price
N/A
405
DIAL KNOB
Item is no longer available
Price
N/A
406
LEVER HANDLE
Price
$5.20
407
LEVER
Price
$5.20
408
DIAL KNOB
Item is no longer available
Price
N/A
409
GEAR SHIFT SHAFT
Item is no longer available
Price
N/A
410
SHIFT CAM
Item is no longer available
Price
N/A
411
SHIFT FORK
Item is no longer available
Price
N/A
412
ARROW PLATE
Item is no longer available
Price
N/A
413
SET SCREW M8-1.25 X 8
Price
N/A
414
COMP SPRING 1.2 X 4.2 X 40.5 X 14
Item is no longer available
Price
N/A
415
STEEL BALL 1/4
Price
N/A
416
O-RING 11.8 X 2.4 P12
Price
N/A
417
ROLL PIN 5 X 40
Price
N/A
418
ROLL PIN 5 X 24
Price
N/A
419
O-RING 20.8 X 2.4 P21
Price
N/A
420
KEY 6 X 6 X 15
Price
N/A
510-1
COOLANT HOSE PLASTIC
Price
$31.65
510-2
COOLANT NOZZLE
Item is no longer available
Price
N/A
510-3
COOLANT VALVE
Item is no longer available
Price
N/A
510-4
COOLANT STAND PIPE
Item is no longer available
Price
N/A
510-5
COOLANT PUMP
Item is no longer available
Price
N/A
701
GEARBOX CASE
Item is no longer available
Price
N/A
702
BEARING SEAT
Item is no longer available
Price
N/A
703
BEARING SEAT
Item is no longer available
Price
N/A
704
CASING COVER
Item is no longer available
Price
N/A
705
CASING COVER GASKET
Item is no longer available
Price
N/A
706
BEARING SEAT
Item is no longer available
Price
N/A
707
CASING COVER GASKET
Item is no longer available
Price
N/A
708
BEARING SEAT GASKET
Item is no longer available
Price
N/A
709
OIL SIGHT GLASS
Price
$5.80
710
PLUG 1/4 PT
Item is no longer available
Price
N/A
711
CAP SCREW M6-1 X 16
Price
N/A
712
CAP SCREW M6-1 X 20
Price
N/A
8008-1
*DISCD*METRIC GEAR 20T
Item is no longer available
Price
N/A
801
DRIVE SHAFT G
Item is no longer available
Price
N/A
802
BEARING END CAP
Item is no longer available
Price
N/A
803
GEAR 21T
Price
$95.40
804
THRUST WASHER 24MM
Item is no longer available
Price
N/A
805
TOP SHAFT G
Item is no longer available
Price
N/A
806
FLAT WASHER 14MM
Price
N/A
807
GEAR 16T
Item is no longer available
Price
N/A
808
GEAR 18T
Item is no longer available
Price
N/A
809
GEAR 24T
Item is no longer available
Price
N/A
810
GEAR 21T
Item is no longer available
Price
N/A
811
BEARING END CAP
Item is no longer available
Price
N/A
812
SPLINE SHAFT H
Item is no longer available
Price
N/A
813
COMBO GEAR 24T/24T
Item is no longer available
Price
N/A
814
GEAR SHAFT I
Item is no longer available
Price
N/A
815
BEARING END CAP
Item is no longer available
Price
N/A
816
GEAR 20T
Item is no longer available
Price
N/A
817
GEAR 26T
Item is no longer available
Price
N/A
818
GEAR 28T
Item is no longer available
Price
N/A
819
GEAR 21T
Item is no longer available
Price
N/A
820
LEADSCREW DRIVE SHAFT G
Item is no longer available
Price
N/A
821
GEAR 18T
Price
$57.70
822
P9730822
Now: PN09
HEX NUT 5/8-18
Price
N/A
823
BEARING SEAT
Item is no longer available
Price
N/A
824
GEAR 21T
Item is no longer available
Price
N/A
825
SHAFT H
Item is no longer available
Price
N/A
826
GEAR 24T/19T
Item is no longer available
Price
N/A
827
FEED ROD DRIVE SHAFT I
Item is no longer available
Price
N/A
828
GEAR 26T
Item is no longer available
Price
N/A
829
BEARING SEAT
Item is no longer available
Price
N/A
830
GEAR 23T
Item is no longer available
Price
N/A
831
GEAR 22T
Item is no longer available
Price
N/A
832
THRUST BEARING 51103
Price
N/A
833
BALL BEARING 6002ZZ
Price
N/A
834
BALL BEARING 6004ZZ
Price
N/A
835
EXT RETAINING RING 20MM
Price
N/A
836
EXT RETAINING RING 19MM
Price
N/A
837
EXT RETAINING RING 22MM
Price
N/A
838
EXT RETAINING RING 18MM
Price
N/A
839
KEY 5 X 5 X 10
Price
N/A
840
KEY 5 X 5 X 20
Price
N/A
841
KEY 5 X 5 X 30
Price
N/A
842
OIL SEAL TC20 X 32 X 5
Item is no longer available
Price
N/A
843
EXT RETAINING RING 15MM
Price
N/A
844
KEY 5 X 5 X 35
Price
N/A

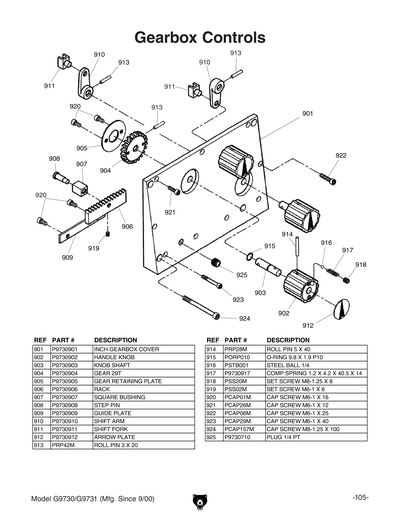

901
GEARBOX COVER
Item is no longer available
Price
N/A
902
DIAL KNOB
Item is no longer available
Price
N/A
903
KNOB SHAFT
Item is no longer available
Price
N/A
904
GEAR 29T
Item is no longer available
Price
N/A
905
GEAR RETAINING PLATE
Item is no longer available
Price
N/A
906
RACK
Item is no longer available
Price
N/A
907
SQUARE BUSHING
Item is no longer available
Price
N/A
908
STEP PIN
Item is no longer available
Price
N/A
909
GUIDE PLATE
Item is no longer available
Price
N/A
910
SHIFT ARM
Item is no longer available
Price
N/A
911
SHIFT FORK
Item is no longer available
Price
N/A
912
ARROW PLATE
Item is no longer available
Price
N/A
913
ROLL PIN 3 X 20
Price
N/A
914
ROLL PIN 5 X 40
Price
N/A
915
O-RING 9.8 X 1.9 P10
Price
N/A
916
STEEL BALL 1/4
Price
N/A
917
COMP SPRING 1.2 X 4.2 X 40.5 X 14
Item is no longer available
Price
N/A
918
SET SCREW M8-1.25 X 8
Price
N/A
919
SET SCREW M6-1 X 6
Price
N/A
920
CAP SCREW M6-1 X 16
Price
N/A
921
CAP SCREW M6-1 X 12
Price
N/A
922
CAP SCREW M6-1 X 25
Price
N/A
923
CAP SCREW M6-1 X 40
Price
N/A
924
CAP SCREW M8-1.25 X 100
Price
N/A
925
PLUG 1/4 PT
Price
N/A
926
FOLLOW REST ASSEMBLY
Item is no longer available
Price
N/A
927
COMPLETE STEADY REST ASSY
Price
N/A
950
COMPLETE STEADY REST ASSY
Item is no longer available
Price
N/A
990
DRIVE PLATE 7"
Price
N/A
991
BACK PLATE 8"
Price
N/A
992
MAGNETIC CONTACTOR LC1-096 220V TE
Price
$69.00
993
CONTACTOR SCHN LC1D18 110V
Price
N/A
994
OL RELAY SCHN LR3D21 12-18A
Price
N/A
995
OL RELAY SCHN LR3D03 0.25-0.4A
Price
N/A
996
TRANSFORMER 130VA 220V-24/110V
Price
N/A
997
MAIN POWER SWITCH
Price
N/A
MANUAL
MANUAL FOR G9730/G9731 11/09
Price
$14.65
