Parts for G9741 - 24" 10 HP 3-Phase Extreme-Duty Planer

Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741
Part Diagram for G9741

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
CABINET 24" MODEL
Price
N/A
2
SPEED CHANGE NUT 1 3/8"-16
Price
N/A
3
HANDWHEEL
Price
N/A
4
SLIP BOLT M20 - 2.5 X 20
Price
N/A
5
P9741005
Now: PW06
FLAT WASHER 1/4
Price
N/A
6
CAP SCREW 1/4-20 X 1-1/2
Price
N/A
7
LOCK WASHER 8MM
Price
N/A
8
HEX BOLT M8-1.25 X 25
Price
N/A
9
MOTOR MOUNT
Price
N/A
99
TENSIONER REPAIR KIT
Price
$831.10
10
HEX BOLT M10-1.5 X 30
Price
N/A

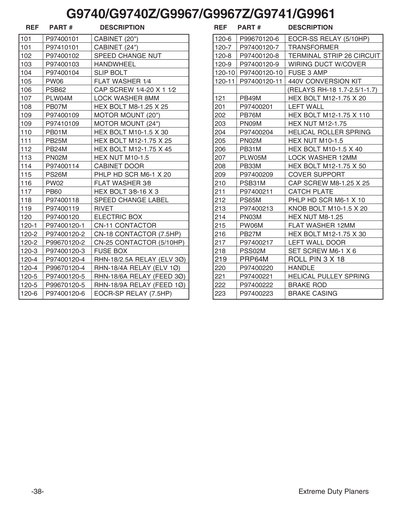

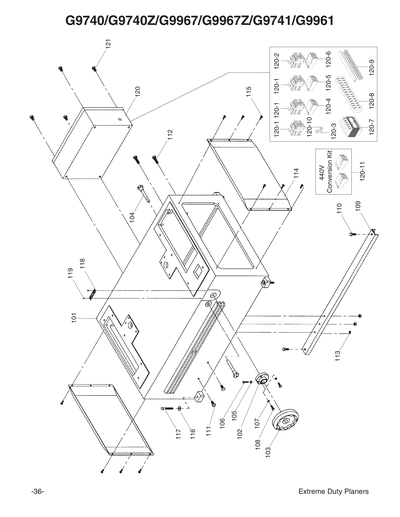

101
CABINET 24" MODEL
Price
$1,234.10
102
SPEED CHANGE NUT 1 3/8"-16
Price
N/A
103
HANDWHEEL
Price
N/A
104
SLIP BOLT M20 - 2.5 X 20
Price
N/A
105
FLAT WASHER 1/4
Price
N/A
106
CAP SCREW 1/4-20 X 1-1/2
Price
N/A
107
LOCK WASHER 8MM
Price
N/A
108
HEX BOLT M8-1.25 X 25
Price
N/A
109
MOTOR MOUNT
Price
$27.80
11
HEX BOLT M12-1.75 X 25
Price
N/A
110
HEX BOLT M10-1.5 X 30
Price
N/A
111
HEX BOLT M12-1.75 X 25
Price
N/A
112
HEX BOLT M12-1.75 X 45
Price
N/A
113
HEX NUT M10-1.5
Price
N/A
114
CABINET DOOR
Price
N/A
115
PHLP HD SCR M6-1 X 20
Price
N/A
116
FLAT WASHER 3/8
Price
N/A
117
HEX BOLT 3/8-16 X 3
Price
N/A
118
SPEED CHANGE LEVER
Price
N/A
119
RIVET 3 X 40
Price
N/A
12
HEX BOLT M12-1.75 X 45
Price
N/A
120
ELECTRIC BOX V1
Price
N/A
120-1
*DISCD*CONTACTOR TECO CN-11 V1
Price
N/A
120-10
FUSE 3A
Price
N/A
120-11
CONVERSION KIT 440V RHN-10 V2.07.07
Price
N/A
120-11A
CONVERSION KIT 440V RHN-10 V2.07.07
Price
N/A
120-11V2
440V Conversion Kit for G9741
Price
N/A
120-12
*DISCD*CONTACTOR TECO CN-11 V1
Price
N/A
120-12V2
CONTACTOR TECO CU-11 3A1A V2.05.08
Price
N/A
120-14
STAR-DELTA TIMER TRD-N
Price
N/A
120-1V2
CONTACTOR TECO CU-11 3A1B V2.05.08
Price
N/A
120-2
*DISCD*CONTACTOR CN-25 5/10HP V1.01.15
Price
N/A
120-2V2
CONTACTOR CU-27 5/10HP V2.05.08
Price
N/A
120-2V3
CONTACTOR TECO CU-18 V3.07.12
Price
$90.60
120-3
FUSE HOLDER
Price
N/A
120-4
*DISCD*OL RELAY TECO RHN-10 1.8-2.7A V2.
Price
N/A
120-4A
*DISCD*OL RELAY TECO RHN-10 1.8-2.7A V2.
Price
N/A
120-4V3
OL RELAY RHU-10 1.8-2.5A V3.01.11
Price
N/A
120-5
OL RELAY TECO RHN-10 2.4-4A V2.06.07
Price
N/A
120-5A
OL RELAY TECO RHN-10 2.4-4A V2.06.07
Price
N/A
120-5V3
OL RELAY TECO RHU-10 2.9-4.0A V3.01.11
Price
N/A
120-6
*DISCD*RELAY EOCRSS 5/10HP 220V TAIAN V1
Price
N/A
120-6V3
OL RELAY TELE LT4730F7A 4-30A V3.01.11
Price
N/A
120-7
TRANSFORMER 110VA 220V-110V
Price
N/A
120-8
TERMINAL STRIP 26 CIRCUIT
Price
N/A
120-8V2
TERMINAL BAR 29-POST V2.07.12
Price
N/A
120-9
WIRING DUCT WITH COVER
Price
N/A
120-9V2
WIRING DUCT W/COVER V2.07.12
Price
N/A
121
HEX BOLT M12-1.75 X 20
Price
N/A
13
HEX NUT M10-1.5
Price
N/A
14
CABINET DOOR
Price
N/A
15
PHLP HD SCR M6-1 X 20
Price
N/A
16
P9741016
Now: PW02
FLAT WASHER 3/8
Price
N/A
17
P9741017
Now: PB60
HEX BOLT 3/8-16 X 3
Price
N/A
18
SPEED CHANGE LEVER
Price
N/A
19
RIVET 3 X 40
Price
N/A
20
ELECTRIC BOX V1
Price
N/A

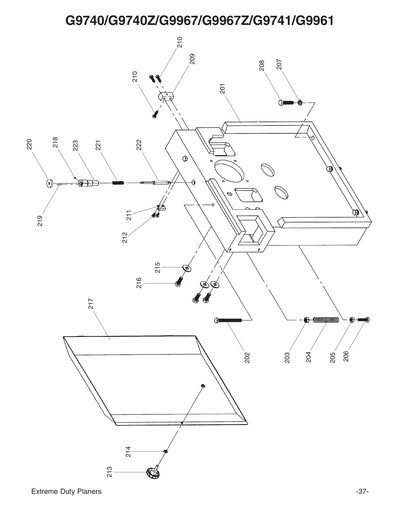

201
WALL LEFT
Price
N/A
202
HEX BOLT M12-1.75 X 110
Price
N/A
203
HEX NUT M12-1.75
Price
N/A
204
HELICAL ROLLER SPRING 19.5 X 109MM
Price
N/A
205
HEX NUT M10-1.5
Price
N/A
206
HEX BOLT M10-1.5 X 40
Price
N/A
207
LOCK WASHER 12MM
Price
N/A
208
HEX BOLT M12-1.75 X 50
Price
N/A
209
COVER SUPPORT 7/2 X 52
Price
N/A
21
HEX BOLT M12-1.75 X 20
Price
N/A
210
CAP SCREW M8-1.25 X 25
Price
N/A
211
CATCH PLATE
Price
N/A
212
PHLP HD SCR M6-1 X 10
Price
N/A
213
KNOB BOLT M10-1.5 X 20
Price
N/A
214
HEX NUT M8-1.25
Price
N/A
215
FLAT WASHER 12MM
Price
N/A
216
HEX BOLT M12-1.75 X 30
Price
N/A
217
WALL DOOR LEFT
Price
N/A
218
SET SCREW M6-1 X 6
Price
N/A
219
ROLL PIN 3 X 18
Price
N/A
220
HANDLE ASSEMBLY
Price
N/A
221
HELICAL PULLEY SPRING 11 X 46MM
Price
N/A
222
BRAKE ROD
Price
N/A
223
BRAKE CASING
Price
N/A

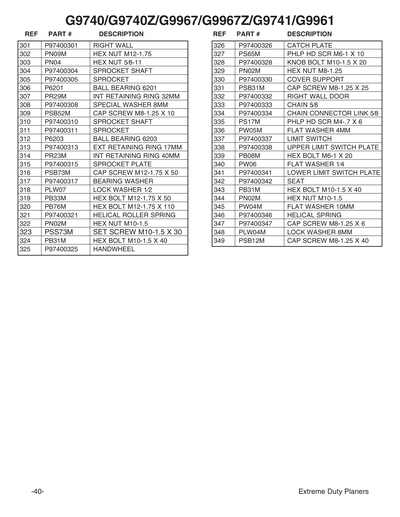

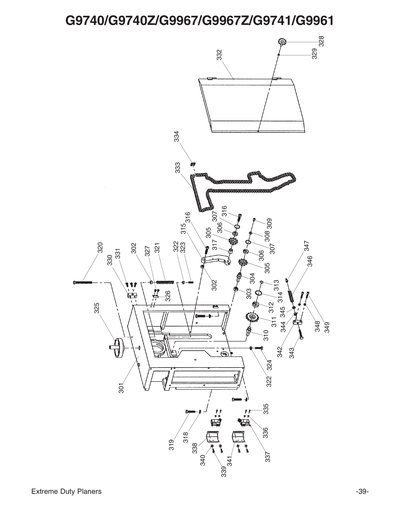

301
WALL RIGHT
Price
N/A
302
HEX NUT M12-1.75
Price
N/A
303
HEX NUT 5/8-11
Price
N/A
304
SPROCKET SHAFT
Price
N/A
305
SPROCKET
Price
N/A
306
BALL BEARING 6201ZZ
Price
N/A
307
INT RETAINING RING 32MM
Price
N/A
308
FLAT WASHER 8MM
Price
N/A
309
CAP SCREW M8-1.25 X 10
Price
N/A
310
SPROCKET SHAFT
Price
N/A
311
SPROCKET
Price
N/A
312
BALL BEARING 6203ZZ
Price
N/A
313
EXT RETAINING RING 17MM
Price
N/A
314
INT RETAINING RING 40MM
Price
N/A
315
SPROCKET PLATE
Price
N/A
316
CAP SCREW M12-1.75 X 50
Price
N/A
317
BEARING WASHER 12.7X23MM
Price
N/A
318
LOCK WASHER 1/2
Price
N/A
319
HEX BOLT M12-1.75 X 50
Price
N/A
320
HEX BOLT M12-1.75 X 110
Price
N/A
321
HELICAL ROLLER SPRING 19.5 X 109MM
Price
N/A
322
HEX NUT M10-1.5
Price
N/A
323
SET SCREW M10-1.5 X 23
Price
N/A
324
HEX BOLT M10-1.5 X 40
Price
N/A
325
*DISCD*HANDWHEEL V1.09.03
Price
N/A
326
CATCH PLATE
Price
N/A
327
PHLP HD SCR M6-1 X 10
Price
N/A
328
KNOB BOLT M8-1.25 X 20
Price
N/A
329
HEX NUT M10-1.5
Price
N/A
330
COVER SUPPORT
Price
N/A
331
CAP SCREW M8-1.25 X 25
Price
N/A
332
WALL DOOR RIGHT
Price
N/A
333
ROLLER CHAIN 5/8 X 3/8" X 106LINK
Price
N/A
334
CHAIN CONNECTOR LINK 5/8
Price
N/A
335
PHLP HD SCR M4-.7 X 6
Price
N/A
336
FLAT WASHER 4MM
Price
N/A
337
LIMIT SWITCH
Price
N/A
338
UPPER LIMIT SWITCH PLATE
Price
N/A
339
HEX BOLT M6-1 X 20
Price
N/A
340
FLAT WASHER 1/4
Price
N/A
341
LIMIT SWITCH PLATE LOWER
Price
N/A
342
SEAT
Price
N/A
343
HEX BOLT M10-1.5 X 40
Price
N/A
344
HEX NUT M10-1.5
Price
N/A
345
FLAT WASHER 10MM
Price
N/A
346
HELICAL SPRING 19 X 110MM
Price
N/A
347
CAP SCREW M8-1.25 X 16
Price
N/A
348
LOCK WASHER 8MM
Price
N/A
349
CAP SCREW M8-1.25 X 40
Price
N/A

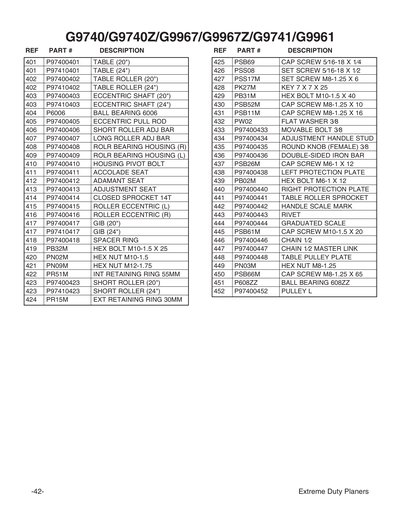

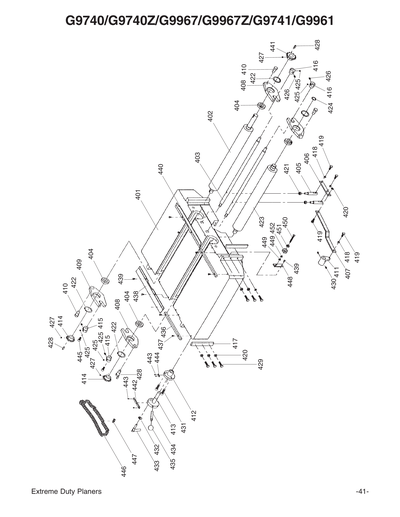

401
TABLE 24" MODEL
Price
$2,296.70
402
TABLE ROLLER
Price
$271.70
403
ECCENTRIC SHAFT 24" MODEL
Price
$72.45
404
BALL BEARING 6006ZZ
Price
N/A
405
ECCENTRIC PULL ROD
Price
N/A
406
SHORT ROLLER ADJ BAR 6X25X148MM
Price
N/A
407
ROLLER ADJ BAR LONG 6 X 25 X 400MM
Price
N/A
408
ROLLER BEARING HOUSING R
Price
N/A
409
ROLLER BEARING HOUSING L
Price
N/A
410
HOUSING PIVOT BOLT M16-2 X 17MM
Price
N/A
411
ACCOLADE SEAT
Price
N/A
412
ADAMANT SEAT
Price
N/A
413
ADJUSTMENT SEAT
Price
N/A
414
CLOSED SPROCKET 1/2 X 14T
Price
N/A
415
ROLLER ECCENTRIC L
Price
N/A
416
ROLLER ECCENTRIC R
Price
N/A
417
GIB 12 X 32 X 185MM
Price
$14.50
418
SPACER RING
Price
N/A
419
HEX BOLT M10-1.5 X 25
Price
N/A
420
HEX NUT M10-1.5
Price
N/A
421
HEX NUT M12-1.75
Price
N/A
422
INT RETAINING RING 55MM
Price
N/A
423
SHORT ROLLER
Price
$108.70
424
EXT RETAINING RING 30MM
Price
N/A
425
CAP SCREW 5/16-18 X 1/4
Price
N/A
426
SET SCREW 5/16-18 X 1/2
Price
N/A
427
SET SCREW M8-1.25 X 6
Price
N/A
428
KEY 7 X 7 X 25
Price
N/A
429
HEX BOLT M10-1.5 X 40
Price
N/A
430
CAP SCREW M8-1.25 X 10
Price
N/A
431
CAP SCREW M8-1.25 X 16
Price
N/A
432
FLAT WASHER 3/8
Price
N/A
433
MOVABLE BOLT 3/8-16 X 40MM
Price
N/A
434
ADJUSTMENT HANDLE STUD
Price
N/A
435
ROUND KNOB FEMALE 3/8 X 34
Price
N/A
436
DOUBLE SIDED IRON BAR
Price
N/A
437
CAP SCREW M6-1 X 12
Price
N/A
438
PROTECTION PLATE 1/2 X 1/2 X 375MM LEFT
Price
N/A
439
HEX BOLT M6-1 X 12
Price
N/A
440
PROTECTION PLATE RIGHT
Price
N/A
441
TABLE ROLLER SPROCKET 5/8-13 X 25 X 30
Price
N/A
442
HANDLE SCALE MARK
Price
N/A
443
RIVET 2.2 X 6
Price
N/A
444
GRADUATED SCALE
Price
N/A
445
CAP SCREW M10-1.5 X 20
Price
N/A
446
CHAIN 1/2 X 425 X 120MM
Price
N/A
447
CHAIN 1/2 MASTER LINK
Price
N/A
448
TABLE PULLEY PLATE M8-1.25
Price
N/A
449
HEX NUT M8-1.25
Price
N/A
450
CAP SCREW M8-1.25 X 65
Price
N/A
451
Bearing - 22mm x 8mm
Price
N/A
452
PULLEY W/HEX NUT M8 X 12
Price
N/A

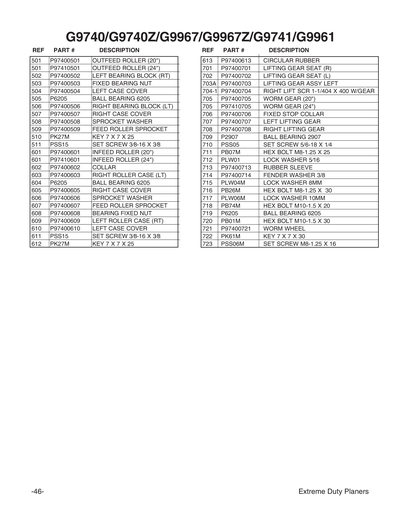

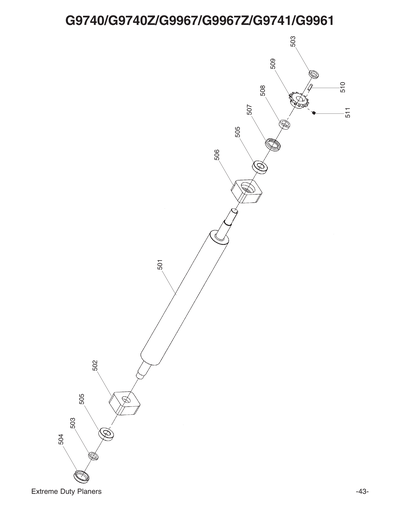

501
OUTFEED ROLLER
Price
$205.30
502
BEARING BLOCK LEFT
Price
N/A
503
FIXED BEARING NUT M25-16
Price
N/A
504
CASE COVER LEFT
Price
N/A
505
BALL BEARING 6205ZZ
Price
N/A
506
BEARING BLOCK LT RIGHT
Price
N/A
507
CASE COVER RIGHT
Price
N/A
508
SPROCKET WASHER 25.5X11.5MM
Price
N/A
509
FEED ROLLER SPROCKET
Price
N/A
510
KEY 7 X 7 X 25
Price
N/A
511
SET SCREW 3/8-16 X 3/8
Price
N/A

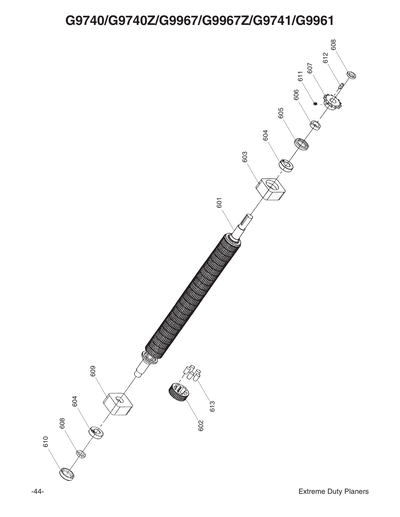

601
INFEED ROLLER 42 X 833MM
Price
$818.15
602
COLLAR
Price
N/A
603
FOLLER CASE LT RIGHT
Price
N/A
604
BALL BEARING 6205ZZ
Price
N/A
605
CASE COVER RIGHT
Price
N/A
606
SPROCKET WASHER 25.5X11.5MM
Price
N/A
607
FEED ROLLER SPROCKET
Price
N/A
608
BEARING FIXED NUT M25-16
Price
N/A
609
ROLLER CASE LEFT
Price
N/A
610
CASE COVER LEFT
Price
N/A
611
SET SCREW 3/8-16 X 3/8
Price
N/A
612
KEY 7 X 7 X 25
Price
N/A
613
CIRCULAR RUBBER
Price
N/A

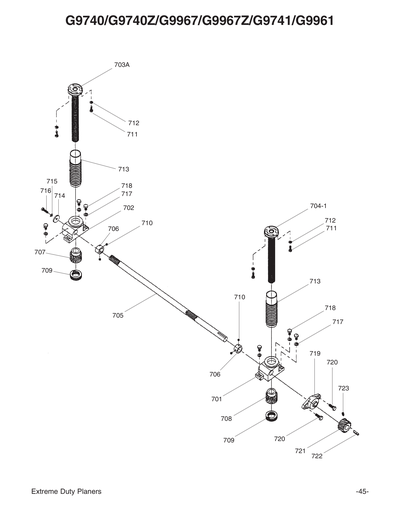

701
LIFTING GEAR SEAT RIGHT
Price
N/A
702
LIFTING GEAR SEAT LEFT
Price
N/A
703
LIFTING GEAR ASSY LEFT
Price
N/A
704
LIFT SCREW LONG 1-1/4 - 4 X 400
Price
N/A
705
WORM GEAR
Price
$72.45
706
FIXED STOP COLLAR
Price
N/A
707
LIFTING GEAR ASSY LEFT
Price
N/A
708
RIGHT LIFT SCR 1-1/4-4 X 400 W/ GEAR
Price
N/A
709
THRUST BEARING 2907
Price
N/A
710
SET SCREW 5/16-18 X 1/4
Price
N/A
711
HEX BOLT M8-1.25 X 25
Price
N/A
712
LOCK WASHER 5/16
Price
N/A
713
RUBBER SLEEVE
Price
N/A
714
FENDER WASHER 8MM
Price
N/A
715
LOCK WASHER 8MM
Price
N/A
716
HEX BOLT M8-1.25 X 30
Price
N/A
717
LOCK WASHER 10MM
Price
N/A
718
HEX BOLT M10-1.5 X 20
Price
N/A
719
BALL BEARING 6205ZZ
Price
N/A
720
HEX BOLT M10-1.5 X 30
Price
N/A
721
WORM WHEEL
Price
N/A
722
KEY 7 X 7 X 29
Price
N/A
723
SET SCREW M8-1.25 X 16
Price
N/A

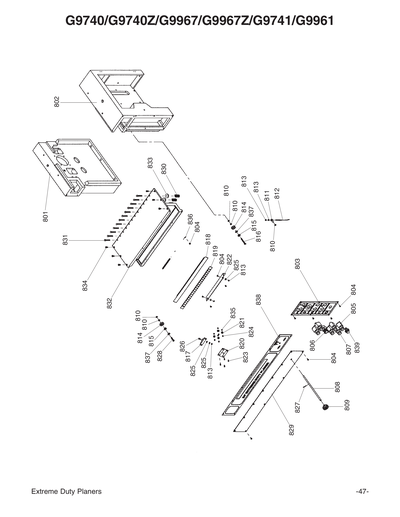

801
WALL LEFT THIN SHORT
Price
N/A
802
WALL THICK SHORT RIGHT
Price
N/A
803
SWITCH PLATE
Price
N/A
804
PHLP HD SCR M6-1 X 10
Price
N/A
805
PUSH BUTTON SWITCH T1 RED
Price
N/A
806
SWITCH RED
Price
N/A
807
PUSH BUTTON SWITCH T2 GREEN
Price
N/A
808
ELEVATION LOCK STUD
Price
N/A
809
KNOB M10 FEMALE
Price
N/A
810
HEX NUT M8-1.25
Price
N/A
811
GRADUATION STRUT
Price
N/A
812
SCALE ROPE
Price
N/A
813
HEX NUT M6-1
Price
N/A
814
PULLEY L
Price
N/A
815
Bearing - 22mm x 8mm
Price
N/A
816
CAP SCREW M8-1.25 X 65
Price
N/A
817
SCALE PLATE SUPPORT
Price
N/A
818
SCALE SUPPORT
Price
$10.65
819
GRADUATED SCALE
Price
$6.90
820
MOVABLE SCALE PLATE
Price
N/A
821
PULLEY
Price
N/A
822
SCALE SUPPORT
Price
$19.35
823
PHLP HD SCR 8-32 X 1
Price
N/A
824
PULLEY FERRULE S
Price
N/A
825
FLAT WASHER 1/4
Price
N/A
826
SCALE PLATE BOLT M16-1 X 16
Price
N/A
827
COTTER PIN 5/32 X 1-1/2"
Price
N/A
828
HEX BOLT M8-1.25 X 35
Price
N/A
829
PROTECTION PLATE
Price
$54.35
830
COMPRESS PAWL SPRING 2MM
Price
N/A
831
CAP SCREW M8-1.25 X 55
Price
N/A
832
FRONT SEAT
Price
$434.70
833
CLAW SPRING NUT M8-1.25
Price
N/A
834
CAP SCREW M8-1.25 X 16
Price
N/A
835
HEX NUT M5-.8
Price
N/A
836
SCALE SPRING HELICAL D6 X 385MM
Price
N/A
837
FLAT WASHER 8MM
Price
N/A
838
SCALE PLATE
Price
$101.45
839
POWER INDICATOR LIGHT 22MM RED
Price
N/A

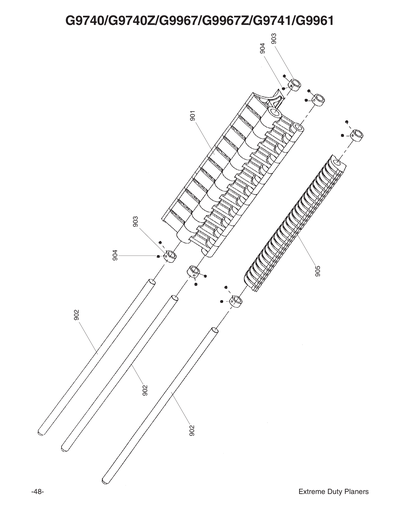

901
PAWL
Price
N/A
902
STOP PAWL SHAFT
Price
$41.40
903
STOP PAWL FIXED RING M8X6MM
Price
N/A
904
SET SCREW M8-1.25 X 6
Price
N/A
905
STOP PAWL
Price
N/A

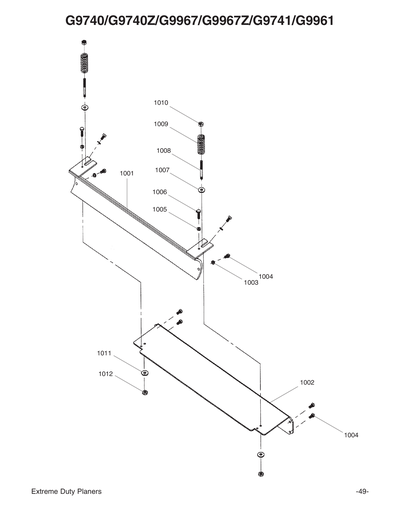

1001
PRESSURE BAR 26-13/16" V1
Price
$120.75
1001A
PRESSURE BAR 25-3/8" V2.06.07
Price
$242.75
1002
PROTECTION PLATE V1
Price
$65.55
1002A
PROTECTION PLATE V2.06.07
Price
$41.70
1003
LOCK WASHER 5/16
Price
N/A
1003A
FLAT WASHER 10MM
Price
N/A
1004
HEX BOLT M8-1.25 X 16
Price
N/A
1004A
CAP SCREW M10-1.5 X 30
Price
N/A
1005
HEX NUT M8-1.25
Price
N/A
1005A
HEX NUT M12-1.75
Price
N/A
1006
HEX BOLT M8-1.25 X 35
Price
N/A
1006A
CAP SCREW M8-1.25 X 12
Price
N/A
1007
FLAT WASHER 3/8
Price
N/A
1007A
SPRING CAP V2.06.07
Price
$2.20
1008
PISTON BOLT M8-1.25 X 90MM V1
Price
N/A
1008A
CAP SCREW M10-1.5 X 12
Price
N/A
1009
HELICAL SPRING 70MML V1
Price
N/A
1009A
COMPRESSION SPRING 51MM V2.06.07
Price
$4.30
101
WALL LEFT
Price
N/A
1010
HEX NUT 3/8-16
Price
N/A
1010A
PRESSURE BAR BRACKET V2.06.07
Price
$14.50
1011
FLAT WASHER 3/8
Price
N/A
1011A
CAP SCREW M10-1.5 X 40
Price
N/A
1012
HEX NUT 3/8-16
Price
N/A
1012A
SET SCREW M12-1.75 X 40
Price
N/A
1013
CAP SCREW M10-1.5 X 25
Price
N/A
1014
TRUNNION RIGHT
Price
$55.00
1015
TRUNNION LEFT
Price
$55.00
1016
AXLE BOLT
Price
$8.50
1017
SET SCREW M6-1 X 8
Price
N/A
102
HEX BOLT M12-1.75 X 110
Price
N/A
103
HEX NUT M12-1.75
Price
N/A
104
HELICAL ROLLER SPRING 19.5 X 109MM
Price
N/A
105
HEX NUT M10-1.5
Price
N/A
106
HEX BOLT M10-1.5 X 40
Price
N/A
107
LOCK WASHER 12MM
Price
N/A
108
HEX BOLT M12-1.75 X 50
Price
N/A
109
COVER SUPPORT 7/2 X 52
Price
N/A
110
CAP SCREW M8-1.25 X 25
Price
N/A

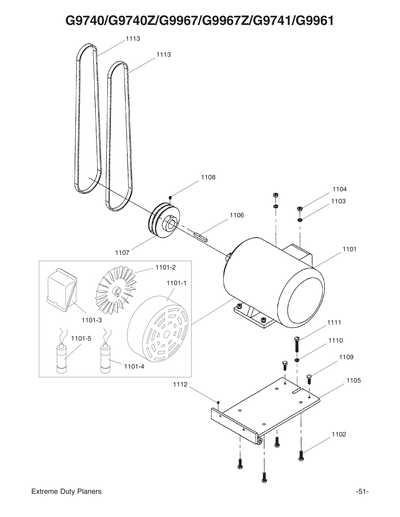

1101
MOTOR 10HP 220V/440V 3-PH V2.06.15
Price
N/A
1101-1
MOTOR COVER
Price
$10.65
1101-2
MOTOR FAN
Price
$13.30
1101-3
WIRING BOX
Price
$47.75
1101V2
MOTOR 10HP 220V/440V 3-PH V2.06.15
Price
$2,825.55
1102
HEX BOLT M10-1.5 X 35
Price
N/A
1103
LOCK WASHER 10MM
Price
N/A
1104
HEX NUT M10-1.5
Price
N/A
1105
MOTOR PLATE
Price
N/A
1106
KEY 10 X 8 X 70
Price
N/A
1107
MOTOR PULLEY WITH 28MM BORE V1
Price
$46.45
1107V2
MOTOR PULLEY WITH 38MM BORE V2.06.15
Price
$86.95
1108
SET SCREW 3/8-16 X 3/8
Price
N/A
1109
HEX BOLT M10-1.5 X 30
Price
N/A
111
CATCH PLATE
Price
N/A
1110
LOCK WASHER 3/8
Price
N/A
1111
HEX BOLT M10-1.5 X 60
Price
N/A
1112
SET SCREW M8-1.25 X 6
Price
N/A
1113
V-BELT B71
Price
N/A
112
PHLP HD SCR M6-1 X 10
Price
N/A
113
KNOB BOLT M10-1.5 X 20
Price
N/A
114
HEX NUT M8-1.25
Price
N/A
115
FLAT WASHER 12MM
Price
N/A
116
HEX BOLT M12-1.75 X 30
Price
N/A
117
WALL DOOR LEFT
Price
N/A
118
SET SCREW M6-1 X 6
Price
N/A
119
ROLL PIN 3 X 18
Price
N/A
120
HANDLE ASSEMBLY
Price
N/A

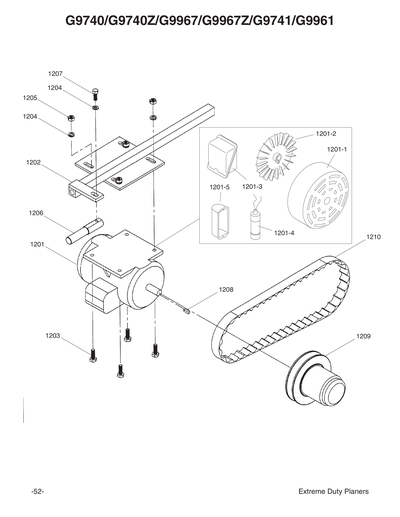

1201
FEED MOTOR 1HP 220V 3-PH
Price
N/A
1201-1
FEED MOTOR COVER 3PH
Price
N/A
1201-2
FEED MOTOR FAN 3PH
Price
N/A
1201-3
FEED MOTOR WIRING BOX 3PH
Price
N/A
1202
MOTOR SLIP SQUARE
Price
$48.05
1203
HEX BOLT M10-1.5 X 30
Price
N/A
1204
LOCK WASHER 10MM
Price
N/A
1205
HEX NUT M10-1.5
Price
N/A
1206
SPEED CHANGE ROD
Price
N/A
1207
HEX BOLT 3/8-16 X 1
Price
N/A
1208
KEY 6 X 6 X 20
Price
N/A
1209
*DISCD*SPEED CHANGE PULLEY V1
Price
N/A
121
HELICAL PULLEY SPRING 11 X 46MM
Price
N/A
1210
*DISCD*V-BELT 20 X 10 X 1085MM V1.09.03
Price
N/A
122
BRAKE ROD
Price
N/A
123
BRAKE CASING
Price
N/A

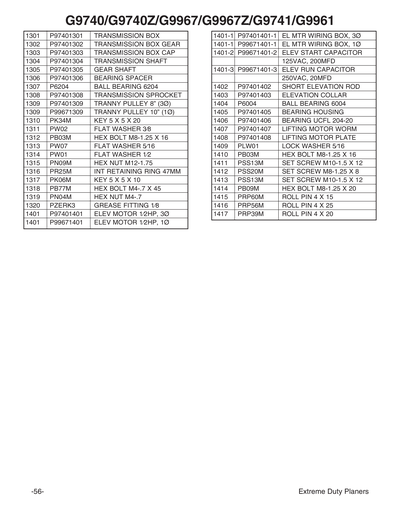

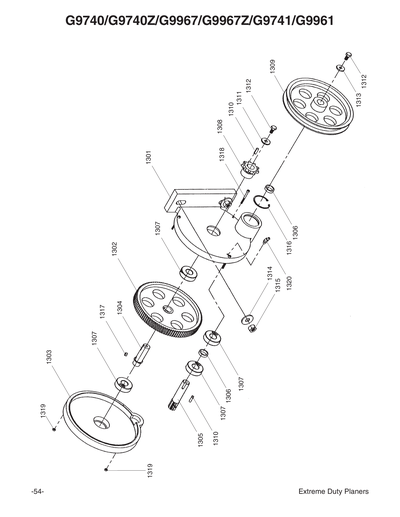

1301
TRANSMISSION BOX
Price
N/A
1302
TRANSMISSION BOX GEAR
Price
N/A
1303
TRANSMISSION BOX CAP
Price
N/A
1304
TRANSMISSION SHAFT
Price
N/A
1305
GEAR SHAFT
Price
N/A
1306
BEARING SPACER
Price
N/A
1307
BALL BEARING 6204ZZ
Price
N/A
1308
TRANSMISSION SPROCKET 5/8X20X30MML 9T
Price
N/A
1309
TRANNY PULLEY 8" 3PH
Price
N/A
1310
KEY 5 X 5 X 20
Price
N/A
1311
FLAT WASHER 3/8
Price
N/A
1312
HEX BOLT M8-1.25 X 16
Price
N/A
1313
FLAT WASHER 5/16
Price
N/A
1314
FLAT WASHER 1/2
Price
N/A
1315
HEX NUT M12-1.75
Price
N/A
1316
INT RETAINING RING 47MM
Price
N/A
1317
KEY 5 X 5 X 10
Price
N/A
1318
HEX BOLT M4-.7 X 45
Price
N/A
1319
HEX NUT M4-.7
Price
N/A
1320
GREASE FITTING 1/8-27
Price
N/A

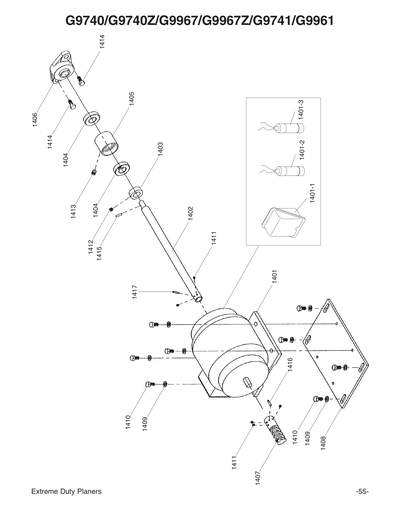

1401
ELEV MOTOR 1/2HP 220V 3-PH
Price
N/A
1401-1
ELEV MOTOR WIRING BOX 3 PHASE
Price
N/A
1402
SHORT ELEVATION ROD
Price
N/A
1403
ELEVATION COLLAR
Price
N/A
1404
BALL BEARING 6004ZZ
Price
N/A
1405
BEARING HOUSING
Price
N/A
1406
PILLON BLOCK BEARING UCLF 204-20
Price
N/A
1407
LIFTING MOTOR WORM
Price
N/A
1408
LIFTING MOTOR PLATE
Price
N/A
1409
LOCK WASHER 5/16
Price
N/A
1410
HEX BOLT M8-1.25 X 16
Price
N/A
1411
SET SCREW M10-1.5 X 12
Price
N/A
1412
SET SCREW M8-1.25 X 8
Price
N/A
1413
SET SCREW M10-1.5 X 12
Price
N/A
1414
HEX BOLT M8-1.25 X 20
Price
N/A
1415
ROLL PIN 4 X 15
Price
N/A
1416
ROLL PIN 4 X 25
Price
N/A
1417
ROLL PIN 4 X 20
Price
N/A
1418
HEX BOLT M4-.7 X 45
Price
N/A
1419
HEX NUT M4-.7
Price
N/A
1420
GREASE FITTING 1/8-27
Price
N/A

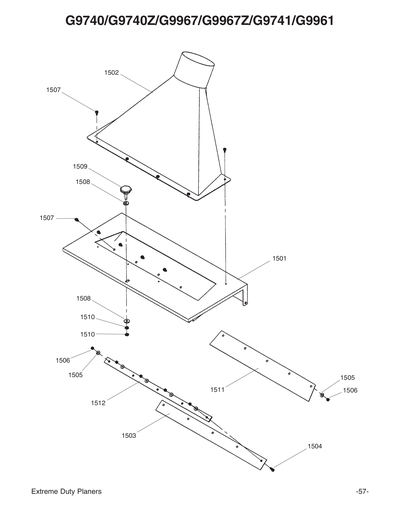

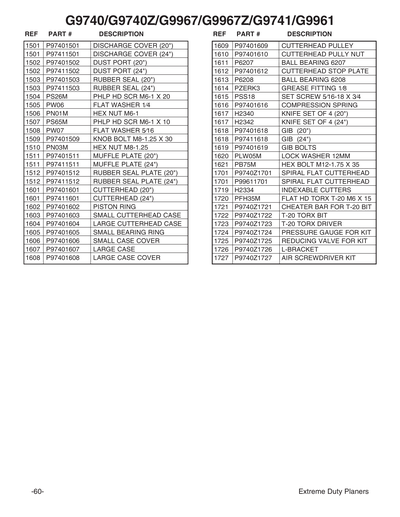

1501
DISCHARGE COVER 24" MODEL
Price
$168.50
1502
DUST PORT 24" MODEL
Price
$271.70
1502-1
DUST PORT GASKET - 24" MODEL
Price
$21.75
1503
RUBBER SEAL
Price
$36.25
1504
PHLP HD SCR M6-1 X 20
Price
N/A
1505
FLAT WASHER 1/4
Price
N/A
1506
HEX NUT M6-1
Price
N/A
1507
PHLP HD SCR M6-1 X 10
Price
N/A
1508
FLAT WASHER 5/16
Price
N/A
1509
KNOB BOLT M8-1.25 X 30
Price
N/A
1510
HEX NUT M8-1.25
Price
N/A
1511
DISCHARGE COVER 24" MODEL
Price
N/A
1512
DISCHARGE COVER 24" MODEL
Price
N/A
1601
CUTTERHEAD 24" 4-KNIFE V1
Price
$956.35
1601V2
CUTTERHEAD 24" 4-KNIFE V2.10.13
Price
$1,593.90
1602
PISTON RING
Price
N/A
1603
SMALL CUTTERHEAD CASE W/COVER
Price
N/A
1603-1
SET SCREW M10-1.5 X 15
Price
N/A
1604
LARGE CUTTERHEAD CASE W/ COVER
Price
N/A
1605
SPANNER NUT M35-1.5
Price
$10.90
1606
SMALL CUTTERHEAD CASE W/COVER
Price
N/A
1607
SPANNER NUT M40-1.5P
Price
N/A
1608
LARGE CUTTERHEAD CASE W/ COVER
Price
N/A
1609
CUTTERHEAD PULLEY V1
Price
N/A
1609V2
CUTTERHEAD PULLEY V2.10.13
Price
N/A
1610
CUTTERHEAD PULLEY NUT M30-1.5
Price
N/A
1611
BALL BEARING 6207ZZ
Price
N/A
1612
CUTTERHEAD STOP PLATE
Price
N/A
1613
BALL BEARING 6208ZZ
Price
N/A
1614
GREASE FITTING 1/8-27
Price
N/A
1615
SET SCREW 5/16-18 X 3/4
Price
N/A
1616
COMPRESSION SPRING 0.6X6.1X23MM V1.09.03
Price
N/A
1617
24-1/8" x 1-3/16" x 1/8" Planer Knives, Set of 4
Price
N/A
1618
GIB
Price
$137.70
1619
GIB BOLT M8-1.25 X 10
Price
N/A
1620
LOCK WASHER 7/16
Price
N/A
1621
HEX BOLT M12-1.75 X 35
Price
N/A
1622
CAP SCREW M10-1.5 X 30
Price
N/A
1623
LOCK WASHER 10MM
Price
N/A
1624
FENDER WASHER 10MM
Price
N/A
1625
GREASE FITTING 1/8" PT 45-DEG
Price
N/A
1626
KEY 10 X 8 X 45
Price
N/A
1627
FLAT HD SCR M6-1 X 16
Price
N/A
1701
CONTACTOR CN-11 3A1A
Price
$37.20
1702
*DISCD*RHN-18/2.5A RELAY ELV 30 V1
Price
N/A
1703
*DISCD*CONTACTOR CN-25 5/10HP V1.01.15
Price
N/A
1704
TRANSFORMER 110VA 220V-110V
Price
N/A
1725
REDUCING VALVE FOR KIT
Price
N/A
1727
REDUCING VALVE FOR KIT
Price
N/A
201
WALL RIGHT
Price
N/A
202
HEX NUT M12-1.75
Price
N/A
203
P9741203
Now: PN04
HEX NUT 5/8-11
Price
N/A
204
SPROCKET SHAFT
Price
N/A
205
SPROCKET
Price
N/A
206
BALL BEARING 6201ZZ
Price
N/A
207
INT RETAINING RING 32MM
Price
N/A
208
FLAT WASHER 8MM
Price
N/A
209
CAP SCREW M8-1.25 X 10
Price
N/A
210
SPROCKET SHAFT
Price
N/A
211
SPROCKET
Price
N/A
212
BALL BEARING 6203ZZ
Price
N/A
213
EXT RETAINING RING 17MM
Price
N/A
214
INT RETAINING RING 40MM
Price
N/A
215
SPROCKET PLATE
Price
N/A
216
CAP SCREW M12-1.75 X 50
Price
N/A
217
BEARING WASHER 12.7X23MM
Price
N/A
218
LOCK WASHER 1/2
Price
N/A
219
HEX BOLT M12-1.75 X 50
Price
N/A
220
HEX BOLT M12-1.75 X 110
Price
N/A
221
HELICAL ROLLER SPRING 19.5 X 109MM
Price
N/A
222
HEX NUT M10-1.5
Price
N/A
223
SET SCREW M10-1.5 X 30
Price
N/A
224
HEX BOLT M10-1.5 X 40
Price
N/A
225
*DISCD*HANDWHEEL V1.09.03
Price
N/A
226
CATCH PLATE
Price
N/A
227
PHLP HD SCR M6-1 X 10
Price
N/A
228
KNOB BOLT M8-1.25 X 20
Price
N/A
229
HEX NUT M10-1.5
Price
N/A
230
COVER SUPPORT
Price
N/A
231
CAP SCREW M8-1.25 X 25
Price
N/A
232
WALL DOOR RIGHT
Price
N/A
233
ROLLER CHAIN 5/8 X 3/8" X 106LINK
Price
N/A
234
CHAIN CONNECTOR LINK 5/8
Price
N/A
235
PHLP HD SCR M4-.7 X 6
Price
N/A
236
FLAT WASHER 4MM
Price
N/A
237
LIMIT SWITCH
Price
N/A
238
UPPER LIMIT SWITCH PLATE
Price
N/A
239
HEX BOLT M6-1 X 20
Price
N/A
240
P9741240
Now: PW06
FLAT WASHER 1/4
Price
N/A
241
LIMIT SWITCH PLATE LOWER
Price
N/A
242
SEAT
Price
N/A
243
HEX BOLT M10-1.5 X 40
Price
N/A
244
HEX NUT M10-1.5
Price
N/A
245
FLAT WASHER 10MM
Price
N/A
246
HELICAL SPRING 19 X 110MM
Price
N/A
247
CAP SCREW M8-1.25 X 16
Price
N/A
248
LOCK WASHER 8MM
Price
N/A
249
CAP SCREW M8-1.25 X 40
Price
N/A
301
TABLE 24" MODEL
Price
N/A
302
TABLE ROLLER
Price
N/A
303
ECCENTRIC SHAFT 24" MODEL
Price
N/A
304
BALL BEARING 6006ZZ
Price
N/A
305
ECCENTRIC PULL ROD
Price
N/A
306
SHORT ROLLER ADJ BAR 6X25X148MM
Price
N/A
307
ROLLER ADJ BAR LONG 6 X 25 X 400MM
Price
N/A
308
ROLLER BEARING HOUSING R
Price
N/A
309
ROLLER BEARING HOUSING L
Price
N/A
310
HOUSING PIVOT BOLT M16-2 X 17MM
Price
N/A
311
ACCOLADE SEAT
Price
N/A
312
ADAMANT SEAT
Price
N/A
313
ADJUSTMENT SEAT
Price
N/A
314
CLOSED SPROCKET 1/2 X 14T
Price
N/A
315
ROLLER ECCENTRIC L
Price
N/A
316
ROLLER ECCENTRIC R
Price
N/A
317
GIB 12 X 32 X 185MM
Price
N/A
318
SPACER RING
Price
N/A
319
HEX BOLT M10-1.5 X 25
Price
N/A
320
HEX NUT M10-1.5
Price
N/A
321
HEX NUT M12-1.75
Price
N/A
322
INT RETAINING RING 55MM
Price
N/A
323
SHORT ROLLER
Price
N/A
324
EXT RETAINING RING 30MM
Price
N/A
325
CAP SCREW 5/16-18 X 1/4
Price
N/A
326
SET SCREW 5/16-18 X 1/2
Price
N/A
327
SET SCREW M8-1.25 X 6
Price
N/A
328
KEY 7 X 7 X 25
Price
N/A
329
HEX BOLT M10-1.5 X 40
Price
N/A
330
CAP SCREW M8-1.25 X 10
Price
N/A
331
CAP SCREW M8-1.25 X 16
Price
N/A
332
P9741332
Now: PW02
FLAT WASHER 3/8
Price
N/A
333
MOVABLE BOLT 3/8-16 X 40MM
Price
N/A
334
ADJUSTMENT HANDLE STUD
Price
N/A
335
ROUND KNOB FEMALE 3/8 X 34
Price
N/A
336
DOUBLE SIDED IRON BAR
Price
N/A
337
CAP SCREW M6-1 X 12
Price
N/A
338
PROTECTION PLATE 1/2 X 1/2 X 375MM LEFT
Price
N/A
339
HEX BOLT M6-1 X 12
Price
N/A
340
PROTECTION PLATE RIGHT
Price
N/A
341
TABLE ROLLER SPROCKET 5/8-13 X 25 X 30
Price
N/A
342
HANDLE SCALE MARK
Price
N/A
343
RIVET 2.2 X 6
Price
N/A
344
GRADUATED SCALE
Price
N/A
345
CAP SCREW M10-1.5 X 20
Price
N/A
346
CHAIN 1/2 X 425 X 120MM
Price
N/A
347
CHAIN 1/2 MASTER LINK
Price
N/A
348
TABLE PULLEY PLATE M8-1.25
Price
N/A
349
HEX NUT M8-1.25
Price
N/A
350
CAP SCREW M8-1.25 X 65
Price
N/A
351
Bearing - 22mm x 8mm
Price
N/A
352
PULLEY W/HEX NUT M8 X 12
Price
N/A
401
CUTTERHEAD 24" 4-KNIFE V1
Price
N/A
402
PISTON RING
Price
N/A
403
SMALL CUTTERHEAD CASE W/COVER
Price
N/A
404
LARGE CUTTERHEAD CASE W/ COVER
Price
N/A
405
NUT M35-1.5
Price
N/A
406
SMALL CUTTERHEAD CASE W/COVER
Price
N/A
407
SPANNER NUT M40-1.5P
Price
N/A
408
LARGE CUTTERHEAD CASE W/ COVER
Price
N/A
409
CUTTERHEAD PULLEY V1
Price
N/A
410
CUTTERHEAD PULLEY NUT M30-1.5
Price
N/A
411
BALL BEARING 6207-OPEN
Price
N/A
412
CUTTERHEAD STOP PLATE
Price
N/A
413
BALL BEARING 6208ZZ
Price
N/A
414
GREASE FITTING 1/8-27
Price
N/A
415
SET SCREW 5/16-18 X 3/4
Price
N/A
416
COMPRESSION SPRING 0.6X6.1X23MM V1.09.03
Price
N/A
417
24-1/8" x 1-3/16" x 1/8" Planer Knives, Set of 4
Price
N/A
418
GIB
Price
N/A
419
GIB BOLT M8-1.25 X 10
Price
N/A
420
LOCK WASHER 12MM
Price
N/A
421
HEX BOLT M12-1.75 X 35
Price
N/A
500
*DISCD*CONVERSION KIT RHN-18A V1.09.03
Price
N/A
501
OUTFEED ROLLER
Price
N/A
502
BEARING BLOCK LEFT
Price
N/A
503
FIXED BEARING NUT M25-16
Price
N/A
504
CASE COVER LEFT
Price
N/A
505
BALL BEARING 6205ZZ
Price
N/A
506
BEARING BLOCK LT RIGHT
Price
N/A
507
CASE COVER RIGHT
Price
N/A
508
SPROCKET WASHER 25.5X11.5MM
Price
N/A
509
FEED ROLLER SPROCKET
Price
N/A
510
KEY 7 X 7 X 25
Price
N/A
511
SET SCREW 3/8-16 X 3/8
Price
N/A
601
INFEED ROLLER 42 X 833MM
Price
N/A
602
COLLAR
Price
N/A
603
FOLLER CASE LT RIGHT
Price
N/A
604
BALL BEARING 6205ZZ
Price
N/A
605
CASE COVER RIGHT
Price
N/A
606
SPROCKET WASHER 25.5X11.5MM
Price
N/A
607
FEED ROLLER SPROCKET
Price
N/A
608
BEARING FIXED NUT M25-16
Price
N/A
609
ROLLER CASE LEFT
Price
N/A
610
CASE COVER LEFT
Price
N/A
611
SET SCREW 3/8-16 X 3/8
Price
N/A
612
KEY 7 X 7 X 25
Price
N/A
613
CIRCULAR RUBBER
Price
N/A
701
LIFTING GEAR SEAT RIGHT
Price
N/A
702
LIFTING GEAR SEAT LEFT
Price
N/A
703
LIFTING GEAR ASSY LEFT
Price
N/A
704
LIFT SCREW LONG 1-1/4 - 4 X 400
Price
N/A
705
WORM GEAR
Price
N/A
706
FIXED STOP COLLAR
Price
N/A
707
LIFTING GEAR ASSY LEFT
Price
N/A
708
RIGHT LIFT SCR 1-1/4-4 X 400 W/ GEAR
Price
N/A
709
THRUST BEARING 2907
Price
N/A
710
SET SCREW 5/16-18 X 1/4
Price
N/A
711
HEX BOLT M8-1.25 X 25
Price
N/A
712
LOCK WASHER 5/16
Price
N/A
713
RUBBER SLEEVE
Price
N/A
714
FENDER WASHER 8MM
Price
N/A
715
LOCK WASHER 8MM
Price
N/A
716
HEX BOLT M8-1.25 X 30
Price
N/A
717
LOCK WASHER 10MM
Price
N/A
718
HEX BOLT M10-1.5 X 20
Price
N/A
719
BALL BEARING 6205ZZ
Price
N/A
720
HEX BOLT M10-1.5 X 30
Price
N/A
721
WORM WHEEL
Price
N/A
722
KEY 7 X 7 X 29
Price
N/A
723
SET SCREW M8-1.25 X 16
Price
N/A
801
WALL LEFT THIN SHORT
Price
N/A
802
WALL THICK SHORT RIGHT
Price
N/A
803
SWITCH PLATE
Price
N/A
8039
*DISCD*CONVERSION KIT RHN-18A V1.09.03
Price
N/A
804
PHLP HD SCR M6-1 X 10
Price
N/A
805
PUSH BUTTON SWITCH T1 RED
Price
N/A
806
PUSH BUTTON SWITCH T1 RED
Price
N/A
807
PUSH BUTTON SWITCH T2 GREEN
Price
N/A
808
ELEVATION LOCK STUD
Price
N/A
809
KNOB M10 FEMALE
Price
N/A
810
HEX NUT M8-1.25
Price
N/A
811
GRADUATION STRUT
Price
N/A
812
PULLEY L
Price
N/A
813
HEX NUT M6-1
Price
N/A
814
PULLEY L
Price
N/A
815
Bearing - 22mm x 8mm
Price
N/A
816
CAP SCREW M8-1.25 X 65
Price
N/A
817
SCALE PLATE SUPPORT
Price
N/A
818
SCALE SUPPORT
Price
N/A
819
GRADUATED SCALE
Price
N/A
820
MOVABLE SCALE PLATE
Price
N/A
821
PULLEY
Price
N/A
822
SCALE SUPPORT
Price
N/A
823
P9741823
Now: PS30
PHLP HD SCR 8-32 X 1
Price
N/A
824
PULLEY FERRULE S
Price
N/A
825
P9741825
Now: PW06
FLAT WASHER 1/4
Price
N/A
826
SCALE PLATE BOLT M16-1 X 16
Price
N/A
827
COTTER PIN 5/32 X 1-1/2"
Price
N/A
828
HEX BOLT M8-1.25 X 35
Price
N/A
829
PROTECTION PLATE
Price
N/A
830
COMPRESS PAWL SPRING 2MM
Price
N/A
831
CAP SCREW M8-1.25 X 55
Price
N/A
832
FRONT SEAT
Price
N/A
833
CLAW SPRING NUT M8-1.25
Price
N/A
834
CAP SCREW M8-1.25 X 16
Price
N/A
835
HEX NUT M5-.8
Price
N/A
836
SCALE SPRING HELICAL D6 X 385MM
Price
N/A
837
FLAT WASHER 8MM
Price
N/A
838
SCALE PLATE
Price
N/A
901
PAWL
Price
N/A
902
STOP PAWL SHAFT
Price
N/A
903
STOP PAWL FIXED RING M8X6MM
Price
N/A
904
SET SCREW M8-1.25 X 6
Price
N/A
905
STOP PAWL
Price
N/A
918
GIB
Price
N/A
999
COMPLETE KNIFE GAUGE ASSY
Price
$54.10
999-1
KNIFE GAUGE 1 OF 2
Price
$21.50
999-2
KNIFE GAUGE ROD
Price
$12.40
MANUAL
MANUAL FOR G9740/Z/G9741/G9961/G9967/Z 1
Price
N/A
