Parts for G9742 5" x 6" 1/2 HP Metal Cutting Bandsaw w/ Swivel Head

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
2
Now: PN05
HEX NUT 1/4-20
Price
N/A
3
Now: PW06
FLAT WASHER 1/4
Price
N/A
8
WASHER 5/16 X 7/8 X 2MM
11
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
12
Now: PN02
HEX NUT 5/16-18
Price
N/A
16
MOTOR CABLE
17
PIVOTING ROD
19
DISTANCE SET BRACKET
20
Now: PSS17
SET SCREW 5/16-18 X 5/16
Price
N/A
21
STOCK STOP ROD 1/2 X 216
27
HANDWHEEL W/ HANDLE
Price
N/A
27-1
HANDWHEEL W/ HANDLE
Price
N/A
28
HANDWHEEL W/ HANDLE
28-1
HANDWHEEL W/ HANDLE
Price
N/A
31
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
35
Now: PLW04
LOCK WASHER 3/8
Price
N/A
44
POWER CABLE
48
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
50
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
51
WASHER 5/16 X 7/8 X 3MM
54
PIVOT
57
ADJUSTABLE BRACKET LEFT
58
KNOB BOLT 1/4 -20 X 5/8
59
*DISCD*BLADE BACK SAFETY COVER V1.04.03
Item is no longer available
Price
N/A
59A
BLADE BACK SAFETY COVER V2.11.06
60
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
61
BALL BEARING 6000ZZ
Price
N/A
62
BEARING SHAFT
62-1
GUIDE PIVOT RIGHT
63
BEARING PIN
64
BLADE ADJUSTABLE REAR
64-1
BLADE ADJUSTMENT FRONT
65
ADJUSTABLE BRACKET RIGHT
66
LOCK KNOB 3/8-16 X 31
68
Now: PFH03
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
69
DEFLECTOR PLATE
Price
N/A
70
Now: PN08
HEX NUT 3/8-16
Price
N/A
71
BLADE WHEEL FRONT
72
BEARING COVER
73
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
74
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
75
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
76
SWITCH CUT OFF TIP
77
BLADE WHEEL W/BUSHING V1.04.03
77-2
BUSHING
77V2
BLADE WHEEL W/BEARINGS V2.02.09
79
BLADE TENSION ADJUSTABLE KNOB
80
SPRING 75 X 2 X 10
81
BODY FRAME
83
Now: PB41
HEX BOLT 1/2-12 X 1-1/2
Price
N/A
84
MOTOR MOUNT PLATE
85
MOTOR 1/2HP 110V/220V 1-PH
85-1
MOTOR FAN COVER
85-2
MOTOR FAN
85-3
CAPACITOR COVER
85-4
S CAPACITOR 200M 125V
85V2
MOTOR 1/2HP 110V/220V 1-PH V2.11.09
85V2-1
MOTOR FAN COVER
85V2-2
MOTOR FAN
85V2-3
CAPACITOR COVER
85V2-4
S CAPACITOR 300M 250V
85V2-5
CIRCUIT BREAKER L2 SERIES 9A
85V2-5X
CIRCUIT BREAKER KUOYUH 88 SERIES 5A
85V3
MOTOR 1/2HP 115V/230V 1-PH V3.01.25
85V3-1
MOTOR FAN COVER
85V3-2
MOTOR FAN
85V3-3
CAPACITOR COVER
85V3-4
S CAPACITOR 200M 125V
86
MOTOR PULLEY
87
BALL BEARING 6202ZZ
Price
N/A
88
BUSHING
89
OIL SEAL TC15 X 35 X 7
90
TRANSMISSION WHEEL SHAFT
91
WORM GEAR
92
GEAR BOX GASKET
93
COVER
94
WORM GEAR SHAFT
95
ROLL PIN 4 X 22
Price
N/A
96
BEARING BUSHING
98
PLUM SCREW 5/16 X 18 X 45
99
BUSHING
100
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
101
WORM GEAR PULLEY
102
Now: PLW01
LOCK WASHER 5/16
Price
N/A
103
BLADE TENSION SLIDING PLATE
104
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
105
ROLL PIN 4 X 20
Price
N/A
106
ASSY DRAWING W/ BLADE WHEEL SHAFT
107
ASSY DRAWING W/ BLADE WHEEL SHAFT
Price
N/A
108
SHAFT BLOCK
109
BLADE TENSION SLIDING GUIDE
110
COMPLETE PULLEY COVER ASSY
Price
N/A
110A
COMPLETE PULLEY COVER ASSY
111
COMPLETE PULLEY COVER ASSY
Price
N/A
112
V-BELT AX22
Price
N/A
114
Now: PLW04
LOCK WASHER 3/8
Price
N/A
117
SPRING WASHER 1/4
119
BLADE WHEEL BUSHING
120
BUSHING 19 X 17 X 7
123
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
126
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
132
SAFETY GUARD RIGHT
Price
N/A
132-1
SAFETY GUARD LEFT
Price
N/A
182
Now: PW07
FLAT WASHER 5/16
Price
N/A
194
WASHER 1/4 X 3/4 X 1.5
196
KNOB BOLT 1/4 -20 X 5/8
Price
N/A
197
HEX HD SCR 1/4-20 X 3/4
198
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
199
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
200
CAP SCREW 1/4-20 X 1/2
Price
N/A
201
Now: PN02
HEX NUT 5/16-18
Price
N/A
202
Now: PN05
HEX NUT 1/4-20
Price
N/A
250
GRIP VISE ASSEMBLY
251
HEX HD SCR 5/16-18 X 1
Price
N/A
252
FLAT SCREW 5/16-18
253
FLAT CROSS HEAD SCREW 3/8-16 X 1/2
254
SUPPORT ROD
255
Now: PSS04
SET SCREW 1/4-20 X 5/16
Price
N/A
256
WASHER 3/16"
257
HEX HD SCR 3/16-24 X 1/2
258
*DISCD*CYLINDER ASSEMBLY V1.09.01
Item is no longer available
Price
N/A
258A
CYLINDER ASSY V2.06.06
259
CYLINDER UPPER SUPPORT
260
PIVOT PIN
261
Now: PSS26
SET SCREW 10-24 X 3/8
Price
N/A
262
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
263
Now: PLW01
LOCK WASHER 5/16
Price
N/A
264
FLAT WASHER 17MM
Price
N/A
300
BASE
301
*DISCD*VISE BASE V1.05.00
301A
VISE BASE V2.01.08
302
*DISCD*VISE JAW BRACKET-FRONT V1.05.00
Item is no longer available
Price
N/A
302A
VISE JAW BRACKET-FRONT V2.01.08
303
*DISCD*VISE JAW BRACKET-REAR V1.05.00
Item is no longer available
Price
N/A
303A
VISE JAW BRACKET-REAR V2.01.08
304
UPPER SWIVEL BASE
305
*DISCD*BRACKET V1.05.00
Item is no longer available
Price
N/A
305A
BRACKET W/NUT V2.01.08
306
*DISCD*ACME NUT 16.3 X 14.5 V1.05.01
Item is no longer available
Price
N/A
306V2
BRACKET W/NUT V2.01.08
Price
N/A
307
*DISCD*ACME SCREW 350 X 16 X 8 V1.05.00
Item is no longer available
Price
N/A
307A
ACME SCREW V2.01.08
308
BUSHING
309
Now: PLW01
LOCK WASHER 5/16
Price
N/A
310
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
311
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
312
Now: PLW01
LOCK WASHER 5/16
Price
N/A
313
CAP SCREW 5/16-18 X 1/4
Price
N/A
314
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
315
POSITIONING RING
316
Now: PN06
HEX NUT 1/2-12
Price
N/A
317
Now: PW01
FLAT WASHER 1/2
Price
N/A
318
Now: PB49
HEX BOLT 1/2-13 X 1/2
Price
N/A
319
Now: PN08
HEX NUT 3/8-16
Price
N/A
320
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
321
POSITION PIN
322
MALE KNOB
323
BUSHING
324
HANDLE
325
Now: PCB19
CARRIAGE BOLT 3/8-16 X 1-3/4
Price
N/A
328
SWITCH BASE
329
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
330
TWO-BUTTON SWITCH W/SWITCH BOX
330-1
TWO-BUTTON SWITCH KEDU KJD12/120V
330-1X
TWO-BUTTON SWITCH KEDU KJD12/250V
330A
*DISCD*PADDLE SWTCH W/SWTCH BOX V2.11.06
Item is no longer available
Price
N/A
330A-1
TWO-BUTTON SWITCH KEDU KJD12/120V
Price
N/A
331
SCREW 3/16 X 24 X 3/4
333
COTTER PIN 3 X 25MM STANDARD
Price
N/A
334
PROTECT PLATE
338
SCALE
339
HEX HD SCR 5/16-18 X 1
340
WASHER 5/16 X 23 X 2
341
Now: PN02
HEX NUT 5/16-18
Price
N/A
342
BALANCING BRACKET
343
Now: PLW04
LOCK WASHER 3/8
Price
N/A
344
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
345
FLAT BRIQUETTE
346
SCREW ROD 185 X 1/2 X 12
347
BALANCING SPRING 28 X 110
347A
BALANCE BRACKET ASSY
348
LEG
349
BUILT-IN SHELF OPTIONAL
350
FRONT PLATE
351
HEX HD SCR 5/16-18 X 1/2
352
Now: PW07
FLAT WASHER 5/16
Price
N/A
353
Now: PN02
HEX NUT 5/16-18
Price
N/A
354
Now: PN05
HEX NUT 1/4-20
Price
N/A
355
Now: PW06
FLAT WASHER 1/4
Price
N/A
356
HEX HD SCR 1/4-20 X 3/8
357
WALKING WHEEL SET
359
DELUXE STAND ASSEMBLY
359-1
DELUXE STAND ASSEMBLY
Price
N/A
359-2
*DISCD*RIGHT-SIDE PLATE
359-3
DELUXE STAND ASSEMBLY
Price
N/A
359-4
DELUXE STAND ASSEMBLY
Price
N/A
359-5
DELUXE STAND ASSEMBLY
Price
N/A
360
WHEEL SETTING BRACKET
361
WHEEL ROD 19" TO 20" V1.04.03
361A
WHEEL ROD 21" TO 22" V2.04.04
362
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
363
LOCK WASHER 8MM
Price
N/A
364
Now: PN03M
HEX NUT M8-1.25
Price
N/A
365
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
366
RUBBER HD SCR 3/8 X 30
367
Now: PW03M
FLAT WASHER 6MM
Price
N/A
367V2
Now: PW01M
FLAT WASHER 8MM
Price
N/A
368
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
368V2
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
369
*DISCD*KNOB W/SHAFT
Item is no longer available
Price
N/A
370
*DISCD*KNOB
Item is no longer available
Price
N/A
371
COTTER PIN
372
HANDLE SHAFT STOP
373
SCREW PLATE 50 X 42 X 20
374
PIVOT PIN
378

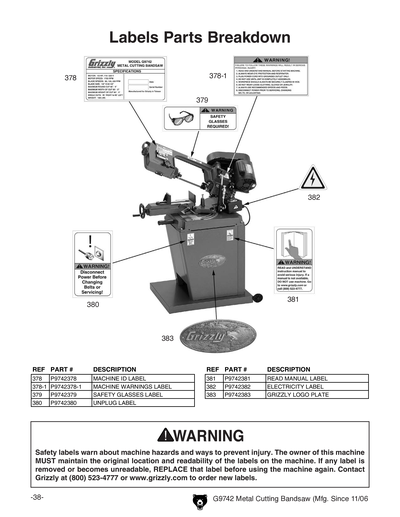

MACHINE ID LABEL
378-1
MACHINE WARNING LABEL
378V2
MACHINE ID LABEL V2.11.09
378V3
MACHINE ID LABEL V3.01.25
379V2
COMBO WARNING LABEL V2.01.25
384
DOOR CLOSED BLADE 2.8W X 1.5H
Price
N/A
385
CUTTING HAZARD LABEL
386
N/S GRIZZLY GREEN G1023S
Price
N/A
387
BEIGE REF G0555
Price
N/A
388
SHIPPING BRACKET LABEL
389
BLADE DIRECTION LABEL
390
GRIZZLY.COM LABEL 12",BEIGE
Price
N/A
MANUAL
MANUAL FOR G9742 11/05
