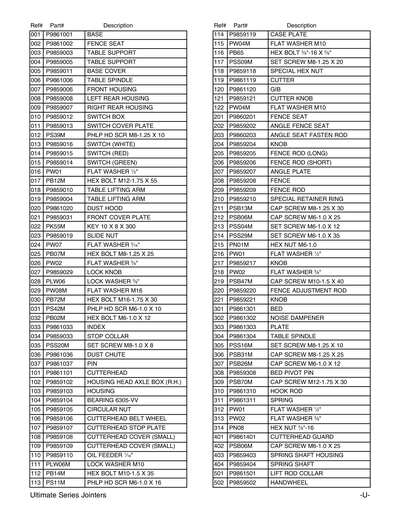

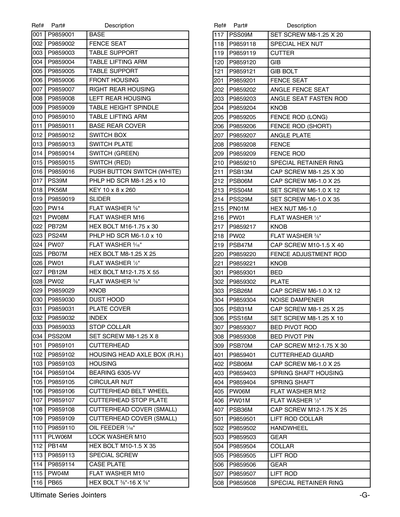

Parts for G9859 The Ultimate 8" Jointer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

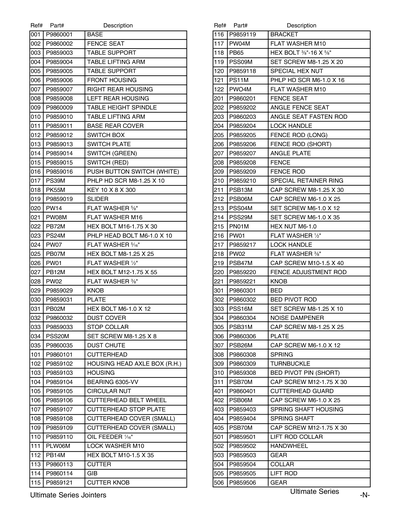

1
BASE
Item is no longer available
Price
N/A
2
FENCE SEAT
3
TABLE SUPPORT
Item is no longer available
Price
N/A
4
INFEED TABLE LIFTING ARM
Price
N/A
5
TABLE SUPPORT
Item is no longer available
Price
N/A
6
FRONT HOUSING
7
HOUSING RIGHT REAR
Item is no longer available
Price
N/A
8
HOUSING REAR LEFT
Item is no longer available
Price
N/A
9
TABLE HEIGHT SPINDLE
Item is no longer available
Price
N/A
10
TABLE LIFTING ARM
Item is no longer available
Price
N/A
11
BASE REAR COVER
Item is no longer available
Price
N/A
12
SWITCH BOX
13
SWITCH PLATE
Item is no longer available
Price
N/A
14
GREEN SWITCH
15
RED SWITCH
16
PUSH BUTTON SWITCH WHITE
17
Now: PS39M
PHLP HD SCR M8-1.25 X 10
Price
N/A
18
Now: PK56M
KEY 10 X 8 X 260
Price
N/A
19
SLIDER
20
Now: PW14
FLAT WASHER 5/8
Price
N/A
21
Now: PW08M
FLAT WASHER 16MM
Price
N/A
22
Now: PB72M
HEX BOLT M16-1.75 X 30
Price
N/A
23
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
24
Now: PW07
FLAT WASHER 5/16
Price
N/A
25
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
26
Now: PW01
FLAT WASHER 1/2
Price
N/A
27
Now: PB12M
HEX BOLT M12-1.75 X 55
Price
N/A
28
Now: PW02
FLAT WASHER 3/8
Price
N/A
29
KNOB
30
*DISCD*DUST HOOD
Item is no longer available
Price
N/A
31
PLATE COVER
Item is no longer available
Price
N/A
32
INDEX
33
STOP COLLAR M18X8MM
34
SET SCREW M8-1.25 X 8
Price
N/A

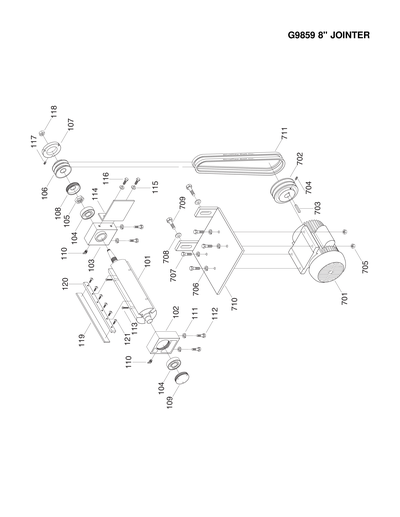

101
CUTTERHEAD 4-KNIFE ASSY
102
HOUSING HEAD AXLE BOX RH
103
HOUSING
104
BALL BEARING 6305ZZ
Price
N/A
105
CIRCULAR NUT M21-1.5
106
CUTTERHEAD BELT WHEEL
107
*DISCD*CUTTERHEAD STOP PLATE
108
CUTTERHEAD COVER SMALL
109
CUTTERHEAD COVER SMALL
110
OIL FEEDER 1/16"
111
LOCK WASHER 10MM
Price
N/A
112
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
113
CUTTERHEAD SCREW M6-1 X 16
114
CASE PLATE
Item is no longer available
Price
N/A
115
Now: PW04M
FLAT WASHER 10MM
Price
N/A
116
Now: PB65
HEX BOLT 3/8-16 X 5/8
Price
N/A
117
SET SCREW M8-1.25 X 20
Price
N/A
118
PULLEY RETAINING NUT M17-1.5
119
CUTTER
120

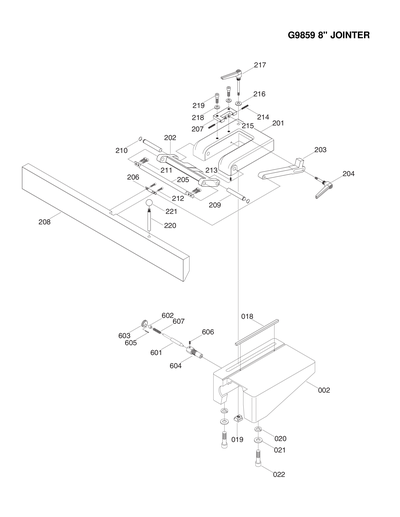

GIB
121
GIB BOLT M8-1.25 X 10
Price
N/A
201
FENCE SEAT
Item is no longer available
Price
N/A
202
ANGLE FENCE SEAT
203
ANGLE SEAT FASTEN ROD
204
KNOB
Item is no longer available
Price
N/A
205
FENCE ROD LONG
206
FENCE ROD SHORT
207
ANGLE PLATE
208
FENCE
209
FENCE ROD
210
FENCE ROD RETAINER RING 16MM
Item is no longer available
Price
N/A
211
CAP SCREW M8-1.25 X 30
Price
N/A
212
CAP SCREW M6-1 X 25
Price
N/A
213
SET SCREW M6-1 X 12
Price
N/A
214
SET SCREW M6-1 X 35
Price
N/A
215
Now: PN01M
HEX NUT M6-1
Price
N/A
216
Now: PW01
FLAT WASHER 1/2
Price
N/A
217
KNOB 1/2" X 100MM
218
Now: PW02
FLAT WASHER 3/8
Price
N/A
219
CAP SCREW M10-1.5 X 40
Price
N/A
220
FENCE ADJUSTMENT ROD
Item is no longer available
Price
N/A
221
KNOB 3/8"
Item is no longer available
Price
N/A

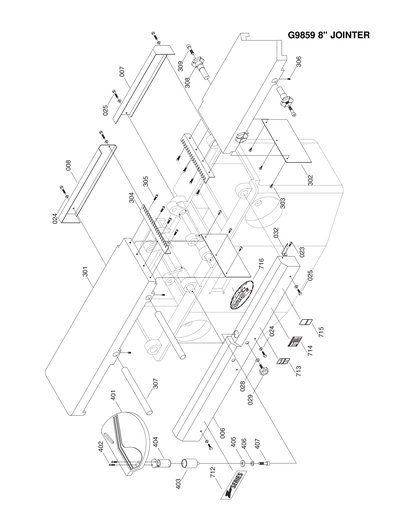

301
BED
Item is no longer available
Price
N/A
302
PLATE
Item is no longer available
Price
N/A
303
CAP SCREW M6-1 X 12
Price
N/A
304
NOISE DAMPENER
305
CAP SCREW M8-1.25 X 25
Price
N/A
306
SET SCREW M8-1.25 X 10
Price
N/A
307
BED PIVOT ROD
Item is no longer available
Price
N/A
308
BED PIVOT PIN M5 X 20MM
309
CAP SCREW M12-1.75 X 30
Price
N/A
401
CUTTERHEAD GUARD
402
CAP SCREW M6-1 X 25
Price
N/A
403
SPRING SHAFT HOUSING
Price
N/A
404
SPRING SHAFT W/COVER
Price
N/A
405
Now: PW06M
FLAT WASHER 12MM
Price
N/A
406
Now: PW01
FLAT WASHER 1/2
Price
N/A
407
CAP SCREW M12-1.75 X 25
Price
N/A

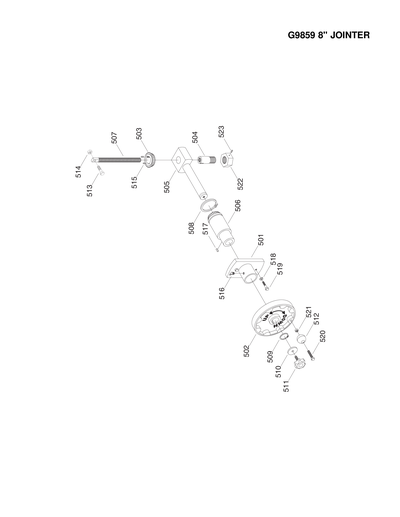

501
LIFT ROD COLLAR
Item is no longer available
Price
N/A
502
HANDWHEEL
503
GEAR
Item is no longer available
Price
N/A
504
COLLAR
Item is no longer available
Price
N/A
505
LIFT ROD
Item is no longer available
Price
N/A
506
GEAR
Item is no longer available
Price
N/A
507
LIFT ROD
Item is no longer available
Price
N/A
508
GEAR RETAINER RING
Item is no longer available
Price
N/A
509
Now: PR10M
EXT RETAINING RING 22MM
Price
N/A
510
HANDWHEEL FLAT WASHER 8MM X 12OD
511
LOCK KNOB M10 X 20
512
HANDWHEEL KNOB 50MM X 3/8"
513
CAP SCREW M10-1.5 X 40
Price
N/A
514
Now: PN03M
HEX NUT M8-1.25
Price
N/A
515
SET SCREW M6-1 X 12
Price
N/A
516
LUBE FITTING 3/16"
Item is no longer available
Price
N/A
517
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
518
Now: PLW01
LOCK WASHER 5/16
Price
N/A
519
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
520
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
521
Now: PN08
HEX NUT 3/8-16
Price
N/A
522
COLLAR NUT M25-1.5P
Item is no longer available
Price
N/A
523
SET SCREW M6-1 X 6
Price
N/A
601
ROD
602
COLLAR
603
HANDLE
604
BRAKE CASING
605
ROLL PIN 3 X 18
Price
N/A
606
SET SCREW M6-1 X 6
Price
N/A
607
SPRING D0.8 X D11 X 47MML
701
MOTOR 3HP 220V 1-PH
702
PULLEY
703
Now: PK62M
KEY 7 X 7 X 45
Price
N/A
704
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
705
Now: PN02M
HEX NUT M10-1.5
Price
N/A
706
Now: PLW04
LOCK WASHER 3/8
Price
N/A
707
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
708
Now: PW01
FLAT WASHER 1/2
Price
N/A
709
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
710
MOTOR MOUNT PLATE
Item is no longer available
Price
N/A
711
Now: PVA47
V-BELT A47
Price
N/A
712
Z SERIES LABEL
713
SAFETY GLASSES WARNING
714
MACHINE ID/WARNING LABEL
Item is no longer available
Price
N/A
715
PUSH BLOCK WARNING
716
CAST LOGO
900
INDUSTRIAL JOINTER STICKER
901
STICK-ON SCALE
999
RELAY 7.5HP 5/25A EOCR-SP-20-220 TECO
Price
N/A
MANUAL
MANUAL FOR G9860 V1.10.08
Price
N/A
