Parts for G9902 - 9" x 49" Vertical Mill w/ Power Feed & Single-Phase

Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902
Part Diagram for G9902

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

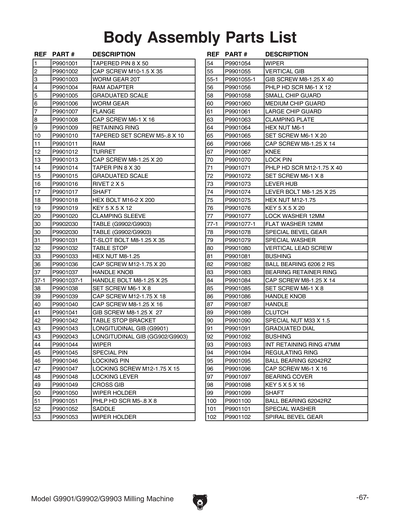

Ref #
Part #
Description
1
*DISCD*TAPERED PIN 8 X 50
Price
N/A
2
CAP SCREW M10-1.5 X 35
Price
N/A
3
*DISCD*WORM GEAR 28T
Price
N/A
4
*DISCD*RAM ADAPTER
Price
N/A
5
*DISCD*GRADUATED SCALE
Price
N/A
5-1
*DISCD*NAME PLATE
Item is no longer available
Price
N/A
6
*DISCD*WORM GEAR
Price
N/A
7
*DISCD*FLANGE
Price
N/A
8
CAP SCREW M6-1 X 16
Price
N/A
9
*DISCD*RETAINING RING
Price
N/A
10
*DISCD*TAPERED SET SCREW M5 X 10
Price
N/A
11
*DISCD*RAM
Price
N/A
11-1
*DISCD*EYE BOLT M20-2.5 X 35
Price
N/A
12
*DISCD*TURRET
Price
N/A
13
CAP SCREW M8-1.25 X 20
Price
N/A
14
*DISCD*TAPERED PIN 8 X 30
Price
N/A
15
*DISCD*GRADUATED SCALE
Price
N/A
16
RIVET 2 X 5MM NAMEPLATE, COPPER
Price
N/A
17
*DISCD*SHAFT
Price
N/A
18
*DISCD*HEX BOLT M16-2 X 200
Price
$18.40
19
KEY 5 X 5 X 12
Price
N/A
20
*DISCD*CLAMPING SLEEVE
Price
N/A

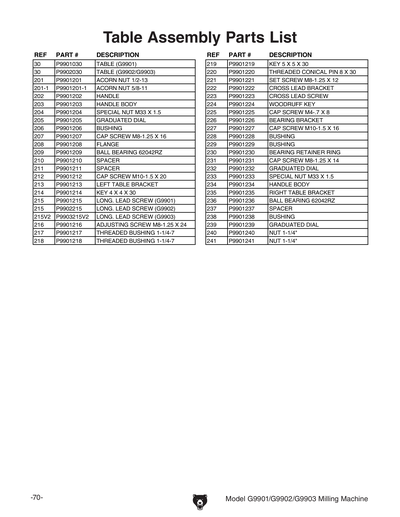

30
*DISCD*TABLE
Price
N/A
30-1
*DISCD*TABLE
Item is no longer available
Price
N/A
31
*DISCD*T-SLOT BOLT M8-1.25 X 35
Price
N/A
32
*DISCD*TABLE STOP
Price
N/A
33
HEX NUT M8-1.25
Price
N/A
34
*DISCD*PLUGGER
Item is no longer available
Price
N/A
35
*DISCD*CLAMPING PLATE
Item is no longer available
Price
N/A
36
CAP SCREW M12-1.75 X 20
Price
N/A
37
*DISCD*HANDLE KNOB W/BOLT
Price
N/A
37-1
*DISCD*HANDLE HOLDER M8 X 25
Price
$4.35
38
SET SCREW M6-1 X 8
Price
N/A
39
CAP SCREW M12-1.75 X 18
Price
N/A
40
CAP SCREW M8-1.25 X 16
Price
N/A
41
*DISCD*GIB SCREW M8-1.25 X 27
Price
N/A
42
*DISCD*TABLE STOP BRACKET
Price
N/A
43
*DISCD*LONGITUDINAL GIB
Item is no longer available
Price
N/A
44
*DISCD*WIPER
Price
N/A
45
*DISCD*SADDLE PIN
Price
N/A
46
*DISCD*LOCK PIN
Price
N/A
46-1
*DISCD*LOCK PIN
Item is no longer available
Price
N/A
47
*DISCD*LOCK SCREW M12-1.75 X 15
Price
N/A
48
*DISCD*LOCK LEVER
Price
N/A
49
*DISCD*CROSS GIB
Price
N/A
50
*DISCD*WIPER HOLDER
Price
N/A
51
PHLP HD SCR M5-.8 X 8
Price
N/A
52
*DISCD*SADDLE
Price
N/A
53
*DISCD*WIPER HOLDER
Price
N/A
54
*DISCD*WIPER
Price
N/A
55
*DISCD*VERTICAL GIB
Price
N/A
55-1
*DISCD*GIB SCREW M8 X 1.25 X 40
Price
N/A
56
PHLP HD SCR M6-1 X 12
Price
N/A
57
*DISCD*WIPER HOLDER
Item is no longer available
Price
N/A
58
*DISCD*SMALL CHIP GUARD
Price
N/A
59
*DISCD*CHIP GUARD
Item is no longer available
Price
N/A
60
*DISCD*MEDIUM CHIP GUARD
Price
N/A
61
*DISCD*LARGE CHIP GUARD
Price
N/A
62
*DISCD*GIB
Item is no longer available
Price
N/A
63
*DISCD*CLAMPING PLATE
Price
N/A
64
HEX NUT M6-1
Price
N/A
65
SET SCREW M6-1 X 20
Price
N/A
66
CAP SCREW M8-1.25 X 14
Price
N/A
67
*DISCD*KNEE
Price
N/A
70
*DISCD*LOCK PIN
Price
N/A
71
*DISCD*PHLP HD SCR M12-1.75 X 40
Price
N/A
72
SET SCREW M6-1 X 8
Price
N/A
73
*DISCD*LEVER
Price
N/A
74
*DISCD*LEVER KNOB M8-1.25 X 25
Price
N/A
75
HEX NUT M12-1.75
Price
N/A
76
KEY 5 X 5 X 20
Price
N/A
77
LOCK WASHER 12MM
Price
N/A
77-1
FLAT WASHER 12MM
Price
N/A
78
*DISCD*KNEE BEVEL GEAR
Price
N/A
79
*DISCD*KNEE WASHER
Price
N/A
80
*DISCD*VERTICAL LEAD SCREW
Price
N/A
81
*DISCD*BUSHING
Price
N/A
82
BALL BEARING 6206-2RS
Price
N/A
83
*DISCD*BEARING RETAINER RING
Price
N/A
84
CAP SCREW M8-1.25 X 14
Price
N/A
85
SET SCREW M6-1 X 8
Price
N/A
86
*DISCD*HANDLE KNOB
Price
N/A
87
*DISCD*HANDLE
Price
N/A
88
*DISCD*CLUTCH
Price
$35.10
89
*DISCD*CLUTCH
Price
$39.10
90
*DISCD*NUT M33-1.5
Price
N/A
91
*DISCD*GRADUATED DIAL
Price
N/A
92
*DISCD*BUSHING
Price
N/A
93
INT RETAINING RING 47MM
Price
N/A
94
*DISCD*REGULATING RING
Price
N/A
95
BALL BEARING 6204-2RS
Price
N/A
96
CAP SCREW M6-1 X 16
Price
N/A
97
*DISCD*BEARING COVER
Price
N/A
98
KEY 5 X 5 X 16
Price
N/A
99
*DISCD*SHAFT
Price
N/A
100
BALL BEARING 6204-2RS
Price
N/A
1000
*DISCD*COMPLETE POWER FEEDER ASSY
Price
$690.00
1000-1
*DISCD*LIMIT SWITCH POWER FEED
Price
$48.30
101
*DISCD*HANDLE WASHER
Price
N/A
102
*DISCD*SPIRAL BEVEL GEAR
Price
N/A

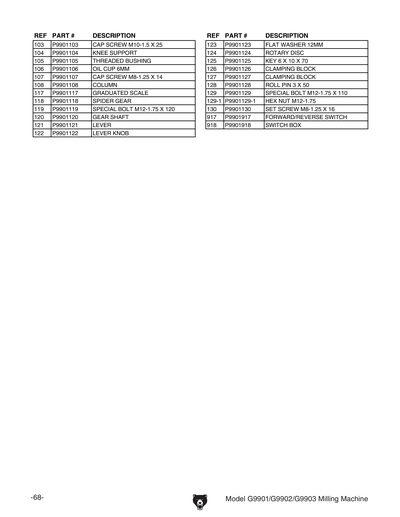

103
CAP SCREW M10-1.5 X 25
Price
N/A
104
*DISCD*KNEE SUPPORT
Price
N/A
105
*DISCD*THREADED BUSHING
Price
N/A
106
*DISCD*OIL CUP 6MM
Price
N/A
107
CAP SCREW M8-1.25 X 14
Price
N/A
108
*DISCD*COLUMN
Price
N/A
117
*DISCD*GRADUATED SCALE
Price
N/A
118
*DISCD*SPIDER GEAR
Price
N/A
119
*DISCD*GRADUATED SCALE BOLT M12-1.75 X 1
Price
N/A
120
*DISCD*GEAR SHAFT
Price
N/A
121
*DISCD*LEVER
Price
N/A
122
*DISCD*PLASTIC LEVER HOLDER
Price
$4.35
123
FLAT WASHER 12MM
Price
N/A
124
*DISCD*ROTARY DISC
Price
N/A
125
*DISCD*KEY 70, 10, 6
Price
N/A
126
*DISCD*CLAMPING BLOCK
Price
N/A
127
*DISCD*CLAMPING BLOCK
Price
N/A
128
ROLL PIN 3 X 50
Price
N/A
129
*DISCD*GRADUATED SCALE BOLT M12-1.75 X 1
Price
N/A
129-1
HEX NUT M12-1.75
Price
N/A
130
SET SCREW M8-1.25 X 16
Price
N/A
135-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
201
*DISCD*BALL TYPE NUT M12
Price
$6.90
201-1
ACORN NUT 5/8-11
Price
N/A
202
*DISCD*HANDLE M12 X 100
Price
$27.60
203
*DISCD*HANDLE BODY
Price
N/A
204
*DISCD*NUT M33-1.5
Price
N/A
205
*DISCD*GRADUATED DIAL
Price
N/A
206
*DISCD*BUSHING
Price
N/A
207
CAP SCREW M8-1.25 X 16
Price
N/A
208
*DISCD*FLANGE
Price
N/A
209
BALL BEARING 6204-2RS
Price
N/A
209-1
*DISCD*BALL BEARING 36204
Item is no longer available
Price
N/A
210
*DISCD*SPACER
Price
N/A
211
*DISCD*SPACER
Price
N/A
212
CAP SCREW M10-1.5 X 20
Price
N/A

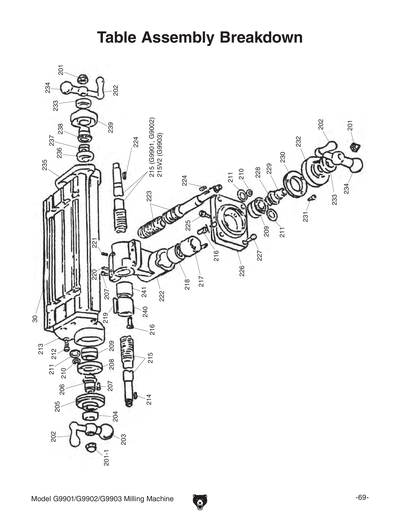

213
*DISCD*TABLE BRACKET LEFT
Price
N/A
214
KEY 4 X 4 X 30
Price
N/A
215
*DISCD*LONGITUDINAL LEADSCREW
Price
$431.25
216
*DISCD*REGULATING SCREW M8-1.25 X 24
Price
N/A
217
*DISCD*LONG Y-AXIS LEADSCREW NUT 1-1/4"
Price
N/A
218
*DISCD*SHORT Y-AXIS LEADSCREW NUT 1-1/4"
Price
N/A
219
KEY 5 X 5 X 30
Price
N/A
220
*DISCD*THREADED CONICAL PIN 8 X 30
Price
N/A
221
SET SCREW M8-1.25 X 12
Price
N/A
222
*DISCD*CROSS LEAD BRACKET
Price
N/A
223
*DISCD*CROSS LEAD SCREW
Price
N/A
224
*DISCD*KEY
Item is no longer available
Price
N/A
225
CAP SCREW M4-.7 X 8
Price
N/A
226
*DISCD*BEARING BRACKET
Price
N/A
227
CAP SCREW M10-1.5 X 16
Price
N/A
228
*DISCD*BUSHING
Price
N/A
229
*DISCD*BUSHING
Price
N/A
230
*DISCD*BEARING RETAINER RING
Price
N/A
231
CAP SCREW M8-1.25 X 14
Price
N/A
232
*DISCD*GRADUATED DIAL
Price
N/A
233
*DISCD*NUT M33-1.5
Price
N/A
234
*DISCD*HANDLE BODY
Price
$82.55
235
*DISCD*BRACKET RIGHT
Price
$96.60
236
*DISCD*SINGLE ROW RADIAL BALL BEARING 20
Price
$20.70
237
*DISCD*ADJUSTING PAD
Price
$40.25
238
*DISCD*SLEEVE
Price
$97.20
239
*DISCD*DIAL
Price
$36.25
240
*DISCD*NUT 1-1/4"
Price
N/A
241
*DISCD*X-AXIS LEADSCREW NUT 1-1/4" X 1-1
Price
N/A

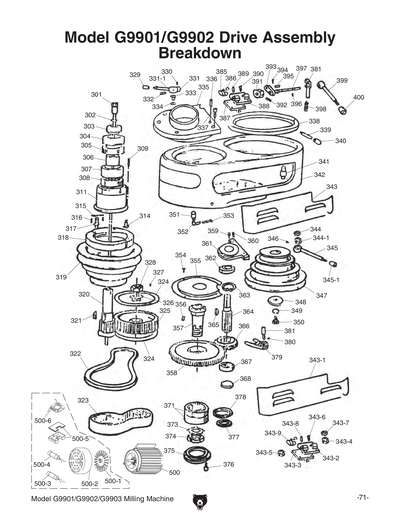

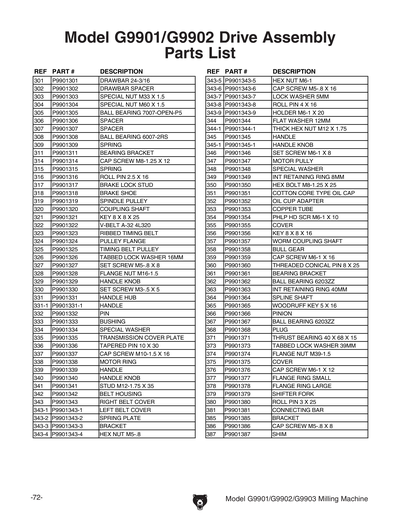

301
*DISCD*DRAWBAR 24-3/16
Price
$86.25
302
*DISCD*DRAWBAR SPACER
Price
N/A
302-1
*DISCD*OIL SEAL RING 16 X 2
Price
N/A
303
*DISCD*NUT M33-1.5
Price
N/A
304
*DISCD*SPINDLE PULLEY NUT M60-1.5
Price
N/A
305
ANGULAR CONTACT BEARING 7007-OPEN P5
Price
N/A
305-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
306
*DISCD*SPACER
Price
N/A
307
*DISCD*SPACER
Price
N/A
308
BALL BEARING 6007-2RS
Price
N/A
308-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
309
*DISCD*SPRING
Price
N/A
311
*DISCD*BEARING BRACKET
Price
N/A
314
CAP SCREW M8-1.25 X 12
Price
N/A
314-1
*DISCD*SCREW M8-1.25 X 11
Price
N/A
315
*DISCD*SPRING
Price
N/A
316
ROLL PIN 2.5 X 16
Price
N/A
317
*DISCD*BRAKE LOCK STUD
Price
N/A
318
*DISCD*BRAKE SHOES 2PC
Price
N/A
319
*DISCD*SPINDLE PULLEY
Price
N/A
320
*DISCD*WORM COUPLING SHAFT
Price
N/A
321
KEY 8 X 8 X 25
Price
N/A
322
*DISCD*V-RUBBER BELT
Price
$33.95
323
*DISCD*TIMING BELT 445MM
Price
N/A
324
*DISCD*PULLEY FLANGE
Price
N/A
325
*DISCD*TIMING BELT PULLEY
Price
N/A
326
*DISCD*TABBED LOCK WASHER 16MM
Price
N/A
327
SET SCREW M5-.8 X 8
Price
N/A
328
*DISCD*FLANGE NUT M16-1.5
Price
N/A
329
*DISCD*PLASTIC HANDLE HOLDER M6 X 20
Price
N/A
330
SET SCREW M3-.5 X 5
Price
N/A
331
*DISCD*HANDLE HUB
Price
N/A
331-1
*DISCD*HANDLE
Price
$27.60
332
*DISCD*PIN
Price
N/A
333
*DISCD*BUSHING
Price
N/A
334
*DISCD*TRANSMISSION COVER PLATE WASHER
Price
N/A
335
*DISCD*TRANSMISSION COVER PLATE
Price
N/A
336
*DISCD*TAPERED PIN 10 X 30
Price
N/A
337
CAP SCREW M10-1.5 X 16
Price
N/A
338
*DISCD*MOTOR RING
Price
N/A
339
*DISCD*HANDLE ROD
Price
$15.55
340
*DISCD*HANDLE HOLDER
Price
$1.75
341
*DISCD*SHOULDER STUD M12-1.75 X 35
Price
N/A
342
*DISCD*BELT HOUSING
Item is no longer available
Price
N/A
343
*DISCD*WINDOW CAP RIGHT
Price
$10.35
343-1
*DISCD*BELT COVER LEFT
Price
N/A
343-2
*DISCD*SPRING PLATE
Price
N/A
343-3
*DISCD*BRACKET
Price
N/A
343-4
HEX NUT M5-.8
Price
N/A
343-5
HEX NUT M6-1
Price
N/A
343-6
CAP SCREW M5-.8 X 16
Price
N/A
343-7
LOCK WASHER 5MM
Price
N/A
343-8
ROLL PIN 4 X 16
Price
N/A
343-9
*DISCD*HOLDER M60-1 X 20
Price
N/A
344
FLAT WASHER 12MM
Price
N/A
344-1
*DISCD*THICK HEX NUT M12 X 1.75
Price
N/A
344-2
*DISCD*THICK HEX NUT M12 X 1.75
Price
N/A
345
*DISCD*HANDLE
Price
$55.20
345-1
*DISCD*HANDLE KNOB M6 X 22
Price
N/A
346
SET SCREW M6-1 X 8
Price
N/A
347
*DISCD*MOTOR PULLEY
Price
N/A
348
*DISCD*MOTOR PULLEY WASHER
Price
N/A
349
INT RETAINING RING 8MM
Price
N/A
350
HEX BOLT M8-1.25 X 25
Price
N/A
351
*DISCD*COTTON CORE TYPE OIL CAP
Price
$6.35
352
*DISCD*OIL CUP W/ADAPTER
Price
N/A
353
*DISCD*COTTON CORE TUBE
Item is no longer available
Price
N/A
354
PHLP HD SCR M6-1 X 10
Price
N/A
355
*DISCD*COVER
Price
N/A
356
KEY 8 X 8 X 16
Price
N/A
357
*DISCD*WORM COUPLING SHAFT
Price
$180.55
358
*DISCD*BULL GEAR
Price
N/A
359
CAP SCREW M6-1 X 16
Price
N/A
360
*DISCD*THREADED CONICAL PIN 8 X 25
Price
N/A
361
*DISCD*BEARING BRACKET
Price
N/A
362
BALL BEARING 6203ZZ
Price
N/A
363
INT RETAINING RING 40MM
Price
N/A
364
*DISCD*SPLINE SHAFT
Price
N/A
365
*DISCD*WOODRUFF KEY 5 X 16
Price
N/A
366
*DISCD*PINION
Price
N/A
367
BALL BEARING 6203ZZ
Price
N/A
368
*DISCD*PLUG
Price
N/A
371
ANGULAR CONTACT BEARING 7008AC P4
Price
N/A
371-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
373
*DISCD*TABBED LOCK WASHER 39MM
Price
N/A
374
*DISCD*FLANGE NUT M39-1.5
Price
N/A
375
*DISCD*COVER
Price
N/A
376
CAP SCREW M6-1 X 12
Price
N/A
377
*DISCD*FLANGE RING SMALL
Price
N/A
378
*DISCD*FLANGE RING LARGE
Price
N/A
379
*DISCD*SHIFTER FORK
Price
N/A
380
ROLL PIN 3 X 25
Price
N/A
381
*DISCD*CONNECTING BAR
Price
N/A
385
*DISCD*PIN
Price
N/A
386
CAP SCREW M5-.8 X 8
Price
N/A
387
*DISCD*SHIM
Price
N/A

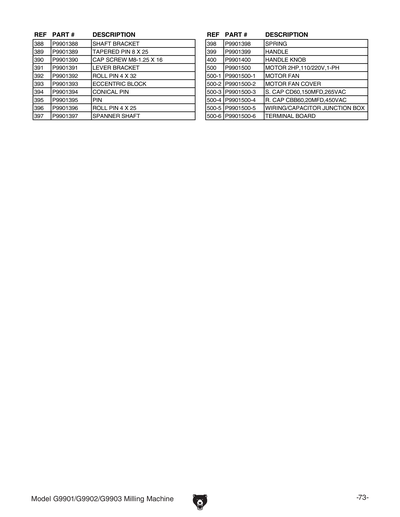

388
*DISCD*SHAFT BRACKET
Price
N/A
389
*DISCD*TAPERED PIN 8 X 25
Price
N/A
390
CAP SCREW M8-1.25 X 16
Price
N/A
391
*DISCD*LEVER BRACKET
Price
N/A
392
ROLL PIN 4 X 32
Price
N/A
393
*DISCD*ECCENTRIC BLOCK
Price
N/A
394
*DISCD*CONICAL PIN
Price
N/A
395
*DISCD*PIN
Price
N/A
396
ROLL PIN 4 X 25
Price
N/A
397
*DISCD*SPANNER SHAFT
Price
N/A
398
*DISCD*SPRING
Item is no longer available
Price
N/A
399
*DISCD*HANDLE
Price
N/A
400
*DISCD*HANDLE KNOB
Price
N/A
408
*DISCD*WORM GEAR
Price
N/A
500
*DISCD*MOTOR 2HP 110V/220V 1-PH
Price
N/A
500-1
*DISCD*MOTOR FAN
Price
N/A
500-2
*DISCD*MOTOR FAN COVER
Price
N/A
500-3
*DISCD*S CAPACITOR 150M 262V CD60
Price
N/A
500-4
*DISCD*R CAPACITOR 20M 450V CBB60
Price
N/A
500-5
*DISCD*WIRING/CAPACITOR JUNCTION BOX
Price
N/A
500-6
*DISCD*TERMINAL BOARD
Price
N/A

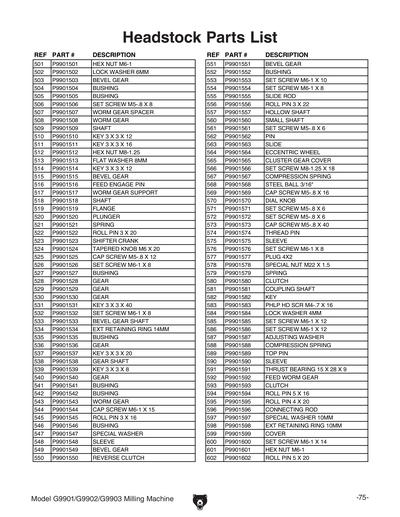

501
*DISCD*HEX HD BOLT M4 X 8
Price
$1.49
502
LOCK WASHER 6MM
Price
N/A
503
*DISCD*BEVEL GEAR
Price
N/A
504
*DISCD*BUSHING
Price
N/A
505
*DISCD*BUSHING
Price
N/A
506
SET SCREW M5-.8 X 8
Price
N/A
507
*DISCD*WORM GEAR SPACER
Price
N/A
508
*DISCD*WORM GEAR
Price
$41.40
509
*DISCD*SHAFT
Price
$29.90
510
*DISCD*FLAT KEY 3 X 12
Price
$1.49
511
*DISCD*FLAT KEY 3 X 16
Price
$1.49
512
HEX NUT M8-1.25
Price
N/A
513
FLAT WASHER 8MM
Price
N/A
514
KEY 3 X 3 X 12
Price
N/A
515
*DISCD*BEVEL GEAR
Price
N/A
516
*DISCD*FEED ENGAGE PIN
Price
N/A
517
*DISCD*WORM GEAR SUPPORT
Price
N/A
518
*DISCD*SHAFT
Price
N/A
518-1
*DISCD*SHAFT
Item is no longer available
Price
N/A
518-2
SET SCREW M5-.8 X 8
Price
N/A
519
*DISCD*FLANGE
Price
N/A
520
*DISCD*PLUNGER
Price
N/A
521
*DISCD*SPRING
Price
$6.90
522
ROLL PIN 3 X 20
Price
N/A
523
*DISCD*SHIFTER CRANK
Price
N/A
524
*DISCD*TAPERED KNOB M6 X 20
Price
N/A
525
CAP SCREW M5-.8 X 12
Price
N/A
526
SET SCREW M6-1 X 8
Price
N/A
527
*DISCD*BUSHING
Price
N/A
528
*DISCD*GEAR
Price
N/A
529
*DISCD*GEAR
Price
N/A
530
*DISCD*GEAR
Price
N/A
530-1
SET SCREW M3-.5 X 10
Price
N/A
531
KEY 3 X 3 X 40
Price
N/A
532
SET SCREW M6-1 X 8
Price
N/A
533
*DISCD*BEVEL GEAR SHAFT
Price
N/A
534
EXT RETAINING RING 14MM
Price
N/A
535
*DISCD*BUSHING
Price
N/A
536
*DISCD*GEAR
Price
N/A
537
KEY 3 X 3 X 20
Price
N/A
538
*DISCD*GEAR SHAFT
Price
N/A
539
KEY 3 X 3 X 8
Price
N/A
540
*DISCD*GEAR
Price
N/A
541
*DISCD*BUSHING
Price
N/A
542
*DISCD*BUSHING
Price
N/A
543
*DISCD*WORM GEAR
Price
N/A
544
CAP SCREW M6-1 X 15
Price
N/A
545
ROLL PIN 3 X 16
Price
N/A
546
*DISCD*BUSHING
Price
N/A
547
*DISCD*WORM GEAR WASHER
Price
N/A
548
*DISCD*SLEEVE
Price
N/A
549
*DISCD*BEVEL GEAR
Price
N/A
550
*DISCD*REVERSE CLUTCH
Price
N/A
551
*DISCD*BEVEL GEAR
Price
N/A
552
*DISCD*BUSHING
Price
N/A
553
SET SCREW M6-1 X 10
Price
N/A
554
SET SCREW M6-1 X 8
Price
N/A
555
*DISCD*SLIDE ROD
Price
N/A
556
ROLL PIN 3 X 22
Price
N/A
557
*DISCD*HOLLOW SHAFT
Price
N/A
560
*DISCD*SMALL SHAFT
Price
N/A
561
SET SCREW M5-.8 X 6
Price
N/A
562
*DISCD*PIN
Price
N/A
563
*DISCD*SLIDE
Price
N/A
564
*DISCD*ECCENTRIC WHEEL
Price
N/A
565
*DISCD*CLUSTER GEAR COVER
Price
N/A
566
SET SCREW M8-1.25 X 18
Price
N/A
567
*DISCD*COMPRESSION SPRING
Price
N/A
568
STEEL BALL 3/16
Price
N/A
569
CAP SCREW M5-.8 X 16
Price
N/A
570
*DISCD*DIAL KNOB
Price
N/A
571
SET SCREW M5-.8 X 6
Price
N/A
572
SET SCREW M5-.8 X 6
Price
N/A
573
CAP SCREW M5-.8 X 40
Price
N/A
574
*DISCD*THREAD PIN
Price
N/A
575
*DISCD*SLEEVE
Price
N/A
576
SET SCREW M6-1 X 8
Price
N/A
577
*DISCD*PLUG 4 X 2MM
Price
N/A
578
*DISCD*CLUTCH SLEEVE NUT M22-1.5
Price
N/A
579
*DISCD*SPRING
Price
N/A
580
*DISCD*CLUTCH
Price
N/A
581
*DISCD*COUPLING SHAFT
Price
N/A
582
*DISCD*KEY
Price
N/A
583
PHLP HD SCR M4-.7 X 16
Price
N/A
584
LOCK WASHER 4MM
Price
N/A
585
SET SCREW M6-1 X 12
Price
N/A
586
SET SCREW M6-1 X 12
Price
N/A
587
*DISCD*ADJUSTING WASHER
Price
N/A
588
*DISCD*COMPRESSION SPRING
Price
N/A
589
*DISCD*TOP PIN
Price
N/A
590
*DISCD*SLEEVE
Price
N/A
591
*DISCD*SINGLE ROW THRUST BALL BEARING 15
Price
N/A
592
*DISCD*FEED WORM GEAR
Price
N/A
593
*DISCD*CLUTCH
Price
N/A
594
ROLL PIN 5 X 16
Price
N/A
595
ROLL PIN 4 X 20
Price
N/A
596
*DISCD*CONNECTING ROD
Price
N/A
597
*DISCD*WASHER M10
Price
N/A
598
EXT RETAINING RING 10MM
Price
N/A
599
*DISCD*COVER
Price
N/A
600
SET SCREW M6-1 X 14
Price
N/A
601
HEX NUT M6-1
Price
N/A
602
ROLL PIN 5 X 20
Price
N/A
603
*DISCD*LEVER
Price
N/A
604
*DISCD*HANDLE
Price
N/A
605
*DISCD*HANDLE SLEEVE M8 X 25
Price
N/A
606
*DISCD*BRACKET
Price
N/A
607
CAP SCREW M6-1 X 14
Price
N/A
608
SET SCREW M6-1 X 8
Price
N/A
609
KEY 4 X 4 X 8
Price
N/A
610
*DISCD*SHOULDER STUD
Price
N/A
611
*DISCD*REVERSE KNOB
Price
N/A
612
*DISCD*PIN
Price
N/A
613
*DISCD*RETAINING RING
Price
N/A
614
STEEL BALL 3/16
Price
N/A
615
*DISCD*COMPRESSION SPRING
Price
N/A
616
SET SCREW M8-1.25 X 10
Price
N/A
617
ROLL PIN 4 X 16
Price
N/A
618
*DISCD*T-ROD
Price
N/A
619
*DISCD*PIN
Item is no longer available
Price
N/A
620
*DISCD*SPRING 1.2 X 10 X 25
Price
N/A
621
*DISCD*SHAFT
Price
N/A
622
*DISCD*BUSHING
Price
N/A
623
*DISCD*BUSHING
Price
N/A
624
*DISCD*PLUNGER
Price
N/A
625
*DISCD*HAND WHEEL
Price
$28.75
626
*DISCD*HANDWHEEL HANDLE M8 X 65
Price
N/A
627
*DISCD*SPINDLE
Price
N/A
628
CAP SCREW M5-.8 X 12
Price
N/A
629
*DISCD*LOCK NUT
Price
N/A
630
*DISCD*LOCK NUT 2PC
Price
N/A
631
BALL BEARING 6206-2RS
Price
N/A
632
*DISCD*QUILL SKIRT
Price
N/A
633
*DISCD*NOSE PIECE
Price
N/A
634
*DISCD*SPINDLE DIRT SHIELD
Price
N/A
635
ANGULAR CONTACT BEARING 7008AC P4
Price
N/A
636
*DISCD*BEARING SLEEVE
Price
N/A
637
*DISCD*BEARING SLEEVE
Price
N/A
638
*DISCD*BEARING SLEEVE
Price
N/A
638-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A

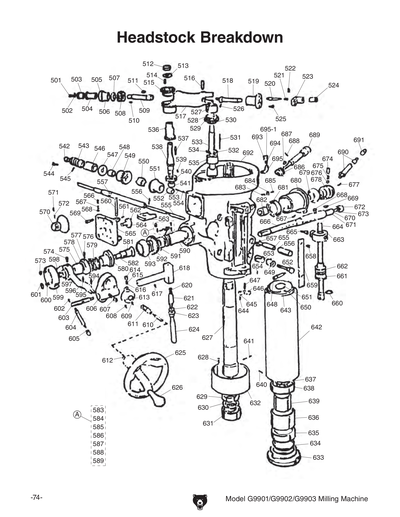

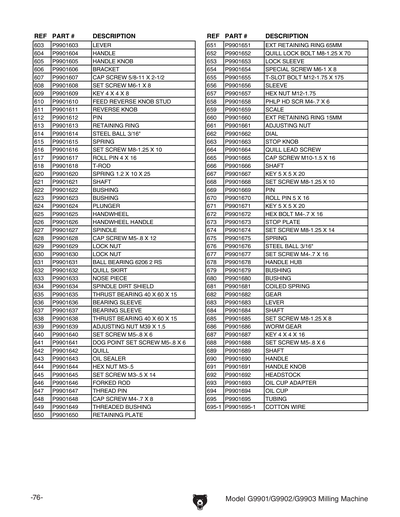

639
*DISCD*ADJUSTING NUT M39 X 1.5
Price
N/A
639-1
*DISCD*LOCATING NUT M39 X 1.5
Price
N/A
640
SET SCREW M5-.8 X 6
Price
N/A
641
*DISCD*DOG PT SET SCR M5-.8 X 6
Price
N/A
641-1
SET SCREW M5-.8 X 6
Price
N/A
642
*DISCD*QUILL
Price
$476.10
642A
*DISCD*QUILL ASSY
Price
$1,035.00
643
*DISCD*OIL SEALER
Price
$23.60
644
HEX NUT M3-.5
Price
N/A
645
*DISCD*SET SCREW M3 X 14
Price
$1.49
646
*DISCD*FORKED ROD
Price
$46.60
647
*DISCD*THREAD PIN
Price
$1.49
648
*DISCD*SCREW M4 X 8
Price
$1.49
649
*DISCD*HANDLE M8 X 63 V1
Price
$15.55
649V2
*DISCD*QUILL LOCK HANDLE ASSEMBLY V2.01.
Price
N/A
650
*DISCD*RETAINING PLATE
Price
$4.35
651
EXT RETAINING RING 65MM
Price
N/A
652
*DISCD*QUILL LOCK BOLT M8-1.25 X 70 V1
Price
N/A
652V2
*DISCD*QUILL LOCK HANDLE ASSEMBLY V2.01.
Price
N/A
653
*DISCD*LOCK SLEEVE TAPPED
Price
$12.10
653-1
*DISCD*LOCK SLEEVE UNTAPPED
Price
$14.40
654
*DISCD*HEADSTOCK SCREW M6-1 X 8
Item is no longer available
Price
N/A
654-1
*DISCD*INDICATOR ROD
Item is no longer available
Price
N/A
655
*DISCD*T-SLOT BOLT M12-1.75 X 175
Price
N/A
656
*DISCD*SLEEVE, SHORT
Price
N/A
656-1
*DISCD*SLEEVE
Item is no longer available
Price
N/A
657
HEX NUT M12-1.75
Price
N/A
658
PHLP HD SCR M4-.7 X 6
Price
N/A
659
*DISCD*SCALE
Price
N/A
660
EXT RETAINING RING 15MM
Price
N/A
661
*DISCD*ADJUSTING NUT
Price
N/A
662
*DISCD*DIAL
Price
N/A
663
*DISCD*STOP KNOB
Price
N/A
664
*DISCD*QUILL LEAD SCREW
Price
N/A
665
CAP SCREW M10-1.5 X 16
Price
N/A
666
*DISCD*SHAFT
Price
N/A
667
KEY 5 X 5 X 20
Price
N/A
668
SET SCREW M8-1.25 X 10
Price
N/A
669
*DISCD*PIN
Price
N/A
670
ROLL PIN 5 X 16
Price
N/A
671
KEY 5 X 5 X 20
Price
N/A
672
HEX BOLT M4-.7 X 16
Price
N/A
673
*DISCD*STOP PLATE
Price
N/A
674
SET SCREW M8-1.25 X 14
Price
N/A
675
*DISCD*SPRING
Price
N/A
676
STEEL BALL 3/16
Price
N/A
677
SET SCREW M4-.7 X 16
Price
N/A
678
*DISCD*HANDLE HUB
Price
N/A
679
*DISCD*BUSHING
Price
N/A
680
*DISCD*BUSHING
Price
N/A
681
*DISCD*SPRING
Price
N/A
682
*DISCD*GEAR
Price
N/A
683
*DISCD*LEVER
Price
N/A
684
*DISCD*SHAFT
Price
N/A
685
SET SCREW M8-1.25 X 8
Price
N/A
686
*DISCD*WORM GEAR
Price
N/A
687
KEY 4 X 4 X 16
Price
N/A
688
SET SCREW M5-.8 X 6
Price
N/A
688-1
SET SCREW M5-.8 X 6
Price
N/A
689
*DISCD*SHAFT
Price
N/A
690
*DISCD*HANDLE ROD
Item is no longer available
Price
N/A
691
*DISCD*HANDLE SLEEVE
Item is no longer available
Price
N/A
692
*DISCD*HEADSTOCK
Price
N/A
693
*DISCD*OIL CUP ADAPTER 1/4" NPT X 15MM X
Price
N/A
694
*DISCD*OIL CUP 2" NPT X 10MM X 20MM ST
Price
N/A
695
*DISCD*OIL PORT
Price
N/A
696

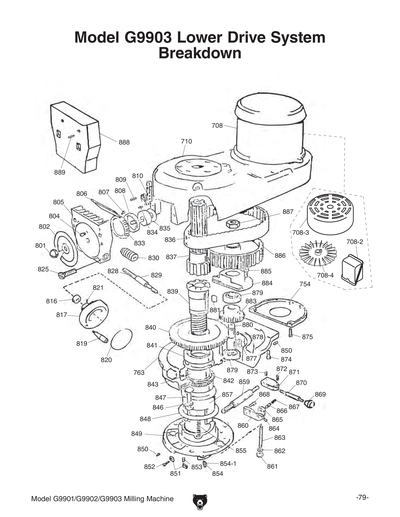

*DISCD*HEADSTOCK/DRIVE ASSEMBLY
Price
$5,060.00

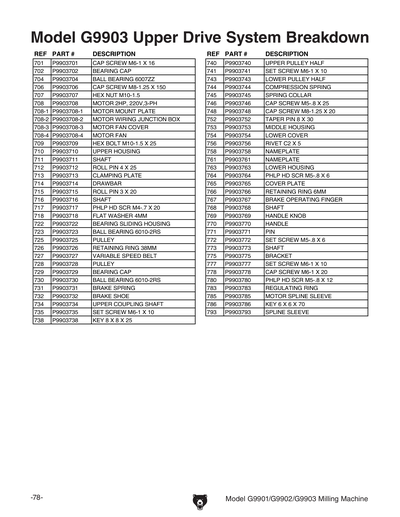

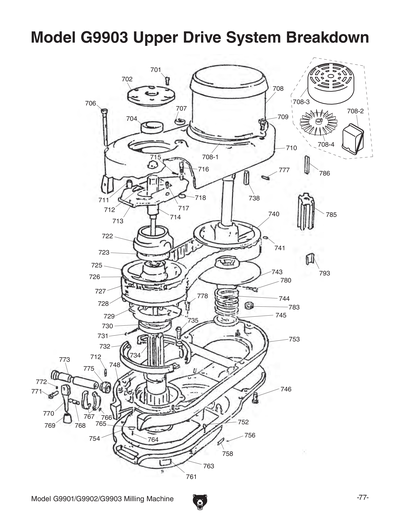

701
*DISCD*SOCKET HEAD CAP SCREW M6 X 16
Item is no longer available
Price
N/A
702
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
704
*DISCD*SINGLE ROW RADIAL BALL BEARING 35
Item is no longer available
Price
N/A
706
*DISCD*CAP SCREW M8-1.25 X 150
Price
N/A
707
*DISCD*HEX NUT M10
Item is no longer available
Price
N/A
708
*DISCD*MOTOR 2HP 110V/220V 1-PH
Price
N/A
708-1
*DISCD*MOTOR RING
Price
N/A
709
*DISCD*HEX SCREW M10 X 25
Item is no longer available
Price
N/A
710
*DISCD*UPPER HOUSING
Item is no longer available
Price
N/A
711
*DISCD*SHAFT
Item is no longer available
Price
N/A
712
*DISCD*ROLL PIN 4GA X 25
Item is no longer available
Price
N/A
713
*DISCD*CLAMPING PLATE
Item is no longer available
Price
N/A
714
*DISCD*DRAWBAR
Item is no longer available
Price
N/A
715
*DISCD*SPLIT PIN
Item is no longer available
Price
N/A
716
*DISCD*SHAFT
Item is no longer available
Price
N/A
717
*DISCD*SUNK SCREW M4 X 20
Item is no longer available
Price
N/A
718
*DISCD*WASHER 4
Price
N/A
722
*DISCD*BEARING SLIDING HOUSING
Item is no longer available
Price
N/A
723
*DISCD*SINGLE ROW RAD BALL BEARING 60X95
Item is no longer available
Price
N/A
725
*DISCD*PULLEY
Item is no longer available
Price
N/A
726
*DISCD*CIRCLIP 38
Item is no longer available
Price
N/A
727
*DISCD*STEPLESS VARIABLE BELT
Item is no longer available
Price
N/A
728
*DISCD*PULLEY
Item is no longer available
Price
N/A
729
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
730
*DISCD*SINGLE ROW RADIAL BALL BEARING 50
Item is no longer available
Price
N/A
731
*DISCD*BRAKE SPRING
Price
N/A
732
*DISCD*BRAKE SHOES
Price
N/A
734
*DISCD*UPPER COUPLING SHAFT
Item is no longer available
Price
N/A
735
SET SCREW M6-1 X 10
Price
N/A
738
*DISCD*FLAT KEY 8 X 25
Item is no longer available
Price
N/A
740
*DISCD*PULLEY
Item is no longer available
Price
N/A
741
*DISCD*SOCKET HEAD CAP SCREW M6 X 10
Item is no longer available
Price
N/A
743
*DISCD*PULLEY
Item is no longer available
Price
N/A
744
*DISCD*SPRING
Item is no longer available
Price
N/A
745
*DISCD*SPRING COLLAR
Item is no longer available
Price
N/A
746
*DISCD*SOCKET HEAD CAP SCREW M5 X 25
Item is no longer available
Price
N/A
748
*DISCD*SOCKET HEAD CAP SCREW M8 X 20
Item is no longer available
Price
N/A
752
*DISCD*TAPER PIN A8 X 30
Item is no longer available
Price
N/A
753
*DISCD*HOUSING MIDDLE
Item is no longer available
Price
N/A
754
*DISCD*COVER LOWER
Price
N/A
756
RIVET 2 X 5MM NAMEPLATE, COPPER
Price
N/A
758
*DISCD*NAME PLATE
Item is no longer available
Price
N/A
761
*DISCD*NAME PLATE
Item is no longer available
Price
N/A
763
*DISCD*HOUSING LOWER
Item is no longer available
Price
N/A
764
*DISCD*SCREW M5 X 6
Item is no longer available
Price
N/A
765
*DISCD*COVER PLATE
Item is no longer available
Price
N/A
766
*DISCD*SNAP RING 6
Item is no longer available
Price
N/A
767
*DISCD*BRAKE OPERATING FINGER
Price
N/A
768
*DISCD*SHAFT
Item is no longer available
Price
N/A
769
*DISCD*HANDLE M8 X 25
Price
$3.45
770
*DISCD*HANDLE ROD
Price
$34.50
771
*DISCD*PIN
Item is no longer available
Price
N/A
772
*DISCD*SET SCREW M5 X 6
Item is no longer available
Price
N/A
773
*DISCD*SLEEVE
Item is no longer available
Price
N/A
775
*DISCD*CAM
Item is no longer available
Price
N/A
777
*DISCD*SOCKET HEAD CAP SCREW M6 X 10
Item is no longer available
Price
N/A
778
*DISCD*SOCKET HEAD CAP SCREW M6 X 20
Item is no longer available
Price
N/A
780
*DISCD*SUNK SCREW M5 X 12
Item is no longer available
Price
N/A
782
*DISCD*SOCKET HEAD CAP SCREW M4 X 10
Item is no longer available
Price
N/A
782-1
HEX BOLT M10 X 30
Price
N/A
782-2
*DISCD*SPRING WASHER 10
Item is no longer available
Price
N/A
783
*DISCD*REGULATING RING
Item is no longer available
Price
N/A
784
*DISCD*WASHER
Item is no longer available
Price
N/A
785
*DISCD*MOTOR SPLINE SLEEVE
Price
$120.75
786
*DISCD*FLAT KEY 6 X 70
Item is no longer available
Price
N/A
793
*DISCD*SPLINE SLEEVE
Item is no longer available
Price
N/A
801
*DISCD*HEX NUT M8
Item is no longer available
Price
N/A
802
*DISCD*DIAL 60HZ
Item is no longer available
Price
N/A
804
*DISCD*SET SCREW M6 X 12
Item is no longer available
Price
N/A
805
*DISCD*HOUSING
Item is no longer available
Price
N/A
806
*DISCD*CHIP SHIELD
Item is no longer available
Price
N/A
807
*DISCD*SCREW M4 X 6
Item is no longer available
Price
N/A
808
*DISCD*BUSH
Item is no longer available
Price
N/A
809
*DISCD*ROLL PIN 3GA X 25
Item is no longer available
Price
N/A
810
*DISCD*SPEED CHANGER CHAIN 1/8" X 1/2"
Item is no longer available
Price
N/A
812
*DISCD*UPPER HOUSING
Item is no longer available
Price
N/A
813
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
814
*DISCD*SOCKET HEAD CAP SCREW M8 X 1.25 X
Price
N/A
816
*DISCD*BUSH
Item is no longer available
Price
N/A
817
*DISCD*HAND WHEEL
Item is no longer available
Price
N/A
819
*DISCD*MACHINE HANDLE
Item is no longer available
Price
N/A
820
*DISCD*CAUTION PLATE
Price
N/A
821
*DISCD*SOCKET HEAD CAP SCREW M6 X 8
Item is no longer available
Price
N/A
825
*DISCD*SOCKET HEAD CAP SCREW M6 X 35
Item is no longer available
Price
N/A
828
*DISCD*LONG PIN 3 X 12
Item is no longer available
Price
N/A
829
*DISCD*SHAFT
Item is no longer available
Price
N/A
830
*DISCD*WORM
Item is no longer available
Price
N/A
833
*DISCD*BEVEL GEAR
Item is no longer available
Price
N/A
834
*DISCD*FLAT KEY 3 X 8
Price
N/A
835
*DISCD*SHAFT
Item is no longer available
Price
N/A
836
*DISCD*SYNCRO TIMING BELT
Price
$212.20
837
*DISCD*UPPER COUPLING SHAFT
Item is no longer available
Price
N/A
839
*DISCD*COUPLING SHAFT LOWER
Item is no longer available
Price
N/A
840
*DISCD*BULL GEAR
Item is no longer available
Price
N/A
841
*DISCD*SINGLE ROW RAD BALL BEARING 40X68
Item is no longer available
Price
N/A
842
*DISCD*SNAP RING 68
Item is no longer available
Price
N/A

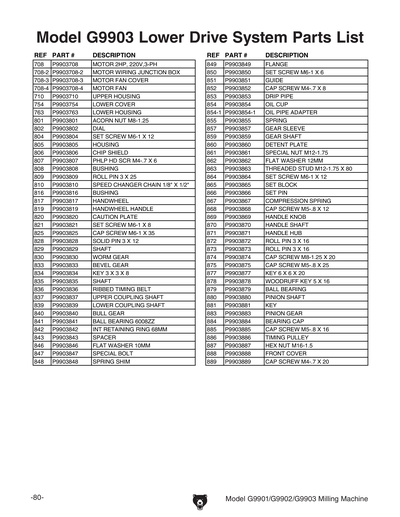

843
*DISCD*SPACER
Item is no longer available
Price
N/A
844
*DISCD*HOUSING LOWER
Item is no longer available
Price
N/A
845
*DISCD*BOLT FOR T-SLOT
Item is no longer available
Price
N/A
846
*DISCD*WASHER 10
Item is no longer available
Price
N/A
847
*DISCD*HEX SCREW M10
Item is no longer available
Price
N/A
848
*DISCD*SPRING SHIM
Item is no longer available
Price
N/A
849
*DISCD*FLANGE
Item is no longer available
Price
N/A
850
*DISCD*SET SCREW M6 X 6
Item is no longer available
Price
N/A
851
*DISCD*GUIDE
Price
N/A
852
*DISCD*SOCKET HEAD CAP SCREW M4 X 8
Item is no longer available
Price
N/A
853
*DISCD*DRIP PAN
Item is no longer available
Price
N/A
854
*DISCD*OIL CUP 1
Item is no longer available
Price
N/A
854-1
*DISCD*OIL PIPE ADAPTER
Item is no longer available
Price
N/A
855
*DISCD*SPRING
Item is no longer available
Price
N/A
857
*DISCD*GEAR SLEEVE
Item is no longer available
Price
N/A
859
*DISCD*GEAR SHAFT
Item is no longer available
Price
N/A
860
*DISCD*DETENT PLATE
Price
N/A
861
*DISCD*HEX SCREW M12
Item is no longer available
Price
N/A
862
*DISCD*WASHER 12
Item is no longer available
Price
N/A
863
*DISCD*STUD M12 X 80
Item is no longer available
Price
N/A
864
*DISCD*SET SCREW M6 X 12
Item is no longer available
Price
N/A
865
*DISCD*SET BLOCK
Item is no longer available
Price
N/A
866
*DISCD*SET PIN
Item is no longer available
Price
N/A
867
*DISCD*SPRING
Price
N/A
868
*DISCD*SOCKET HEAD CAP SCREW M5 X 12
Item is no longer available
Price
N/A
869
*DISCD*HANDLE M8 X 25
Item is no longer available
Price
N/A
870
*DISCD*HANDLE SHAFT
Price
N/A
871
*DISCD*HANDLE HUB
Price
N/A
872
*DISCD*ROLL PIN 3GA X 16
Item is no longer available
Price
N/A
873
ROLL PIN 3 X 16
Price
N/A
874
*DISCD*SOCKET HEAD CAP SCREW M8 X 20
Item is no longer available
Price
N/A
875
*DISCD*SOCKET HEAD CAP SCREW M5 X 25
Item is no longer available
Price
N/A
876
*DISCD*COVER LOWER
Price
N/A
877
*DISCD*FLAT KEY 6 X 20
Item is no longer available
Price
N/A
878
*DISCD*WOODRUFF KEY 5 X 16
Item is no longer available
Price
N/A
879
*DISCD*SINGLE ROW RADIAL BALL 17X40X12
Item is no longer available
Price
N/A
880
*DISCD*PINION SHAFT
Price
N/A
881
*DISCD*KEY
Price
N/A
883
*DISCD*PINION
Item is no longer available
Price
N/A
884
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
885
*DISCD*SOCKET HEAD CAP SCREW M5 X 16
Item is no longer available
Price
N/A
886
*DISCD*SYNCRO TIMING PULLEY
Item is no longer available
Price
N/A
887
*DISCD*NUT M16-1.5
Item is no longer available
Price
N/A
888
*DISCD*FRONT COVER
Item is no longer available
Price
N/A
889
*DISCD*SOCKET SCREW M4 X 20
Item is no longer available
Price
N/A

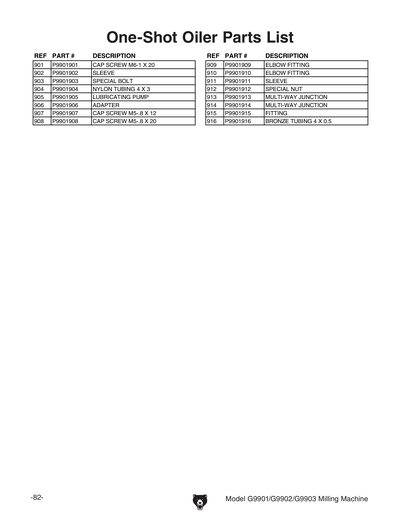

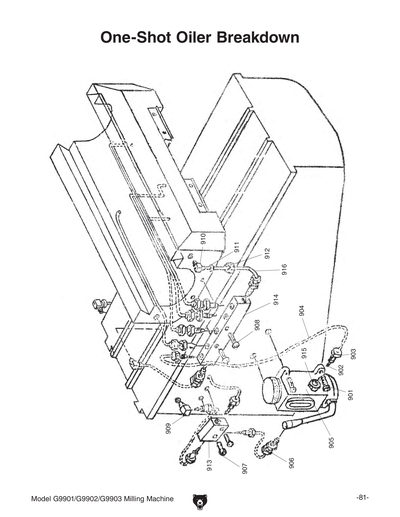

901
CAP SCREW M6-1 X 20
Price
N/A
902
*DISCD*SLEEVE
Price
N/A
903
*DISCD*LUBRICATING PUMP BOLT
Price
N/A
904
*DISCD*NYLON TUBING 4 X 3
Price
N/A
905
*DISCD*LUBRICATING PUMP
Price
N/A
906
*DISCD*METER UNIT
Price
$17.25
907
CAP SCREW M5-.8 X 12
Price
N/A
908
CAP SCREW M5-.8 X 20
Price
N/A
909
*DISCD*FITTING
Price
$4.35
910
*DISCD*ELBOW FITTING
Price
N/A
911
*DISCD*SLEEVE
Price
N/A
912
*DISCD*BRONZE TUBING NUT
Price
N/A
913
*DISCD*MULTIWAY JUNCTION
Price
N/A
914
*DISCD*MULTIWAY JUNCTION
Price
N/A
915
*DISCD*FITTING
Price
N/A
916
*DISCD*BRONZE TUBING 4 X 0.5
Price
N/A
917
*DISCD*BEVEL GEAR
Price
$285.80
918
*DISCD*SWITCH BOX
Price
N/A

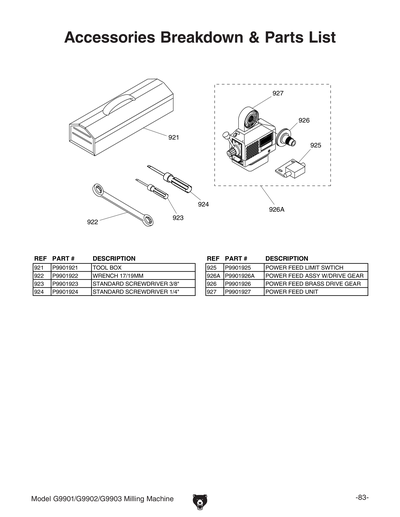

921
*DISCD*TOOL BOX
Price
N/A
922
*DISCD*WRENCH 17/19MM
Price
N/A
923
*DISCD*STANDARD SCREWDRIVER 3/8"
Price
N/A
924
*DISCD*STANDARD SCREWDRIVER 1/4"
Price
N/A
925
*DISCD*POWER FEED ASSY W/DRIVE GEAR
Price
N/A
926
*DISCD*POWER FEED ASSY W/DRIVE GEAR
Price
N/A
926A
*DISCD*POWER FEED ASSY W/DRIVE GEAR
Price
N/A
927
*DISCD*POWER FEED ASSY W/DRIVE GEAR
Price
N/A

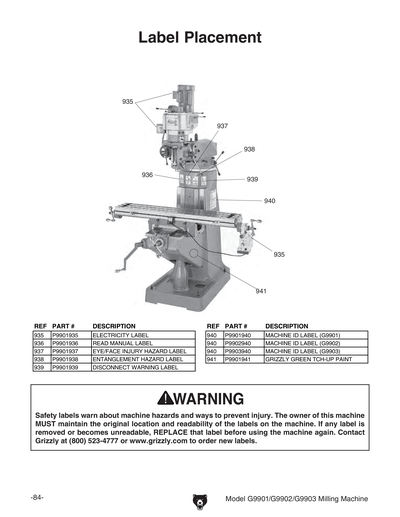

935
ELECTRICITY 1.4W X 1.2H
Price
N/A
936
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
937
*DISCD*EYE/FACE INJURY HAZARD LABEL
Price
N/A
938
*DISCD*ENTANGLEMENT HAZARD LABEL
Price
N/A
939
DISCONNECT SANDER 220V 2W X 3.3H
Price
N/A
940
MACHINE ID LABEL
Item is no longer available
Price
N/A
941
N/S GRIZZLY GREEN G1023S
Price
N/A
MANUAL
MANUAL FOR G9902 10/07
Price
$14.65
PART
MISCELLANEOUS G9902 PARTS
Item is no longer available
Price
N/A
