Parts for G9903 - 9" x 49" Vertical Mill w/ Power Feed, 3-Phase VS

Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903
Part Diagram for G9903

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

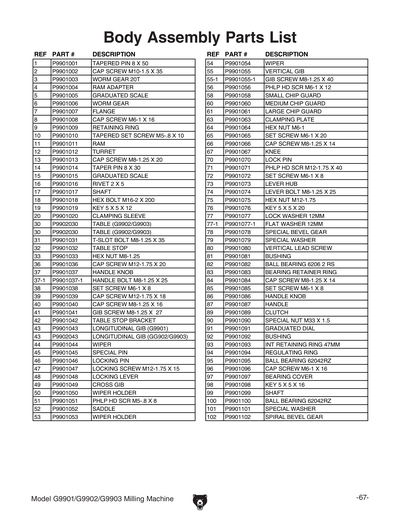

Ref #
Part #
Description
1
*DISCD*TAPERED PIN 8 X 50
Price
N/A
2
CAP SCREW M10-1.5 X 35
Price
N/A
3
*DISCD*WORM GEAR 28T
Price
N/A
4
*DISCD*RAM ADAPTER
Price
N/A
5
*DISCD*GRADUATED SCALE
Price
N/A
5-1
*DISCD*NAME PLATE
Item is no longer available
Price
N/A
6
*DISCD*WORM
Price
$27.60
7
*DISCD*FLANGE
Price
N/A
8
CAP SCREW M6-1 X 16
Price
N/A
9
*DISCD*RETAINING RING
Price
N/A
10
*DISCD*TAPERED SET SCREW M5 X 10
Price
N/A
11
*DISCD*RAM
Price
N/A
11-1
*DISCD*EYE BOLT M20-2.5 X 35
Price
N/A
12
*DISCD*TURRET
Price
N/A
13
CAP SCREW M8-1.25 X 20
Price
N/A
14
*DISCD*TAPERED PIN 8 X 30
Price
N/A
15
*DISCD*GRADUATED SCALE
Price
N/A
16
RIVET 2 X 5MM NAMEPLATE, COPPER
Price
N/A
17
*DISCD*SHAFT
Price
N/A
18
*DISCD*HEX BOLT M16-2 X 200
Price
N/A
19
KEY 5 X 5 X 12
Price
N/A
20
*DISCD*CLAMPING SLEEVE
Price
N/A
30
*DISCD*TABLE
Item is no longer available
Price
N/A
30-1
*DISCD*TABLE
Price
N/A
31
*DISCD*T-SLOT BOLT M8-1.25 X 35
Price
N/A
32
*DISCD*TABLE STOP
Price
N/A
33
HEX NUT M8-1.25
Price
N/A
34
*DISCD*PLUGGER
Item is no longer available
Price
N/A
35
*DISCD*CLAMPING PLATE
Item is no longer available
Price
N/A
36
CAP SCREW M12-1.75 X 20
Price
N/A
37
*DISCD*HANDLE KNOB W/BOLT
Price
N/A
37-1
*DISCD*HANDLE KNOB W/BOLT
Price
N/A
38
SET SCREW M6-1 X 8
Price
N/A
39
CAP SCREW M12-1.75 X 18
Price
N/A
40
CAP SCREW M8-1.25 X 16
Price
N/A
41
*DISCD*GIB SCREW M8-1.25 X 27
Price
$10.35
42
*DISCD*TABLE STOP BRACKET
Price
N/A
43
*DISCD*LONGITUDINAL GIB
Price
N/A
44
*DISCD*WIPER
Price
N/A
45
*DISCD*SADDLE PIN
Price
N/A
46
*DISCD*LOCK PIN
Price
N/A
46-1
*DISCD*LOCK PIN
Item is no longer available
Price
N/A
47
*DISCD*LOCK SCREW M12-1.75 X 15
Price
N/A
48
*DISCD*LOCK LEVER
Price
N/A
49
*DISCD*GIB
Price
$79.10
50
*DISCD*WIPER HOLDER
Price
N/A
51
PHLP HD SCR M5-.8 X 8
Price
N/A
52
*DISCD*SADDLE
Price
N/A
53
*DISCD*WIPER HOLDER
Price
N/A
54
*DISCD*WIPER
Price
N/A
55
*DISCD*BEVEL GIB
Price
$79.10
55-1
*DISCD*GIB SCREW M8 X 1.25 X 40
Price
N/A
56
PHLP HD SCR M6-1 X 12
Price
N/A
57
*DISCD*WIPER HOLDER
Item is no longer available
Price
N/A
58
*DISCD*SMALL CHIP GUARD
Price
N/A
59
*DISCD*CHIP GUARD
Item is no longer available
Price
N/A
60
*DISCD*MEDIUM CHIP GUARD
Price
N/A
61
*DISCD*LARGE CHIP GUARD
Price
N/A
62
*DISCD*GIB
Item is no longer available
Price
N/A
63
*DISCD*CLAMPING PLATE
Price
N/A
64
HEX NUT M6-1
Price
N/A
65
SET SCREW M6-1 X 20
Price
N/A
66
CAP SCREW M8-1.25 X 14
Price
N/A
67
*DISCD*KNEE
Price
N/A
70
*DISCD*LOCK PIN
Price
N/A
71
*DISCD*PHLP HD SCR M12-1.75 X 40
Price
N/A
72
SET SCREW M6-1 X 8
Price
N/A
73
*DISCD*LEVER
Price
N/A
74
*DISCD*LEVER KNOB M8-1.25 X 25
Price
N/A
75
HEX NUT M12-1.75
Price
N/A
76
KEY 5 X 5 X 20
Price
N/A
77
LOCK WASHER 12MM
Price
N/A
77-1
FLAT WASHER 12MM
Price
N/A
78
*DISCD*KNEE BEVEL GEAR
Price
N/A
79
*DISCD*KNEE WASHER
Price
N/A
80
*DISCD*VERTICAL LEAD SCREW
Price
N/A
81
*DISCD*BUSHING
Price
N/A
82
BALL BEARING 6206-2RS
Price
N/A
83
*DISCD*BEARING RETAINER RING
Price
N/A
84
CAP SCREW M8-1.25 X 14
Price
N/A
85
SET SCREW M6-1 X 8
Price
N/A
86
*DISCD*HANDLE KNOB
Price
N/A
87
*DISCD*HANDLE
Price
N/A
88
*DISCD*CLUTCH
Item is no longer available
Price
N/A
89
*DISCD*CLUTCH
Price
N/A
90
*DISCD*NUT M33-1.5
Price
N/A
91
*DISCD*GRADUATED DIAL
Price
N/A
92
*DISCD*BUSHING
Price
N/A
93
INT RETAINING RING 47MM
Price
N/A
94
*DISCD*REGULATING RING
Price
N/A
95
BALL BEARING 6204-2RS
Price
N/A
95-1
BALL BEARING 6204-2RS
Price
N/A
96
CAP SCREW M6-1 X 16
Price
N/A
97
*DISCD*BEARING COVER
Price
N/A
98
KEY 5 X 5 X 16
Price
N/A
99
*DISCD*SHAFT
Price
N/A
100
BALL BEARING 6204-2RS
Price
N/A
101
*DISCD*HANDLE WASHER
Price
N/A
102
*DISCD*SPIRAL BEVEL GEAR
Price
N/A
103
CAP SCREW M10-1.5 X 25
Price
N/A
104
*DISCD*KNEE SUPPORT
Price
N/A
105
*DISCD*THREADED BUSHING
Price
N/A
106
*DISCD*OIL CUP 6MM
Price
N/A
107
CAP SCREW M8-1.25 X 14
Price
N/A
108
*DISCD*COLUMN
Price
N/A
117
*DISCD*NAME PLATE
Price
$24.75
118
*DISCD*SPIDER GEAR
Price
N/A
119
*DISCD*GRADUATED SCALE BOLT M12-1.75 X 1
Price
N/A
120
*DISCD*GEAR SHAFT
Price
N/A
121
*DISCD*LEVER
Price
N/A
122
*DISCD*PLASTIC LEVER HOLDER M10 X 32
Price
N/A
123
FLAT WASHER 12MM
Price
N/A
124
*DISCD*ROTARY DISC
Price
N/A
126
*DISCD*CLAMPING BLOCK
Price
N/A
127
*DISCD*CLAMPING BLOCK
Price
N/A
128
ROLL PIN 3 X 50
Price
N/A
129
*DISCD*GRADUATED SCALE BOLT M12-1.75 X 1
Price
N/A
129-1
HEX NUT M12-1.75
Price
N/A
130
SET SCREW M8-1.25 X 16
Price
N/A
149
*DISCD*QUILL LOCK HANDLE
Price
$24.75
152
*DISCD*QUILL LOCK BOLT
Item is no longer available
Price
N/A
153A
*DISCD*LOCK SLEEVE
Price
$10.35
153B
*DISCD*LOCK SLEEVE TAPPED
Price
$10.95
201
*DISCD*BALL TYPE NUT M12
Price
$1.49
201-1
ACORN NUT 5/8-11
Price
N/A
202
*DISCD*HANDLE M12 X 100
Price
N/A
203
*DISCD*HANDLE BODY
Price
N/A
204
*DISCD*NUT M33-1.5
Price
N/A
205
*DISCD*GRADUATED DIAL
Price
N/A
206
*DISCD*BUSHING
Price
N/A
207
CAP SCREW M8-1.25 X 16
Price
N/A
208
*DISCD*FLANGE
Price
N/A
209
BALL BEARING 6204-2RS
Price
N/A
209-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
210
*DISCD*SPACER
Price
N/A
211
*DISCD*SPACER
Price
N/A
212
CAP SCREW M10-1.5 X 20
Price
N/A
213
*DISCD*TABLE BRACKET LEFT
Price
N/A
214
KEY 4 X 4 X 30
Price
N/A
215
*DISCD*LEADSCREW W/3 KEYWAYS V1
Price
$414.60
215V2
*DISCD*LEADSCREW W/1 LONG KEYWAY V2
Price
$431.25
216
*DISCD*REGULATING SCREW M8-1.25 X 24
Price
N/A
217
*DISCD*LONG Y-AXIS LEADSCREW NUT 1-1/4"
Price
N/A
218
*DISCD*SHORT Y-AXIS LEADSCREW NUT 1-1/4"
Price
N/A
219
KEY 5 X 5 X 30
Price
N/A
220
*DISCD*THREADED CONICAL PIN 8 X 30
Price
N/A
221
SET SCREW M8-1.25 X 12
Price
N/A
222
*DISCD*CROSS LEAD BRACKET
Price
N/A
223
*DISCD*CROSS LEAD SCREW
Price
N/A
224
*DISCD*WOODRUFF KEY
Price
N/A
225
CAP SCREW M4-.7 X 8
Price
N/A
226
*DISCD*BEARING BRACKET
Price
N/A
227
CAP SCREW M10-1.5 X 16
Price
N/A
228
*DISCD*BUSHING
Price
N/A
229
*DISCD*BUSHING
Price
N/A
230
*DISCD*BEARING RETAINER RING
Price
N/A
231
CAP SCREW M8-1.25 X 14
Price
N/A
232
*DISCD*GRADUATED DIAL
Price
N/A
233
*DISCD*NUT M33-1.5
Price
N/A
234
*DISCD*HANDLE BODY
Price
N/A
235
*DISCD*TABLE BRACKET RIGHT
Price
N/A
236
BALL BEARING 6204-2RS
Price
N/A
237
*DISCD*SPACER
Price
N/A
238
*DISCD*BUSHING
Price
N/A
239
*DISCD*GRADUATED DIAL
Price
N/A
240
*DISCD*NUT
Price
$158.70
241
*DISCD*X-AXIS LEADSCREW NUT 1-1/4" X 1-1
Price
N/A
301
*DISCD*DRAWBAR 24-3/16
Price
N/A
302
*DISCD*DRAWBAR WASHER
Price
$20.70
302-2
*DISCD*OIL SEAL RING 16 X 2
Price
N/A
303
*DISCD*NUT M33-1.5
Price
N/A
304
*DISCD*SPINDLE PULLEY NUT M60-1.5
Price
N/A
305
BALL BEARING 6007ZZ
Price
N/A
305-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
306
*DISCD*ADJUSTABLE SPACER
Item is no longer available
Price
N/A
307
*DISCD*ADJUSTABLE SPACER
Item is no longer available
Price
N/A
308
ANGULAR CONTACT BEARING 7007-OPEN P5
Price
N/A
308-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
309
*DISCD*SPRING
Price
N/A
311
*DISCD*BEARING BRACKET
Item is no longer available
Price
N/A
314
CAP SCREW M8-1.25 X 12
Price
N/A
314-1
*DISCD*SCREW M8-1.25 X 11
Price
N/A
315
*DISCD*EXTERNAL SPRING
Item is no longer available
Price
N/A
317
*DISCD*BRAKE LOCK STUD
Item is no longer available
Price
N/A
318
*DISCD*BRAKE BLOCK
Price
$82.80
319
*DISCD*PULLEY
Item is no longer available
Price
N/A
320
*DISCD*COUPLING SHAFT
Item is no longer available
Price
N/A
321
*DISCD*FLAT KEY 8 X 25
Price
N/A
322
*DISCD*V-RUBBER BELT
Item is no longer available
Price
N/A
323
*DISCD*TIMING BELT
Price
$120.75
324
*DISCD*PULLEY FLANGE
Item is no longer available
Price
N/A
325
*DISCD*TIMING BELT PULLEY
Item is no longer available
Price
N/A
326
*DISCD*THRUST WASHER FOR ROUND NUT 16
Item is no longer available
Price
N/A
327
*DISCD*SUNK SCREW M5X8
Item is no longer available
Price
N/A

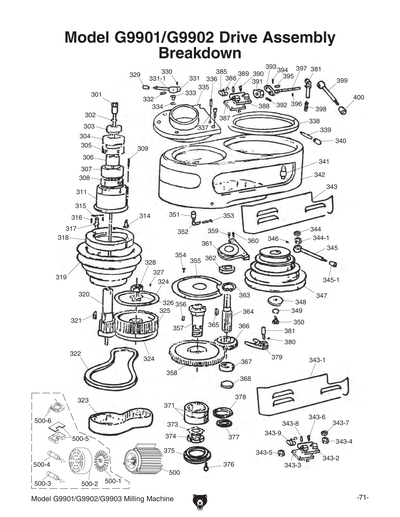

328
*DISCD*ROUND NUT M16 X 1.5
Item is no longer available
Price
N/A
329
*DISCD*PLASTIC HANDLE HOLDER M6 X 20
Item is no longer available
Price
N/A
330
*DISCD*SET SCREW M3X5
Item is no longer available
Price
N/A
331
*DISCD*HANDLE HOLDER
Item is no longer available
Price
N/A
331-1
*DISCD*HANDLE
Item is no longer available
Price
N/A
332
*DISCD*PIN
Item is no longer available
Price
N/A
333
*DISCD*SLEEVE
Item is no longer available
Price
N/A
334
*DISCD*WASHER
Item is no longer available
Price
N/A
335
*DISCD*COVER
Item is no longer available
Price
N/A
336
*DISCD*TAPERED PIN 10X30
Item is no longer available
Price
N/A
337
*DISCD*SOCKET HEAD CAP SCREW M10X16
Item is no longer available
Price
N/A
338
*DISCD*MOTOR CAP
Item is no longer available
Price
N/A
339
*DISCD*HANDLE ROD
Item is no longer available
Price
N/A
340
*DISCD*HANDLE HOLDER M6 X 20
Item is no longer available
Price
N/A
341
*DISCD*SHOULDER STUD M12X35
Item is no longer available
Price
N/A
342
*DISCD*BELT HOUSING
Item is no longer available
Price
N/A
343
*DISCD*WINDOW CAP RIGHT
Item is no longer available
Price
N/A
343-1
*DISCD*WINDOW CAP LEFT
Item is no longer available
Price
N/A
343-2
*DISCD*SPRING PLATE
Item is no longer available
Price
N/A
343-3
*DISCD*BRACKET
Item is no longer available
Price
N/A
343-4
*DISCD*HEX NUT M5
Item is no longer available
Price
N/A
343-5
*DISCD*HEX NUT M6
Item is no longer available
Price
N/A
343-6
*DISCD*SOCKET HEAD CAP SCREW M5X16
Item is no longer available
Price
N/A
343-7
*DISCD*SPRING WASHER 5
Item is no longer available
Price
N/A
343-8
*DISCD*ROLL PIN 4GA X 16
Item is no longer available
Price
N/A
343-9
*DISCD*HOLDER M6 X 20
Item is no longer available
Price
N/A
344
*DISCD*WASHER 12
Item is no longer available
Price
N/A
344-1
*DISCD*THICK HEX NUT M12
Item is no longer available
Price
N/A
344-2
*DISCD*THICK HEX NUT
Item is no longer available
Price
N/A
345
*DISCD*HANDLE
Item is no longer available
Price
N/A
346
*DISCD*SET SCREW M6 X 8
Item is no longer available
Price
N/A
347
*DISCD*PULLEY
Item is no longer available
Price
N/A
348
*DISCD*WASHER
Item is no longer available
Price
N/A
349
*DISCD*SPRING WASHER 8
Item is no longer available
Price
N/A
350
*DISCD*HEX HD BOLT M18 X 25
Item is no longer available
Price
N/A
351
*DISCD*COTTON CORE TYPE OIL CAP
Item is no longer available
Price
N/A
352
*DISCD*OIL CUP ADAPTER
Item is no longer available
Price
N/A
353
*DISCD*COTTON COVER TUBE
Item is no longer available
Price
N/A
354
*DISCD*SCREW M6 X 10
Item is no longer available
Price
N/A
355
*DISCD*CAP
Item is no longer available
Price
N/A
356
*DISCD*FLAT KEY 8 X 16
Item is no longer available
Price
N/A
357
*DISCD*WORM COUPLING SHAFT
Item is no longer available
Price
N/A
358
*DISCD*BULL GEAR
Item is no longer available
Price
N/A
359
*DISCD*SOCKET HEAD CAP SCREW M6X16
Item is no longer available
Price
N/A
360
*DISCD*FEMALE THREAD CONICAL PIN 8 X 25
Item is no longer available
Price
N/A
361
*DISCD*BEARING BRACKET
Item is no longer available
Price
N/A
362
BALL BEARING 6203ZZ
Price
N/A
363
*DISCD*ELASTIC RING FOR HOLE 40
Item is no longer available
Price
N/A
364
*DISCD*SPLINE SHAFT
Item is no longer available
Price
N/A
365
*DISCD*WOODRUFF KEY 5X16
Item is no longer available
Price
N/A
366
*DISCD*PINION
Item is no longer available
Price
N/A
367
BALL BEARING 6203ZZ
Price
N/A
368
*DISCD*PLUG
Item is no longer available
Price
N/A
371
*DISCD*SINGLE ROW RAD THRUST BEARING 40X
Item is no longer available
Price
N/A
371-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
373
*DISCD*THRUST WASHER FOR ROUND 39
Item is no longer available
Price
N/A
374
*DISCD*ROUND NUT M39 X 1.5
Item is no longer available
Price
N/A
375
*DISCD*COVER
Item is no longer available
Price
N/A
376
*DISCD*SOCKET HEAD CAP SCREW M6X12
Item is no longer available
Price
N/A
377
*DISCD*REGULATING RING
Item is no longer available
Price
N/A
378
*DISCD*REGULATING RING
Item is no longer available
Price
N/A
379
*DISCD*SHIFTER FORK
Item is no longer available
Price
N/A
380
*DISCD*TAPERED PIN 3X25
Item is no longer available
Price
N/A
381
*DISCD*DRAWBAR
Price
$49.75
385
*DISCD*PIN
Item is no longer available
Price
N/A
386
*DISCD*SOCKET HEAD CAP SCREW M5X8
Item is no longer available
Price
N/A
387
*DISCD*SHIM
Item is no longer available
Price
N/A

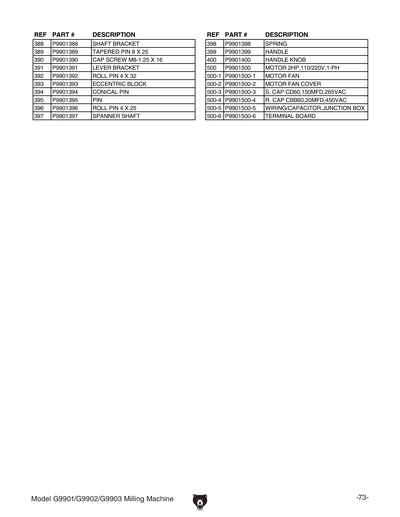

388
*DISCD*SHAFT BRACKET
Item is no longer available
Price
N/A
389
*DISCD*TAPERED PIN 8X25
Item is no longer available
Price
N/A
390
*DISCD*SOCKET HEAD CAP SCREW M8X16
Item is no longer available
Price
N/A
391
*DISCD*HANDLE
Item is no longer available
Price
N/A
392
*DISCD*CONICAL PIN 4X32
Item is no longer available
Price
N/A
393
*DISCD*ECCENTRIC BLOCK
Item is no longer available
Price
N/A
394
*DISCD*CONICAL PIN 4X25
Item is no longer available
Price
N/A
395
*DISCD*PIN
Item is no longer available
Price
N/A
396
*DISCD*TAPERED PIN 4X25
Item is no longer available
Price
N/A
397
*DISCD*SPANNER SHAFT
Item is no longer available
Price
N/A
398
*DISCD*SPRING
Price
N/A
399
*DISCD*HANDLE
Item is no longer available
Price
N/A
400
*DISCD*HANDLE HOLDER M8 X 25
Item is no longer available
Price
N/A

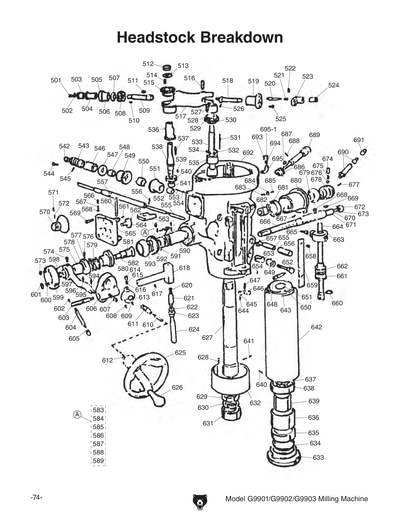

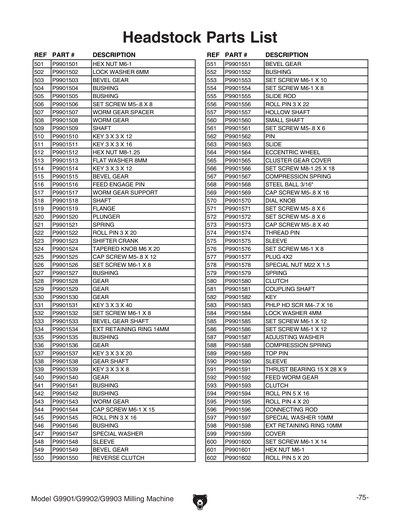

501
HEX NUT M6-1
Price
N/A
502
LOCK WASHER 6MM
Price
N/A
503
*DISCD*BEVEL GEAR
Price
N/A
504
*DISCD*BUSHING
Price
N/A
505
*DISCD*BUSHING
Price
N/A
506
SET SCREW M5-.8 X 8
Price
N/A
507
*DISCD*WORM GEAR SPACER
Price
N/A
508
*DISCD*WORM GEAR
Price
N/A
509
*DISCD*SHAFT
Price
N/A
510
KEY 3 X 3 X 12
Price
N/A
511
KEY 3 X 3 X 16
Price
N/A
512
HEX NUT M8-1.25
Price
N/A
513
FLAT WASHER 8MM
Price
N/A
514
KEY 3 X 3 X 12
Price
N/A
515
*DISCD*BEVEL GEAR
Price
N/A
516
*DISCD*FEED ENGAGE PIN
Price
N/A
517
*DISCD*WORM GEAR SUPPORT
Price
N/A
518
*DISCD*SHAFT
Price
N/A
518-1
*DISCD*SHAFT
Item is no longer available
Price
N/A
518-2
SET SCREW M5-.8 X 8
Price
N/A
519
*DISCD*FLANGE
Price
N/A
520
*DISCD*PLUNGER
Price
N/A
521
*DISCD*SPRING
Price
N/A
522
ROLL PIN 3 X 20
Price
N/A
523
*DISCD*SHIFTER CRANK
Price
N/A
524
*DISCD*TAPERED KNOB M6 X 20
Price
N/A
525
CAP SCREW M5-.8 X 12
Price
N/A
526
SET SCREW M6-1 X 8
Price
N/A
527
*DISCD*BUSHING
Price
N/A
528
*DISCD*GEAR
Price
N/A
529
*DISCD*GEAR
Price
N/A
530
*DISCD*GEAR
Price
N/A
530-1
SET SCREW M3-.5 X 10
Price
N/A
531
KEY 3 X 3 X 40
Price
N/A
532
SET SCREW M6-1 X 8
Price
N/A
533
*DISCD*BEVEL GEAR SHAFT
Price
N/A
534
EXT RETAINING RING 14MM
Price
N/A
535
*DISCD*BUSHING
Price
N/A
536
*DISCD*GEAR
Price
N/A
537
KEY 3 X 3 X 20
Price
N/A
538
*DISCD*GEAR SHAFT
Price
N/A
539
KEY 3 X 3 X 8
Price
N/A
540
*DISCD*GEAR
Price
N/A
541
*DISCD*BUSHING
Price
N/A
542
*DISCD*BUSHING
Price
N/A
543
*DISCD*WORM GEAR
Price
N/A
544
CAP SCREW M6-1 X 15
Price
N/A
545
ROLL PIN 3 X 16
Price
N/A
546
*DISCD*BUSHING
Price
N/A
547
*DISCD*WORM GEAR WASHER
Price
N/A
548
*DISCD*SLEEVE
Price
N/A
549
*DISCD*BEVEL GEAR
Price
N/A
550
*DISCD*REVERSE CLUTCH
Price
N/A
551
*DISCD*BEVEL GEAR
Price
N/A
552
*DISCD*BUSHING
Price
N/A
553
SET SCREW M6-1 X 10
Price
N/A
554
SET SCREW M6-1 X 8
Price
N/A
555
*DISCD*SLIDE ROD
Price
N/A
556
ROLL PIN 3 X 22
Price
N/A
557
*DISCD*HOLLOW SHAFT
Price
N/A
560
*DISCD*SMALL SHAFT
Price
N/A
561
SET SCREW M5-.8 X 6
Price
N/A
562
*DISCD*PIN
Price
N/A
563
*DISCD*SLIDE
Price
N/A
564
*DISCD*ECCENTRIC WHEEL
Price
N/A
565
*DISCD*CLUSTER GEAR COVER
Price
N/A
566
SET SCREW M8-1.25 X 18
Price
N/A
567
*DISCD*COMPRESSION SPRING
Price
$4.90
568
STEEL BALL 3/16
Price
N/A
569
CAP SCREW M5-.8 X 16
Price
N/A
570
*DISCD*DIAL KNOB
Price
N/A
571
SET SCREW M5-.8 X 6
Price
N/A
572
SET SCREW M5-.8 X 6
Price
N/A
573
CAP SCREW M5-.8 X 40
Price
N/A
574
*DISCD*THREAD PIN
Price
N/A
575
*DISCD*SLEEVE
Price
$29.90
576
SET SCREW M6-1 X 8
Price
N/A
577
*DISCD*PLUG 4 X 2MM
Price
N/A
578
*DISCD*NUT
Price
$8.35
579
*DISCD*SPRING
Price
N/A
580
*DISCD*CLUTCH
Price
$61.85
581
*DISCD*COUPLING SHAFT
Price
$44.30
582
*DISCD*KEY
Price
$7.80
583
PHLP HD SCR M4-.7 X 16
Price
N/A
584
LOCK WASHER 4MM
Price
N/A
585
SET SCREW M6-1 X 12
Price
N/A
586
SET SCREW M6-1 X 12
Price
N/A
587
*DISCD*ADJUSTING WASHER
Price
N/A
588
*DISCD*SPRING
Price
$1.49
589
*DISCD*TOP PIN
Price
N/A
590
*DISCD*SLEEVE
Price
N/A
591
*DISCD*SINGLE ROW THRUST BALL BEARING 15
Price
N/A
592
*DISCD*FEED WORM GEAR
Price
N/A
593
*DISCD*CLUTCH
Price
$45.45
594
ROLL PIN 5 X 16
Price
N/A
595
ROLL PIN 4 X 20
Price
N/A
596
*DISCD*CONNECTING ROD
Price
$61.85
597
*DISCD*WASHER
Price
$1.75
598
EXT RETAINING RING 10MM
Price
N/A
599
*DISCD*COVER
Price
$50.60
600
SET SCREW M6-1 X 14
Price
N/A
601
HEX NUT M6-1
Price
N/A
602
ROLL PIN 5 X 20
Price
N/A
603
*DISCD*LEVER
Price
N/A
604
*DISCD*HANDLE
Price
$20.70
605
*DISCD*HANDLE SLEEVE M8 X 25
Price
$4.35
606
*DISCD*BRACKET
Price
N/A
607
CAP SCREW M6-1 X 14
Price
N/A
608
SET SCREW M6-1 X 8
Price
N/A
609
KEY 4 X 4 X 8
Price
N/A
610
*DISCD*SHOULDER STUD
Price
N/A
611
*DISCD*REVERSE KNOB
Price
N/A
612
*DISCD*PIN
Price
N/A
613
*DISCD*RETAINING RING
Price
N/A
614
STEEL BALL 3/16
Price
N/A
615
*DISCD*COMPRESSION SPRING
Price
N/A
616
SET SCREW M8-1.25 X 10
Price
N/A
617
ROLL PIN 4 X 16
Price
N/A
618
*DISCD*T-ROD
Price
N/A
619
*DISCD*PIN
Item is no longer available
Price
N/A
620
*DISCD*SPRING 1.2 X 10 X 25
Price
N/A
621
*DISCD*SHAFT
Price
N/A
622
*DISCD*BUSHING
Price
N/A
623
*DISCD*BUSHING
Price
N/A
624
*DISCD*PLUNGER
Price
N/A
625
*DISCD*HANDWHEEL
Price
N/A
626
*DISCD*HANDWHEEL HANDLE M8 X 65
Price
N/A
627
*DISCD*SPINDLE
Price
N/A
628
CAP SCREW M5-.8 X 12
Price
N/A
629
*DISCD*LOCK NUT
Price
N/A
630
*DISCD*LOCK NUT 2PC
Price
N/A
631
*DISCD*SINGLE RADIAL BALL BEARING 30X62X
Price
$115.00
632
*DISCD*QUILL SKIRT
Price
N/A
633
*DISCD*NOSE PIECE
Price
N/A
634
*DISCD*SPINDLE DIRT SHIELD
Price
N/A
635
*DISCD*ANGULAR CONTACT BEARING 7008AC P4
Price
$448.50
635-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
636
*DISCD*BEARING SLEEVE
Price
N/A
637
*DISCD*BEARING SLEEVE
Price
N/A
638
*DISCD*SINGLE RADIAL THRUST BEARING 40X6
Price
$260.20
638-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
639
*DISCD*ADJUSTING NUT M39 X 1.5
Price
N/A
639-1
*DISCD*LOCATING NUT M39 X 1.5
Price
N/A
640
SET SCREW M5-.8 X 6
Price
N/A
641
*DISCD*DOG PT SET SCR M5-.8 X 6
Price
N/A
641-1
SET SCREW M5-.8 X 6
Price
N/A
642
*DISCD*QUILL
Price
N/A
643
*DISCD*OIL SEALER
Price
N/A
644
HEX NUT M3-.5
Price
N/A
645
SET SCREW M3-.5 X 14
Price
N/A
646
*DISCD*FORKED ROD
Price
N/A
647
*DISCD*THREAD PIN
Price
N/A
648
CAP SCREW M4-.7 X 8
Price
N/A
649
*DISCD*QUILL LOCK HANDLE ASSEMBLY V2.01.
Price
N/A
649V2
*DISCD*QUILL LOCK HANDLE ASSEMBLY V2.01.
Price
N/A
650
*DISCD*RETAINING PLATE
Price
N/A
651
EXT RETAINING RING 65MM
Price
N/A
652
*DISCD*QUILL LOCK BOLT M8-1.25 X 70 V1
Price
N/A
652V2
*DISCD*QUILL LOCK HANDLE ASSEMBLY V2.01.
Price
N/A
653
*DISCD*LOCK SLEEVE
Price
N/A
653A
*DISCD*LOCK SLEEVE TAPPED
Item is no longer available
Price
N/A
654
*DISCD*HEADSTOCK SCREW M6-1 X 8
Price
N/A
654-1
*DISCD*INDICATOR ROD
Item is no longer available
Price
N/A
655
*DISCD*T-SLOT BOLT M12-1.75 X 175
Price
N/A
656
*DISCD*SLEEVE, SHORT
Price
N/A
656-1
*DISCD*SLEEVE
Item is no longer available
Price
N/A
657
HEX NUT M12-1.75
Price
N/A
658
PHLP HD SCR M4-.7 X 6
Price
N/A
659
*DISCD*SCALE
Price
N/A
660
EXT RETAINING RING 15MM
Price
N/A
661
*DISCD*ADJUSTING NUT
Price
N/A
662
*DISCD*DIAL
Price
N/A
663
*DISCD*STOP KNOB
Price
N/A
664
*DISCD*QUILL LEAD SCREW
Price
N/A
665
CAP SCREW M10-1.5 X 16
Price
N/A
666
*DISCD*SHAFT
Price
N/A
667
KEY 5 X 5 X 20
Price
N/A
668
SET SCREW M8-1.25 X 10
Price
N/A
669
*DISCD*PIN
Price
N/A
670
ROLL PIN 5 X 16
Price
N/A
671
KEY 5 X 5 X 20
Price
N/A
672
HEX BOLT M4-.7 X 16
Price
N/A
673
*DISCD*STOP PLATE
Price
N/A
674
SET SCREW M8-1.25 X 14
Price
N/A
675
*DISCD*SPRING
Price
N/A
676
STEEL BALL 3/16
Price
N/A
677
SET SCREW M4-.7 X 16
Price
N/A
678
*DISCD*HANDLE HUB
Price
N/A
679
*DISCD*BUSHING
Price
N/A
680
*DISCD*BUSHING
Price
N/A
681
*DISCD*SPRING
Price
N/A
682
*DISCD*GEAR
Price
N/A
683
*DISCD*LEVER
Price
N/A
684
*DISCD*SHAFT
Price
N/A
685
SET SCREW M8-1.25 X 8
Price
N/A
686
*DISCD*WORM
Price
$51.75
687
KEY 4 X 4 X 16
Price
N/A
688
SET SCREW M5-.8 X 6
Price
N/A
688-1
SET SCREW M5-.8 X 6
Price
N/A
689
*DISCD*SHAFT
Price
$39.10
690
*DISCD*HANDLE ROD
Price
N/A
691
*DISCD*HANDLE SLEEVE
Price
N/A
692
*DISCD*HEADSTOCK
Price
N/A
693
*DISCD*OIL CUP ADAPTER 1/4" NPT X 15MM X
Price
N/A
694
*DISCD*OIL CUP 2" NPT X 10MM X 20MM ST
Price
N/A
695
*DISCD*OIL PORT
Price
N/A
696
*DISCD*COMPLETE HEADSTOCK ASSY W/MOTOR
Item is no longer available
Price
N/A

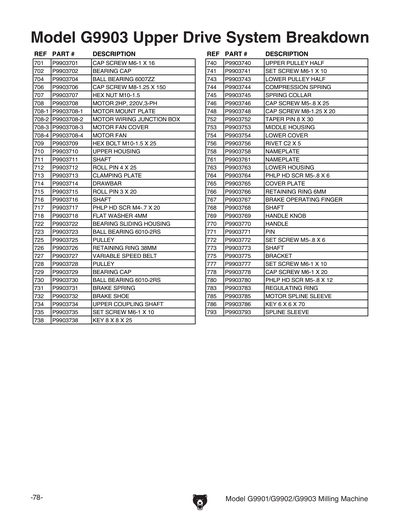

701
CAP SCREW M6-1 X 16
Price
N/A
702
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
704
BALL BEARING 6007ZZ
Price
N/A
706
*DISCD*CAP SCREW M8-1.25 X 150
Price
$12.65
707
HEX NUT M10-1.5
Price
N/A
708
*DISCD*MOTOR 2HP 220V 3-PH V1
Item is no longer available
Price
N/A
708-1
*DISCD*MOTOR MOUNT PLATE
Item is no longer available
Price
N/A
708-2
*DISCD*MOTOR WIRING JUNCTION BOX
Item is no longer available
Price
N/A
708-3
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
708-4
*DISCD*MOTOR FAN
Price
$95.45
708V2
*DISCD*MOTOR 2HP 220V 3-PH V2.10.10
Price
$609.50
709
HEX BOLT M10-1.5 X 25
Price
N/A
710
*DISCD*UPPER HOUSING
Price
$769.10
711
*DISCD*SHAFT
Item is no longer available
Price
N/A
712
ROLL PIN 4 X 25
Price
N/A
713
*DISCD*CLAMPING PLATE
Item is no longer available
Price
N/A
714
*DISCD*DRAWBAR
Item is no longer available
Price
N/A
715
ROLL PIN 3 X 20
Price
N/A
716
*DISCD*SHAFT
Price
$5.75
717
PHLP HD SCR M4-.7 X 20
Price
N/A
718
FLAT WASHER 4MM
Price
N/A
722
*DISCD*BEARING SLIDING HOUSING
Item is no longer available
Price
N/A
723
*DISCD*BALL BEARING 6010-2RS
Item is no longer available
Price
N/A
725
*DISCD*PULLEY
Price
$172.50
726
*DISCD*RETAINING RING 38MM
Item is no longer available
Price
N/A
727
*DISCD*VARIABLE SPEED BELT 465MM
Price
$327.75
728
*DISCD*PULLEY
Item is no longer available
Price
N/A
729
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
730
*DISCD*SINGLE ROW RADIAL BALL BEARING 50
Price
N/A
731
*DISCD*BRAKE SPRING
Price
N/A
734
*DISCD*UPPER COUPLING SHAFT
Price
$621.00
735
SET SCREW M6-1 X 10
Price
N/A
738
KEY 8 X 8 X 25
Price
N/A
740
*DISCD*UPPER PULLEY HALF
Item is no longer available
Price
N/A
741
SET SCREW M6-1 X 10
Price
N/A
743
*DISCD*PULLEY HALF LOWER
Price
$172.50
744
*DISCD*COMPRESSION SPRING
Price
$51.75
745
*DISCD*SPRING COLLAR
Item is no longer available
Price
N/A
746
CAP SCREW M5-.8 X 25
Price
N/A
748
CAP SCREW M8-1.25 X 20
Price
N/A
752
*DISCD*TAPER PIN 8 X 30
Item is no longer available
Price
N/A
753
*DISCD*HOUSING MIDDLE
Item is no longer available
Price
N/A
754
*DISCD*COVER LOWER
Price
N/A
755
*DISCD*SPRING
Price
$64.70
756
RIVET 2 X 5MM NAMEPLATE, COPPER
Price
N/A
758
*DISCD*NAME PLATE
Item is no longer available
Price
N/A
761
*DISCD*NAME PLATE
Item is no longer available
Price
N/A
763
*DISCD*HOUSING LOWER
Item is no longer available
Price
N/A
764
PHLP HD SCR M5-.8 X 6
Price
N/A
765
*DISCD*COVER PLATE
Item is no longer available
Price
N/A
766
EXT RETAINING RING 6MM
Price
N/A
767
*DISCD*BRAKE OPERATING FINGER
Price
N/A
768
*DISCD*SHAFT
Item is no longer available
Price
N/A
769
*DISCD*HANDLE KNOB
Item is no longer available
Price
N/A
770
*DISCD*HANDLE
Item is no longer available
Price
N/A
771
*DISCD*PIN
Item is no longer available
Price
N/A
772
SET SCREW M5-.8 X 6
Price
N/A
773
*DISCD*SHAFT
Item is no longer available
Price
N/A
775
*DISCD*BRACKET
Item is no longer available
Price
N/A
777
SET SCREW M6-1 X 10
Price
N/A
778
CAP SCREW M6-1 X 20
Price
N/A
780
PHLP HD SCR M5-.8 X 12
Price
N/A
782
CAP SCREW M4-.7 X 10
Price
N/A
782-1
HEX BOLT M10-1.5 X 30
Price
N/A
782-2
LOCK WASHER 10MM
Price
N/A
783
*DISCD*REGULATING RING
Item is no longer available
Price
N/A
784
*DISCD*WASHER
Item is no longer available
Price
N/A
785
*DISCD*MOTOR SPLINE SLEEVE
Item is no longer available
Price
N/A
786
*DISCD*KEY 6 X 6 X 70
Price
N/A
793
*DISCD*SPLINE SLEEVE 25PC SET
Item is no longer available
Price
N/A
801
ACORN NUT M8-1.25
Price
N/A
802
*DISCD*DIAL
Item is no longer available
Price
N/A
804
SET SCREW M6-1 X 12
Price
N/A
805
*DISCD*HOUSING
Item is no longer available
Price
N/A
806
*DISCD*CHIP SHIELD
Item is no longer available
Price
N/A
807
PHLP HD SCR M4-.7 X 6
Price
N/A
808
*DISCD*BUSHING
Item is no longer available
Price
N/A
809
ROLL PIN 3 X 25
Price
N/A
810
*DISCD*SPEED CHANGER CHAIN 1/8" X 1/2"
Item is no longer available
Price
N/A
812
*DISCD*UPPER HOUSING
Item is no longer available
Price
N/A
813
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
814
*DISCD*SOCKET HEAD CAP SCREW M8 X 1.25 X
Price
N/A
816
*DISCD*BUSHING
Item is no longer available
Price
N/A
817
*DISCD*HANDWHEEL
Price
$96.60
819
*DISCD*HANDWHEEL HANDLE
Price
$24.15
820
*DISCD*CAUTION PLATE
Item is no longer available
Price
N/A
821
SET SCREW M6-1 X 8
Price
N/A
825
CAP SCREW M6-1 X 35
Price
N/A
828
*DISCD*SOLID PIN 3 X 12
Item is no longer available
Price
N/A
829
*DISCD*SHAFT
Item is no longer available
Price
N/A
830
*DISCD*WORM GEAR
Item is no longer available
Price
N/A
833
*DISCD*BEVEL GEAR
Item is no longer available
Price
N/A
834
KEY 3 X 3 X 8
Price
N/A
835
*DISCD*SHAFT
Item is no longer available
Price
N/A
836
*DISCD*RIBBED TIMING BELT
Item is no longer available
Price
N/A
837
*DISCD*UPPER COUPLING SHAFT
Item is no longer available
Price
N/A
839
*DISCD*COUPLING SHAFT LOWER
Item is no longer available
Price
N/A
840
*DISCD*BULL GEAR
Price
$393.30
841
BALL BEARING 6008ZZ
Price
N/A
842
ROLL PIN 5 X 18
Price
N/A
843
*DISCD*SPACER
Item is no longer available
Price
N/A
844
*DISCD*HOUSING LOWER
Item is no longer available
Price
N/A
845
*DISCD*BOLT FOR T-SLOT
Item is no longer available
Price
N/A
846
FLAT WASHER 10MM
Price
N/A
847
*DISCD*GEAR SLEEVE BOLT
Item is no longer available
Price
N/A
848
*DISCD*SPRING SHIM
Item is no longer available
Price
N/A
849
*DISCD*FLANGE
Price
$207.00
850
SET SCREW M6-1 X 6
Price
N/A
851
*DISCD*GUIDE
Item is no longer available
Price
N/A
852
CAP SCREW M4-.7 X 8
Price
N/A
853
*DISCD*DRIP PIPE
Item is no longer available
Price
N/A
854
*DISCD*OIL CUP
Item is no longer available
Price
N/A
854-1
*DISCD*OIL PIPE ADAPTER
Item is no longer available
Price
N/A
855
*DISCD*SPRING
Price
N/A
857
*DISCD*GEAR SLEEVE
Item is no longer available
Price
N/A
859
*DISCD*GEAR SHAFT
Item is no longer available
Price
N/A
860
*DISCD*DETENT PLATE
Item is no longer available
Price
N/A
861
*DISCD*FLANGE NUT M12-1.75
Item is no longer available
Price
N/A
862
FLAT WASHER 12MM
Price
N/A
863
*DISCD*THREADED STUD M12-1.75 X 80
Item is no longer available
Price
N/A
864
SET SCREW M6-1 X 12
Price
N/A
865
*DISCD*SET BLOCK
Item is no longer available
Price
N/A
866
*DISCD*SET PIN
Item is no longer available
Price
N/A
867
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
868
CAP SCREW M5-.8 X 12
Price
N/A
869
*DISCD*HANDLE KNOB
Item is no longer available
Price
N/A
870
*DISCD*HANDLE SHAFT
Item is no longer available
Price
N/A
871
*DISCD*HANDLE HUB
Item is no longer available
Price
N/A
872
ROLL PIN 3 X 16
Price
N/A
873
ROLL PIN 3 X 16
Price
N/A
874
CAP SCREW M8-1.25 X 20
Price
N/A
875
CAP SCREW M5-.8 X 25
Price
N/A
876
*DISCD*COVER LOWER
Price
N/A
877
KEY 6 X 6 X 20
Price
N/A
878
*DISCD*WOODRUFF KEY 5 X 16
Item is no longer available
Price
N/A
879
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
880
*DISCD*PINION SHAFT
Item is no longer available
Price
N/A
881
*DISCD*KEY
Item is no longer available
Price
N/A
883
*DISCD*PINION GEAR
Price
$40.25
884
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
885
CAP SCREW M5-.8 X 16
Price
N/A
886
*DISCD*TIMING PULLEY
Price
$207.00
887
HEX NUT M16-1.5
Price
N/A
888
*DISCD*FRONT COVER
Item is no longer available
Price
N/A
889
CAP SCREW M4-.7 X 20
Price
N/A

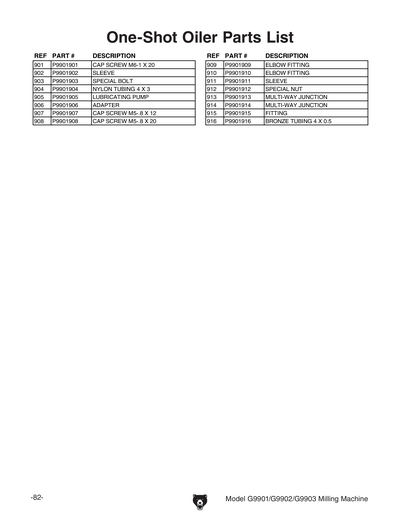

901
CAP SCREW M6-1 X 20
Price
N/A
902
*DISCD*SLEEVE
Price
N/A
903

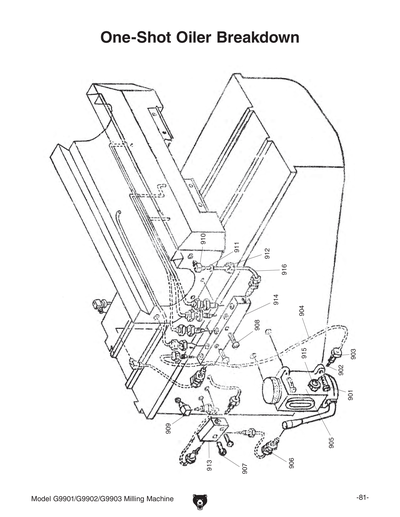

*DISCD*LUBRICATING PUMP BOLT
Price
N/A
904
*DISCD*NYLON TUBING 4 X 3
Price
N/A
905
*DISCD*LUBRICATING PUMP
Price
N/A
906
*DISCD*ADAPTER
Price
N/A
907
CAP SCREW M5-.8 X 12
Price
N/A
908
CAP SCREW M5-.8 X 20
Price
N/A
909
*DISCD*ELBOW FITTING
Price
N/A
910
*DISCD*ELBOW FITTING
Price
N/A
911
*DISCD*SLEEVE
Price
N/A
912
*DISCD*BRONZE TUBING NUT
Price
N/A
913
*DISCD*MULTIWAY JUNCTION
Price
N/A
914
*DISCD*MULTIWAY JUNCTION
Price
N/A
915
*DISCD*FITTING
Price
N/A
916
*DISCD*BRONZE TUBING 4 X 0.5
Price
N/A
917
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A

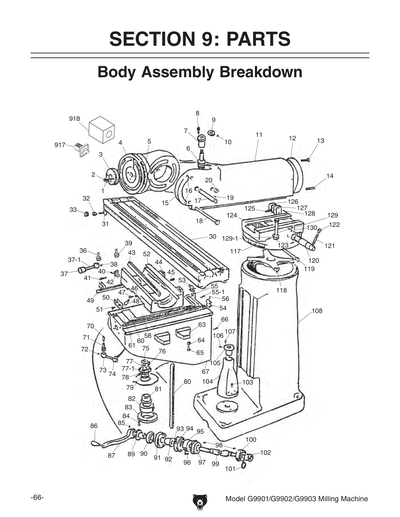

918
*DISCD*SWITCH BOX
Price
N/A

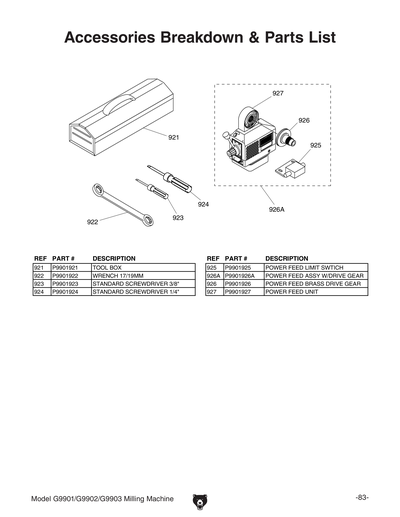

921
*DISCD*TOOL BOX
Price
N/A
922
*DISCD*WRENCH 17/19MM
Price
N/A
923
*DISCD*STANDARD SCREWDRIVER 3/8"
Price
N/A
924
*DISCD*STANDARD SCREWDRIVER 1/4"
Price
N/A
925
*DISCD*POWER FEED ASSY W/DRIVE GEAR
Price
N/A
926
*DISCD*POWER FEED ASSY W/DRIVE GEAR
Price
N/A
927
*DISCD*POWER FEED ASSY W/DRIVE GEAR
Price
N/A

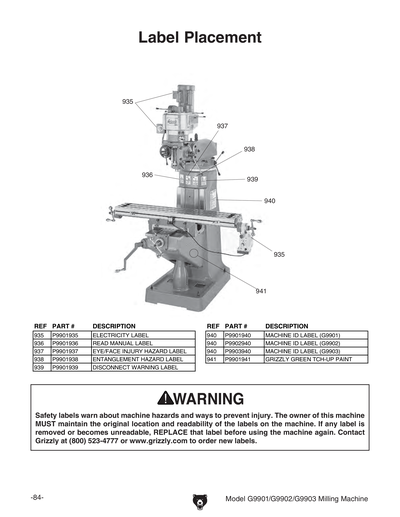

935
ELECTRICITY 1.4W X 1.2H
Price
N/A
936
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
937
*DISCD*EYE/FACE INJURY HAZARD LABEL
Price
N/A
938
*DISCD*ENTANGLEMENT HAZARD LABEL
Price
N/A
939
DISCONNECT SANDER 220V 2W X 3.3H
Price
N/A
940
MACHINE ID LABEL
Item is no longer available
Price
N/A
941
N/S GRIZZLY GREEN G1023S
Price
N/A
942
*DISCD*GRIZZLY LOGO LABEL 2-3/8 X 9"
Price
$1.75
MANUAL
MANUAL FOR G9903 10/07
Item is no longer available
Price
N/A
