Parts for G9922 - Oscillating Spindle Sander

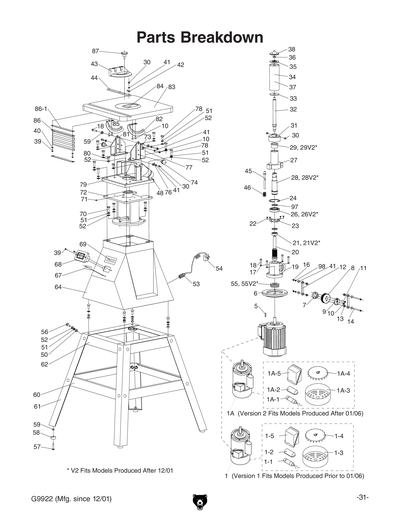

Part Diagram for G9922
Part Diagram for G9922
Part Diagram for G9922
Part Diagram for G9922

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*FACE MOUNT MOTOR 1/2HP V1.11.00
Price
$81.10
1-1
*DISCD*S CAPACITOR 14M 450V 3 X 1-3/4 V1
Item is no longer available
Price
N/A
1-2
*DISCD*CAPACITOR COVER V1.11.00
Item is no longer available
Price
N/A
1-3
*DISCD*MOTOR FAN COVER V1.11.00
Price
$2.90
1-4
*DISCD*MOTOR FAN V1.11.00
Price
$8.65
1-5
*DISCD*JUNCTION BOX V1.11.00
Item is no longer available
Price
N/A
1A
*DISCD*MOTOR 1/2HP 110V 1-PH V2.01.06
Price
$92.60
1A-1
S CAPACITOR 250M 125V 1-3/8 X 3-3/4
Price
N/A
1A-2
*DISCD*CAPACITOR COVER V2.01.06
Price
$2.90
1A-3
*DISCD*MOTOR FAN COVER V2.01.06
Item is no longer available
Price
N/A
1A-4
*DISCD*MOTOR FAN V2.01.06
Item is no longer available
Price
N/A
1A-5
*DISCD*JUNCTION BOX V2.01.06
Item is no longer available
Price
N/A
2
*DISCD*GROUND RING CONNECTOR
Item is no longer available
Price
N/A
3
*DISCD*POWER FORK CONNECTOR
Price
$1.49
4
*DISCD*PLASTIC CONNECTOR SLEEVE
Item is no longer available
Price
N/A
5
KEY 5 X 5 X 15
Price
N/A
6
*DISCD*CONNECTION PLATE
Price
$5.75
7
*DISCD*WORM GEAR SHAFT
Item is no longer available
Price
N/A
8
*DISCD*PINON GEAR
Item is no longer available
Price
N/A
9
*DISCD*END COVER OF WORM GEAR
Item is no longer available
Price
N/A
10
HEX BOLT M5-.8 X 10
Price
N/A
11
HEX BOLT M5-.8 X 25
Price
N/A
12
*DISCD*CONNECTING BAR
Item is no longer available
Price
N/A
13
*DISCD*FLANGE BUSHING
Item is no longer available
Price
N/A
14
*DISCD*PINION GEAR SCREW
Item is no longer available
Price
N/A
15
FLAT WASHER 5MM
Price
N/A
16
HEX NUT M5-.8
Price
N/A
17
HEX NUT M8-1.25
Price
N/A
18
HEX BOLT M6-1 X 25
Price
N/A
19
*DISCD*BEARING BASE
Price
$11.25
20
*DISCD*WORM SHAFT
Item is no longer available
Price
N/A
21
BALL BEARING 6002ZZ
Price
N/A
22
CAP SCREW M4-.7 X 10
Price
N/A
23
*DISCD*COVER
Price
$1.49
24
INT RETAINING RING 52MM
Price
N/A
25
EXT RETAINING RING 30MM
Price
N/A
26
*DISCD*BEARING 80106 V1
Item is no longer available
Price
N/A
26V2
BALL BEARING 6006ZZ
Price
N/A
27
*DISCD*SPINDLE SLEEVE STABILIZER
Price
$8.05
28
*DISCD*SPINDLE W/O KEYED BUSHING V1.08.0
Price
$12.10
28V2
*DISCD*SPINDLE W/KEYED BUSHING V2.03.10
Item is no longer available
Price
N/A
29
*DISCD*NEEDLE BEARING 4084103 V1
Item is no longer available
Price
N/A
29V2
*DISCD*BABBITT BEARING V2.12.01
Price
$1.49
30
CAP SCREW M5-.8 X 6
Price
N/A
31
*DISCD*DUST COVER
Item is no longer available
Price
N/A
32
*DISCD*SANDING DRUM SHAFT
Item is no longer available
Price
N/A
33
*DISCD*FLAT WASHER 16MM
Item is no longer available
Price
N/A
34
*DISCD*SANDING DRUM
Item is no longer available
Price
N/A
35
*DISCD*PAD
Item is no longer available
Price
N/A
36
*DISCD*SANDING DRUM NUT
Item is no longer available
Price
N/A
37
*DISCD*SANDING SLEEVE
Item is no longer available
Price
N/A
38
*DISCD*TOP CAP
Item is no longer available
Price
N/A
39
CAP SCREW M4-.7 X 10
Price
N/A
40
FLAT WASHER 4MM
Price
N/A
41
FLAT WASHER 5MM
Price
N/A
42
*DISCD*MITER ANGLE POINTER
Price
$1.49
43
*DISCD*MITER GAUGE
Item is no longer available
Price
N/A
44
*DISCD*LOCK PIN
Item is no longer available
Price
N/A
45
*DISCD*SHAFT
Price
$2.30
46
*DISCD*SPRING 190 X 16 X 5.5
Price
$1.49
47
HEX NUT M8-1.25
Price
N/A
48
*DISCD*DUST COLLECTOR NOZZLE
Item is no longer available
Price
N/A
49
*DISCD*RUBBER PAD
Price
$16.70
50
HEX NUT M8-1.25
Price
N/A
51
LOCK WASHER 8MM
Price
N/A
52
FLAT WASHER 10MM
Price
N/A
52A
FLAT WASHER 8MM
Price
N/A
52B
*DISCD*10UF 450V CAPACITOR
Item is no longer available
Price
N/A
53
*DISCD*WIRE STRAIN RELIEF
Item is no longer available
Price
N/A
54
*DISCD*POWER CORD 16-GAUGE 3-WIRE 73"
Item is no longer available
Price
N/A
55
*DISCD*BEARING 8205 V1
Item is no longer available
Price
N/A
55V2
BALL BEARING 6005ZZ
Price
N/A
56
CAP SCREW M8-1.25 X 16
Price
N/A
57
PHLP HD SCR M6-1 X 30
Price
N/A
58
*DISCD*RUBBER PAD
Price
$2.30
59
HEX NUT M6-1
Price
N/A
60
*DISCD*BRACE LOWER
Price
$30.80
61
*DISCD*LEG
Price
$3.45
62
*DISCD*UPPER BRACE
Price
$2.30
63
*DISCD*UPPER BRACE
Price
N/A
64
*DISCD*MACHINE BASE
Price
$30.80
65
FLAT WASHER 10MM
Price
N/A
66
FLAT WASHER 4MM
Price
N/A
67
*DISCD*GROUND LABEL
Item is no longer available
Price
N/A
68
Safety Paddle Switch
Price
N/A
69
MACHINE ID LABEL
Item is no longer available
Price
N/A
70
HEX BOLT M8-1.25 X 25
Price
N/A
71
*DISCD*BALL OILER
Item is no longer available
Price
N/A
72
*DISCD*BRACKET
Price
$18.40
73
*DISCD*LOCK BLOCK
Price
$1.49
74
*DISCD*KNOB M6-1 X 10
Price
$1.49
75
FLAT WASHER 6MM
Price
N/A
76
*DISCD*TABLE TILT POINTER
Item is no longer available
Price
N/A
77
*DISCD*BRACKET
Price
$2.05
78
HEX BOLT M8-1.25 X 16
Price
N/A
79
*DISCD*FACEPLATE
Price
$2.05
80
HEX BOLT M8-1.25 X 12
Price
N/A
81
*DISCD*BRACKET
Price
$2.05
82
*DISCD*ANGLE BRACKET W/GAUGE
Price
$1.75
83
*DISCD*WORK TABLE
Item is no longer available
Price
N/A
84
*DISCD*TABLE INSERT
Price
$1.49
85
*DISCD*ANGLE BRACKET W/O GAUGE
Item is no longer available
Price
N/A
86
*DISCD*DUST COVER
Item is no longer available
Price
N/A
86-1
*DISCD*UPPER DUST COVER BRACKET
Price
$1.49
86-2
*DISCD*LOWER DUST COVER BRACKET
Price
$2.30
87
*DISCD*MITER GAUGE KNOB
Price
$1.49
88
*DISCD*ADJUST BLOCK
Price
$2.60
89
*DISCD*DOUBLE END WRENCH
Item is no longer available
Price
N/A
90
*DISCD*INNER HEX WRENCH
Item is no longer available
Price
N/A
91
*DISCD*MANUAL
Item is no longer available
Price
N/A
92
*DISCD*SMALL PLASTIC BAG
Item is no longer available
Price
N/A
93
*DISCD*MANUAL PLASTIC BAG
Item is no longer available
Price
N/A
94
*DISCD*TOP BUBBLE
Item is no longer available
Price
N/A
95
*DISCD*BELOW BUBBLE
Item is no longer available
Price
N/A
96
*DISCD*PACKAGE
Item is no longer available
Price
N/A
97
*DISCD*SPACER
Price
$1.49
98
LOCK WASHER 5MM
Price
N/A
99
*DISCD*THREADED BRACKET BRACE
Item is no longer available
Price
N/A
331
*DISCD*MOTOR
Item is no longer available
Price
N/A
73
*DISCD*LOCK BLOCK
Item is no longer available
Price
N/A
76
*DISCD*NEEDLE
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G9922 03/08
Item is no longer available
Price
N/A
