Parts for G9933 - 3 HP Three-Spindle Shaper

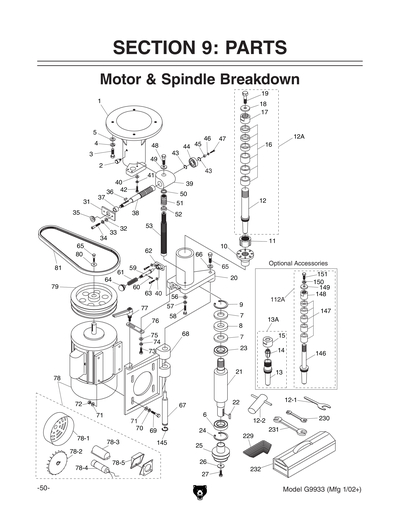

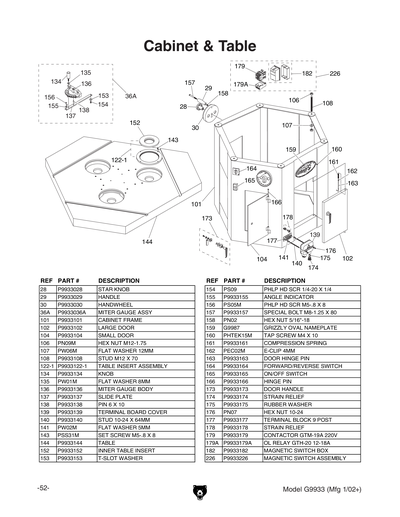

Part Diagram for G9933
Part Diagram for G9933
Part Diagram for G9933
Part Diagram for G9933
Part Diagram for G9933
Part Diagram for G9933
Part Diagram for G9933
Part Diagram for G9933
Part Diagram for G9933
Part Diagram for G9933

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

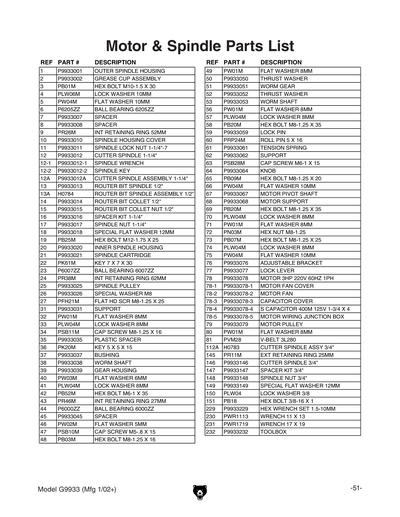

Ref #
Part #
Description
1
OUTER SPINDLE HOUSING
Price
$462.90
2
GREASE CUP ASSEMBLY
Price
$12.75
3
HEX BOLT M10-1.5 X 30
Price
N/A
4
LOCK WASHER 10MM
Price
N/A
5
FLAT WASHER 10MM
Price
N/A
6
BALL BEARING 6205ZZ
Price
N/A
7
SPACER
Price
$45.35
8
SPACER
Price
$45.35
9
INT RETAINING RING 52MM
Price
N/A
10
SPINDLE HOUSING COVER
Price
$77.60
11
SPINDLE LOCK NUT 1-1/4"-7
Price
$105.70
12
CUTTER SPINDLE ASSEMBLY 1-1/4"
Price
N/A
12-1
SPINDLE WRENCH
Price
$133.50
12-2
SPINDLE KEY
Price
$146.75
12A
CUTTER SPINDLE ASSEMBLY 1-1/4"
Price
$463.70
13
ROUTER BIT SPINDLE 1/2"
Price
$284.75
13A
1/2" Router Bit Collet for G9933
Price
N/A
14
COLLET 1/2"
Price
N/A
15
ROUTER BIT COLLET NUT 1/2"
Price
$42.30
16
SPACER KIT 1-1/4"
Price
$297.40
17
SPINDLE NUT 1-1/4"
Price
$86.70
18
CUTTER SPINDLE FLAT WASHER 12MM
Price
$40.80
19
HEX BOLT M12-1.75 X 25
Price
N/A
20
INNER SPINDLE HOUSING
Price
$434.15
21
SPINDLE CARTRIDGE
Price
$373.75
22
KEY 7 X 7 X 29
Price
N/A
23
BALL BEARING 6007ZZ
Price
N/A
24
INT RETAINING RING 62MM
Price
N/A
25
SPINDLE PULLEY
Price
$167.60
26
SPINDLE PULLEY WASHER M8
Price
$21.75
27
FLAT HD SCR M8-1.25 X 25
Price
N/A
28
STAR KNOB
Price
$10.00
29
HANDLE
Price
$5.80
30
HANDWHEEL
Price
$77.95
31
SUPPORT
Price
$24.80
32
FLAT WASHER 8MM
Price
N/A
33
LOCK WASHER 8MM
Price
N/A
34
CAP SCREW M8-1.25 X 16
Price
N/A
35
PLASTIC SPACER
Price
$16.35
36
KEY 5 X 5 X 15
Price
N/A
36A
MITER GAUGE ASSY
Price
$133.60
37
BUSHING
Price
$43.50
38
WORM SHAFT
Price
$86.05
39
GEAR HOUSING
Price
$140.70
40
FLAT WASHER 6MM
Price
N/A
41
LOCK WASHER 8MM
Price
N/A
42
HEX BOLT M6-1 X 35
Price
N/A
43
INT RETAINING RING 27MM
Price
N/A
44
BALL BEARING 6000ZZ
Price
N/A
45
SPACER
Price
$8.80
46
FLAT WASHER 5MM
Price
N/A
47
CAP SCREW M5-.8 X 15
Price
N/A
48
HEX BOLT M8-1.25 X 16
Price
N/A
49
FLAT WASHER 8MM
Price
N/A
50
THRUST WASHER
Price
$95.70
51
WORM GEAR
Price
$86.70
52
THRUST WASHER
Price
$95.70
53
WORM SHAFT
Price
$55.30
54
EMERGENCY STOP BUTTON ASSEMBLY
Price
$216.50
54-1
EMERGENCY STOP BUTTON ASSEMBLY
Price
N/A
54-2
EMERGENCY STOP BUTTON ASSEMBLY
Price
N/A
54-3
TAP SCREW M4 X 42
Price
$11.85
55
PHLP HD SCR M4-.7 X 8
Price
N/A
56
FLAT WASHER 8MM
Price
N/A
57
LOCK WASHER 8MM
Price
N/A
58
HEX BOLT M8-1.25 X 35
Price
N/A
59
LOCK PIN
Price
$28.45
60
ROLL PIN 5 X 16
Price
N/A
61
TENSION SPRING
Price
$6.70
62
SUPPORT
Price
$52.90
63
CAP SCREW M6-1 X 15
Price
N/A
64
KNOB
Price
$5.50
65
HEX BOLT M8-1.25 X 20
Price
N/A
66
FLAT WASHER 10MM
Price
N/A
67
MOTOR PIVOT SHAFT
Price
$51.95
68
MOTOR SUPPORT
Price
$143.45
69
HEX BOLT M8-1.25 X 35
Price
N/A
70
LOCK WASHER 8MM
Price
N/A
71
FLAT WASHER 8MM
Price
N/A
72
HEX NUT M8-1.25
Price
N/A
73
HEX BOLT M8-1.25 X 25
Price
N/A
74
LOCK WASHER 8MM
Price
N/A
75
FLAT WASHER 10MM
Price
N/A
76
ADJUSTABLE BRACKET
Price
$26.60
77
LOCK LEVER
Price
$52.25
78
MOTOR 3HP 220V 1-PH
Price
$831.40
78-1
MOTOR FAN COVER
Price
$16.65
78-2
MOTOR FAN
Price
$37.35
78-3
CAPACITOR COVER
Price
$14.25
78-4
S CAPACITOR 400M 125V 1-3/4 X 4 V1
Price
$78.15
78-4V2
S CAPACITOR 500M 125V 1-3/4 X 4 V2.10.23
Price
$82.10
78-5
MOTOR WIRING JUNCTION BOX
Price
$10.65
79
MOTOR PULLEY
Price
$126.55
80
FLAT WASHER 8MM
Price
N/A
81
V-BELT M28 3L280
Price
N/A
82
E-STOP BUTTON CORD 24G 2W 48"
Price
$37.20
101
CABINET FRAME V1
Price
$1,349.45
101-1
EMERGENCY STOP BUTTON ASSEMBLY
Price
N/A
101V2
CABINET FRAME V2.05.22
Price
$1,835.15
102
LARGE DOOR
Price
$60.70
104
SMALL DOOR
Price
$74.30
106
HEX NUT M12-1.75
Price
N/A
107
FLAT WASHER 12MM
Price
N/A
108
STUD-FT M12-1.75 X 70
Price
$10.65
109
CAP SCREW M8-1.25 X 20
Price
N/A

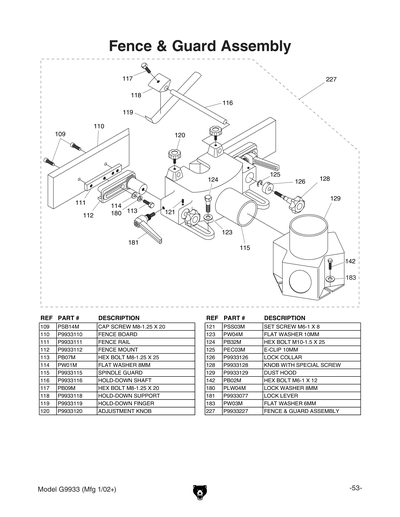

110
FENCE BOARD
Price
$83.10
111
FENCE RAIL
Price
$33.85
112
FENCE MOUNT
Price
$53.15
112A
3/4" Spindle Fits Grizzly® G9933 Shaper
Price
N/A
113
HEX BOLT M8-1.25 X 25
Price
N/A
114
FLAT WASHER 8MM
Price
N/A
115
SPINDLE GUARD
Price
$306.55
116
HOLD DOWN SHAFT
Price
$42.85
117
HEX BOLT M8-1.25 X 20
Price
N/A
118
HOLD DOWN SUPPORT
Price
$35.70
119
HOLD DOWN FINGER
Price
$19.35
120
ADJUSTMENT KNOB
Price
$21.00
121
SET SCREW M6-1 X 8
Price
N/A
122
TABLE INSERT ASSEMBLY
Price
N/A
122-1
TABLE INSERT ASSEMBLY
Price
$95.40
123
FLAT WASHER 10MM
Price
N/A
124
HEX BOLT M10-1.5 X 25
Price
N/A
125
E-CLIP 10MM
Price
N/A
126
LOCK COLLAR
Price
$12.75
128
KNOB W/SCREW
Price
$52.60
129
DUST HOOD
Price
$206.80
134
KNOB
Price
$9.40
135
FLAT WASHER 8MM
Price
N/A
136
MITER GAUGE BODY
Price
$32.95
137
SLIDE PLATE
Price
$33.55
138
PIN 6 X 10
Price
$1.60
139
TERMINAL ASSEMBLY
Price
N/A
140
TERMINAL ASSEMBLY
Price
N/A
141
FLAT WASHER 5MM
Price
N/A
142
HEX BOLT M6-1 X 12
Price
N/A
143
SET SCREW M5-.8 X 8
Price
N/A
144
TABLE
Price
$3,578.80
145
EXT RETAINING RING 25MM
Price
N/A
146
CUTTER SPINDLE 3/4"
Price
$371.65
147
SPACER KIT 3/4"
Price
$113.85
148
SPINDLE NUT 3/4"
Price
$31.75
149
CUTTER SPINDLE FLAT WASHER 12MM
Price
$21.50
150
LOCK WASHER 3/8
Price
N/A
151
P9933151
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
152
TABLE INSERT ASSEMBLY
Price
N/A
153
T-SLOT WASHER OD21.8 X 2.8MML
Price
$5.80
154
P9933154
Now: PS09
PHLP HD SCR 1/4-20 X 1/4
Price
N/A
155
ANGLE INDICATOR
Price
$3.05
156
PHLP HD SCR M5-.8 X 8
Price
N/A
157
HANDWHEEL BOLT M8-1.25 X 80
Price
$4.60
158
P9933158
Now: PN02
HEX NUT 5/16-18
Price
N/A
159
Nameplate - Mini
Price
N/A
160
TAP SCREW M4 X 10
Price
N/A
161
COMPRESSION SPRING
Price
$3.05
162
E-CLIP 4MM
Price
N/A
163
DOOR HINGE PIN
Price
$8.20
164
*DISCD*FWD/REV SWITCH V1.08.03
Item is no longer available
Price
N/A
164A
FWD/REV SWITCH V2.03.06
Price
$119.70
165
ON/OFF SWITCH
Price
$82.75
166
HINGE PIN
Price
$4.60
167
DOOR HANDLE
Price
N/A
168
DOOR HANDLE
Price
N/A
169
DOOR HANDLE
Price
N/A
170
DOOR HANDLE
Price
N/A
171
DOOR HANDLE
Price
N/A
172
DOOR HANDLE
Price
N/A
173
DOOR HANDLE
Price
$27.55
174
TERMINAL ASSEMBLY
Price
N/A
175
TERMINAL ASSEMBLY
Price
N/A
176
P9933176
Now: PN07
HEX NUT 10-24
Price
N/A
177
TERMINAL BLOCK 9 POST
Price
$17.25
177A
TERMINAL ASSEMBLY
Price
$197.50
178
STRAIN RELIEF 3/4" TYPE-6 ST
Price
N/A
179
*DISCD*CONTACTOR GTM-19A 220V V1
Price
N/A
179-1
*DISCD*THERMAL OVERLOAD GTH-20 12/18A V1
Item is no longer available
Price
N/A
179-1V2
OL RELAY NHD TH-12 12/18 V2.01.04
Price
$92.40
179-2V2
CONTACTOR NHD C-12D10 220V V2.01.04
Price
$217.70
179A
*DISCD*THERMAL OVERLOAD GTH-20 12/18A V1
Price
N/A
180
LOCK WASHER 8MM
Price
N/A
181
ADJUSTABLE HANDLE M8-1.25 X 10
Price
$59.80
182
MAG SWITCH BOX V1
Price
$87.70
182V2
MAG SWITCH BOX NHD V2.01.04
Price
$87.90
183
FLAT WASHER 6MM
Price
N/A
225
SPINDLE PULLEY
Price
N/A
226
***USE P9933226V2***
Price
$234.05
226V2
MAG SWITCH ASSY NHD V2.01.04
Price
$324.25
227
FENCE & GUARD ASSY
Price
$1,024.30
228
HARDWARE ASSY
Price
$3,340.90
229
TOOL BOX
Price
$39.30
230
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
231
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
232
TOOLBOX
Price
N/A
233
FRONT GUARD EXTENSION PLATE
Price
$73.70
234
FRONT GUARD
Price
$24.80
235
FLAT WASHER 6MM
Price
N/A
236
KNOB BOLT M6-1 X 16 6-LOBE
Price
$7.60

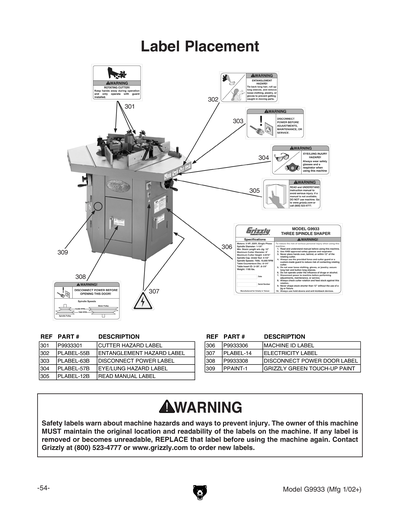

301
CUTTER HAZARD LABEL
Price
$4.25
302
ENTANGLEMENT HAZARD 3.8W X 2H
Price
N/A
303
DISCONNECT 220V 3.8W X 2H
Price
N/A
304
GLASSES/RESPIRATOR 3.8 X 2H
Price
N/A
305
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
306
MACHINE ID LABEL
Price
$16.40
307
ELECTRICITY 1.4W X 1.2H
Price
N/A
308
DISCONNECT POWER DOOR LABEL
Price
$1.85
309
N/S GRIZZLY GREEN G1023S
Price
N/A
MANUAL
MANUAL FOR G9933 03/09
Price
$15.25
