Parts for G9953ZX 16" x 99" Z Series Jointer w/ Spiral Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

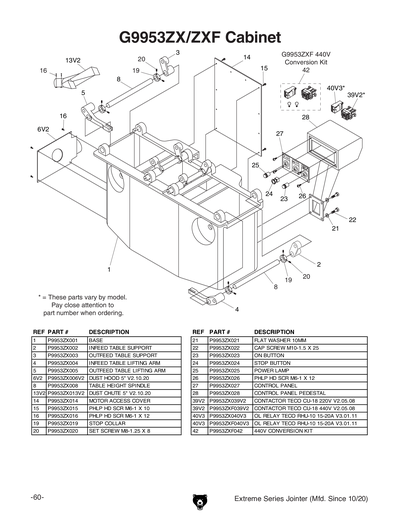

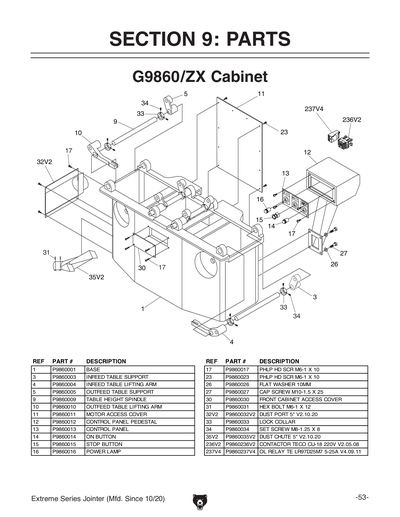

1
BASE
Price
N/A
2
INFEED TABLE SUPPORT
Price
N/A
3
OUTFEED TABLE SUPPORT
Price
N/A
4
INFEED TABLE LIFTING ARM
Price
N/A
5
OUTFEED TABLE LIFTING ARM
Price
N/A
6
DUST HOOD
Price
N/A
6V2
DUST HOOD 5" V2.10.20
6V3
DUST HOOD 5" V3.01.21
7
OUTFEED REAR HOUSING
Price
N/A
8
TABLE HEIGHT SPINDLE
Price
N/A
9
INFEED TABLE REAR HOUSING
Price
N/A
10
FRONT TABLE COVER
Price
N/A
11
Now: PW01M
FLAT WASHER 8MM
Price
N/A
12
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
13
DUST CHUTE
Price
N/A
13V2
DUST CHUTE 5" V2.10.20
13V3
DUST CHUTE 5" V3.01.21
14
MOTOR ACCESS COVER
Price
N/A
15
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
16
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
16V2
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
17
Now: PW02
FLAT WASHER 3/8
Price
N/A
18
KNOB M10-1.5 X 30
Price
N/A
19
LOCK COLLAR
Price
N/A
20
SET SCREW M8-1.25 X 8
Price
N/A
21
Now: PW04M
FLAT WASHER 10MM
Price
N/A
22
CAP SCREW M10-1.5 X 25
Price
N/A
23
ON BUTTON RENY R9C1VN 22MM GRN
Price
N/A
24
E-STOP BUTTON RENY R9C01VN
Price
N/A
25
POWER INDICATOR LIGHT 22MM RED
Price
N/A
26
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
27
CONTROL PANEL
Price
N/A
28
CONTROL PANEL PEDESTAL
Price
N/A
39
*DISCD*CONTACTOR TAIAN CN-25 220V V1
Price
N/A
39V2
CONTACTOR TECO CU-27 220V V2.05.08
Price
N/A
40
OL RELAY TECO RHN-80A2 40A V1
Price
N/A
40V3
OL RELAY TECO RHU-80A2 24.5-36A V3.01.11
Price
N/A
41
BRAKE SWITCH
Price
N/A
43
BRAKE PLATE
Price
N/A
44
CAP SCREW M8-1.25 X 35
Price
N/A
45
Now: PN03M
HEX NUT M8-1.25
Price
N/A
46
BRAKE BRACKET
Price
N/A
47
BRAKE PAD
Price
N/A
48
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
49
Now: PW03
FLAT WASHER #10
Price
N/A
50
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
51
CAP SCREW M8-1.25 X 16
Price
N/A
52
Now: PN04M
HEX NUT M4-.7
Price
N/A
53
SET SCREW M4-.7 X 50
Price
N/A
54
Now: PB71M
HEX BOLT M6-1 X 45
Price
N/A
55
Now: PN01M
HEX NUT M6-1
Price
N/A
56
TENSION SPRING .9 X 60 X 50 MM
Price
N/A

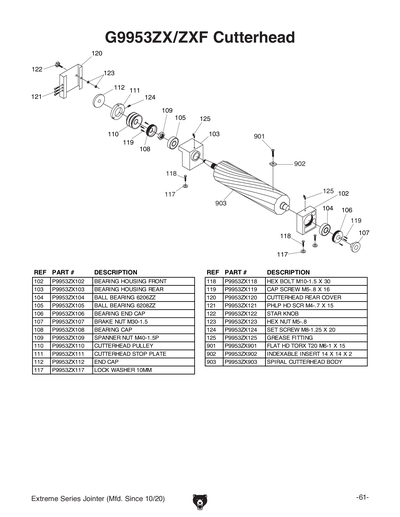

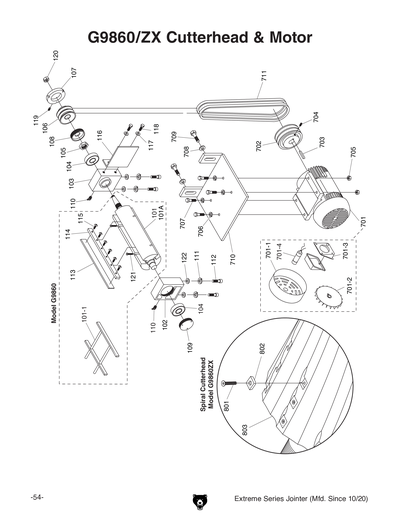

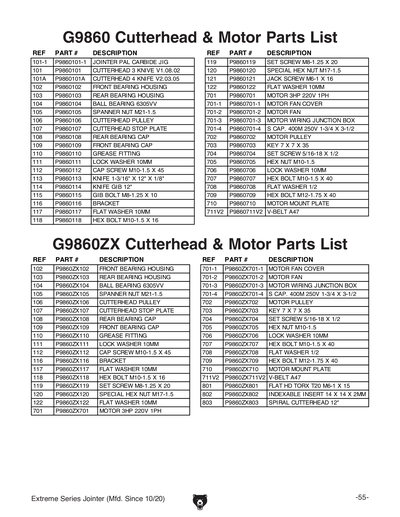

102
BEARING HOUSING FRONT
Price
N/A
103
BEARING HOUSING REAR
Price
N/A
104
BALL BEARING 6206ZZ
Price
N/A
105
BALL BEARING 6208ZZ
Price
N/A
106
BEARING END CAP
Price
N/A
107
BRAKE NUT M30-1.5
Price
N/A
108
BEARING CAP
Price
N/A
109
SPANNER NUT M40-1.5P
Price
N/A
110
CUTTERHEAD PULLEY
Price
N/A
111
CUTTERHEAD STOP PLATE
Price
N/A
112
END CAP
Price
N/A
117
LOCK WASHER 10MM
Price
N/A
118
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
119
CAP SCREW M5-.8 X 16
Price
N/A
120
*DISCD*CUTTERHEAD REAR COVER
Price
N/A
121
Now: PS21M
PHLP HD SCR M4-.7 X 15
Price
N/A
122
STAR KNOB
Price
N/A
123
Now: PN06M
HEX NUT M5-.8
Price
N/A
124
SET SCREW M8-1.25 X 20
Price
N/A
125
GREASE FITTING 1/8 NPT STRAIGHT
Price
N/A

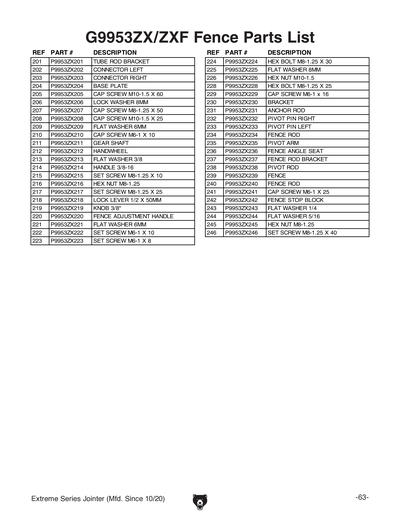

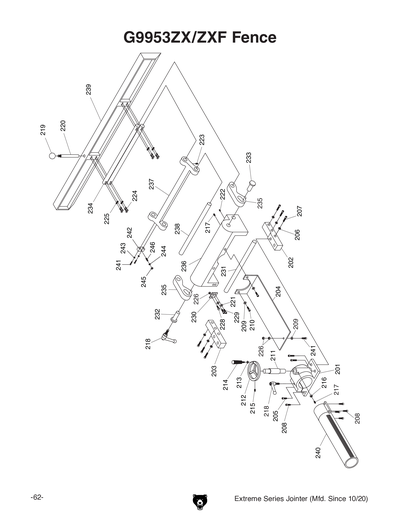

201
TUBE ROD BRACKET
Price
N/A
202
CONNECTOR LEFT
Price
N/A
203
CONNECTOR RIGHT
Price
N/A
204
BASE PLATE
Price
N/A
205
CAP SCREW M10-1.5 X 60
Price
N/A
206
LOCK WASHER 8MM
Price
N/A
207
CAP SCREW M8-1.25 X 50
Price
N/A
208
CAP SCREW M10-1.5 X 25
Price
N/A
209
Now: PW03M
FLAT WASHER 6MM
Price
N/A
210
CAP SCREW M6-1 X 10
Price
N/A
211
GEAR SHAFT
Price
N/A
212
HANDWHEEL
Price
N/A
213
Now: PW02
FLAT WASHER 3/8
Price
N/A
214
HANDLE 3/8-16
Price
N/A
215
SET SCREW M8-1.25 X 10
Price
N/A
216
Now: PN03M
HEX NUT M8-1.25
Price
N/A
217
SET SCREW M8-1.25 X 25
Price
N/A
218
*DISCD*LOCK LEVER 2PC STANDARD V1
Price
N/A
219
KNOB 3/8-16
Price
N/A
220
FENCE ADJUSTMENT HANDLE
Price
N/A
221
Now: PW03M
FLAT WASHER 6MM
Price
N/A
222
SET SCREW M6-1 X 10
Price
N/A
223
SET SCREW M6-1 X 8
Price
N/A
224
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
225
Now: PW01M
FLAT WASHER 8MM
Price
N/A
226
Now: PN02M
HEX NUT M10-1.5
Price
N/A
227
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
228
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
229
CAP SCREW M6-1 X 16
Price
N/A
230
BRACKET
Price
N/A
231
ANCHOR ROD
Price
N/A
232
*DISCD*PIVOT PIN RIGHT STANDARD V1
Price
N/A
233
*DISCD*PIVOT PIN LEFT STANDARD V1
Price
N/A
234
FENCE ROD
Price
N/A
235
PIVOT ARM
Price
N/A
236
FENCE ANGLE SEAT
Price
N/A
237
FENCE ROD BRACKET
Price
N/A
238
PIVOT ROD
Price
N/A
239
FENCE
Price
N/A
240
FENCE ROD
Price
N/A
241
CAP SCREW M6-1 X 25
Price
N/A
242
FENCE STOP BLOCK
243
Now: PW06
FLAT WASHER 1/4
Price
N/A
244
Now: PW07
FLAT WASHER 5/16
Price
N/A
245
Now: PN03M
HEX NUT M8-1.25
Price
N/A
246
SET SCREW M8-1.25 X 40
Price
N/A

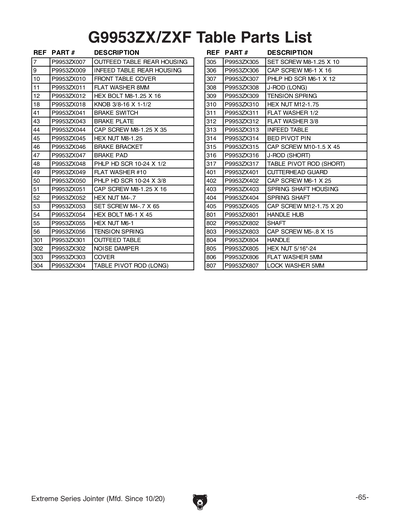

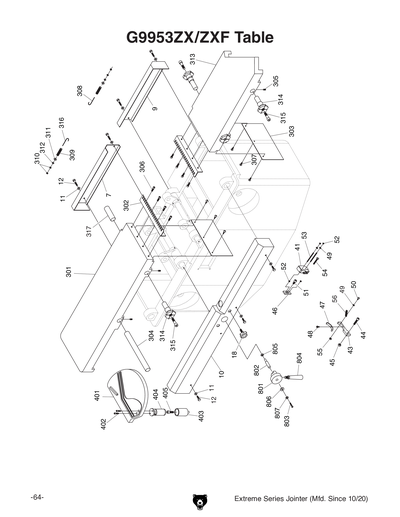

301
OUTFEED TABLE LEFT SHORT
Price
N/A
302
NOISE DAMPER
Price
N/A
303
COVER
Price
N/A
304
LONG TABLE PIVOT ROD
Price
N/A
305
SET SCREW M8-1.25 X 10
Price
N/A
306
CAP SCREW M6-1 X 16
Price
N/A
307
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
308
J-ROD LONG
Price
N/A
309
TENSION SPRING
Price
N/A
310
Now: PN09M
HEX NUT M12-1.75
Price
N/A
311
Now: PW01
FLAT WASHER 1/2
Price
N/A
312
Now: PW02
FLAT WASHER 3/8
Price
N/A
313
INFEED TABLE - RIGHT
Price
N/A
314
BED PIVOT PIN M12-1.75 X 30
Price
N/A
315
CAP SCREW M10-1.5 X 45
Price
N/A
316
J-ROD SHORT
Price
N/A
317
TABLE PIVOT ROD SHORT
Price
N/A
401
CUTTERHEAD GUARD
Price
N/A
402
CAP SCREW M6-1 X 25
Price
N/A
403
SPRING SHAFT HOUSING
Price
N/A
404
SPRING SHAFT W/COVER
Price
N/A
405
CAP SCREW M12-1.75 X 20
Price
N/A

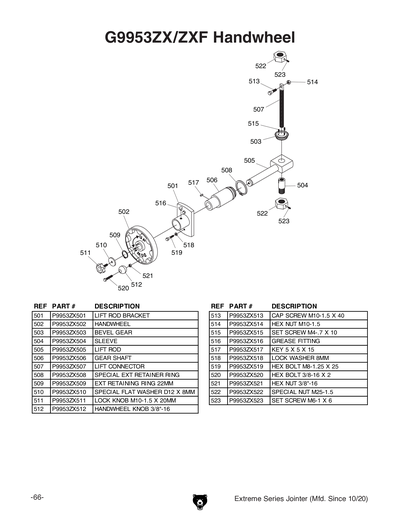

501
LIFT ROD BRACKET
Price
N/A
502
HANDWHEEL
Price
N/A
503
BEVEL GEAR M4-0.7 X 2
Price
N/A
504
SLEEVE
Price
N/A
505
LIFT ROD
Price
N/A
506
GEAR SHAFT
Price
N/A
507
LIFT CONNECTOR
Price
N/A
508
GEAR SHAFT EXT RETAINER RING M40
Price
N/A
509
Now: PR10M
EXT RETAINING RING 22MM
Price
N/A
510
HANDWHEEL FLAT WASHER 8MM X 12OD
Price
N/A
511
LOCK KNOB M10-1.5 X 20
Price
N/A
512
HANDWHEEL KNOB 3/8-16"
Price
N/A
513
CAP SCREW M10-1.5 X 40
Price
N/A
514
Now: PN02M
HEX NUT M10-1.5
Price
N/A
515
SET SCREW M4-.7 X 10
Price
N/A
516
GREASE FITTING 3/16"
Price
N/A
517
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
518
LOCK WASHER 8MM
Price
N/A
519
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
520
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
521
Now: PN08
HEX NUT 3/8-16
Price
N/A
522
SLEEVE NUT M25-1.5
Price
N/A
523
SET SCREW M6-1 X 6
Price
N/A
601
ROD
Price
N/A
602
KNURLED KNOB
Price
N/A
603
BRAKE CASING
Price
N/A
604
ROLL PIN 3 X 18
Price
N/A
605
SPRING D0.8 X D11 X 47MML
Price
N/A
606
SET SCREW M6-1 X 6
Price
N/A

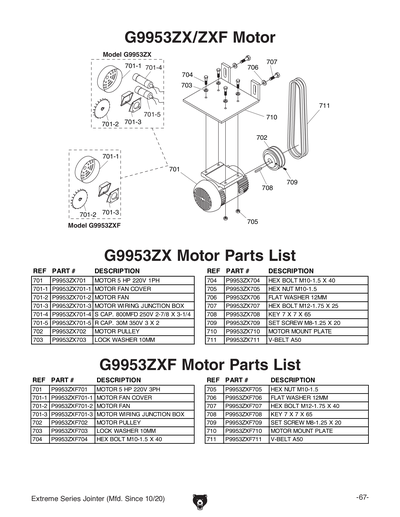

701
MOTOR 5HP 220V 1-PH
Price
N/A
701-1
MOTOR FAN COVER
Price
N/A
701-2
MOTOR FAN
Price
N/A
701-3
MOTOR WIRING JUNCTION BOX
Price
N/A
701-4
S CAPACITOR 800M 250V 2 X 4
Price
N/A
701-5
Now: PC30A
R CAPACITOR 30M 350V 3 X 2
Price
N/A
702
MOTOR PULLEY
Price
N/A
703
LOCK WASHER 10MM
Price
N/A
704
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
705
Now: PN02M
HEX NUT M10-1.5
Price
N/A
706
Now: PW06M
FLAT WASHER 12MM
Price
N/A
707
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
708
Now: PK57M
KEY 7 X 7 X 65
Price
N/A
709
SET SCREW M8-1.25 X 20
Price
N/A
710
MOTOR MOUNT PLATE
Price
N/A
711
Now: PVA50
V-BELT A50
Price
N/A

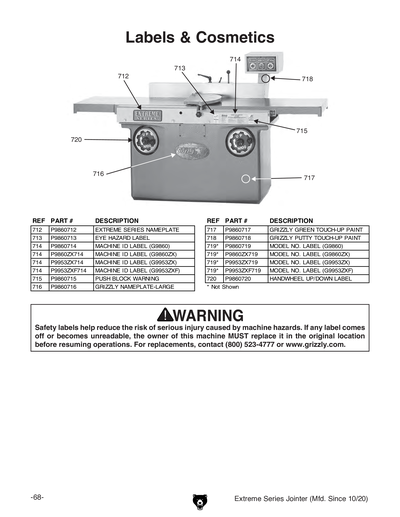

712
Now: H7942
Extreme Series Nameplate
Price
N/A
713
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
714
MACHINE ID LABEL
715
PUSH BLOCK WARNING
Price
N/A
716
Now: G8589
Nameplate - Large
Price
N/A
717
N/S GRIZZLY GREEN G1023S
Price
N/A
718
GREY PUTTY REF G0504
Price
N/A
719
MODEL NUMBER LABEL
801
HANDLE HUB
Price
N/A
802
SHAFT
Price
N/A
803
CAP SCREW M5-.8 X 15
Price
N/A
804
HANDLE
Price
N/A
805
Now: PN20
HEX NUT 5/16-24
Price
N/A
806
Now: PW02M
FLAT WASHER 5MM
Price
N/A
807
LOCK WASHER 5MM
Price
N/A
901
FLAT HD TORX T20 M6-1 X 15
Price
N/A
902
Now: H7319
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
903
SPIRAL CUTTERHEAD BODY
904
*DISCD*CONVERSION KIT 440V
Item is no longer available
Price
N/A
905
AIR PRESSURE TORQUE WRENCH
906
PRESSURE GAUGE ASSEMBLY
MANUAL
MANUAL FOR G9860 V1.10.08
Price
N/A
MANV2
MANUAL G9860 MFG 04.09 V2.06.09
Price
N/A
MANV3
MANUAL G9860 MFG 04.10 V3.09.10
Price
N/A
MANV4
MANUAL G9860 MFG 01.11 V4.02.11
Price
N/A
MANV5
MANUAL G9860 MFD-09.11-09.20 V5.09.11
Price
N/A
MANV6
MANUAL G9860 MFD-10.20+ V6.10.20
Price
N/A
