Parts for G9962Z 24" 10 HP Wide-Belt Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

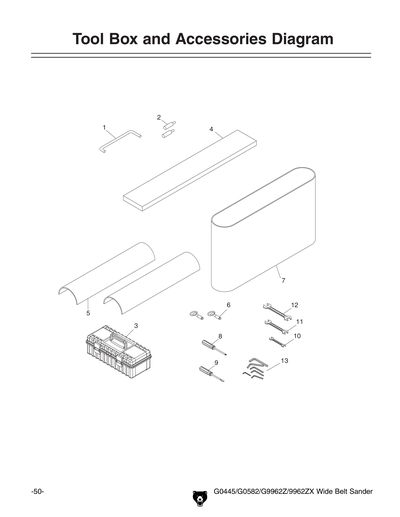

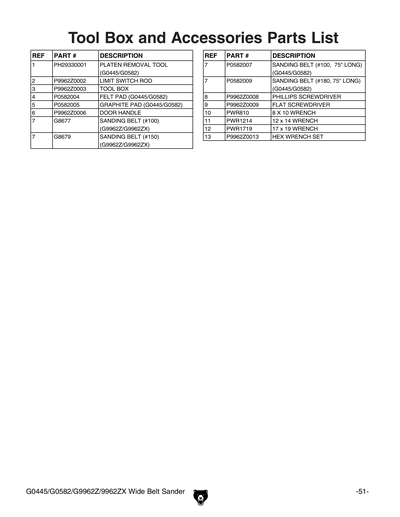

1
*DISCD*FELT PLATEN REMOVAL TOOL
Price
N/A
2
LIMIT SWITCH CERAMIC TIP
3
TOOL BOX
6
DOOR HANDLE
Price
N/A
7-1
Now: G8677
25" x 60" A/O Sanding Belt 100 Grit
Price
N/A
7-2
***USE G8679***
8
PHLP HD SCREWDRIVER
9
FLAT HD SCREWDRIVER
10
***USE PWR810***
11
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
12
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
13
HEX WRENCH SET
2
LIMIT SWITCH CERAMIC TIP
Price
N/A
3
TOOL BOX
Price
N/A
6
DOOR HANDLE
Price
N/A
7-1
Now: G8677
25" x 60" A/O Sanding Belt 100 Grit
Price
N/A
7-2
***USE G8679***
8
***USE P9962Z0008***
9
FLAT HD SCREWDRIVER
Price
N/A
10
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
11
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
12
***USE PWR1719***
13
***USE P9962Z0013***

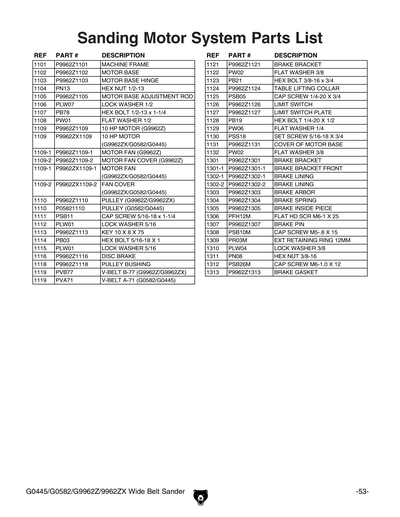

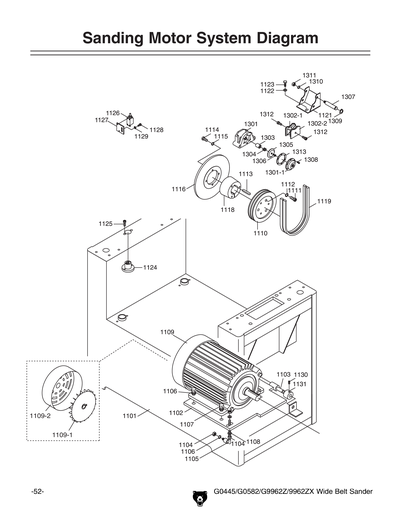

1101
MACHINE FRAME
1102
MOTOR BASE
1103
MOTOR BASE HINGE
1104
Now: PN06
HEX NUT 1/2-12
Price
N/A
1105
MOTOR BASE ADJUSTMENT ROD
1106
Now: PLW04
LOCK WASHER 3/8
Price
N/A
1107
***USE PB24***
1108
***USE PW01***
1109
SANDING BELT MOTOR 10HP 220V 1-PH
1109-1
MOTOR FAN
1109-2
MOTOR FAN COVER
1109-3
CENTRIFUGAL SWITCH
1110
PULLEY
1111
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
1112
Now: PLW01
LOCK WASHER 5/16
Price
N/A
1113
KEY 8 X 10 X 75
1114
***USE PB03***
1115
Now: PLW04
LOCK WASHER 3/8
Price
N/A
1116
DISK BRAKE
1118
PULLEY BUSHING
1119
***USE PVB77***
1121
BRAKE BRACKET
1122
***USE PW02***
1123
***USE PB21***
1124
***USE PH29331124***
1125
CAP SCREW 1/4-20 X 3/4
Price
N/A
1126
LIMIT SWITCH
1127
LIMIT SWITCH PLATE
1128
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
1129
Now: PW06
FLAT WASHER 1/4
Price
N/A
113-2
*DISCD*FUSE 4A
Item is no longer available
Price
N/A
1130
CAP SCREW 5/16-18 X 3/4
Price
N/A
1131
FIXING COVER OF MOTOR BASE
1301
BRAKE BRACKET
Price
N/A
1301-1
BRACKET FRONT GUARD
Price
N/A
1301-313
COMPLETE BRAKE ASSY
Price
N/A
1302-1
BRAKE LINING
1302-2
BRAKE LINING
1303
BRAKE ARBOR
Price
N/A
1304
BRAKE SPRING 3.3 X 24.5 X 24
1305
BRAKE ARBOR PLATE
Price
N/A
1306
***USE PFH03***
1307
BRAKE PIN
Price
N/A
1308
***USE PCAP10M***
1309
*DISCD*"C" CIRCLIP S12
Item is no longer available
Price
N/A
1310
***USE PLW04***
1311
***USE PN08***
1312
***USE PCAP26M***
1313
BRAKE GASKET
1401
*DISCD*VISE VERNIER
Item is no longer available
Price
N/A
1402
*DISCD*FIXING BASE OF VISE VERNIER
Item is no longer available
Price
N/A
1403
*DISCD*MAIN VERNIER
Item is no longer available
Price
N/A
1404
*DISCD*SCREW 1/4"
Item is no longer available
Price
N/A
1405
*DISCD*NUT 5/16"
Item is no longer available
Price
N/A
1406
*DISCD*CAP 1/4"
Item is no longer available
Price
N/A
1407
*DISCD*SCREW 1/4"
Item is no longer available
Price
N/A
1408
*DISCD*PLAIN WASHER 1/4"
Item is no longer available
Price
N/A

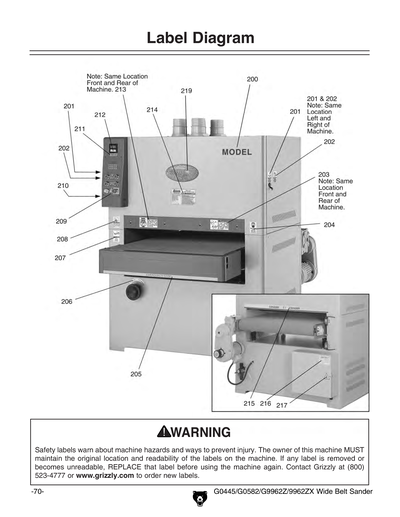

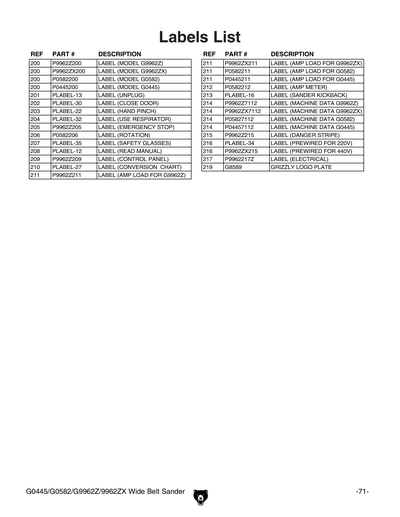

200
MACHINE ID LABEL
201
DISCONNECT SANDER 220V 2W X 3.3H
Price
N/A
202
DONT OPEN 2W X 3.3H
Price
N/A
203
SANDER BELT PINCH 4W X 2.1H
Price
N/A
204
***USE PLABEL-32***
205
EMERGENCY STOP LABEL
206
ROTATION LABEL
207
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
208
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
209
CONTROL PANEL LABEL
210
MM CONVERSION CHART 3.6W X 5.5H
Price
N/A

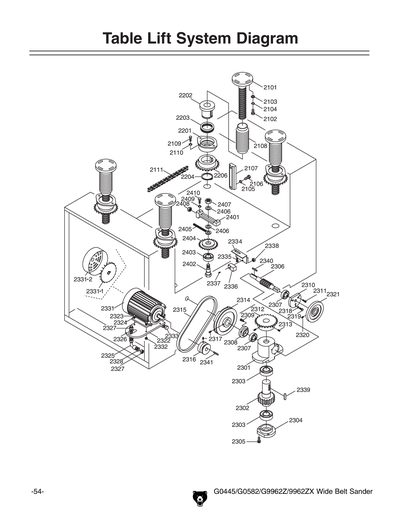

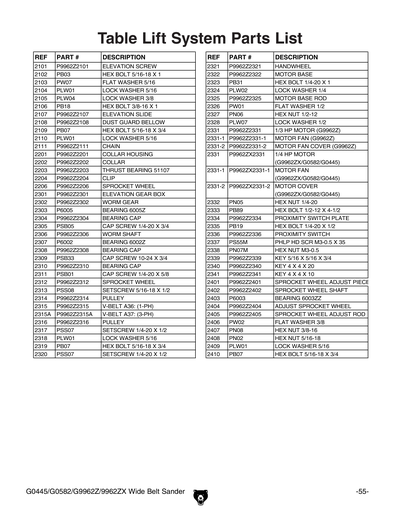

2101
ELEVATION SCREW 1 X 5 X 280
Price
N/A
2102
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
2103
Now: PW07
FLAT WASHER 5/16
Price
N/A
2104
Now: PLW01
LOCK WASHER 5/16
Price
N/A
2105
***USE PLW04***
2106
***USE PB18***
2107
ELEVATION SLIDE
2108
DUST GUARD BELLOW
2109
***USE PB07***
211
AMP LOAD LABEL
2110
***USE PLW01***
2111
CHAIN
212
AMP METER LABEL
213
***USE PLABEL-16A***
214
MACHINE DATA LABEL
215
DANGER STRIPE LABEL
216
PREWIRED 220V 3.3W X 2.2H
Price
N/A
217
ELECTRICAL LABEL
219
GRIZZLY LOGO PLATE
2201
SPROCKET SHAFT HOUSING
Price
N/A
2201-206
SET OF NUT HOUSING
2202
SPROCKET SHAFT
Price
N/A
2203
***USE P51107***
2204
***USE PR12M***
2206
LEADSCREW SPROCKET 24T
Price
N/A
2301
ELEVATION GEAR BOX
2301-313
SET OF ELEVATION GEAR BOX
2302
WORM GEAR
Price
N/A
2303
BALL BEARING 6005ZZ
Price
N/A
2304
BEARING CAP
2305
***USE PCAP05***
2306
WORM GEAR
Price
N/A
2307
BALL BEARING 6002ZZ
Price
N/A
2308
BEARING CAP
2309
***USE PCAP31***
2310
BEARING CAP
2311
CAP SCREW 1/4-20 X 5/8
Price
N/A
2312
SPROCKET WHEEL
Price
N/A
2313
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
2314
PULLEY
2315
Now: PVA36
V-BELT A36
Price
N/A
2315A
***USE PVA37***
2316
PULLEY
2317
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
2318
***USE PLW01***
2319
***USE PB07***
2320
***USE PSS06***
2321
HAND WHEEL
2322
MOTOR BASE
2323
***USE PB31***
2324
Now: PLW02
LOCK WASHER 1/4
Price
N/A
2325
MOTOR BASE ADJUSTMENT ROD
2326
Now: PW01
FLAT WASHER 1/2
Price
N/A
2327
***USE PN06***
2328
***USE PLW07***
2331
TABLE ELV MOTOR 1/3HP 220V 1-PH
2331-1
CENTRIFUGAL SWITCH 7/8-1720
Price
N/A
2331-2
MOTOR FAN COVER
2332
Now: PN05
HEX NUT 1/4-20
Price
N/A
2333
Now: PB89
HEX BOLT 1/2-12 X 4-1/2
Price
N/A
2334
PROXIMITY SWITCH PLATE
2336
PROXIMITY SWITCH
Price
N/A
2337
***USE PS97M***
2338
***USE PN07M***
2339
Now: PK14
KEY 5/16 X 5/16 X 3/4
Price
N/A
2340
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
2341
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
2401
CHAIN TENSIONER BRACKET
Price
N/A
2401-410
SET OF SPROCKET WHEEL
2402
SPROCKET SHAFT
Price
N/A
2403
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
2404
SPROCKET WHEEL
Price
N/A
2405
SPROCKET WHEEL ADJUSTMENT ROD
2406
***USE PW02***
2407
Now: PN08
HEX NUT 3/8-16
Price
N/A
2408
Now: PN02
HEX NUT 5/16-18
Price
N/A
2409
Now: PLW01
LOCK WASHER 5/16
Price
N/A
2410
***USE PB07***

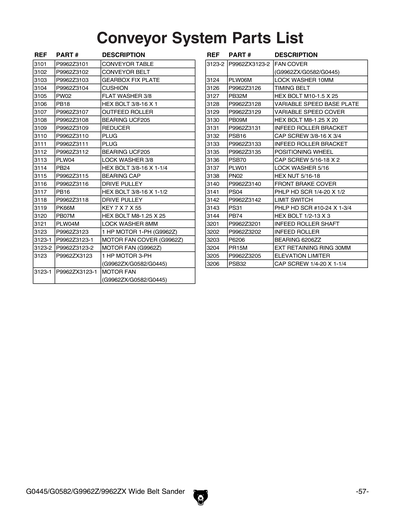

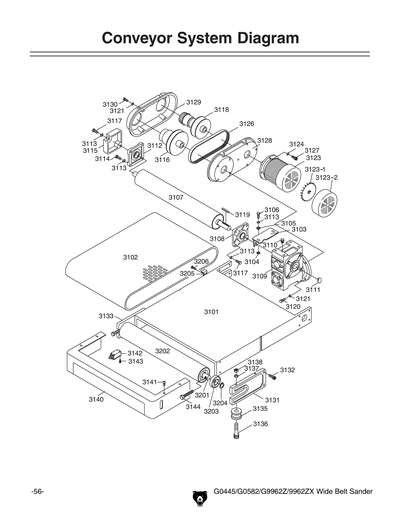

3101
CONVEYOR TABLE
3102
CONVEYOR BELT
3103
GEARBOX FIX PLATE
3104
CUSHION
3105
Now: PLW04
LOCK WASHER 3/8
Price
N/A
3106
***USE PB18***
3107
OUTFEED ROLLER
3108
***USE PUCF205***
3109
REDUCER
Price
N/A
3110
PLUG
3111
PLUG
3112
***USE PUCF205***
3113
Now: PLW04
LOCK WASHER 3/8
Price
N/A
3114
***USE PB24***
3115
BEARING CAP
3116
DRIVEN PULLEY
3117
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
3118
DRIVING PULLEY
3119
***USE PK66M***
3120
***USE PB07M***
3121
LOCK WASHER 8MM
Price
N/A
3123
***USE P0571327***
3123-1
MOTOR FAN COVER
3123-2
MOTOR FAN
3124
Now: PLW06
LOCK WASHER 5/8
Price
N/A
3126
TIMING BELT
Price
N/A
3127
*DISCD*SCREW M10
Item is no longer available
Price
N/A
3128
VARIABLE SPEED UNIT BASE PLATE & COVER
3129
VARIABLE SPEED UNIT BASE PLATE & COVER
Price
N/A
3130
SET SCREW M8-1.25 X 20
Price
N/A
3131
INFEED ROLLER BRACKET
Price
N/A
3132
***USE PCAP33***
3133
INFEED ROLLER BRACKET
3135
CONVEYOR BELT POSITIONING WHEEL
3136
CAP SCREW 5/16-18 X 2
Price
N/A
3137
***USE PLW01***
3138
Now: PN02
HEX NUT 5/16-18
Price
N/A
3140
EMGNCY BRAKE PUSH-PLATE
Price
N/A
3141
***USE PS04***
3142
LIMIT SWITCH
Price
N/A
3143
***USE PS10***
3144
HEX HD BOLT 1/2 X 3"
3201
INFEED ROLLER SHAFT
3202
INFEED ROLLER
3203
BALL BEARING 6206ZZ
Price
N/A
3204
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
3205
ELEVATION ALUMINUM LIMITER
3206
***USE PCAP62***
4103
SPRING 2 X 16 X 60
4106
*DISCD*SCREW 5/16"
Item is no longer available
Price
N/A
4107
***USE PN08***
4108
***USE PB12***
4109
***USE PLW01***

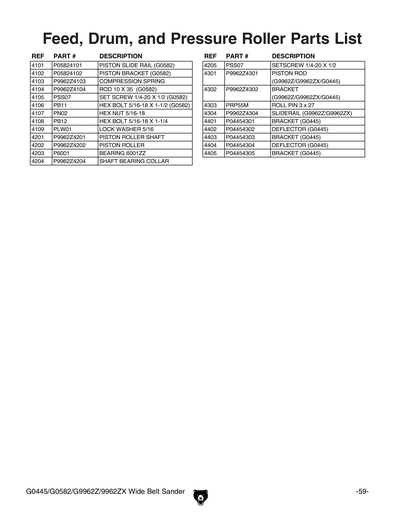

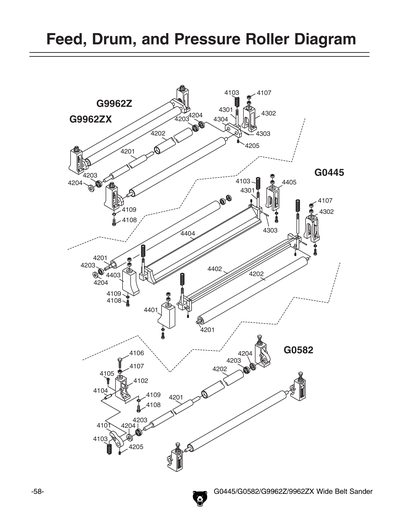

4201
PISTON ROLLER SHAFT
4201-205
SET OF PISTON ROLLER
4202
PISTON ROLLER
4203
BALL BEARING 6001-2RS
Price
N/A
4204
SHAFT BEARING COLLAR
4205
***USE PSS07***
4301
***USE P9962Z4301A***
4301A
PISTON ROD AND SLIDE RAIL ASSY
4302
PISTON BRACKET
4303
ROLL PIN 3 X 27
Price
N/A
4304
***USE P9962Z4301A***

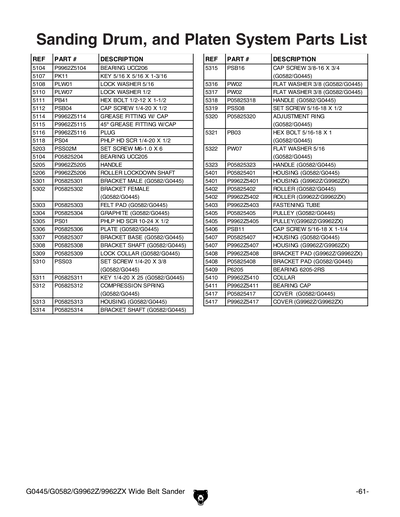

5104
***USE PUCC206***
5107
***USE PK11***
5108
***USE PLW01***
5110
***USE PLW07***
5111
CAP SCREW 1/2-12 X 1-1/2
Price
N/A
5112
***USE PCAP04***
5113
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
5114
GREASE FITTING 1/4-28 STRAIGHT
Price
N/A
5115
GREASE FITTING 90 DEG W/CAP
Price
N/A
5116
BEARING HOUSING PLUG
Price
N/A

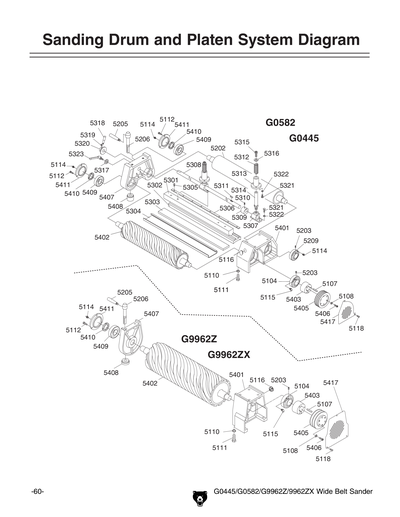

5203
CAP SCREW M6-1 X 6
Price
N/A
5204
CARTRIDGE BEARING UCC205
Price
N/A
5205
HANDLE
Price
N/A
5206
***USE P99795206***
5401
BEARING HOUSING
5402
RUBBER ROLLER
5403
FASTENING TUBE
5405
PULLEY
5406
***USE PCAP11***
5407
BEARING HOUSING
5408
BEARING BRACKET PAD
Price
N/A
5409
BALL BEARING 6205-2RS
Price
N/A
5410
SCREW CAP
5411
BEARING CAP
5417
COVER OF PULLEY

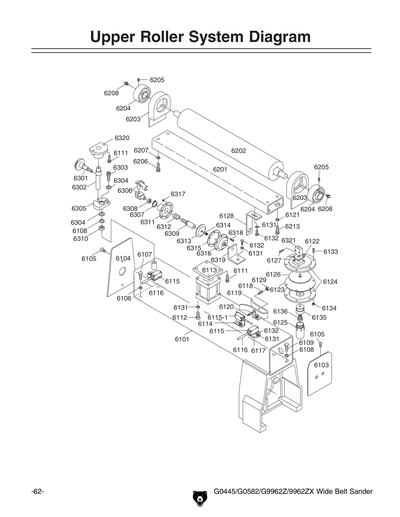

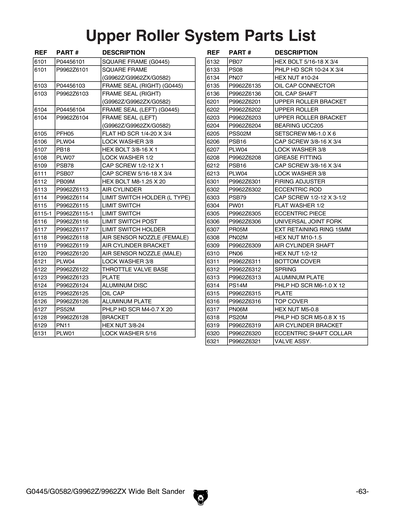

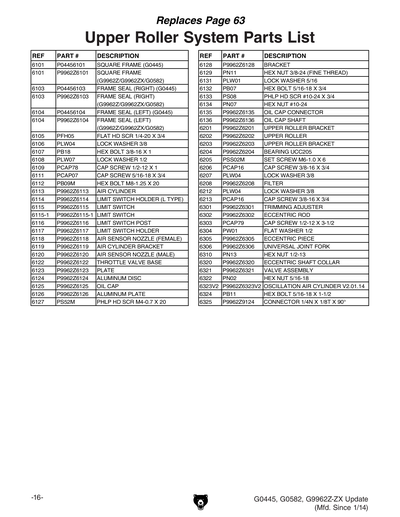

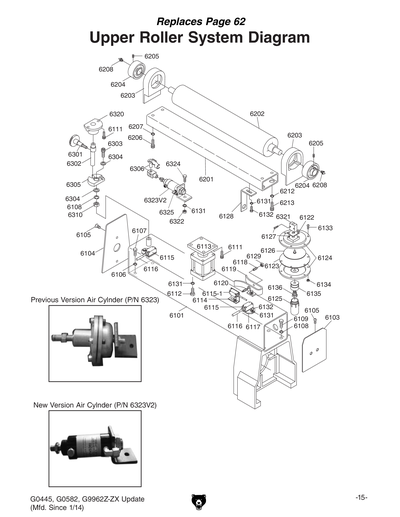

6101
SQUARE FRAME
6103
RIGHT SQUARE FRAME SEAL
6104
LEFT SQUARE FRAME SEAL
6105
***USE PFH03***
6106
***USE PLW04***
6107
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
6108
***USE PLW07***
6109
***USE PCAP78***
6111
***USE PCAP07***
6112
***USE PB09M***
6113
AIR CYLINDER
6114
LIMIT SWITCH HOLDER L-TYPE
6115
LIMIT SWITCH CERAMIC ASSY
6115-1
LIMIT SWITCH W/PLASTIC TIP
6116
LIMIT SWITCH CERAMIC TIP
Price
N/A
6117
LIMIT SWITCH HOLDER
6118
***USE P0539426***
6119
AIR FORK
Price
N/A
6120
AIR SENSOR NOZZLE MALE
Price
N/A
6121
Now: PLW04
LOCK WASHER 3/8
Price
N/A
6122
THROTTLE VALVE BASE
6123
PLATE
6124
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
6124A
ALUMINUM DISC ASSY
6125
OIL CAP
6126
ALUMINUM PLATE
Price
N/A
6127
***USE PS52M***
6128
SANDING BELT POWER OFF PLATE
6129
Now: PN11
HEX NUT 3/8-24
Price
N/A
6131
Now: PLW01
LOCK WASHER 5/16
Price
N/A
6132
***USE PB07***
6133
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
6134
Now: PN07
HEX NUT 10-24
Price
N/A
6135
CONNECTOR OF OIL CAP
Price
N/A
6136
SHAFT OF OIL CAP
6201
UPPER ROLLER BRACKET
6202
UPPER ROLLER
6203
ROLLER BRACKET UPPER
Price
N/A
6204
***USE PUCC205***
6205
***USE PSS02M***
6206
***USE PCAP33***
6207
Now: PLW04
LOCK WASHER 3/8
Price
N/A
6208
FILTER
6212
***USE PLW04***
6213
***USE PCAP16***
6301
TRIMMING ADJUSTER
6302
ECCENTRIC ROD
6303
***USE PCAP79***
6304
***USE PW01***
6305
ECCENTRIC
Price
N/A
6306
UNIVERSAL JOINT FORK
6307
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
N/A
6308
***USE PN27M***
6309
*DISCD*AIR CYLINDER SHAFT
6310
***USE PN06***
6311
*DISCD*BOTTOM COVER
6312
***USE P9962Z6323V2***
6313
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
N/A
6314
***USE PFH02M***
6315
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
N/A
6316
*DISCD*TOP COVER
6317
***USE PN07***
6318
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
6319
*DISCD*PHLP HD SCR M5-0.8 X 15
6320
FRAME OF ECCENTRIC SHAFT
6321
AIR VALVE
6322
Now: PN02
HEX NUT 5/16-18
Price
N/A
6323
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
N/A
6323V2
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
6324
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
6325
***USE P08191824***
Price
N/A

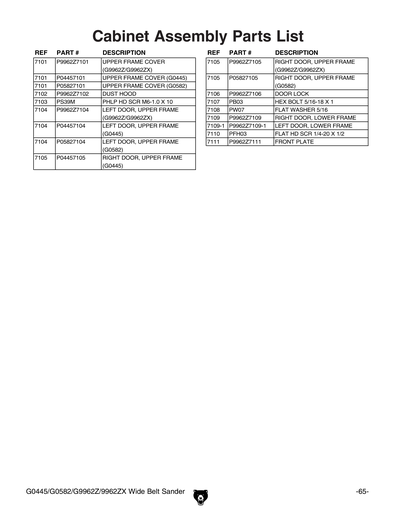

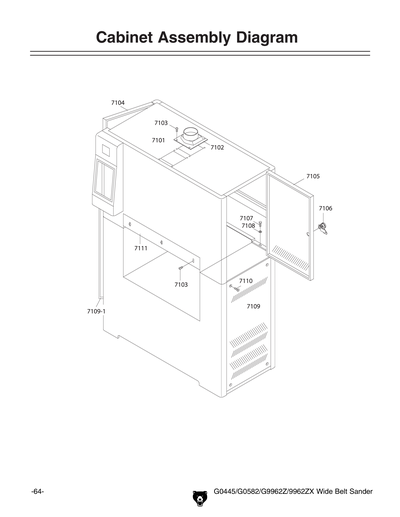

7101
UPPER FRAME COVER V1
7101V2
UPPER FRAME COVER V2.01.22
7102
DUST HOOD
7103
***USE PS14M***
7104
DOOR LEFT UPPER FRAME
7105
DOOR RIGHT UPPER FRAME
7106
DOOR LOCK (SQUARE KEY)
Price
N/A
7107
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
7108
Now: PW07
FLAT WASHER 5/16
Price
N/A
7109
DOOR RIGHT LOWER FRAME
7109-1
DOOR LEFT LOWER FRAME
7110
***USE PFH03***
7111
FRONT PROTECTION AL PLATE

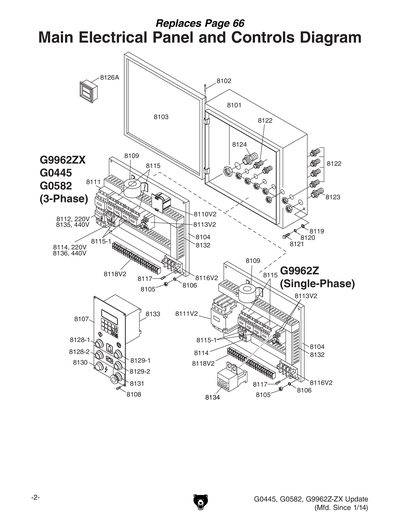

8101

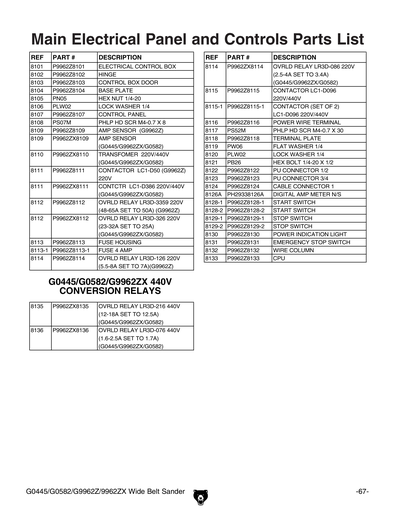

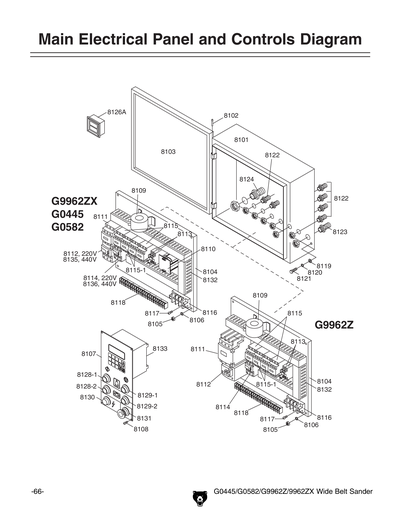

ELECTRICAL CONTROL BOX
8102
HINGE
8103
ELECTRICAL CONTROL BOX OF DOOR
8104
BASE PLATE
8105
Now: PN05
HEX NUT 1/4-20
Price
N/A
8106
Now: PLW02
LOCK WASHER 1/4
Price
N/A
8107
*DISCD*CONTROL PANEL
Price
N/A
8108
***USE PS07M***
8109
PROPORTIONAL CURRENT DEVICE
8111
*DISCD*MAGNETIC CONTACTOR TELE LC1D50 V1
Item is no longer available
Price
N/A
8111TE
***USE P9962Z8111V2***
8111V2
CONTACTOR LC1D50A TE V2.11.10
8112
OL RELAY TELE LR3D3359 48-65A V1
8112TE
***USE P9962Z8112***
8112V2
OL RELAY TELE LR3D3359 48-65A V1
Price
N/A
8113
FUSE 4A GL CT 2PC V1.07.05
Price
N/A
8113-1
***USE P9962ZX8113-1***
8113-2
***USE P08191739***
Price
N/A
8113-3
***USE P08191739***
Price
N/A
8113V2
FUSE HOUSING KTK-4 BUSSMANN 2PC V2.03.10
8113V2-1
FUSE BUSSMAN KTK-4 FA 100KA 600V
Price
N/A
8114
OL RELAY SCHN LR3D12 5.5-8A
Price
N/A
8114TE
OL RELAY SCHN LR3D12 5.5-8A
Price
N/A
8114V2
OL RELAY SCHN LR3D12 5.5-8A
Price
N/A
8115
CONTACTOR SCHN LC1D09 220V
Price
N/A
8115-1
MAG CONTACTOR LCD1D096 220V TE W/LOCK V1
8115-1TE
MAG CONTACTOR LCD1D096 220V TE W/LOCK V1
Price
N/A
8115-1V2
MAG CONTACTOR LCD1D096 220V TE W/LOCK V1
Price
N/A
8115-2
MAGNETIC CONTACTOR TOP 220V TE
8115TE
***USE P9962Z8115***
8115V2
***USE PH29338115***
Price
N/A
8116
POWER WIRE TERMINAL 3P110A V1.08.02
8116V2
POWER TERMINAL BLOCK ENTRELEC V2.03.10
8117
Now: PS51M
PHLP HD SCR M4-.7 X 30
Price
N/A
8118
TERMINAL PLATE IN13BK MARK V1.08.02
8118V2
TERMINAL BLOCK ENTRELEC V2.03.10
8119
***USE PW06***
8120
***USE PLW02***
8121
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
8122
PU CONNECTOR 1/2"
8123
PU CONNECTOR 3/4"
8124
CABLE CONNECTOR 1"
8126
AMP METER, DIGITAL
8126A
DIGITAL AMP METER V2.02.06
Price
N/A
8128-1
START SWITCH
Price
N/A
8128-2
START SWITCH
Price
N/A
8128-3
*DISCD*UP/DOWN TABLE ELEVATION SWITCH
Item is no longer available
Price
N/A
8129-1
BUTTON SWITCH, YK 10A 250V RED
Price
N/A
8129-2
BUTTON SWITCH, YK 10A 250V RED
Price
N/A
8129-3
*DISCD*STOP SWITCH
Item is no longer available
Price
N/A
8130
POWER INDICATOR LIGHT 220V 22MM WHT
Price
N/A
8131
***USE P05278131***
8132
WIRE COLUMN
8133
COMPUTER W/CONTROL PANEL
Price
N/A
8134
***USE P9983627***
8134V2
*DISCD*OL RELAY SCHN LT47 5-60A
Price
N/A

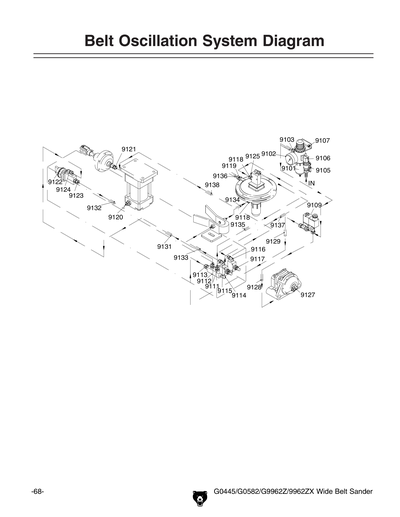

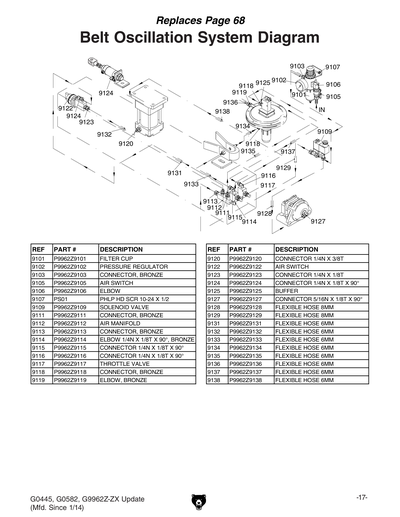

9101

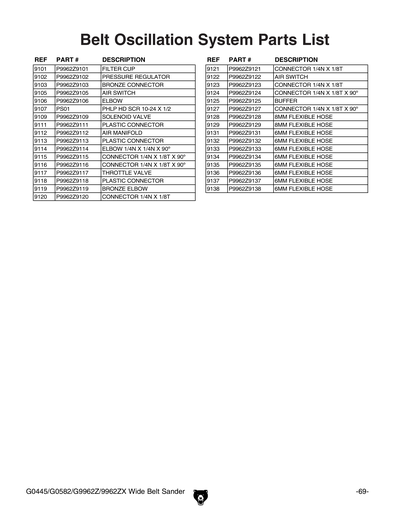

FILTER CUP W/PRESSURE REGULATOR
9102
GAUGE ASSEMBLY
9102-1
PRESSURE REGULATOR GAUGE 1/4"
9103
BRONZE CONNECTOR
9104
FLEXIBLE HOSE
9105
AIR SWITCH
Price
N/A
9106
ELBOW
9107
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
9108
ELBOW
9109
SOLENOID VALVE
9109-1
SOLENOID WIRING HARNESS
9110
T-JOINT
9111
CONNECTOR 5/16 X 1/4T BRONZE
Price
N/A
9112
MULTIPLE HOSE CONNECTOR
9113
CONNECTOR, BRONZE
9114
ELBOW 1/4N X 1/8T X 90 DEG, BRONZE
9115
CONNECTOR 1/4N X 1/8T X 90 DEG
9116
CONNECTOR 1/4N X 1/8T X 90 DEG
9117
THROTTLE VALVE
Price
N/A
9118
CONNECTOR, BRONZE
9119
CONNECTOR 1/4N
Price
N/A
9120
CONNECTOR 1/4N X 3/8T
9121
PLASTIC CONNECTOR
9122
AIR SWITCH
Price
N/A
9123
***USE P0539518***
Price
N/A
9124
CONNECTOR 1/4N X 1/8T-90-DEG
Price
N/A
9125
BUFFER BRONZE
Price
N/A
9126
MULTIPLE HOLE CONNECTOR
9127
CONNECTOR 5/16N X 1/8T X 90 DEG
9128
FLEXIBLE HOSE 8MM
9129
FLEXIBLE HOSE 8MM
9130
*DISCD*FLEXIBLE HOSE
Item is no longer available
Price
N/A
9131
FLEXIBLE HOSE 6MM
9132
FLEXIBLE HOSE 6MM
9133
FLEXIBLE HOSE 6MM
9134
FLEXIBLE HOSE 6MM
9135
FLEXIBLE HOSE 6MM
9136
FLEXIBLE HOSE 6MM
9137
FLEXIBLE HOSE 6MM
9138
FLEXIBLE HOSE 6MM
MANUAL
MANUAL FOR G9962Z/ZX 10/05
P05826325
***USE P08191824***
Price
N/A
