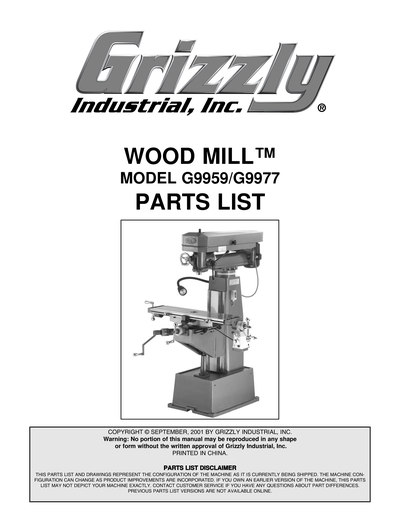

Parts for G9977 - Wood Mill® - Wood & Metalworking w/ Power Feed

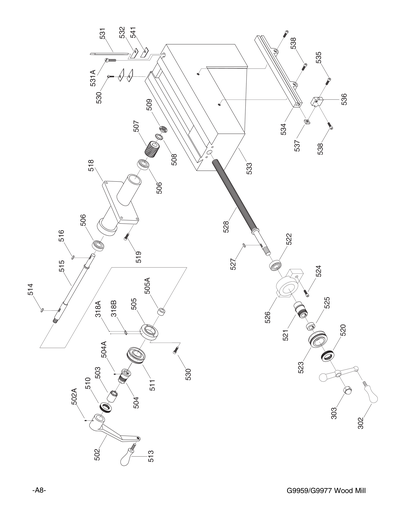

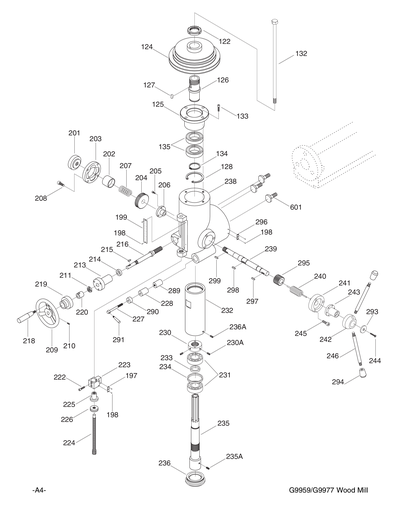

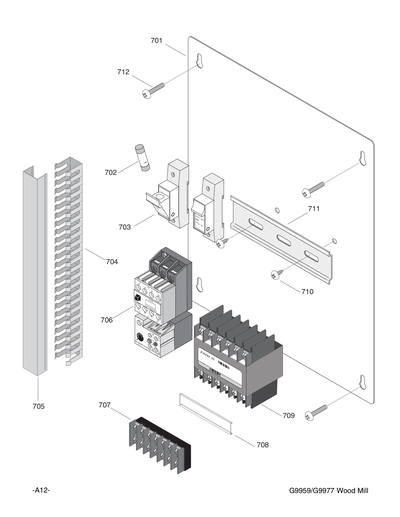

Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977
Part Diagram for G9977

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

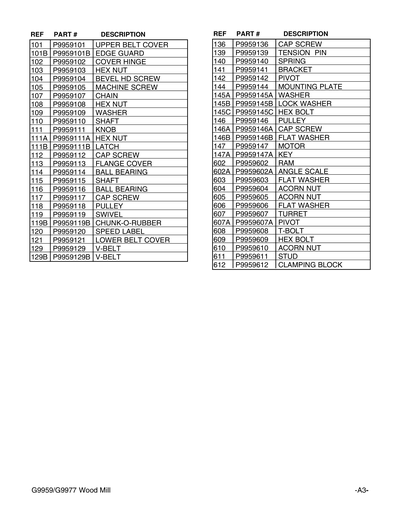

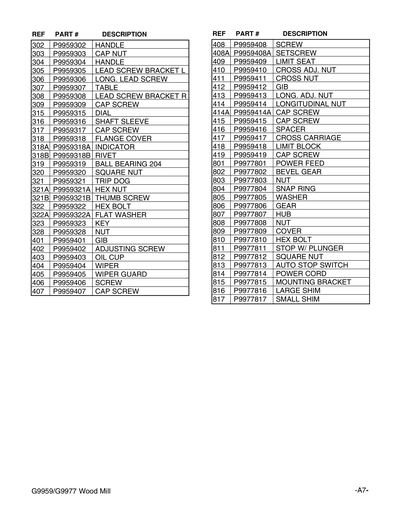

Ref #
Part #
Description

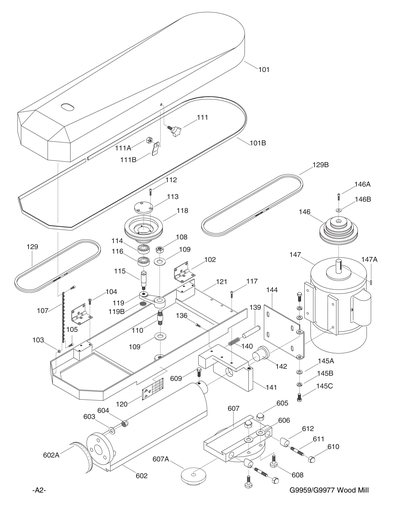

101
*DISCD*UPPER BELT COVER
Item is no longer available
Price
N/A
101B
*DISCD*EDGE GUARD
Price
$25.05
102
*DISCD*COVER HINGE
Item is no longer available
Price
N/A
103
HEX NUT M5-.8
Price
N/A
104
*DISCD*COUNTERSUNK SCREW M4 X 8
Price
N/A
105
*DISCD*HEX HD SCR M4-.7 X 18
Item is no longer available
Price
N/A
106
*DISCD*COVER HINGE
Price
N/A
107
*DISCD*CHAIN
Item is no longer available
Price
N/A
108
*DISCD*HEX NUT M16
Item is no longer available
Price
N/A
109
*DISCD*WASHER M12
Price
N/A
110
*DISCD*SHAFT
Item is no longer available
Price
N/A
111
*DISCD*KNOB
Item is no longer available
Price
N/A
111A
HEX NUT M6-1
Price
N/A
111B
*DISCD*EDGE GUARD
Item is no longer available
Price
N/A
112
*DISCD*INNER HEX SCREW M6 X 12
Price
N/A
113
*DISCD*FLANGE COVER
Item is no longer available
Price
N/A
115
*DISCD*SHAFT
Item is no longer available
Price
N/A
116
BALL BEARING 6204-2RS
Price
N/A
117
CAP SCREW M6-1 X 35
Price
N/A
117A
*DISCD*INNER HEX SCR M8 X 40
Price
N/A
117B
*DISCD*INNER HEX SCREW M6 X 40
Item is no longer available
Price
N/A
118
*DISCD*PULLEY
Item is no longer available
Price
N/A
119
*DISCD*SWIVEL HANDLE
Item is no longer available
Price
N/A
119B
*DISCD*RUBBER PIECE
Item is no longer available
Price
N/A
120
*DISCD*SPEED LABEL
Item is no longer available
Price
N/A
121
*DISCD*BELT COVER LOWER
Item is no longer available
Price
N/A
122
*DISCD*ROUND NUT M40 X 1.5
Item is no longer available
Price
N/A
123
LOCK WASHER 40MM
Price
N/A
124
*DISCD*SPINDLE PULLEY
Item is no longer available
Price
N/A
125
*DISCD*BEARING HOUSING
Item is no longer available
Price
N/A
126
*DISCD*SPLINE SLEEVE
Item is no longer available
Price
N/A
126-A
*DISCD*SNAP RING 40
Item is no longer available
Price
N/A
127
*DISCD*FLAT KEY 8 X 20
Price
N/A
128
*DISCD*SNAP RING 68
Item is no longer available
Price
N/A
129
*DISCD*V-BELT O TYPE
Item is no longer available
Price
N/A
129B
*DISCD*V-BELT
Item is no longer available
Price
N/A
132
*DISCD*DRAWBAR
Item is no longer available
Price
N/A
133
*DISCD*INNER HEX SCREW M5 X 12
Price
N/A
135
*DISCD*BEARING 208
Item is no longer available
Price
N/A
136
CAP SCREW M8-1.25 X 20
Price
N/A
139
*DISCD*TENSION PIN
Item is no longer available
Price
N/A
140
*DISCD*SPRING 13 X 1.5 X 76
Item is no longer available
Price
N/A
141
*DISCD*BRACKET
Item is no longer available
Price
N/A
142
*DISCD*PIVOT
Item is no longer available
Price
N/A
144
*DISCD*MOTOR MOUNTING PLATE
Item is no longer available
Price
N/A
145A
*DISCD*WASHER M10 X 1.5 X 145
Price
N/A
145B
*DISCD*LOCK WASHER M10 X 1.5 X 145
Price
N/A
145C
*DISCD*HEX BOLT M10-1.5 X 145
Price
N/A
146
*DISCD*MOTOR PULLEY FOR 24MM SHAFT V1
Price
$171.65
146A
CAP SCREW M6-1 X 20
Price
N/A
146B
*DISCD*FLAT WASHER 6.5 X 30 X 4
Price
$3.20
147
*DISCD*MOTOR 1.1KW 24MM SHAFT V1
Item is no longer available
Price
N/A
147-1
*DISCD*TERMINAL CAPACITOR COVER TOP
Price
$31.05
147-2
*DISCD*TERMINAL CAPACITOR COVER BOTTOM
Item is no longer available
Price
N/A
147A
*DISCD*KEY 8 X 55
Price
$1.49
147V2
*DISCD*MOTOR 1.1KW 3/4" SHAFT V2
Item is no longer available
Price
N/A
148-A
HEX NUT M8-1.25
Price
N/A
197
*DISCD*INDICATOR
Item is no longer available
Price
N/A
198
RIVET 3 X 11MM BLIND, STEEL
Price
N/A
199
*DISCD*SCALE
Item is no longer available
Price
N/A
201
*DISCD*HANDLE
Item is no longer available
Price
N/A
202
*DISCD*COUPLING
Item is no longer available
Price
N/A
203
*DISCD*PLATE
Item is no longer available
Price
N/A
204
*DISCD*COUPLING WORM GEAR
Price
$49.75
205
*DISCD*INNER HEX SCREW M6 X 12
Price
N/A
206
*DISCD*FLANGE SLEEVE
Item is no longer available
Price
N/A
207
*DISCD*SPRING 28.5 X 24 X 2 X 34
Item is no longer available
Price
N/A
208
*DISCD*INNER HEX SCREW M5 X 12
Price
N/A
209
*DISCD*HANDWHEEL
Price
$1.49
210
*DISCD*TAPER LOCK SCREW M5X8
Item is no longer available
Price
N/A
211
*DISCD*ROUND NUT M14 X 1.5
Item is no longer available
Price
N/A
213
*DISCD*SLEEVE
Item is no longer available
Price
N/A
214
*DISCD*SPACER
Item is no longer available
Price
N/A
215
*DISCD*FLAT KEY 4 X 17
Price
N/A
216
*DISCD*WORM SHAFT
Price
$20.70
218
*DISCD*HANDLE
Price
$13.25
219
*DISCD*STEPPED SLEEVE
Item is no longer available
Price
N/A
222
*DISCD*INNER HEX SCREW M5 X 18
Price
N/A
223
*DISCD*BLOCK
Item is no longer available
Price
N/A
224
*DISCD*SCREW M12 X 1 X 190
Price
N/A
225
*DISCD*HEIGHT NUT M12 X 1
Price
N/A
226
*DISCD*NUT M12-1
Price
N/A
227
*DISCD*LOCK KNOB SHAFT
Item is no longer available
Price
N/A
228
*DISCD*LOCK BLOCK
Item is no longer available
Price
N/A
230
*DISCD*NUT M35-1.5
Price
$23.60
230A
SET SCREW M6-1 X 10
Price
N/A
231
*DISCD*BEARING 136101
Price
$103.50
232
*DISCD*SPINDLE QUILL
Item is no longer available
Price
N/A
233
*DISCD*BEARING WASHER 62 X 52 X 12.5
Price
N/A
234
*DISCD*BEARING WASHER 44 X 35 X 12.5
Price
N/A
235
*DISCD*SPINDLE
Item is no longer available
Price
N/A
235A
SET SCREW M6-1 X 10
Price
N/A
236
*DISCD*NUT FOR SPINDLE QUILL
Price
$33.35
236A
*DISCD*HEADSTOCK SCREW M6-1 X 8
Price
N/A
238
*DISCD*MILLING HEAD BRACKET
Item is no longer available
Price
N/A
239
*DISCD*GEAR SHAFT
Price
$120.20
239-A
*DISCD*GEAR
Price
$86.85
239-B
*DISCD*FLAT KEY 4 X 17 AND 5 X 15
Price
$1.49
240
*DISCD*TWISTED SPRING 35 X 28 X 2 X 94
Price
N/A
241
*DISCD*FLANGE COVER
Item is no longer available
Price
N/A
242
*DISCD*HANDLE BODY
Item is no longer available
Price
N/A
243
*DISCD*FLANGE
Item is no longer available
Price
N/A
244
*DISCD*COUNTERSUNK SCREW M5 X 16
Price
N/A
245
*DISCD*INNER HEX SCREW M5 X 16
Price
N/A
246
*DISCD*HANDLE
Item is no longer available
Price
N/A
289
*DISCD*LOCK BLOCK
Item is no longer available
Price
N/A
290
*DISCD*SPACER
Item is no longer available
Price
N/A
291
*DISCD*HANDLE
Item is no longer available
Price
N/A
293
*DISCD*WASHER
Item is no longer available
Price
N/A
294
*DISCD*KNOB
Item is no longer available
Price
N/A
295
*DISCD*GEAR
Item is no longer available
Price
N/A
296
*DISCD*INDICATOR
Item is no longer available
Price
N/A
297
*DISCD*KEY
Item is no longer available
Price
N/A
302
*DISCD*HANDLE
Price
$20.70
303
*DISCD*CAP NUT M16
Price
$4.60
304
*DISCD*HANDLE
Price
$74.75
305
*DISCD*LEADSCREW BRACKET
Item is no longer available
Price
N/A
306
*DISCD*LONGITUDINAL LEADSCREW
Item is no longer available
Price
N/A
307
*DISCD*TABLE CARRIAGE
Item is no longer available
Price
N/A
308
*DISCD*LEADSCREW
Item is no longer available
Price
N/A
309
*DISCD*INNER HEX SCR M8 X 40
Price
N/A
315
*DISCD*DIAL
Item is no longer available
Price
N/A
316
*DISCD*SHAFT SLEEVE
Price
$49.75
317
CAP SCREW M6-1 X 15
Price
N/A
318
*DISCD*FLANGE COVER
Item is no longer available
Price
N/A
318A
*DISCD*INDICATOR
Price
$1.49
318B
*DISCD*RIVET 2 X 4MM
Item is no longer available
Price
N/A
319
*DISCD*BEARING 204
Item is no longer available
Price
N/A
320
HEX NUT M8-1.25
Price
N/A
321
*DISCD*TRIP DOG
Item is no longer available
Price
N/A
321A
HEX NUT M6-1
Price
N/A
321B
*DISCD*THUMB SCREW M6 X 1 X 32
Price
N/A
322
*DISCD*T-SLOT BOLT M8X40
Item is no longer available
Price
N/A
322A
*DISCD*FLAT WASHER
Item is no longer available
Price
N/A
323
*DISCD*FLAT KEY 5 X 32 3 X 40 AND 3 X 18
Item is no longer available
Price
N/A
328
*DISCD*NUT M32-1.5
Price
N/A
401
*DISCD*GIB
Item is no longer available
Price
N/A
402
*DISCD*ADJUSTING SCREW
Item is no longer available
Price
N/A
403
*DISCD*PRESS OIL CUP D8
Price
$4.60
404
*DISCD*WIPER
Item is no longer available
Price
N/A
405
*DISCD*WIPER GUARD
Item is no longer available
Price
N/A
406
*DISCD*HALF ROUND SCR M6 X 8
Price
N/A
407
*DISCD*INNER HEX SCREW M8 X 35
Price
$1.49
408
*DISCD*HALF ROUND SCR M6 X 30
Item is no longer available
Price
N/A
408-A
*DISCD*FLAT LOCK SCR M6 X 25
Item is no longer available
Price
N/A
409
*DISCD*LIMIT SEAT
Item is no longer available
Price
N/A
410
*DISCD*CROSS ADJUSTING NUT
Item is no longer available
Price
N/A
411
*DISCD*NUT 35 X 5.08 X 60
Item is no longer available
Price
N/A
412
*DISCD*GIB
Item is no longer available
Price
N/A
413
*DISCD*LONGITUDINAL ADJUSTING NUT
Item is no longer available
Price
N/A
414
*DISCD*NUT 80 X 40 X 40
Price
N/A
414A
CAP SCREW M6-1 X 20
Price
N/A
415
*DISCD*COUNTERSUNK SCREW M6 X 10
Price
N/A
416
*DISCD*WASHER
Item is no longer available
Price
N/A
417
*DISCD*CROSS CARRIAGE
Item is no longer available
Price
N/A
418
*DISCD*LIMIT BLOCK
Item is no longer available
Price
N/A
419
*DISCD*INNER HEX SCREW M6 X 30
Price
N/A

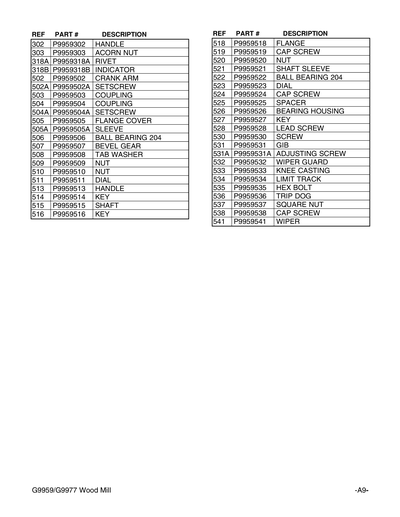

502
*DISCD*KNEE HANDLE
Item is no longer available
Price
N/A
502A
*DISCD*SET SCREW M6-1 X 6
Price
N/A
503
*DISCD*COUPLING II
Price
$27.05
504
*DISCD*COUPLING II
Price
$33.35
504A
*DISCD*HEADSTOCK SCREW M6-1 X 8
Price
N/A
505
*DISCD*FLANGE COVER
Item is no longer available
Price
N/A
505-A
*DISCD*SLEEVE
Item is no longer available
Price
N/A
506
*DISCD*BEARING 204
Price
N/A
507
*DISCD*BEVEL GEAR
Item is no longer available
Price
N/A
508
LOCK WASHER 20MM
Price
N/A
509
*DISCD*ROUND NUT M20 X 1.5
Item is no longer available
Price
N/A
510
*DISCD*NUT M32 X 1.5 X 10
Price
N/A
511
*DISCD*DIAL
Item is no longer available
Price
N/A
513
*DISCD*HANDLE
Price
$20.70
514
*DISCD*KEY 5 X 35
Price
N/A
515
*DISCD*SHAFT
Item is no longer available
Price
N/A
516
KEY 5 X 5 X 20
Price
N/A
518
*DISCD*FLANGE
Item is no longer available
Price
N/A
519
*DISCD*INNER HEX SCREW M6 X 12
Price
N/A
520
*DISCD*ROUND NUT M36 X 1.5
Item is no longer available
Price
N/A
521
*DISCD*SHAFT SLEEVE
Item is no longer available
Price
N/A
522
*DISCD*BEARING 204
Price
N/A
523
*DISCD*DIAL
Item is no longer available
Price
N/A
524
*DISCD*INNER HEX SCREW M8 X 20
Price
N/A
525
*DISCD*SPACER
Item is no longer available
Price
N/A
526
*DISCD*BEARING HOUSING
Item is no longer available
Price
N/A
527
*DISCD*FLAT KEY 5 X 55
Price
N/A
528
*DISCD*LEADSCREW
Item is no longer available
Price
N/A
530
SET SCREW M6-1 X 10
Price
N/A
531
*DISCD*GIB
Item is no longer available
Price
N/A
531-A
ADJUSTING SCREW M8-1.25 X 40
Price
N/A
532
*DISCD*WIPER GUARD
Item is no longer available
Price
N/A
533
*DISCD*KNEE
Item is no longer available
Price
N/A
534
*DISCD*LIMIT TRACK
Item is no longer available
Price
N/A
535
*DISCD*T-SLOT BOLT M8X40
Item is no longer available
Price
N/A
536
*DISCD*TRIP DOG
Item is no longer available
Price
N/A
537
HEX NUT M8-1.25
Price
N/A
538
*DISCD*INNER HEX SCREW M8 X 25
Price
N/A
541
*DISCD*WIPER
Item is no longer available
Price
N/A
601
*DISCD*T-SLOT BOLT M12X40
Item is no longer available
Price
N/A
602
*DISCD*RAM
Item is no longer available
Price
N/A
602-1
*DISCD*GIB
Price
$52.65
602-A
*DISCD*POSITIONING BLOCK
Item is no longer available
Price
N/A
602A
*DISCD*ANGLE SCALE
Price
N/A
603
*DISCD*WASHER M12
Price
N/A
604
ACORN NUT M12-1.75
Price
N/A
605
ACORN NUT M12-1.75
Price
N/A
606
*DISCD*WASHER M12
Price
N/A
607
*DISCD*TURRET
Item is no longer available
Price
N/A
607-A
*DISCD*POSITION SHAFT
Item is no longer available
Price
N/A
607A
*DISCD*PIVOT
Price
N/A
608
*DISCD*T-SLOT BOLT M12X45
Item is no longer available
Price
N/A
609
*DISCD*LOCK SCREW M10 X 30
Price
N/A
610
ACORN NUT M12-1.75
Price
N/A
611
*DISCD*STUD
Item is no longer available
Price
N/A

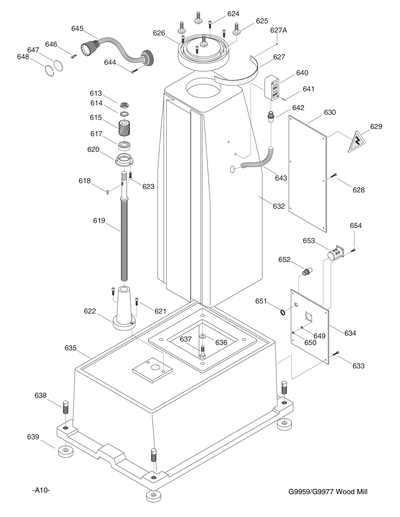

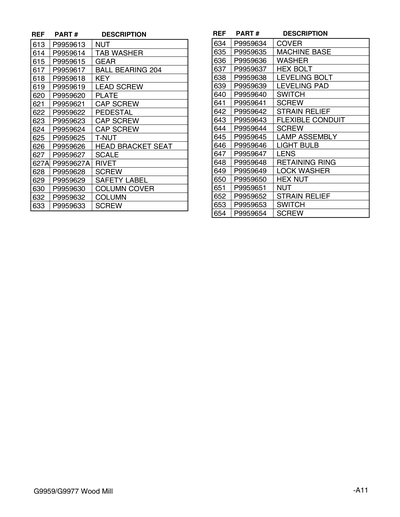

612
*DISCD*CLAMPING BLOCK
Item is no longer available
Price
N/A
613
*DISCD*ROUND NUT M20 X 1.5
Item is no longer available
Price
N/A
614
LOCK WASHER 20MM
Price
N/A
615
*DISCD*BEVEL GEAR
Item is no longer available
Price
N/A
617
*DISCD*BEARING 204
Price
N/A
618
*DISCD*KEY 5 X 17
Item is no longer available
Price
N/A
618A
*DISCD*FLAT KEY 5 X 17
Item is no longer available
Price
N/A
618B
*DISCD*FLAT KEY 5 X 35
Item is no longer available
Price
N/A
619
*DISCD*LEADSCREW
Item is no longer available
Price
N/A
620
*DISCD*PLATE
Item is no longer available
Price
N/A
621
*DISCD*INNER HEX SCREW M6 X 16
Price
N/A
622
*DISCD*PEDESTAL
Item is no longer available
Price
N/A
623
*DISCD*HALF ROUND SCR M6 X 12
Price
N/A
624
CAP SCREW M10-1.5 X 35
Price
N/A
625
*DISCD*T-NUT
Item is no longer available
Price
N/A
626
*DISCD*HEAD BRACKET SEAT
Item is no longer available
Price
N/A
627
*DISCD*SCALE
Item is no longer available
Price
N/A
627A
*DISCD*RIVET 2 X 4MM
Item is no longer available
Price
N/A
628
*DISCD*HALF ROUND SCR M6 X 10
Price
N/A
629
*DISCD*SAFETY LABEL
Item is no longer available
Price
N/A
630
*DISCD*COLUMN COVER
Item is no longer available
Price
N/A
632
*DISCD*COLUMN
Item is no longer available
Price
N/A
633
*DISCD*HALF ROUND SCR M5 X 8
Price
N/A
634
*DISCD*MACHINE BASE COVER
Item is no longer available
Price
N/A
635
*DISCD*MACHINE BASE
Item is no longer available
Price
N/A
636
*DISCD*WASHER M12
Price
N/A
637
*DISCD*HEX BOLT M14-2 X 70
Price
N/A
638
*DISCD*LEVELING BOLT M20 X 60
Price
N/A
639
*DISCD*LEVELING PACK
Item is no longer available
Price
N/A
640
*DISCD*SWITCH
Price
N/A
641
*DISCD*SCREW
Item is no longer available
Price
N/A
642
*DISCD*STRAIN RELIEF
Item is no longer available
Price
N/A
643
*DISCD*FLEXIBLE CONDUIT
Item is no longer available
Price
N/A
644
*DISCD*SCREW M5 X .8 X 25
Price
N/A
645
*DISCD*LAMP ASSEMBLY
Item is no longer available
Price
N/A
646
*DISCD*LIGHT BULB
Item is no longer available
Price
N/A
647
*DISCD*LENSE
Item is no longer available
Price
N/A
648
*DISCD*RETAINING RING
Item is no longer available
Price
N/A
649
*DISCD*LOCK WASHER M5 X .8
Item is no longer available
Price
N/A
650
HEX NUT M5-.8
Price
N/A
651
NUT M20-1.5
Price
N/A
652
*DISCD*STRAIN RELIEF
Item is no longer available
Price
N/A
653
*DISCD*SWITCH
Item is no longer available
Price
N/A
654
*DISCD*SCREW M5 X .8 X 16
Price
N/A

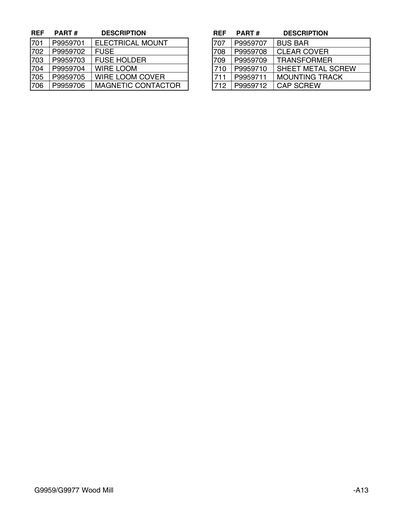

701
*DISCD*ELECTRICAL MOUNT
Item is no longer available
Price
N/A
702
*DISCD*FUSE 500V 2A
Price
$3.20
703
*DISCD*FUSE HOLDER
Item is no longer available
Price
N/A
704
*DISCD*WIRE LOOM
Item is no longer available
Price
N/A
705
*DISCD*WIRE LOOM COVER
Item is no longer available
Price
N/A
706
*DISCD*MAGNETIC CONTACTOR CJX1-22 CHINT
Item is no longer available
Price
N/A
706-1
*DISCD*THERMAL RELAY NR4JRSZ NR4 JRS2-25
Price
$71.60
707
*DISCD*BUS BAR
Item is no longer available
Price
N/A
708
*DISCD*CLEAR COVER
Item is no longer available
Price
N/A
709
*DISCD*TRANSFORMER
Item is no longer available
Price
N/A
710
*DISCD*SHEET METAL SCREW M5 X .8 X 5
Price
N/A
711
*DISCD*MOUNTING TRACK
Item is no longer available
Price
N/A
712
CAP SCREW M5-.8 X 16
Price
N/A

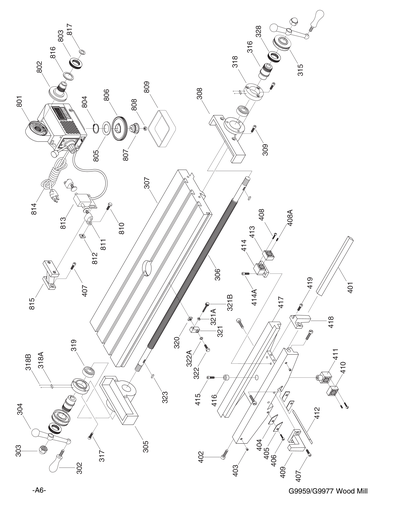

800
*DISCD*COMPLETE POWER FEEDER ASSY
Price
N/A
801
*DISCD*POWEREEDER AL-300S
Item is no longer available
Price
N/A
802
*DISCD*BEVEL GEAR
Item is no longer available
Price
N/A
803
*DISCD*NUT
Item is no longer available
Price
N/A
804
*DISCD*SNAP RING
Item is no longer available
Price
N/A
805
*DISCD*WASHER
Item is no longer available
Price
N/A
806
*DISCD*GEAR
Price
$116.15
807
*DISCD*HUB
Item is no longer available
Price
N/A
808
*DISCD*NUT
Item is no longer available
Price
N/A
809
*DISCD*COVER
Price
$10.35
810
*DISCD*HEX BOLT
Item is no longer available
Price
N/A
811
*DISCD*STOP W/PLUNGER
Item is no longer available
Price
N/A
812
*DISCD*SQUARE NUT
Item is no longer available
Price
N/A
813
*DISCD*X-AXIS LIMIT SWITCH
Price
$136.00
814
*DISCD*POWER CORD
Item is no longer available
Price
N/A
815
*DISCD*MOUNTING BRACKET
Item is no longer available
Price
N/A
816
*DISCD*SHIM LARGE
Item is no longer available
Price
N/A
817
*DISCD*SMALL SHIM
Item is no longer available
Price
N/A
818
*DISCD*COMPLETE TOOL BOX
Item is no longer available
Price
N/A
MANUAL
*DISCD*MANUAL FOR G9977 09/01
Price
$19.85
