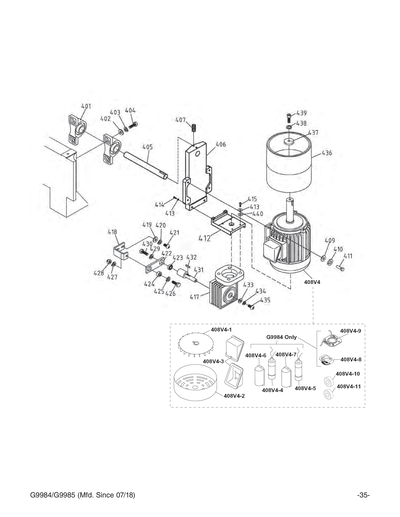

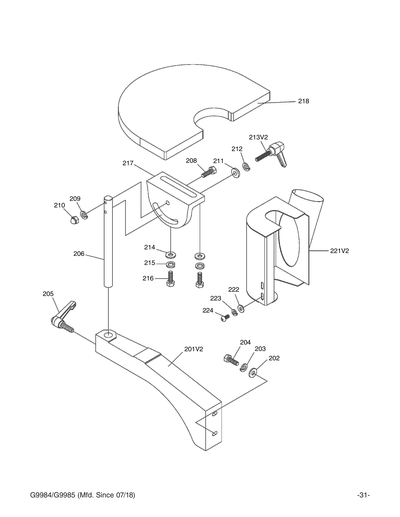

Parts for G9984 - 9" x 138-1/2" Industrial Oscillating Edge Sander

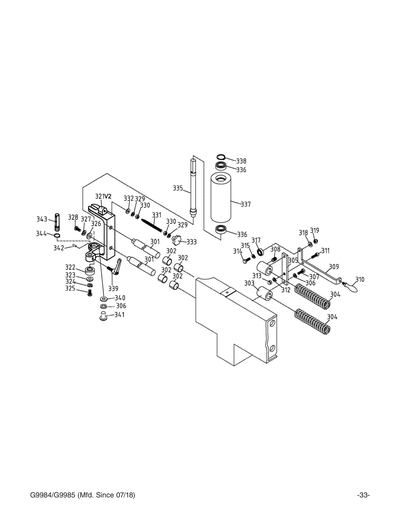

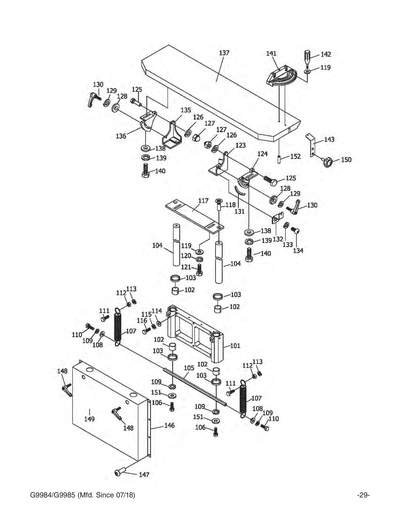

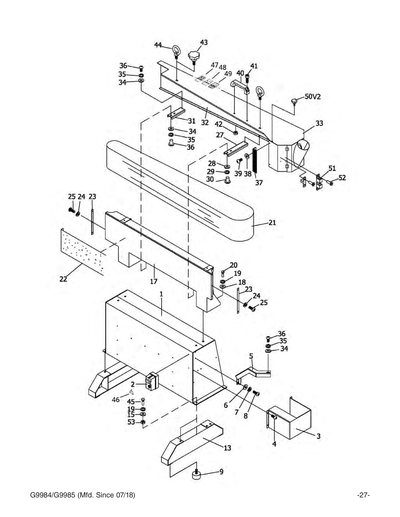

Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984
Part Diagram for G9984

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

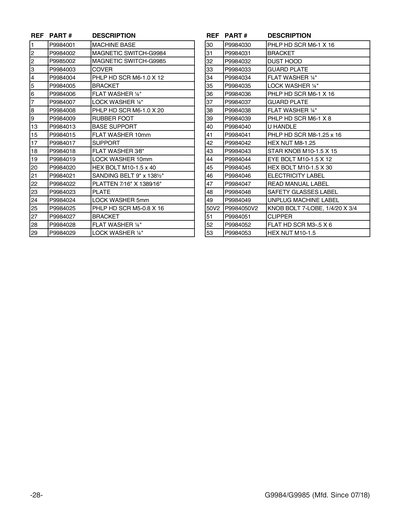

Ref #
Part #
Description
1
MACHINE BASE
Price
$1,033.95
2
SWITCH
Price
$147.20
3
COVER
Price
$98.15
4
PHLP HD SCR M6-1 X 12
Price
N/A
5
BRACKET
Price
$33.55
6
P9984006
Now: PW06
FLAT WASHER 1/4
Price
N/A
7
LOCK WASHER 1/4
Price
N/A
8
PHLP HD SCR M6-1 X 20
Price
N/A
9
RUBBER FOOT
Price
$11.80
10
P9984010
Now: PW01
FLAT WASHER 1/2
Price
N/A
12
P9984012
Now: PN01
HEX NUT 1/2-20
Price
N/A
13
BASE SUPPORT
Price
$210.45
14
RUBBER FOOT
Price
N/A
15
FLAT WASHER 10MM
Price
N/A
16
PHLP HD SCR M10-1.5 X 30
Price
N/A
17
SUPPORT/PLATEN
Price
$1,266.45
18
P9984018
Now: PW02
FLAT WASHER 3/8
Price
N/A
19
LOCK WASHER 10MM
Price
N/A
20
HEX BOLT M10-1.5 X 40
Price
N/A
21
SANDING BELT 9 X 138 1/2"
Price
$63.15
22
GRAPHITE PAD 9"W X 50"L
Price
$87.60
22-1
GRAPHITE PAD 9"W X 50"L
Price
N/A
23
PLATE
Price
$5.50
24
LOCK WASHER 5MM
Price
N/A
25
PHLP HD SCR M5-.8 X 16
Price
N/A
27
BRACKET
Price
$16.95
28
P9984028
Now: PW06
FLAT WASHER 1/4
Price
N/A
29
LOCK WASHER 1/4
Price
N/A
30
PHLP HD SCR M6-1 X 16
Price
N/A
31
BRACKET
Price
$18.15
32
COVER
Price
N/A
33
GUARD PLATE
Price
$428.50
33-1
HINGE SMALL FOR DOOR
Price
$8.80
33-2
HINGE LARGE
Price
$10.00
33-3
DOOR LATCH MALE
Price
$3.95
33-4
DOOR LATCH FEMALE
Price
$3.95
33-5
DOOR
Price
$70.05
34
P9984034
Now: PW06
FLAT WASHER 1/4
Price
N/A
35
LOCK WASHER 1/4
Price
N/A
36
PHLP HD SCR M6-1 X 16
Price
N/A
37
GUARD PLATE
Price
$15.70
38
P9984038
Now: PW06
FLAT WASHER 1/4
Price
N/A
39
PHLP HD SCR M6-1 X 8
Price
N/A
40
U-HANDLE
Price
$3.95
41
PHLP HD SCR M8-1.25 X 16
Price
N/A
42
HEX NUT M8-1.25
Price
N/A
43
START KNOB M10-1.5 X 15
Price
$7.60
44
EYE BOLT M10-1.5X12
Price
$5.80
45
HEX BOLT M10-1.5 X 30
Price
N/A
46
ELECTRICITY LABEL
Price
$1.05
47
READ MANUAL LABEL
Price
$1.05
48
SAFETY GLASSES LABEL
Price
$2.00
49
UNPLUG MACHINE LABEL
Price
$22.00
50
KNOB BOLT 6-LOBE M6-1 X 15
Price
$1.85
50V2
STAR KNOB 1/4-20 X 3/4
Price
N/A
101
ELEVATION BLOCK
Price
$290.75
102
BUSHING
Price
$9.10
103
SEAL
Price
$9.10
104
SHAFT
Price
$181.15
105
LINK
Price
$15.70
106
HEX BOLT M8-1.25 X 25
Price
N/A
107
SPRING-HELICAL 30 X 140
Price
$22.05
108
P9984108
Now: PW07
FLAT WASHER 5/16
Price
N/A
109
LOCK WASHER 5/16
Price
N/A
110
HEX BOLT M8-1.25 X 12
Price
N/A
111
HEX BOLT M10-1.5 X 60
Price
N/A
112
HEX NUT M10-1.5
Price
N/A
113
LOCK WASHER 10MM
Price
N/A
114
P9984114
Now: PW07
FLAT WASHER 5/16
Price
N/A
115
LOCK WASHER 5/16
Price
N/A
116
HEX BOLT M8-1.25 X 55
Price
N/A
117
ADJUSTMENT PLATE
Price
$71.25
118
FLAT HD CAP SCR M10-1.5 X 25
Price
N/A
119
FLAT WASHER 10MM
Price
N/A
120
LOCK WASHER 10MM
Price
N/A
121
HEX BOLT M10-1.5 X 35
Price
N/A
122
TABLE UNIT
Price
$538.55
123
BRACKET R
Price
$73.70
124
ADJUSTMENT BASE R
Price
$58.95
125
HEX BOLT M10-1.5 X 35
Price
N/A
126
LOCK WASHER 10MM
Price
N/A
127
HEX NUT M10-1.5
Price
N/A
128
FLAT WASHER 10MM
Price
N/A
129
LOCK WASHER 10MM
Price
N/A
130
LOCK HANDLE M10-1.5 X 35
Price
$10.90
131
INDICATOR SCALE
Price
$4.85
132
POINTER
Price
$4.60
133
LOCK WASHER 5MM
Price
N/A
134
PHLP HD SCR M5-.8 X 10
Price
N/A
135
BRACKET L
Price
$54.70
136
ADJUSTMENT BASE L
Price
$57.70
137
OUTSIDE TABLE
Price
$1,000.35
138
P9984138
Now: PW02
FLAT WASHER 3/8
Price
N/A
139
LOCK WASHER 10MM
Price
N/A
140
HEX BOLT M10-1.5 X 30
Price
N/A
141
MITER GAUGE
Price
$42.60
141-1
SHOULDER BOLT 1/4-20 X 5/8
Price
$2.80
142
MITER GAUGE HANDLE 5/16"
Price
$4.60
143
POINTER
Price
$10.30
144
LOCK WASHER 4MM
Price
N/A
145
PHLP HD SCR M4-.7 X 6
Price
N/A
146
COVER
Price
$133.80
147
PHLP HD SCR M6-1 X 8
Price
N/A
148
LOCK HANDLE M12-1.75 X 40
Price
$30.55
149
MACHINE ID/WARNING LABEL
Price
$16.40
150
KNOB BOLT 7-LOBE, M5-.8 X 10
Price
$2.45
152
PIN M8 X 20
Price
$3.40
201
SIDE TABLE SUPPORT
Price
$187.50
202
P9984202
Now: PW02
FLAT WASHER 3/8
Price
N/A
203
LOCK WASHER 10MM
Price
N/A
204
HEX BOLT M10-1.5 X 30
Price
N/A
205
LOCK HANDLE M10-1.5 X 25
Price
$16.05
206
SHAFT
Price
$61.60
208
HEX BOLT M10-1.5 X 50
Price
N/A
209
LOCK WASHER 10MM
Price
N/A
210
ACORN NUT M10-1.5
Price
N/A
211
FLAT WASHER 10MM
Price
N/A
212
LOCK WASHER 10MM
Price
N/A
213
HEX BOLT M10-1.5 X 35
Price
N/A
214
FLAT WASHER 10MM
Price
N/A
215
LOCK WASHER 10MM
Price
N/A
216
HEX BOLT M10-1.5 X 20
Price
N/A
217
ADJUSTMENT BASE
Price
$35.05
218
SIDE SANDING TABLE
Price
$164.85
219
EXT RETAINING RING 25MM
Price
N/A
220
SHAFT
Price
$36.25
221
DUST HOOD
Price
$107.90
221V2
DUST HOOD V2.07.18
Price
$108.10
222
P9984222
Now: PW07
FLAT WASHER 5/16
Price
N/A
223
LOCK WASHER 5/16
Price
N/A
224
PHLP HD SCR M8-1.25 X 16
Price
N/A
301
SHAFT
Price
$155.20
302
BUSHING
Price
$7.60
303
STOPPER BLOCK
Price
$49.85
304
COMPRESSION SPRING 5.5 X 43 X 236
Price
N/A
305
PLATE
Price
$42.90
306
LOCK WASHER 10MM
Price
N/A
307
HEX BOLT M10-1.5 X 20
Price
N/A
308
SET SCREW M10-1.5 X 10
Price
N/A
309
LEVER
Price
$53.15
310
HANDLE M10-1.5
Price
$16.05
311
CAP SCREW M10-1.5 X 45
Price
N/A
312
LOCK WASHER 12MM
Price
N/A
313
ACORN NUT M12-1.75
Price
N/A
314
HEX BOLT M10-1.5 X 30
Price
N/A
315
LOCK WASHER 10MM
Price
N/A
316
BUSHING
Price
$8.20
317
Bearing - 35mm x 17mm
Price
N/A
318
FLAT WASHER 10MM
Price
N/A
319
ACORN NUT M10-1.5
Price
N/A
321
BRACKET
Price
$166.95
322
SPHERICAL BEARING PB20
Price
$35.65
323
FLAT WASHER 10MM
Price
N/A
324
LOCK WASHER 10MM
Price
N/A
325
PHLP HD SCR M10-1.5 X 25
Price
N/A
326
FLAT WASHER 10MM
Price
N/A
327
LOCK WASHER 10MM
Price
N/A
328
PHLP HD SCR M10-1.5 X 25
Price
N/A
329
LOCK WASHER 1/2
Price
N/A
330
HEX NUT M12-1.75
Price
N/A
331
THREADED ROD M12-1.75 X 140
Price
$4.85
332
P9984332
Now: PW01
FLAT WASHER 1/2
Price
N/A
333
STAR KNOB
Price
$5.50
335
SHAFT
Price
$94.20
336
BALL BEARING 6205ZZ
Price
N/A
337
ROLLER
Price
$244.55
337A
ROLLER ASSY
Price
$398.55
338
EXT RETAINING RING 25MM
Price
N/A
401
PILLOW BLOCK BEARING
Price
$39.00
402
P9984402
Now: PW01
FLAT WASHER 1/2
Price
N/A
403
LOCK WASHER 12MM
Price
N/A
404
HEX BOLT M12-1.75 X 40
Price
N/A
405
SHAFT
Price
$64.95
406
MOTOR BASE
Price
$232.80
407
SET SCREW M10-1.5 X 10
Price
N/A
408
*DISCD*MOTOR 3HP 220V 1750RPM 1PH V1.11.
Item is no longer available
Price
N/A
408-1
*DISCD*CONNECTION BLOCK V1.11.02
Item is no longer available
Price
N/A
408-2
*DISCD*CONNECTION BOX CASE V1.11.02
Price
$8.65
408-3
*DISCD*MOTOR FAN COVER V1.11.02
Item is no longer available
Price
N/A
408-4
*DISCD*MOTOR FAN V1.11.02
Item is no longer available
Price
N/A
408A
*DISCD*MOTOR 3HP 1PH V2.03.04
Item is no longer available
Price
N/A
408V3
MOTOR 3HP 220V 1-PH V3.11.10
Price
$1,133.75
408V3-1
MOTOR FAN V3.11.10
Price
$16.35
408V3-2
MOTOR FAN COVER V3.11.10
Price
$23.60
408V3-3
MOTOR JUNCTION BOX V3.11.10
Price
$34.45
408V3-4
S CAPACITOR 300M 250V 1-3/4 X 3-7/8 V3.1
Price
$88.80
408V3-5
R CAPACITOR 20M 500V 1-3/4 X 3-3/8 V3.11
Price
$44.70
408V3-6
S CAPACITOR COVER V3.11.10
Price
$12.75
408V3-7
R CAPACITOR COVER V3.11.10
Price
$12.75
408V4
MOTOR 3HP 220V 1PH V4.11.11
Price
$1,567.65
408V4-1
MOTOR FAN
Price
$13.60
408V4-10
FRONT MOTOR BEARING
Price
$41.40
408V4-11
REAR MOTOR BEARING
Price
$11.85
408V4-2
MOTOR FAN COVER
Price
$22.70
408V4-3
MOTOR JUNCTION BOX
Price
$35.65
408V4-4
S CAPACITOR 300M 250V
Price
$88.80
408V4-5
R CAPACITOR 20M 500V
Price
$44.70
408V4-8
CENTRIFUGAL SWITCH
Price
$17.85
408V4-9
CONTACT PLATE
Price
$23.60
409
P9984409
Now: PW02
FLAT WASHER 3/8
Price
N/A
410
LOCK WASHER 10MM
Price
N/A
411
HEX BOLT M10-1.5 X 30
Price
N/A
412
BRACKET V2.11.02
Price
N/A
412A
BRACKET V2.11.02
Price
$107.80
413
LOCK WASHER 5/16
Price
N/A
414
PHLP HD SCR M8-1.25 X 35
Price
N/A
415
CAP SCREW M8-1.25 X 16
Price
N/A
417
*DISCD*REDUCER CASING V2.11.02
Price
N/A
417A
*DISCD*REDUCER CASING V2.11.02
Item is no longer available
Price
N/A
417B
REDUCER CASTING W/14MM MTR SHF V3.03.04
Price
$533.20
418
BRACKET
Price
$17.55
419
P9984419
Now: PW07
FLAT WASHER 5/16
Price
N/A
420
LOCK WASHER 5/16
Price
N/A
421
PHLP HD SCR M8-1.25 X 20
Price
N/A
422
BEARING HOUSING
Price
$20.85
423
BALL BEARING 6001ZZ
Price
N/A
424
SPHERICAL BEARING PB10
Price
$21.20
425
LOCK WASHER 10MM
Price
N/A
426
HEX BOLT M10-1.5 X 35
Price
N/A
427
LOCK WASHER 10MM
Price
N/A
428
ACORN NUT M10-1.5
Price
N/A
429
LOCK WASHER 12MM
Price
N/A
430
HEX BOLT M12-1.75 X 25
Price
N/A
431
CAM
Price
$29.65
432
KEY 6 X 6 X 30
Price
N/A
433
FLAT WASHER 8MM
Price
N/A
434
LOCK WASHER 5/16
Price
N/A
435
PHLP HD SCR M8-1.25 X 20
Price
N/A
436
DRIVE WHEEL
Price
$775.00
437
FLAT WASHER 12MM
Price
N/A
438
LOCK WASHER 12MM
Price
N/A
439
CAP SCREW M12-1.75 X 25
Price
N/A
MANUAL
MANUAL FOR G9984 04/02
Price
$11.50
