Parts for G9985 9" x 138-1/2" 3-Phase Industrial Oscillating Edge Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

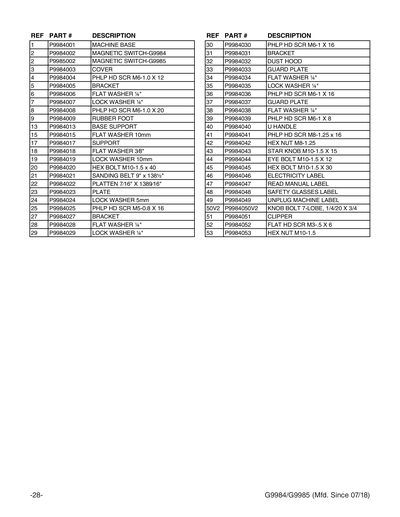

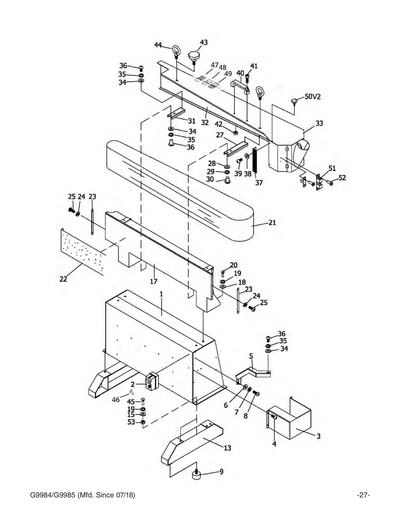

1
MACHINE BASE
Price
N/A
2
MAG SWITCH
2-1
E-STOP BUTTON
3
COVER
Price
N/A
4
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
5
BRACKET
Price
N/A
6
Now: PW06
FLAT WASHER 1/4
Price
N/A
7
Now: PLW02
LOCK WASHER 1/4
Price
N/A
8
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
9
RUBBER FOOT
Price
N/A
10
Now: PW01
FLAT WASHER 1/2
Price
N/A
11
Now: PLW07
LOCK WASHER 1/2
Price
N/A
12
Now: PN01
HEX NUT 1/2-20
Price
N/A
13
BASE SUPPORT
Price
N/A
14
RUBBER FOOT
Price
N/A
15
Now: PW04M
FLAT WASHER 10MM
Price
N/A
16
Now: PS34M
PHLP HD SCR M10-1.5 X 30
Price
N/A
17
SUPPORT/PLATEN
Price
N/A
18
Now: PW02
FLAT WASHER 3/8
Price
N/A
19
LOCK WASHER 10MM
Price
N/A
20
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
21
SANDING BELT 9 X 138 1/2"
Price
N/A
22
GRAPHITE PAD 9"W X 50"L
Price
N/A
23
PLATE
Price
N/A
24
LOCK WASHER 5MM
Price
N/A
25
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
27
BRACKET
Price
N/A
28
Now: PW06
FLAT WASHER 1/4
Price
N/A
29
Now: PLW02
LOCK WASHER 1/4
Price
N/A
30
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
31
BRACKET
Price
N/A
32
GUARD PLATE
Price
N/A
33
*DISCD*GUARD PLATE
Item is no longer available
Price
N/A
33-1
GUARD PLATE
Price
N/A
34
Now: PW06
FLAT WASHER 1/4
Price
N/A
35
Now: PLW02
LOCK WASHER 1/4
Price
N/A
36
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
37
GUARD PLATE
Price
N/A
38
Now: PW06
FLAT WASHER 1/4
Price
N/A
39
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
40
U-HANDLE
Price
N/A
41
Now: PS16M
PHLP HD SCR M8-1.25 X 16
Price
N/A
42
Now: PN03M
HEX NUT M8-1.25
Price
N/A
43
START KNOB M10-1.5 X 15
Price
N/A
44
EYE BOLT M10-1.5X12
Price
N/A
45
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
46
ELECTRICITY LABEL
Price
N/A
47
READ MANUAL LABEL
Price
N/A
48
SAFETY GLASSES LABEL
Price
N/A
49
UNPLUG MACHINE LABEL
Price
N/A
50
KNOB BOLT 6-LOBE M6-1 X 15
Price
N/A

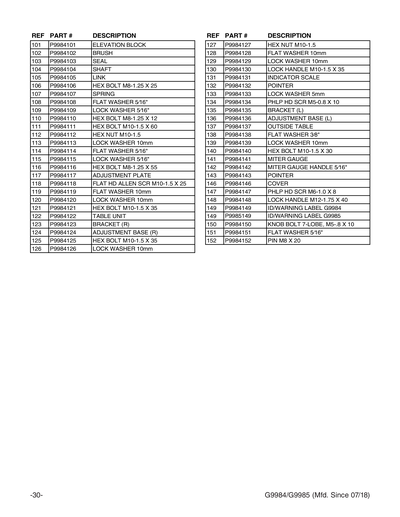

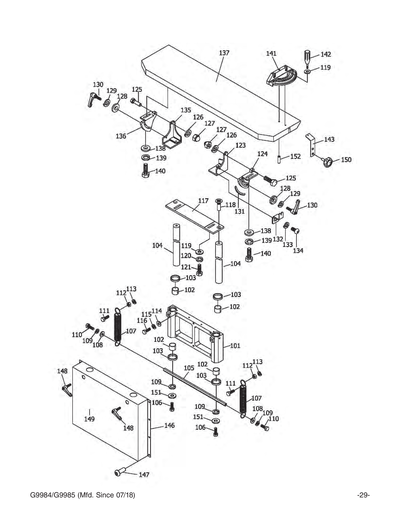

101
ELEVATION BLOCK
Price
N/A
102
BUSHING
Price
N/A
103
SEAL
Price
N/A
104
SHAFT
Price
N/A
105
LINK
Price
N/A
106
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
107
SPRING-HELICAL 30 X 140
Price
N/A
108
Now: PW07
FLAT WASHER 5/16
Price
N/A
109
Now: PLW01
LOCK WASHER 5/16
Price
N/A
110
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
111
Now: PB34M
HEX BOLT M10-1.5 X 60
Price
N/A
112
Now: PN02M
HEX NUT M10-1.5
Price
N/A
113
Now: PLW06
LOCK WASHER 5/8
Price
N/A
114
Now: PW07
FLAT WASHER 5/16
Price
N/A
115
Now: PLW01
LOCK WASHER 5/16
Price
N/A
116
Now: PB30M
HEX BOLT M8-1.25 X 55
Price
N/A
117
ADJUSTMENT PLATE
Price
N/A
118
FLAT HD CAP SCR M10-1.5 X 25
Price
N/A
119
Now: PW04M
FLAT WASHER 10MM
Price
N/A
120
LOCK WASHER 10MM
Price
N/A
121
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
122
TABLE UNIT
Price
N/A
123
BRACKET R
Price
N/A
124
ADJUSTMENT BASE R
Price
N/A
125
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
126
LOCK WASHER 10MM
Price
N/A
127
Now: PN02M
HEX NUT M10-1.5
Price
N/A
128
Now: PW04M
FLAT WASHER 10MM
Price
N/A
129
LOCK WASHER 10MM
Price
N/A
130
LOCK HANDLE M10-1.5 X 35
Price
N/A
131
INDICATOR SCALE
Price
N/A
132
POINTER
Price
N/A
133
LOCK WASHER 5MM
Price
N/A
134
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
135
BRACKET L
Price
N/A
136
ADJUSTMENT BASE L
Price
N/A
137
OUTSIDE TABLE
Price
N/A
138
Now: PW02
FLAT WASHER 3/8
Price
N/A
139
LOCK WASHER 10MM
Price
N/A
140
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
141
MITER GAUGE
Price
N/A
142
MITER GAUGE HANDLE 5/16"
Price
N/A
143
POINTER
Price
N/A
144
LOCK WASHER 4MM
Price
N/A
145
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
146
COVER
Price
N/A
147
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
148
LOCK HANDLE M12-1.75 X 40
Price
N/A
149
MACHINE ID/WARNING LABEL

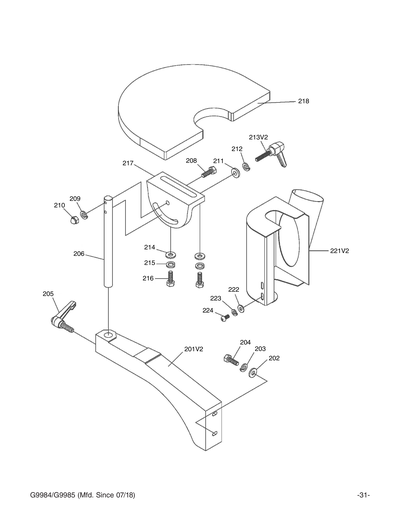

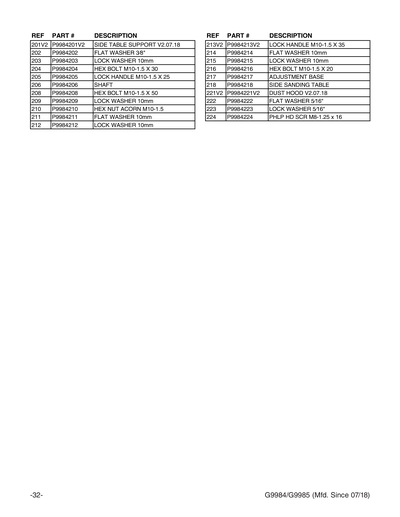

201
SIDE TABLE SUPPORT
Price
N/A
202
Now: PW02
FLAT WASHER 3/8
Price
N/A
203
LOCK WASHER 10MM
Price
N/A
204
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
205
LOCK HANDLE M10-1.5 X 25
Price
N/A
206
SHAFT
Price
N/A
208
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
209
LOCK WASHER 10MM
Price
N/A
210
Now: PN43M
ACORN NUT M10-1.5
Price
N/A
211
Now: PW04M
FLAT WASHER 10MM
Price
N/A
212
LOCK WASHER 10MM
Price
N/A
213
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
214
Now: PW04M
FLAT WASHER 10MM
Price
N/A
215
LOCK WASHER 10MM
Price
N/A
216
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
217
ADJUSTMENT BASE
Price
N/A
218
SIDE SANDING TABLE
Price
N/A
219
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
220
SHAFT
Price
N/A
221
DUST HOOD
Price
N/A
222
Now: PW07
FLAT WASHER 5/16
Price
N/A
223
Now: PLW01
LOCK WASHER 5/16
Price
N/A
224
Now: PS16M
PHLP HD SCR M8-1.25 X 16
Price
N/A

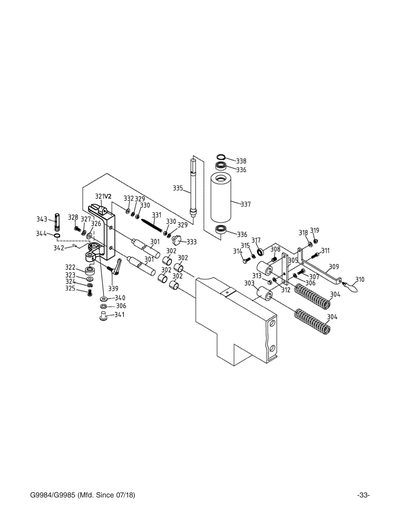

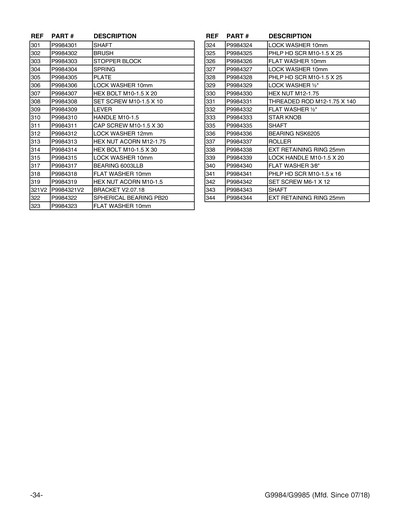

301
SHAFT
Price
N/A
302
BUSHING
Price
N/A
303
STOPPER BLOCK
Price
N/A
304
***USE PSB1117101***
Price
N/A
305
PLATE
Price
N/A
306
LOCK WASHER 10MM
Price
N/A
307
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
308
SET SCREW M10-1.5 X 10
Price
N/A
309
LEVER
Price
N/A
310
HANDLE M10-1.5
Price
N/A
311
CAP SCREW M10-1.5 X 45
Price
N/A
312
LOCK WASHER 12MM
Price
N/A
313
Now: PN26M
ACORN NUT M12-1.75
Price
N/A
314
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
315
LOCK WASHER 10MM
Price
N/A
316
BUSHING
Price
N/A
317
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
318
Now: PW04M
FLAT WASHER 10MM
Price
N/A
319
Now: PN43M
ACORN NUT M10-1.5
Price
N/A
321
BRACKET
Price
N/A
322
SPHERICAL BEARING PB20
Price
N/A
323
Now: PW04M
FLAT WASHER 10MM
Price
N/A
324
LOCK WASHER 10MM
Price
N/A
325
Now: PS41M
PHLP HD SCR M10-1.5 X 25
Price
N/A
326
Now: PW04M
FLAT WASHER 10MM
Price
N/A
327
LOCK WASHER 10MM
Price
N/A
328
Now: PS41M
PHLP HD SCR M10-1.5 X 25
Price
N/A
329
Now: PLW07
LOCK WASHER 1/2
Price
N/A
330
Now: PN09M
HEX NUT M12-1.75
Price
N/A
331
THREADED ROD M12-1.75 X 140
Price
N/A
332
Now: PW01
FLAT WASHER 1/2
Price
N/A
333
STAR KNOB
Price
N/A
335
SHAFT
Price
N/A
336
BALL BEARING 6205ZZ
Price
N/A
337
ROLLER
Price
N/A
338
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A

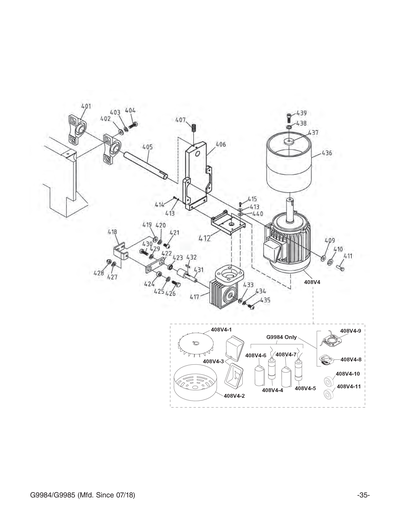

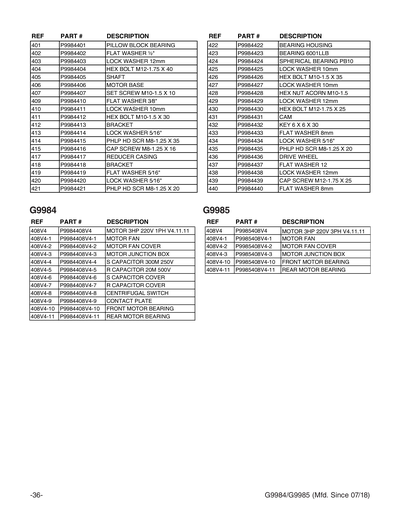

401
PILLOW BLOCK BEARING
Price
N/A
402
Now: PW01
FLAT WASHER 1/2
Price
N/A
403
LOCK WASHER 12MM
Price
N/A
404
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
405
SHAFT
Price
N/A
406
MOTOR BASE
Price
N/A
407
SET SCREW M10-1.5 X 10
Price
N/A
408
*DISCD*MOTOR 3HP 220V 1750RPM V1.11.02
Item is no longer available
Price
N/A
408A
*DISCD*MOTOR 3HP 3PH V2.02.04
Item is no longer available
Price
N/A
408V3
MOTOR 3HP 220V 3-PH V3.11.10
408V3-1
MOTOR FAN V3.11.10
408V3-2
MOTOR FAN COVER V3.11.10
408V3-3
MOTOR JUNCTION BOX V3.11.10
408V4
MOTOR 3HP 220V 3PH V4.11.11
408V4-1
MOTOR FAN
Price
N/A
408V4-10
FRONT MOTOR BEARING
Price
N/A
408V4-11
REAR MOTOR BEARING
Price
N/A
408V4-2
MOTOR FAN COVER
Price
N/A
408V4-3
MOTOR JUNCTION BOX
Price
N/A
409
Now: PW02
FLAT WASHER 3/8
Price
N/A
410
LOCK WASHER 10MM
Price
N/A
411
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
412
BRACKET V2.11.02
Price
N/A
412A
BRACKET V2.11.02
Price
N/A
413
Now: PLW01
LOCK WASHER 5/16
Price
N/A
414
Now: PS42M
PHLP HD SCR M8-1.25 X 35
Price
N/A
415
CAP SCREW M8-1.25 X 16
Price
N/A
417
*DISCD*REDUCER CASING V2.11.02
Price
N/A
417A
*DISCD*REDUCER CASING V2.11.02
Price
N/A
418
BRACKET
Price
N/A
419
Now: PW07
FLAT WASHER 5/16
Price
N/A
420
Now: PLW01
LOCK WASHER 5/16
Price
N/A
421
Now: PS04M
PHLP HD SCR M8-1.25 X 20
Price
N/A
422
BEARING HOUSING
Price
N/A
423
BALL BEARING 6001ZZ
Price
N/A
424
SPHERICAL BEARING PB10
Price
N/A
425
LOCK WASHER 10MM
Price
N/A
426
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
427
LOCK WASHER 10MM
Price
N/A
428
Now: PN43M
ACORN NUT M10-1.5
Price
N/A
429
LOCK WASHER 12MM
Price
N/A
430
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
431
CAM
Price
N/A
432
Now: PK42M
KEY 6 X 6 X 30
Price
N/A
433
Now: PW01M
FLAT WASHER 8MM
Price
N/A
434
Now: PLW01
LOCK WASHER 5/16
Price
N/A
435
Now: PS04M
PHLP HD SCR M8-1.25 X 20
Price
N/A
436
DRIVE WHEEL
Price
N/A
437
Now: PW06M
FLAT WASHER 12MM
Price
N/A
438
LOCK WASHER 12MM
Price
N/A
439
CAP SCREW M12-1.75 X 25
Price
N/A
MANUAL
MANUAL FOR G9984 04/02
Price
N/A
