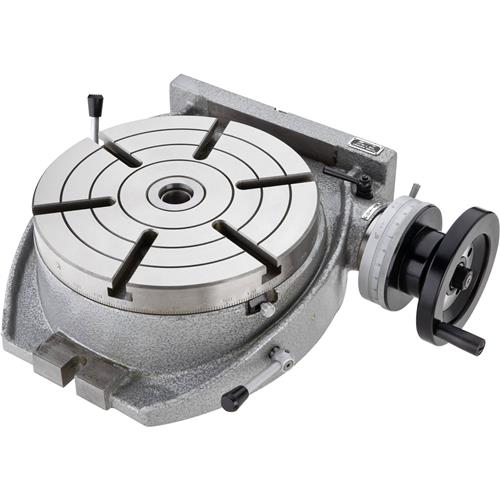

G9293 10" Horizontal/Vertical Rotary Table
This rugged, yet accurate rotary table will provide years of service.
A rotary table allows drilling or cutting at exact intervals around vertical and horizontal axes.
The G9293 10" Rotary Table can be used in either the horizontal or vertical position for a variety of milling applications.
These different operations include milling eccentric features, cutting arcs, create large diameter holes, and circular profiles.
The table has an accuracy runout of 0.0005" and parallelism and squareness of 0.0003".
Like all Grizzly rotary tables, the G9293 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The G9293 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your rotary table.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the rotary table may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
SPECIFICATIONS:
- Size: 10"
- T-Slot size: 7/16"
- Center Hole: MT #3
- Mounting hole size: 1/2"
- Approximate weight: 122 lbs.
FEATURES:
- Can be used in horizontal or vertical position
- 10 second vernier scale
- Positive dual action table locks
- Oil immersed gears
