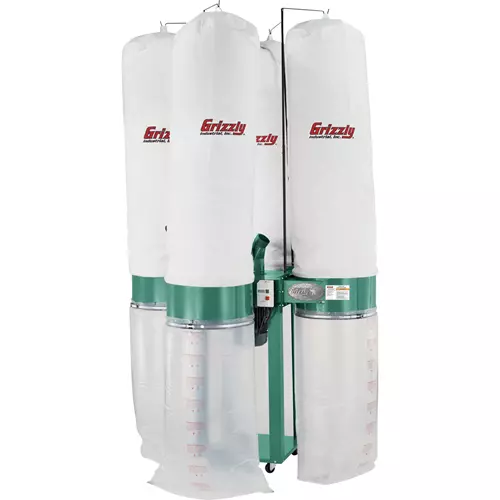

Grizzly G0508 - 10 HP Industrial Dust Collector

Controlling dust in a large shop can be a challenging task, but this new 10 HP dust collector will make it child's play. Features 6700 CFM air suction capacity, 21 static pressure, 0.3 micron bag filters and a five port intake manifold. Four heavy-duty plastic collection bags (with a total of 53 cubic feet of storage capacity) will easily allow you to collect from the biggest chip and dust producing machines all day long without emptying. Warning: Keep small animals clear of intake openings--this dust collector is extremely powerful!

Features:

• TEFC induction motor
• Magnetic switch
• Formed steel base with six - 4" casters
• Welded, 1/4" steel radial impeller
• 0.3 Micron bag filters
• Heavy-duty plastic bottom bags
• Balanced steel impeller

Specifications:

• Air suction capacity: 6700 CFM
• Static pressure: 14-3/4"
• Intake manifold: Five - 4" ports
• Intake port with manifold removed: 9"
• Impeller size: 14-3/4"
• Upper bag size (X 4): 23-5/8 x 70-3/4"
• Lower bag size (X 4): 23-5/8" x 47-1/4"
• Lower bag area total: 53 cubic feet
• Motor: 10 HP, 220V, 3-phase, 32 amp, 3450 RPM
• Overall dimensions: 61" W x 61" D x 134-1/4" T
• Approx. shipping weight: 528 lbs.
