Item# G0873 Model# G0873

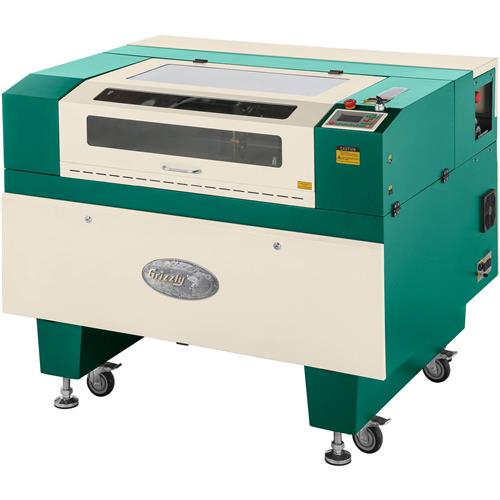

Grizzly G0873 - 100W 23" x 35" CNC Laser Cutter/Engraver

$7,995.00
+$299.00  Freight
+$0.00  Oversize

G0873 100W 23" x 35" CNC Laser Cutter / Engraver

The G0873 23" x 35" CNC Laser / Engraver is easy to use, makes quick cutting, and engraves ultra-fine details.

Thanks to the 100W CO2 laser, the G0873 works through a huge array of materials types at speeds over 1200 inches per minute.

These material types include: acrylic, plywood sheet goods, leather, and much more.

The G0873 is not designed to cut metal, but will engrave.

The autofocusing laser produces a perfect cut each time thanks to the stepper driven gantry on sealed cartridge bearing rails.

It is able to cut one square millimeter features at a resolution better than 0.05mm!

Like all of the Grizzly CNC laser cutters, the G0873 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The Grizzly Technical Support team is U.S. based. Parts for the CNC laser cutter may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Power requirement: 110V, single-phase, 20A
  • X-Axis motor: Stepper, 5.8A
  • Y-Axis motor: Stepper, 5.8A
  • Z-Axis motor: Stepper, 4.2A
  • Laser type: Sealed CO2 laser tube
  • Laser power: 100W
  • Wavelength: 10,600nm
  • Laser focus: Automatic
  • Cutting speed: 0–1200 in./min.
  • Minimum shaping character: 0.04" x 0.04"
  • Resetting position accuracy: +-0.002"
  • Maximum cutting height: 7"
  • Cutting accuracy: 0.05mm
  • Table dimensions: 23-1/2" x 35-1/2"
  • Worktable adjustment: motorized up and down table
  • Overall dimensions: 54" W x 43" D x 43-1/2" H
  • Approximate shipping weight: 705 lbs.

FEATURES:

  • Wireless networking connectivity
  • LCD control panel
  • Automatic tool height adjustment
  • 7" height capacity with powered Z-axis
  • Sealed cartridge bearing rails
  • Auxiliary power for exhaust fan and circulating water cooler
  • USB Port
  • Includes: Extraction fan, air exhaust hose, water cooler, honeycomb table, air pump, and design software
View More Details
Add to Cart
Backordered - More on the way Order today to secure your spot in line. Your credit card will not be charged until we ship your product and you may cancel at any time.

Accessories

Recommended For You

Overview

G0873 100W 23" x 35" CNC Laser Cutter / Engraver

The G0873 23" x 35" CNC Laser / Engraver is easy to use, makes quick cutting, and engraves ultra-fine details.

Thanks to the 100W CO2 laser, the G0873 works through a huge array of materials types at speeds over 1200 inches per minute.

These material types include: acrylic, plywood sheet goods, leather, and much more.

The G0873 is not designed to cut metal, but will engrave.

The autofocusing laser produces a perfect cut each time thanks to the stepper driven gantry on sealed cartridge bearing rails.

It is able to cut one square millimeter features at a resolution better than 0.05mm!

Like all of the Grizzly CNC laser cutters, the G0873 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The Grizzly Technical Support team is U.S. based. Parts for the CNC laser cutter may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Power requirement: 110V, single-phase, 20A
  • X-Axis motor: Stepper, 5.8A
  • Y-Axis motor: Stepper, 5.8A
  • Z-Axis motor: Stepper, 4.2A
  • Laser type: Sealed CO2 laser tube
  • Laser power: 100W
  • Wavelength: 10,600nm
  • Laser focus: Automatic
  • Cutting speed: 0–1200 in./min.
  • Minimum shaping character: 0.04" x 0.04"
  • Resetting position accuracy: +-0.002"
  • Maximum cutting height: 7"
  • Cutting accuracy: 0.05mm
  • Table dimensions: 23-1/2" x 35-1/2"
  • Worktable adjustment: motorized up and down table
  • Overall dimensions: 54" W x 43" D x 43-1/2" H
  • Approximate shipping weight: 705 lbs.

FEATURES:

  • Wireless networking connectivity
  • LCD control panel
  • Automatic tool height adjustment
  • 7" height capacity with powered Z-axis
  • Sealed cartridge bearing rails
  • Auxiliary power for exhaust fan and circulating water cooler
  • USB Port
  • Includes: Extraction fan, air exhaust hose, water cooler, honeycomb table, air pump, and design software
