Item# H7565 Model# H7565

Grizzly H7565 - 14" Jack Plane, Corrugated Sole

$48.95
+$0.00  Shipping
+$0.00  Oversize

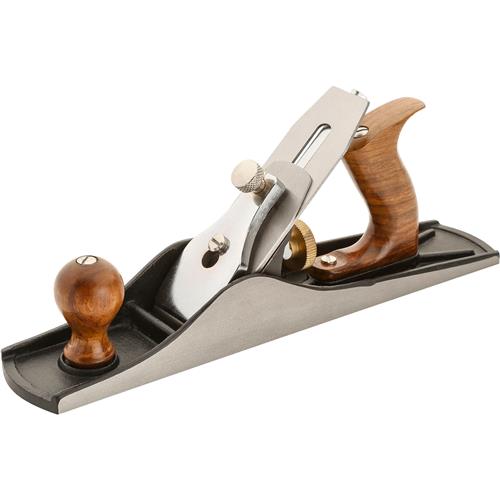

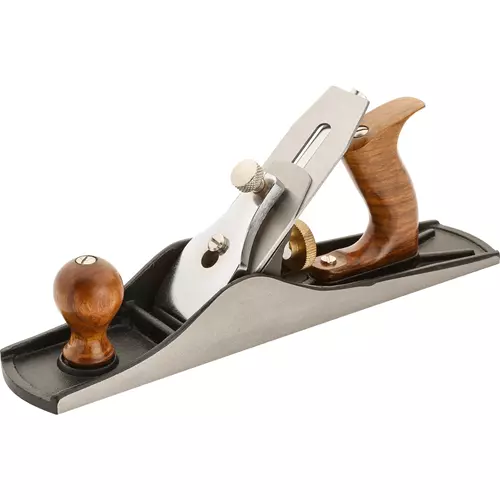

H7565 14" Corrugated Sole Jack Plane

A beautifully made corrugated sole jack plane with precision fit and finish.

Jack Planes (from “jack of all trades”) or fore planes are general-purpose utility planes that shave large amounts of material from rough stock and bring it closer to final size.

The H7565 14" Corrugated Sole Jack Plane can be useful for smoothing and jointing a flat surface as well, depending on the size of the workpiece.

The 14" ground corrugated and flat sole improves sliding action by reducing friction on the workpiece as there is less metal surface area of metal in contact with the wood.

The corrugations can also hold paraffin or wax to apply a finish simultaneously.

An additional benefit would be having less material to flatten should the plane sole change shape.

The chip breaker helps ''break'' and curl the shavings to minimize tear out ahead of the cutting edge. It also supports the blade to reduce chatter.

The mouth opening is easy to adjust because of the knurled brass adjusting nut.

Features include a hardwood handle and front knob, full plane iron adjustments, cast-iron base, and frog and lever caps.

Like all Grizzly planes, the H7565 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the plane are available online and shipped from the Grizzly parts warehouse in Springfield, MO.

View More Details
Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Videos
Overview

H7565 14" Corrugated Sole Jack Plane

A beautifully made corrugated sole jack plane with precision fit and finish.

Jack Planes (from “jack of all trades”) or fore planes are general-purpose utility planes that shave large amounts of material from rough stock and bring it closer to final size.

The H7565 14" Corrugated Sole Jack Plane can be useful for smoothing and jointing a flat surface as well, depending on the size of the workpiece.

The 14" ground corrugated and flat sole improves sliding action by reducing friction on the workpiece as there is less metal surface area of metal in contact with the wood.

The corrugations can also hold paraffin or wax to apply a finish simultaneously.

An additional benefit would be having less material to flatten should the plane sole change shape.

The chip breaker helps ''break'' and curl the shavings to minimize tear out ahead of the cutting edge. It also supports the blade to reduce chatter.

The mouth opening is easy to adjust because of the knurled brass adjusting nut.

Features include a hardwood handle and front knob, full plane iron adjustments, cast-iron base, and frog and lever caps.

Like all Grizzly planes, the H7565 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the plane are available online and shipped from the Grizzly parts warehouse in Springfield, MO.
