Item: G8146 | Model: G8146

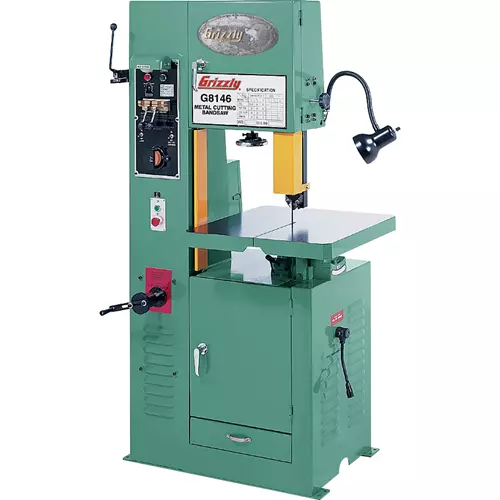

Grizzly G8146 - 15-3/4" Vertical Metal-Cutting Bandsaw
This new metal-cutting workhorse will cut through materials from aluminum to tough tool steels easily. The table tilts in tow directions allowing compound angle cuts. Tubing, angle iron, stacked cuts will be no problem with the 2 HP, 220V motor. You can even do internal cuts by using the on-board blade welder to position the blade within the workpiece!
Features:
Specifications:
Features:
- Variable speeds range from 75 - 1170 FPM
- Blade welding station includes cutter, welder, annealer and grinder
- Left , right, forward and back table tilting control
- Upper and lower blade guides
- Integrated chip pan
- Work light
- Wheel brush
Specifications:
- Maximum cutting height: 10-9/16"
- Throat depth: 15-3/4"
- Length of saw blade: 130-3/4" - 135-7/16"
- Blade width: 1/8" - 3/4"
- Variable-speed: 75 - 1170 FPM
- Main motor / Grinder motor: 2 HP / 1/8 HP
- Electric welder: 5.0 KVA
- Table tilt: 45 degrees right, 15 degrees left, 10 degrees forward and back
- Table height: 38-3/4"
- Table size: 21-5/8" x 23-3/4"
- Overall dimensions: 71-1/4" x 42-1/2" x 28-1/2"
- Net weight: 940 lbs.
