Item# G0477 Model# G0477

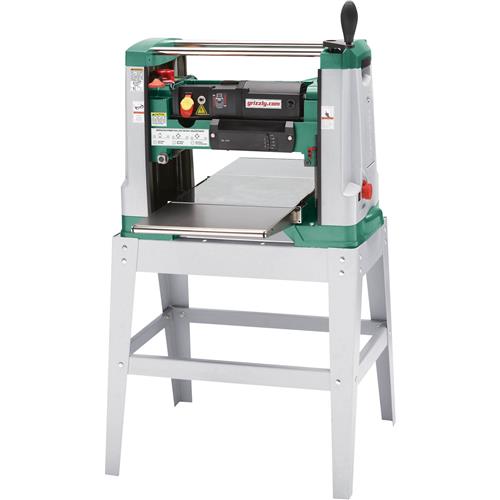

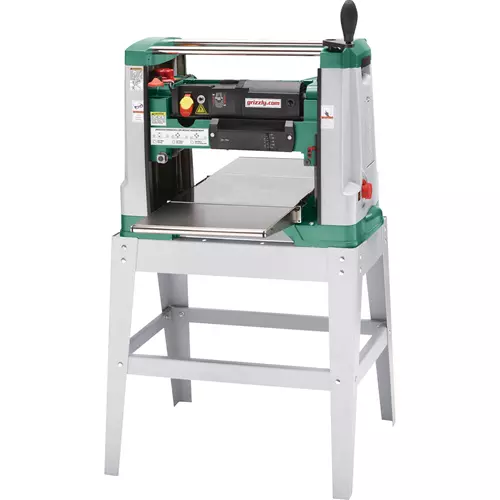

Grizzly G0477 - 15" Planer / Moulder
Most planer/moulders are just too heavy to be called portable. That's why we are pleased to introduce our new portable G0477 Planer/Moulder. A powerful universal motor and high speed cutterhead will make quick and convenient work out of your planing and moulding jobs. Easy knife changes along with a large selection of profiles adds versatility and the built-in dust collection really makes cleanup a breeze. A sturdy stand, extension tables, depth stop and depth of cut gauge are just some of the features of this well thought out and equipped machine. Lightweight, yet rugged, this is sure to be a hit either in your shop or on the job site.View More Details
- Motor: 2-1/2 HP, 110V, single-phase
- Amps: 12
- Maximum cutting width: 15"
- Maximum cutting height: 6"
- Minimum stock thickness: 1/8"
- Minimum stock length: 17"
- Maximum cutting depth: 3/32"
- Feed rate: 11 FPM & 22 FPM
- Cutterhead diameter: 3-15/64"
- Number of knives: 2 (reversible)
- Cutterhead speed: 5,500 RPM
- Cuts per minute: 11,000
- Feed roller adjustment: 25/32"
- Table size: 15" x 16"
- Preset thickness stops: 1/8", 1/4", 1/2", 3/4", 1" & 1-1/4"
- Approximate shipping weight: 181 lbs.
