Item# G0874 Model# G0874

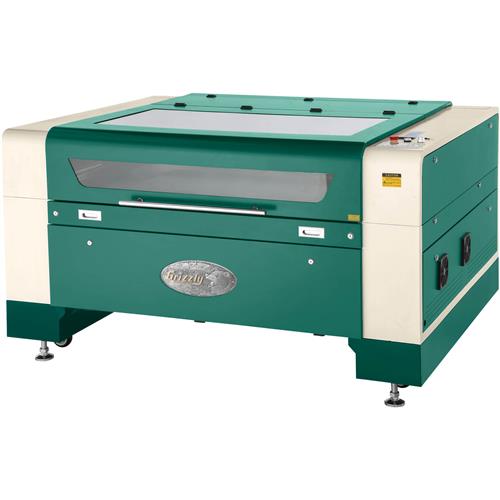

Grizzly G0874 - 150W 35" x 51" CNC Laser Cutter/Engraver

$10,995.00
+$425.00  Freight
+$0.00  Oversize

G0874 150W 35" x 51" CNC Laser Cutter / Engraver

A simple-to-use CNC laser with LCD screen display and wireless networking connectivity.

The G0874 150W 35" x 51" CNC Laser Cutter / Engraver is capable of making hefty cuts look easy.

Equipped with a heavy duty 150W CO2 laser, this machine makes quick work of cuts through various material types, such as acrylic, plywood sheet goods, leather, and much more.

The G0874 features a massive 35" x 51" vented table and with laser speeds up to 945 inches per minute, you can perform engraving operations lightning fast!

The autofocusing laser produces a perfect cut each time and with the stepper driven gantry on sealed cartridge bearing rails.

It is able to cut one square millimeter features at a resolution better than 0.05mm.

Like all of the Grizzly CNC laser cutters, the G0873 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The Grizzly Technical Support team is U.S. based. Parts for the CNC laser cutter may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Power requirement: 110V, single-phase, 20A
  • X-Axis motor: Stepper, 5.8A
  • Y-Axis motor: Stepper, 5.8A
  • Z-Axis motor: Stepper, 4.2A
  • Laser type: Sealed CO2 laser tube
  • Laser power: 150W
  • Wavelength: 10,600nm
  • Laser focus: Automatic
  • Cutting speed: 0–945 in./min.
  • Minimum shaping character: 0.04" x 0.04"
  • Resetting position accuracy: +-0.002"
  • Maximum cutting height: 7"
  • Cutting accuracy: 0.05mm
  • Table dimensions: 51-1/2" x 35-3/4"
  • Worktable adjustment: motorized up and down table
  • Overall dimensions: 74" W x 61" D x 42" H
  • Approximate shipping weight: 1288 lbs.

FEATURES:

  • Crystal-clear LCD screen display
  • Wireless networking connectivity
  • Auto-focus laser head
  • Motorized table height adjustment
  • Water chiller unit included
  • Drop-down doors for extra-large workpieces
  • Automatic exhaust fan
  • Closed-loop cooling system
  • Includes: Extraction fan, air exhaust hose, water chiller, honeycomb table, air pump, 150W laser tube and design software
