Item# G0513A40 Model# G0513A40

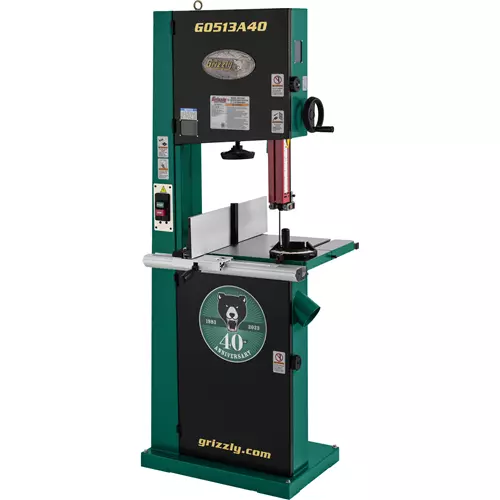

Grizzly G0513A40 - 17" 2 HP Bandsaw - 40th Anniversary Edition

17" 2 HP Bandsaw - 40th Anniversary Edition-img-0
17" 2 HP Bandsaw - 40th Anniversary Edition-img-1
17" 2 HP Bandsaw - 40th Anniversary Edition-img-2
17" 2 HP Bandsaw - 40th Anniversary Edition-img-3
17" 2 HP Bandsaw - 40th Anniversary Edition-img-4
17" 2 HP Bandsaw - 40th Anniversary Edition-img-5
17" 2 HP Bandsaw - 40th Anniversary Edition-img-6
17" 2 HP Bandsaw - 40th Anniversary Edition-img-7
17" 2 HP Bandsaw - 40th Anniversary Edition-img-8
17" 2 HP Bandsaw - 40th Anniversary Edition-img-9
17" 2 HP Bandsaw - 40th Anniversary Edition-img-10
17" 2 HP Bandsaw - 40th Anniversary Edition-img-11
17" 2 HP Bandsaw - 40th Anniversary Edition-img-12
17" 2 HP Bandsaw - 40th Anniversary Edition-img-13
$1,295.00
+$249.00 Freight
+$0.00  Oversize
  • Motor: 2 HP
  • Max cutting width: 16-1/8 in.
  • Max cutting height: 12-1/8 in.
  • Table size: 17 in. x 17 in.
  • Wheel type: Computer-Balanced Cast Aluminum
  • Blade size: 131-1/2 in.
  • Quick blade change: Yes
  • Overall height: 73 in.
  • Shipping weight: 364 lbs.

Hover to View Details

Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Overview

G0513A40 40th Anniversary 17" 2 HP Bandsaw

The newest addition to the lineup of production-ready Grizzly 17" bandsaws.

The limited edition 40th Anniversary G0513A40 17" 2 HP Bandsaw offers an eye-catching black on green color scheme and custom features.

The upgraded 6" x 23" two-position resaw fence has an adjustable resaw bar. When using the resaw bar, it allows you to “steer” workpieces through the blade while still having the support of the fence.

The 2 HP motor powers through wood up to a maximum 12" cutting capacity and the 16-1/4" throat offers lots of room to move.

The precision-ground cast-iron table has geared micro-adjusting for dialing in the perfect angle between 10° left and 45° to the right.

A blade tracking window allows you to adjust the blade tracking with the machine on and the wheel covers closed.

Additional features include a heavy-duty miter gauge, quick-release blade tension lever, dual 4" dust ports, and ball-bearing blade guides. These features are a valuable addition to a machine with an affordable price tag.

For a full range of replacement and resaw blades for your G0513A40, click here.

Like all Grizzly machines, the G0513A40 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The G0513A40 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your bandsaw.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for your machine may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA Certified

SPECIFICATIONS:

  • Motor: 2 HP, 110V/220V (prewired 220V), single-phase, 20A/10A
  • Cutting capacity: 16-1/4" left of blade
  • Maximum cutting height: 12-1/8"
  • Blade size: 131-1/2" long
  • Blade width range: 1/8"–1" wide
  • Blade speeds: 1700, 3500 FPM
  • Table size: 17" x 17" x 1-1/2" thick
  • Table tilt: 10° left, 45° right
  • Fence size: 6" H x 23" L
  • Floor to table height: 37-1/2"
  • Footprint: 27" W x 18" D
  • Overall dimensions: 32" W x 32" D x 73" H
  • Approximate shipping weight: 364 lbs.

FEATURES:

  • Premium extruded-aluminum fence
  • Resaw bar
  • Precision-ground cast-iron table
  • Micro-adjusting geared table
  • Ball bearing blade guides
  • Rack-and-pinion blade guide adjustment
  • Quick-change blade release
  • Blade tension indicator
  • Blade height measurement scale
  • Blade tracking window
  • Hinged wheel covers with safety locks
  • Two 4" dust ports
  • Includes miter gauge
  • Includes 1/2" 6-TPI hook blade
