Item: G0506 | Model: G0506

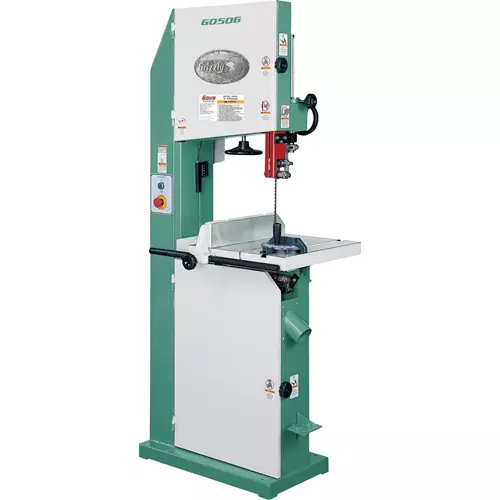

Grizzly G0506 - 18" Heavy-Duty Bandsaw - 2 HP
Look no further. This is the largest and heaviest 18" bandsaw we've ever offered. Built like our massive 26-1/2" Re-Saw Bandsaw, this workhorse offers a solid welded steel frame, precision ground cast iron table, rack and pinion blade guide adjustment, and quick-stopping foot brake. The only thing about this bandsaw that isn't heavy-duty is the price - it's SUPER!
Features:
Features:
- Design type: 2 wheel floor model
- Table: 24"W x 19-3/4"D x 1-7/8" thick
- Height of machine: 72"
- Height from floor to table: 35-3/4"
- Width of unit: 32"
- Depth of unit: 29-1/2"
- Cutting capacity left of blade: 17"
- Cutting capacity
- height: 9-3/4"
- Table: Precision ground cast iron
- Table tilts 45º
- Wheels: Fully balanced cast iron with polyurethane tires
- Rip fence: Precision ground cast iron
- Wheel covers: Pre-formed steel
- Guides: Roller discs
- Motor type: TEFC capacitor start induction
- Horsepower: 2 HP
- Phase/Cycle: Single-phase/60Hz
- Voltage: 220V
- Amps: 12
- RPM: 1725
- Bearings: Shielded and permanently lubricated ball
- Range of blade sizes: 3/8" - 1"
- Standard blade length: 148-1/2"
- Blade speed: 4610 FPM
- Weight in place: 462 lbs.
- Approximate shipping weight: 616 lbs.
