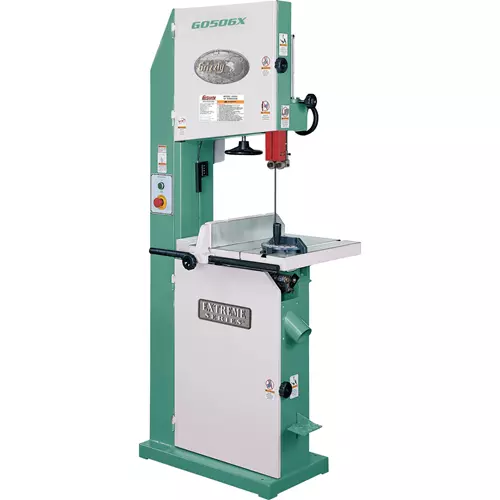

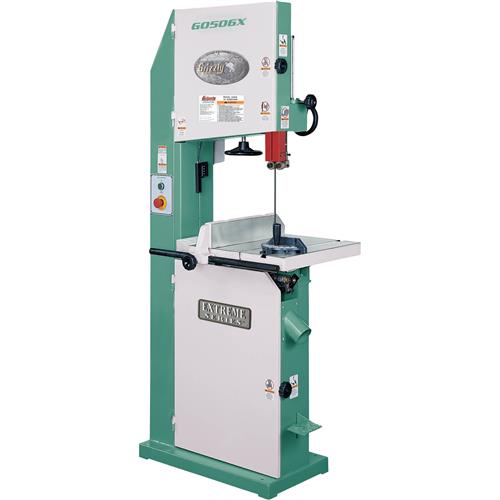

Grizzly G0506X - 18" Single-Phase Super Heavy-Duty Bandsaw

Look no further. This is the largest and heaviest 18" bandsaw we've ever offered. Built like our massive 26 1/2" Re-Saw Bandsaw, this workhorse offers a solid welded steel frame, precision ground cast iron table, rack and pinion blade guide adjustment, and quick stopping foot brake. Even the table trunnions are cast iron!

Specifications:

  • Motor: 3 HP, 220V, single-phase, 60 Hz, TEFC capacitor start induction
  • Amps: 12
  • RPM: 1725
  • Precision ground cast iron table
  • Table size: 24"W x 19 3/4"D x 1 7/8" thick
  • Table tilt: 45 deg.
  • Floor to table height: 35 3/4"
  • Cutting capacity/throat: 17" left of blade
  • Maximum cutting height: 9 3/4"
  • Blade size: 148 1/2" long
  • Range of blade sizes: 3/8" - 1"
  • Blade speed: 4610 FPM
  • Wheels: fully balanced cast iron with polyurethane tires
  • Precision ground cast iron rip fence
  • Wheel covers: Pre-formed steel
  • Guides: Roller discs
  • Dust port: 4"
  • Bearings: Shielded and permanently lubricated
  • Overall size: 72"H x 32"W x 29 1/2"D
  • Approximate shipping weight: 537 lbs.
  • Rack & pinion guide adjustment
  • Hinged wheel covers
View More Details

Accessories

Image for D2058A Super Heavy-Duty Mobile Base Item# D2058A $165.00 Add Image for H4815 148-1/2" x 1/2" x .025" x 6 TPI Hook Bandsaw Blade Item# H4815 $19.95 Add Image for H4816 148-1/2" x 3/4" x .032" x 3 TPI Hook Bandsaw Blade Item# H4816 $23.95 Add Image for H4813 148-1/2" x 3/8" x .025" x 10 TPI Raker Bandsaw Blade Item# H4813 $18.95 Add Image for H4812 148-1/2" x 3/8" x .025" x 6 TPI Hook Bandsaw Blade Item# H4812 $18.95 Add
Shop All Accessories
Overview Specifications & Comparisons Specification Sheet Manual Parts List Buy Parts
Overview
Look no further. This is the largest and heaviest 18" bandsaw we've ever offered. Built like our massive 26 1/2" Re-Saw Bandsaw, this workhorse offers a solid welded steel frame, precision ground cast iron table, rack and pinion blade guide adjustment, and quick stopping foot brake. Even the table trunnions are cast iron!

Specifications:

  • Motor: 3 HP, 220V, single-phase, 60 Hz, TEFC capacitor start induction
  • Amps: 12
  • RPM: 1725
  • Precision ground cast iron table
  • Table size: 24"W x 19 3/4"D x 1 7/8" thick
  • Table tilt: 45 deg.
  • Floor to table height: 35 3/4"
  • Cutting capacity/throat: 17" left of blade
  • Maximum cutting height: 9 3/4"
  • Blade size: 148 1/2" long
  • Range of blade sizes: 3/8" - 1"
  • Blade speed: 4610 FPM
  • Wheels: fully balanced cast iron with polyurethane tires
  • Precision ground cast iron rip fence
  • Wheel covers: Pre-formed steel
  • Guides: Roller discs
  • Dust port: 4"
  • Bearings: Shielded and permanently lubricated
  • Overall size: 72"H x 32"W x 29 1/2"D
  • Approximate shipping weight: 537 lbs.
  • Rack & pinion guide adjustment
  • Hinged wheel covers
