Item: G0525 | Model: G0525

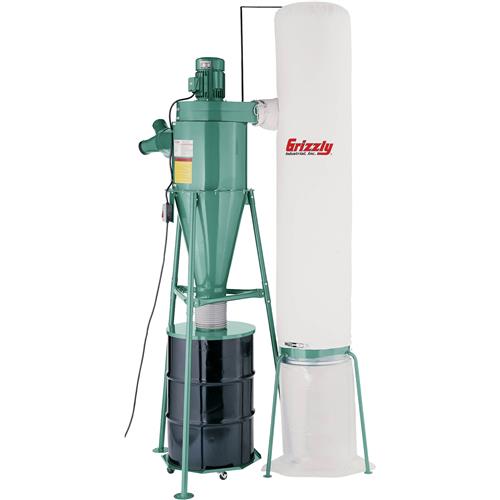

Grizzly G0525 - 3 HP, 2 Stage Cyclone Dust Collector
This Two Stage Dust Collector separates heavy particles from the fine particles before they go through the impeller and drops them into your steel or plastic 55 gallon drum. A drum dolly is included for easy mobility. The fine particles are trapped by the filter bag and fall into the disposable plastic bag for easy clean-up. The three-port intake manifold handles multiple machines simultaneously, or it can be removed to connect the dust collector to a mainline duct.
55 gallon drum not included.
SPECIFICATIONS:
55 gallon drum not included.
SPECIFICATIONS:
- Intake hole size: 8"
- Intake adapter hole size (1): 4" x 3 Hole
- Bag size: 19-5/8" x 32-1/4"
- Bag capacity: 33 gallon
- Bag material: Plastic
- Impeller size: 13"
- Suction capacity: 2100 CFM
- Static pressure (inch of water): 14"
- Overall dimensions of base: 24-3/4" x 24-3/4"
- Height with bag inflated: 120"
- Base construction: Pre-formed steel
- Radial impeller: 3/32" steel, riveted
- Motor: TEFC capacitor-start induction, 3 HP, single-phase, 220V
- Amps: 18
- Cycle/RPM: 60 Hertz/3450 RPM
- Switch: On/off push-button
- 1 micron filter bag
- Approximate shipping weight: 228 lbs.
