Item# H5931 Model# H5931

Grizzly H5931 - 4 pc. Center Drill Set 82

$10.95
+$0.00  Shipping
+$0.00  Oversize

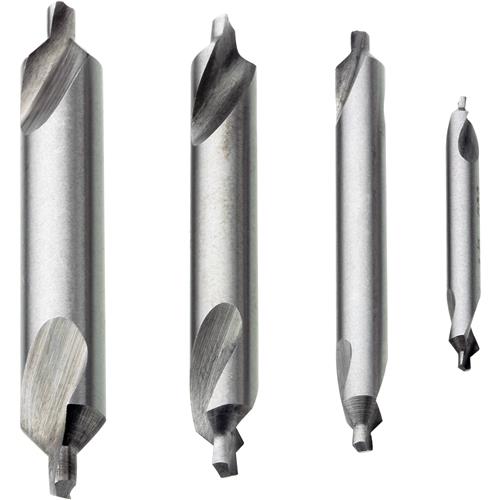

H5931 4-Piece 82° Center Drill Set

The H5931 Center drills consist of a pilot drill on one side and a countersink on the other.

These center drills are used to cut holes in the center of a piece of stock on a metalworking lathe.

They all have a live center angle of 82° which is common for use with flat head screws.

The double ended H5930 HSS Center Drills are precision ground and includes sizes 1-4.

HSS (high-speed steel) has been heat treated for hardness and wear resistance, which keeps a sharp edge longer than other carbon steels.

The Grizzly Customer Service and Technical Support Teams are U.S. based.

SPECIFICATIONS:

  • Material: High-speed steel
  • Angle: 82°
  • Size 1: Body Dia. 1/8", Drill Dia. 3/64", O.A. Length 1-1/4"
  • Size 2: Body Dia. 3/16", Drill Dia. 5/64", O.A. Length 1-7/8"
  • Size 3: Body Dia. 1/4", Drill Dia. 7/64", O.A. Length 2"
  • Size 4: Body Dia. 5/16", Drill Dia. 1/8", O.A. Length 2-1/8"
View More Details
Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Overview

H5931 4-Piece 82° Center Drill Set

The H5931 Center drills consist of a pilot drill on one side and a countersink on the other.

These center drills are used to cut holes in the center of a piece of stock on a metalworking lathe.

They all have a live center angle of 82° which is common for use with flat head screws.

The double ended H5930 HSS Center Drills are precision ground and includes sizes 1-4.

HSS (high-speed steel) has been heat treated for hardness and wear resistance, which keeps a sharp edge longer than other carbon steels.

The Grizzly Customer Service and Technical Support Teams are U.S. based.

SPECIFICATIONS:

  • Material: High-speed steel
  • Angle: 82°
  • Size 1: Body Dia. 1/8", Drill Dia. 3/64", O.A. Length 1-1/4"
  • Size 2: Body Dia. 3/16", Drill Dia. 5/64", O.A. Length 1-7/8"
  • Size 3: Body Dia. 1/4", Drill Dia. 7/64", O.A. Length 2"
  • Size 4: Body Dia. 5/16", Drill Dia. 1/8", O.A. Length 2-1/8"
