Item# H5685 Model# H5685

Grizzly H5685 - 4" Rotary Table w/ Clamps

$174.95
+$0.00  Shipping
+$0.00  Oversize

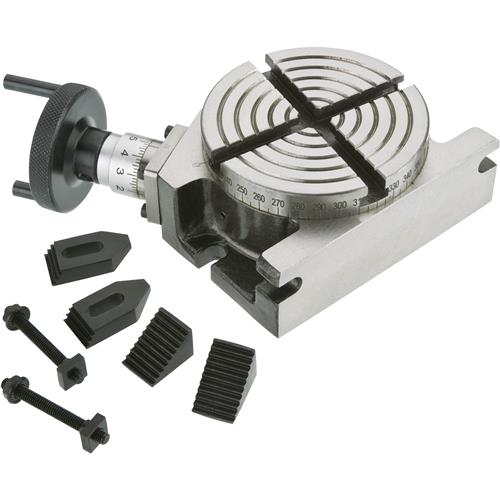

H5685 4" Rotary Table with Clamps

This remarkable little rotary table is priced affordably, too!

The perfect rotary table for all you model makers and those doing smaller, precision work.

Features a whole degree scale on the dial, worm gear drive, lash adjustment screw, reference lines and ball bearing rotary support

Comes supplied with 2 each: 6mm clamping studs-2 3/8" long, T-nuts, clamping straps and steps

Like all Grizzly rotary tables, the H5685 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the rotary table may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Size: 4"
  • Total T-slots: 4
  • T-Slot size: 6mm
  • Table height in horizontal position: 2-1/8"
  • Table height in vertical position: 4-1/8"
  • Approximate weight: 9 lbs.

FEATURES:

  • Can be used in horizontal or vertical position
