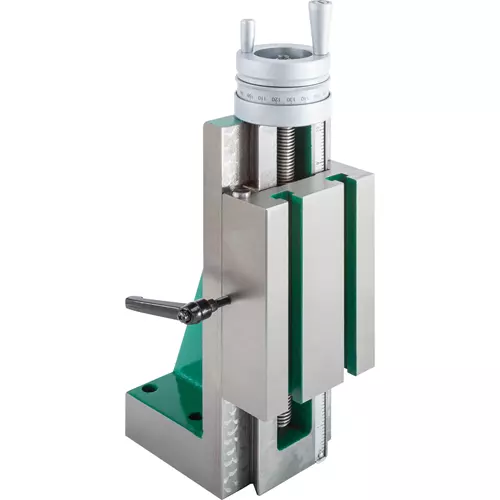

T31763 4" Vertical Slide Table

A stout and precise sliding table for cross slides of metal lathes during milling operations.

Securing parts for vertical milling operations has never been easier thanks to the T31763 4" Vertical Slide Table.

This table features heavy-duty construction including two 5/16" T-Slots for locking down your workpieces.

The table measures 3-15/16" x 5-7/8" and has 4-3/4" of vertical travel.

The dial has fine graduation of 0.0005" for precision drilling.

The T31763 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects.

The Grizzly Customer Service and Technical Support Teams are U.S. based.

Parts and accessories for Grizzly products are available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

• Lead screw: 10 TPI
• Graduations: 0.0005"
• Table size: 3-15/16" x 5-7/8"
• Vertical travel: 4-3/4"
• T-Slot size: 5/16"
• Mounting bolt hole: 4 @ 0.426 dia.
• Footprint: 3-15/16" x 5-9/16"
• Overall height: 14-1/8"
• Weight: 24 lbs.

FEATURES:

• Fine graduations (0.0005")
• Backlash is adjustable
• Table lock
• Quick reference inch scale with 1/8" divisions
