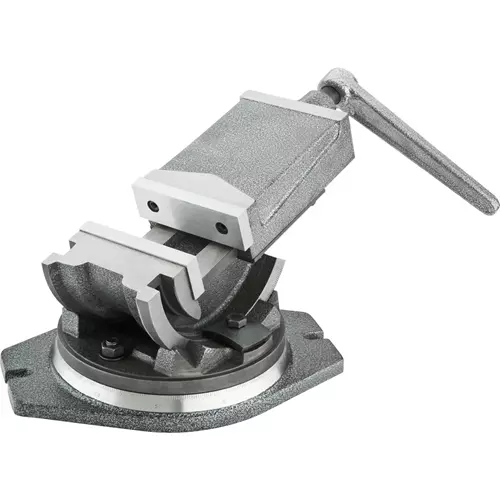

G7066 5" Tilting and Swiveling Milling Vise

A tilting and swiveling milling vise offers the ultimate in work set-up.

The G7066 5" Tilting and Swiveling Milling Vise features precision aligned jaws and easily accessible tilt and swivel clamps secure for positively worry-free operation.

The jaws measure 5" wide and 1-1/2" deep. The maximum opening is 5-11/16".

Mounting slots are 1/2" and spaced 10-1/2" apart, center to center.

SPECIFICATIONS:

• Overall Height: 6-3/4"
• Jaw Size: 5" X 1-1/2"
• Base to jaw height: 6-3/4"
• Base to mounting holes: 10-1/2"
• Base width: 9"
• Maximum jaw opening: 5-11/16"
• Approximate shipping weight: 48 lbs.

FEATURES:

• Tilts to 90 degrees
• Swivels 360 degrees
• 1-year limited warranty
