Item# G0893 Model# G0893

Grizzly G0893 - 6" Benchtop Jointer with Helical Cutterhead

6" Benchtop Jointer with Helical Cutterhead-img-0
6" Benchtop Jointer with Helical Cutterhead-img-1
6" Benchtop Jointer with Helical Cutterhead-img-2
6" Benchtop Jointer with Helical Cutterhead-img-3
6" Benchtop Jointer with Helical Cutterhead-img-4
6" Benchtop Jointer with Helical Cutterhead-img-5
6" Benchtop Jointer with Helical Cutterhead-img-6
6" Benchtop Jointer with Helical Cutterhead-img-7
  • Motor: 1.5 HP
  • Table size: 30 in. x 6-1/4 in.
  • Table type: Aluminum
  • Table adjustment: Swing
  • Cutterhead type: Helical
  • Cutterhead diameter: 1-7/8 in.
  • Max depth of cut: 1/8 in.
  • Fence size: 4-1/4 in. x 22 in.
  • Shipping weight: 56 lbs.

Hover to View Details

More on the way and expected to arrive on 12/6/2021 Order today to secure your spot in line. Your credit card will not be charged until we ship your product and you may cancel at any time.

Accessories

Recommended For You

Overview

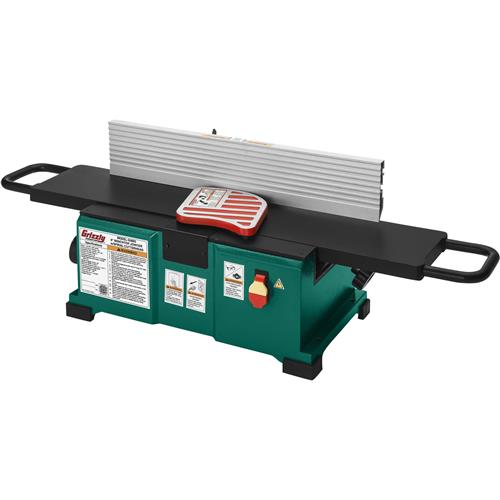

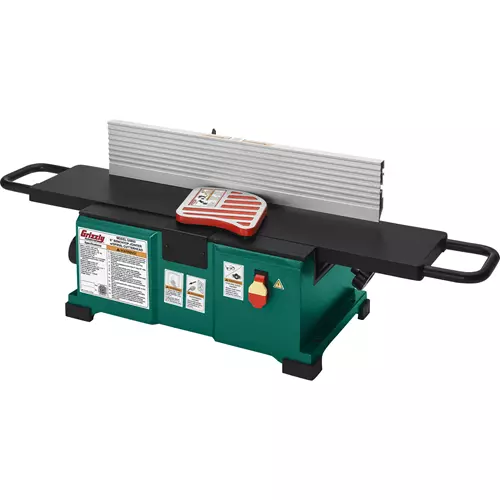

G0893 6" Benchtop Jointer with Helical Cutterhead

Finally, a benchtop jointer with a helical cutterhead!

Forget the hassle of changing knives and reap the benefits of carbide inserts with the Grizzly G0893 6" Benchtop Jointer with Helical Cutterhead.

Each insert can be rotated up to three times to provide a new sharp edge and leave silky-smooth surfaces on even the most figured hardwoods.

Exclusively featuring: grab handles on the table ends for portability, a baked-on table coating that provides a smooth-gliding surface and a built-in dust collection system that can be combined with a separate dust collector.

This feature-packed, one-of-a-kind benchtop jointer won't disappoint!

Like all Grizzly jointers, the G0893 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0893 manual was written by our U.S. based Documentation Department is packed with useful information.

The Grizzly Technical Support team is U.S. based. Parts and accessories for jointer are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

  • Motor: 1-1/2 HP, 120V, single-phase, 12A
  • Maximum width of cut: 6"
  • Maximum depth of cut: 1/8"
  • Cutterhead diameter: 1-7/8"
  • Cutterhead type: 3-row spiral with 18 inserts
  • Insert size & type: 15 x 15 x 2.5mm, indexable carbide
  • Cutterhead speed: 8,000 RPM
  • Table size: 6-1/4" x 30-3/8"
  • Fence size: 22-1/2" L x 4-5/16" H
  • Minimum workpiece length: 8"
  • Minimum stock thickness: 1/2"
  • Dust port size: 2-1/2"
  • Footprint: 11" x 19-1/2"
  • Overall dimensions: 36" W x 19" D x 12-1/2" H
  • Approx. shipping weight: 56 lbs.

FEATURES:

  • Fence stops at 45°, 90° & 135°
  • Grab handles on table ends for portability
  • Aluminum tables with low-friction coating
  • Built-in dust collection system with 2-1/2" dust port and collection bag
  • Two push blocks included
