Item: G0604ZX | Model: G0604ZX
Image for G0604ZX

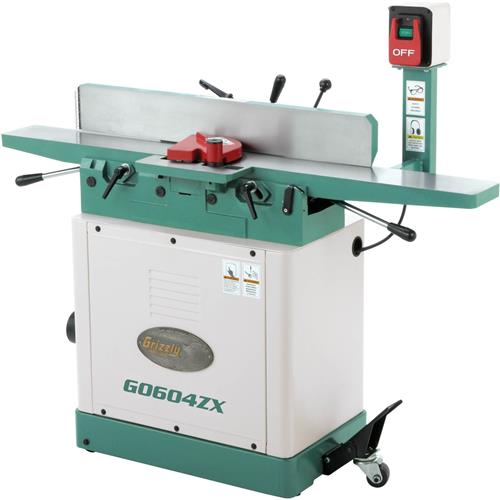

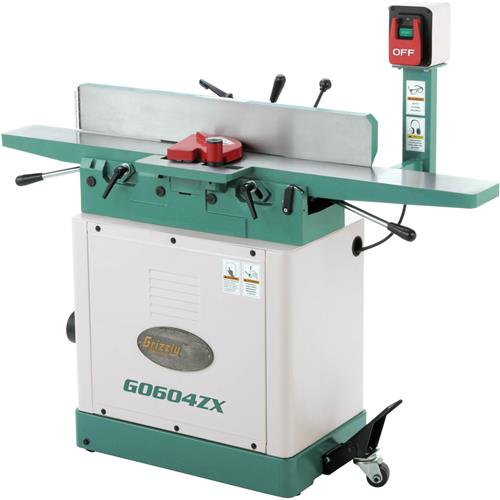

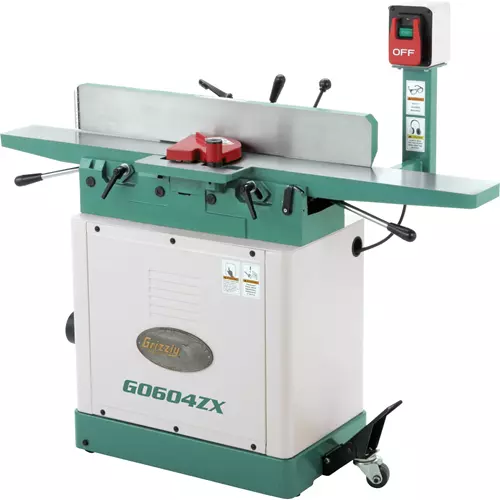

Building on the success of our larger G0490 8" parallelogram jointer, we have created a 6" model with everything you could want. The extra long infeed table and fence make for straighter cuts while the 1-1/2 HP motor gets the work done quickly. And with the built-in adjustment of the parallelogram design, you never need to worry about your tables not being parallel.

CSA certified meeting CSA C22.2 #71.2-08 and UL 987-7 standards!

Note on replacement inserts:

  • For models manufactured April, 2015 and later, use H7319 replacement inserts.
  • For models manufactured March, 2015 and earlier, use T21348 replacement inserts.

    • SPECIFICATIONS:

    • Motor: 1-1/2 HP, 120V/240V (prewired 120V), single-phase
    • Amps: 15A/7.5A
    • Precision-ground cast iron table
    • Table size: 6" x 55-1/2"
    • Floor to table height: 32-1/2"
    • Maximum depth of cut: 1/8"
    • Rabbeting capacity: 1/2"
    • Cutterhead diameter: 3"
    • Cutterhead: Spiral with 32 indexable carbide inserts
    • Cutterhead speed: 4800 RPM
    • Power transfer: V-belt drive
    • Switch: Push-button with large off paddle for safety
    • Fence system: Positive stops @ ±45° & 90°& 135°
    • Approximate shipping weight: 360 lbs.

    FEATURES:

    • Parallelogram table adjustment
    • Top-mounted switch controls
    • Center-mounted fence
    • Spiral cutterhead
    • Built-in mobile base
    • 4" dust port
    • Infeed and outfeed tables have lever control for convenient table height adjustment
    View More Details

    Accessories

    Image for T28417 20 Amp 250V NEMA L6-20 Single-Phase Twist Lock Plug Item# T28417 $18.95 Add Image for W1401 Safety Push Block - Large Item# W1401 $12.50 Add Image for G5562 Slipit, Silicone-Free Sliding Compound Gel 1 qt. Item# G5562 $28.95 Add
    Overview Specifications & Comparisons Specification Sheet Manual Parts List Buy Parts
    Overview

    Building on the success of our larger G0490 8" parallelogram jointer, we have created a 6" model with everything you could want. The extra long infeed table and fence make for straighter cuts while the 1-1/2 HP motor gets the work done quickly. And with the built-in adjustment of the parallelogram design, you never need to worry about your tables not being parallel.

    CSA certified meeting CSA C22.2 #71.2-08 and UL 987-7 standards!

    Note on replacement inserts:

  • For models manufactured April, 2015 and later, use H7319 replacement inserts.
  • For models manufactured March, 2015 and earlier, use T21348 replacement inserts.

    • SPECIFICATIONS:

    • Motor: 1-1/2 HP, 120V/240V (prewired 120V), single-phase
    • Amps: 15A/7.5A
    • Precision-ground cast iron table
    • Table size: 6" x 55-1/2"
    • Floor to table height: 32-1/2"
    • Maximum depth of cut: 1/8"
    • Rabbeting capacity: 1/2"
    • Cutterhead diameter: 3"
    • Cutterhead: Spiral with 32 indexable carbide inserts
    • Cutterhead speed: 4800 RPM
    • Power transfer: V-belt drive
    • Switch: Push-button with large off paddle for safety
    • Fence system: Positive stops @ ±45° & 90°& 135°
    • Approximate shipping weight: 360 lbs.

    FEATURES:

    • Parallelogram table adjustment
    • Top-mounted switch controls
    • Center-mounted fence
    • Spiral cutterhead
    • Built-in mobile base
    • 4" dust port
    • Infeed and outfeed tables have lever control for convenient table height adjustment
