Grizzly T32464 - 8" 4-Jaw Plain Back Scroll Chuck
Pricing Information

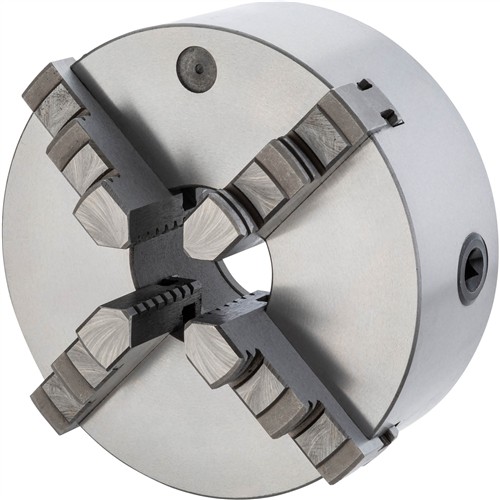

T32464 8" 4-Jaw Plain Back Scroll Chuck
A scroll chuck means that all jaws close together and are self-centering.
The T32464 8" 4-Jaw Plain Back Scroll Chuck has a semi-steel body and two sets of hardened jaws.
4-jaw self-centering chucks have firmer hold on the workpiece and also allow you to grip square pieces without switching chucks.
The scroll gear design allows a single chuck key to control all the jaws simultaneously.
Requires mounting plates.
The T32464 comes with a 1-year warranty which assures the unit is free from factory defects.
The Grizzly Customer Service and Technical Support Teams are U.S. based.
Parts for the chuck are available online and shipped from the Grizzly parts warehouse in Springfield, MO.
SPECIFICATIONS:
- Outer diameter: 7.872"
- Bore diameter: 2.585"
- Outer diameter clamping: 0.187" – 7.875"
- Inner diameter clamping: 2.450" – 7.875"
- Max speed: 2100 RPM*
- Approximate shipping weight: 36 lbs.
FEATURES:
- Fine-grain cast-iron body
- Scroll gear design provides single chuck key control of all jaws
- Universal plain back mounting
