H8371 Power Feed X-Axis

If you want to get the most out of your mill, you really need a power feed.

This power feed has all the torque needed for those milling machines with the big tables.

The infinitely adjustable speed control provides finishes not possible with manual control.

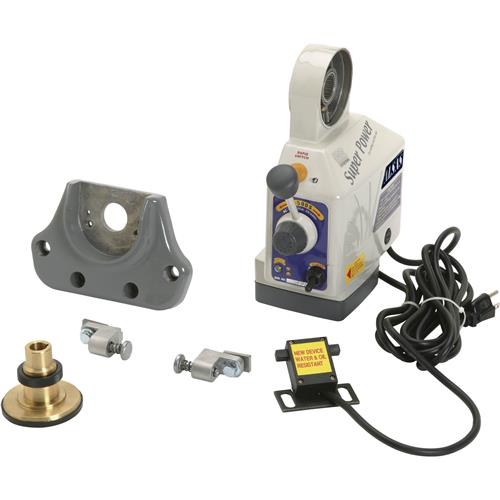

Includes bi-directional limit switch with stops, mounting bracket, bevel gear, and motor.

SPECIFICATIONS:

• Motor: 110V, 50/60 Hz
• Power: 100W
• Speed: Variable, 0–180 RPM
• Max RPM: 200 (Rapid traverse)
• Maximum torque: 650 in/lbs.
• Bevel drive gear: 4.8:1
• ALSGS: Model year prior to 2024
• ALSAS: Model year 2024 or newer
• Overall dimensions: 11-3/4" x 8-5/8" x 13-3/4"
• Approximate shipping weight: 16 lbs.
