Item: G8031 | Model: G8031

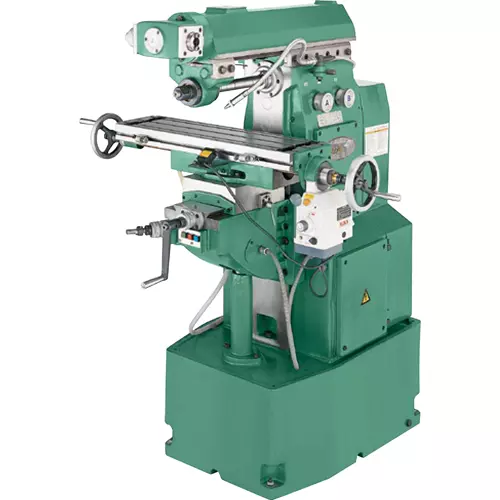

Image for G8031
Now you can have the rugged workhorse capability of a horizontal mill and the versatility of a vertical mill all in one machine. This industrial-duty machine features a table that swivels ±45° and a tilting vertical spindle. 2000 lbs. of machine provide rigidity and vibration dampening for heavy chatter-free cutting. A high quality, infinitely variable-speed, solid state power feed eases the workload and improves the finish. A built-in coolant pump assures long tool life and superior surface finishes. The adjustable outboard spindle support maximizes spindle rigidity. Gear cutters and shell mills can be handled with ease using the NT 30 horizontal holder. The vertical spindle is an R-8 taper.

Features:

  • Power feed included for table
  • Quick changeover from horizontal to vertical
  • Highly precise and rigidly constructed
  • Dual voltage capacity

Specifications:

  • Table working surface: 8-3/8" x 27-5/8"
  • Width of T-slot: 1/2"
  • Longitudinal travel: 12-1/2"
  • Cross travel: 7-3/32"
  • Vertical travel: 12-1/4"
  • Distance spindle center to worktable: 10-3/4"
  • Distance spindle nose to worktable: 12-3/4"
  • Shaft size: 1"
  • Max. swivel angle of worktable: ± 45°
  • Max. swivel of vertical milling head: ± 360°
  • No. of spindle speeds: 6
  • Range of spindle speeds: 63-968 RPM
  • Longitudinal feed rate: 0-200 RPM
  • Motor: 1-1/2 H.P, single phase
  • Coolant system: Independently switched
  • Horizontal spindle taper: NT 30
  • Vertical spindle taper: R-8
  • Approx. shipping weight: 2100 lbs.
View More Details
Overview Specification Sheet Buy Parts
Overview
Now you can have the rugged workhorse capability of a horizontal mill and the versatility of a vertical mill all in one machine. This industrial-duty machine features a table that swivels ±45° and a tilting vertical spindle. 2000 lbs. of machine provide rigidity and vibration dampening for heavy chatter-free cutting. A high quality, infinitely variable-speed, solid state power feed eases the workload and improves the finish. A built-in coolant pump assures long tool life and superior surface finishes. The adjustable outboard spindle support maximizes spindle rigidity. Gear cutters and shell mills can be handled with ease using the NT 30 horizontal holder. The vertical spindle is an R-8 taper.

Features:

  • Power feed included for table
  • Quick changeover from horizontal to vertical
  • Highly precise and rigidly constructed
  • Dual voltage capacity

Specifications:

  • Table working surface: 8-3/8" x 27-5/8"
  • Width of T-slot: 1/2"
  • Longitudinal travel: 12-1/2"
  • Cross travel: 7-3/32"
  • Vertical travel: 12-1/4"
  • Distance spindle center to worktable: 10-3/4"
  • Distance spindle nose to worktable: 12-3/4"
  • Shaft size: 1"
  • Max. swivel angle of worktable: ± 45°
  • Max. swivel of vertical milling head: ± 360°
  • No. of spindle speeds: 6
  • Range of spindle speeds: 63-968 RPM
  • Longitudinal feed rate: 0-200 RPM
  • Motor: 1-1/2 H.P, single phase
  • Coolant system: Independently switched
  • Horizontal spindle taper: NT 30
  • Vertical spindle taper: R-8
  • Approx. shipping weight: 2100 lbs.
